Beer tapping systems, beer coolers, dispensing systems and much more for tapping beer
A beer dispensing system, often also called a dispensing system or beverage dispensing system, is the prerequisite for filling beer from beer kegs, for example kegs, into drinking glasses. Good quality should always be ensured here, as several factors need to be taken into account for a perfect result:
- Temperature
- Carbon dioxide content
- Tap pressure
A professional dispensing system is standard in a restaurant, bar or pub. However, a high-quality beer dispensing system with the right accessories will also ensure a great atmosphere at any party at home. Tapping your own beer is not only fun, the result can also be convincing in terms of flavour and makes the barley juice from bottles and even from the popular can kegs look old. However, it is important to have a high-quality dispensing system, the right settings and a little practice. With the offers in our online shop, you can always be sure that you are only buying premium products in brewery quality at the best price. We are also available by telephone to provide you with advice and assistance - benefit from more than 25 years of experience in the field of beverage taps and accessories.
How does a beer dispensing system work?
Tapping systems or dispensing systems all work very similarly. The beer hose and the pressurised gas line, which is connected to a CO2 cylinder, are connected to the beer keg via the keg cap (or dispensing head). A pressure reducer allows the carbon dioxide (CO2) to flow into the beer keg so that both the carbon dioxide is formed in the beer and the beer is forced through the beer hose via a riser pipe at the outlet of the tap head. In this way, the beverage reaches the actual dispensing system, where it is usually cooled wet by a dry beer cooler or beer cooler and can be tapped at the beer or tap. Incidentally, a 2 kg bottle ofCO2 is sufficient for around 500 litres of freshly tapped beer.
Everything for beer dispensing from a single source
As a long-standing supplier of beverage taps and accessories, we offer everything "from keg to glass" in our online shop. In addition to tapping systems, tap heads and beer coolers, we also offer everything you need for cleaning beverage tapping systems. Compare our prices in what is probably the largest online shop for beverage dispensing systems and accessories. We always try to offer you the best price on the Internet. If you find the same item cheaper on the Internet, please contact us.
Python heat exchangerBK 90 Medi A water bath cooling (2/3 PS) Trace unit for water bath cooling (2/3 hp). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 3.7 A / 650 W Cooling capacity: 1105 W / 950 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg
Python BK 90 Medi water bath cooler (2/3 PS) Trace unit for water bath cooling (2/3 hp). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 3.7 A / 650 W Cooling capacity: 1105 W / 950 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg
Python heat exchanger BK 70 Medi water bath cooling (3/8 hp) Trace unit for water bath cooling (3/8 hp). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg
Python heat exchanger BK 40 water bath cooling (1/5 hp) Accompanying unit water bath cooling (1/5 PS) With - Agitator motor pump - analogue thermostat control - Water level indicator Trace cooling unit in stainless steel housing. Maximum delivery head 6 m, maximum delivery length 20 m. Cover can be easily removed using 1 Torx screw. Stable on 4 trapezoidal feet. Electrical connection values: 230 V / 50 Hz / 1.8 A / 278 W Cooling capacity: 382 W / 329 kcal/h Water bath: 14 litres W/D/H: 481/305/395 mm Weight: 24 kg
Python heat exchanger BK70A water bath cooling (3/8 hp) Trace unit for water bath cooling (3/8 hp). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 16 litres W/D/H: 655/315/430 mm Weight: 32 kg
Python heat exchanger BK 20 water bath cooling (1/6 hp) Accompanying unit water bath cooling (1/6 HP), with agitator motor pump and thermostat control Delivery capacity 6 m H/ 20 m L Electrical connection values: 230 V / 50 Hz / 1.4 A / 250 W Cooling capacity: 233 W / 200 kcal/h Water bath: 6.3 litres W/D/H: 390/295/325 mm Weight: 21 kg
Python heat exchanger for water bath cooling (3/8 hp) Accompanying unit for water bath cooling (3/8 PS). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 16 litres W/D/H: 655/315/430 mm Weight: 32 kg
Quick connector 3/8" for glasswashers Quick connector 3/8" with plug-in coupling for under-rinsing for dishwasher, chrome
Compression fitting for cooling coil NW 10 consisting of - CNS double threaded nipple - Compression fitting
Rahrbach bolt catch 7150 Bolt lock (gas-tight) 7150 Solid, gas-tight sliding door lock For cold storage or utility rooms, etc. For door thicknesses from 80-200 mm Locking system compatible, Kaba versions available Profile cylinder Gas-tight design prevents freezing No heating required in accordance with Rahrbach WN With electrical status indicator Material: - Housing and bolt made of plastic
Rahrbach edge lock 6188 ERGO Metal chrome for refrigerated cabinets, counters, commercial refrigerators, fresh-keeping cells, etc Locking force adjustable; lockable; without clamp. Material lever: Die-cast zinc Housing: Die-cast zinc or plastic
Rahrbach edge seal 6188 ERGO Grey aluminium, powder-coated RAL 9007 metal for refrigerated cabinets, counters, commercial refrigerators, fresh food storage units, etc Locking force adjustable; lockable; without clamp. Material lever: Die-cast zinc Housing: Die-cast zinc or plastic
Rahrbach edge lock 6188 ERGO Black, metal with plastic housing RAL 9005 for refrigerated cabinets, counters, commercial refrigerators, fresh food storage units, etc Locking force adjustable; lockable; without clamp. Material lever: Die-cast zinc Housing: Die-cast zinc or plastic
Ready-to-use beer dispensing system 1-pipe, 35 litres/h Ready-to-use dispensing system, single-line, 35 litres/h with certificate of competence. Ready-to-use beer cooler, dry cooler and dispenser SK 269-001, with certificate of competence ex works. Ready to dispense in 5 minutes, including stainless steel compensator tap, drip tray, hoses, integrated pressure reducer, control pressure gauge, high-pressure hose and operating instructions. Technical data: Continuous dispensing capacity: 35 l/h at 10° C TD Pipe diameter: NW 7 mm Pipes: 1 x beer Cooling capacity: 407 W/ 1,465 kJ/h (350 kcal/h) Voltage: 230 V, 50 Hz, 280 W, 1.6 A Compressor: 1/5 HP Material: Stainless steel housing Dimensions: W/D/H 450/345/395 mm Weight: 33 kg
Ready-to-use dispensing system 2-line, 100 litres/h with certificate of competence Ready-to-use dispensing system, dry-cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery contents: incl. stainless steel compensator taps Drip tray Hoses 2 integrated pressure reducers (each line individually adjustable!) Control pressure gauge High pressure hose Please select : Line diameter 7 mm or 10 mm Dispensing capacity: continuous 100 L/h at 10° C TD Line diameter: NW 7 mm or 10 mm Lines: 2 x beer Cooling capacity: 1.151 W/ 4,143 kJ/h (990 kcal/h) Voltage: 230 V, 50 Hz, 550 W, 3.5 A Compressor: 2/3 HP Material: Stainless steel housing Dimensions: W/D/H 590/380/415 mm Weight: 52 kg
Ready-to-use dispensing system 2-pipe, 130 litres/h 2-pipe, 130 litres/h, with certificate of competence, Ready-to-use dispensing system Dry cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery incl. EDELSTAHAL compensator taps, drip tray, hoses, 2 integrated pressure reducers, each line individually adjustable! Control pressure gauge.High-pressure hose. Please specify: NW 7 or 10 mm! Continuous dispensing capacity: 130 l/h at 10° C TD Line diameter: NW 7 mm or 10 mm Lines: 2 x beer Cooling capacity: 1,512 W/ 5,443 kJ/h (1,300 kcal/h) Voltage: 230 V, 50 Hz, 900 W, 4.7 A Compressor: 4/5 HP Material: Stainless steel housing Dimensions: W/D/H 590/380/415 mm Weight: 55 kg
Ready-to-use dispensing system, 2-pipe, 75 litres/h 2-pipe, 75 litres/h with certificate of competence. Ready-to-use dispensing system • dry cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery incl. stainless steel compensator taps, drip tray, hoses, 2 integrated pressure reducers, each line individually adjustable! Control pressure gauge and high-pressure hose. Please specify: NW 7 or 10 mm! Continuous tap capacity: 75 l/h at 10° C TD Line diameter: NW 7 mm or 10 mm Pipes: 2 x beer Cooling capacity: 872 W/ 3,139 kJ/h (750 kcal/h) Voltage: 230 V, 50 Hz, 400 W, 2.5 A Compressor: 3/8 HP Material: Stainless steel housing Dimensions: W/D/H 595/380/415 mm Weight: 48 kg
Ready-to-use dispensing system DRY XL 1R 1-line, 53 litres/h Continuous dispensing capacity: 53 litres/h at 10° C TD Line diameter/output: NW 7 mm / 1 x beer Cooling capacity: 561 W / 1,465 kJ/h (349 kcal) Voltage: 230 V / 50 Hz, 270 W, 1.7 A Compressor: 5.19 cc Housing material: Stainless steel Dimensions W/D/H: 375/484/408 mm (D with drip tray 654 mm) Weight: 26 kg SK approved Delivery without tap Can be used with all taps from 55 mm threaded connection.

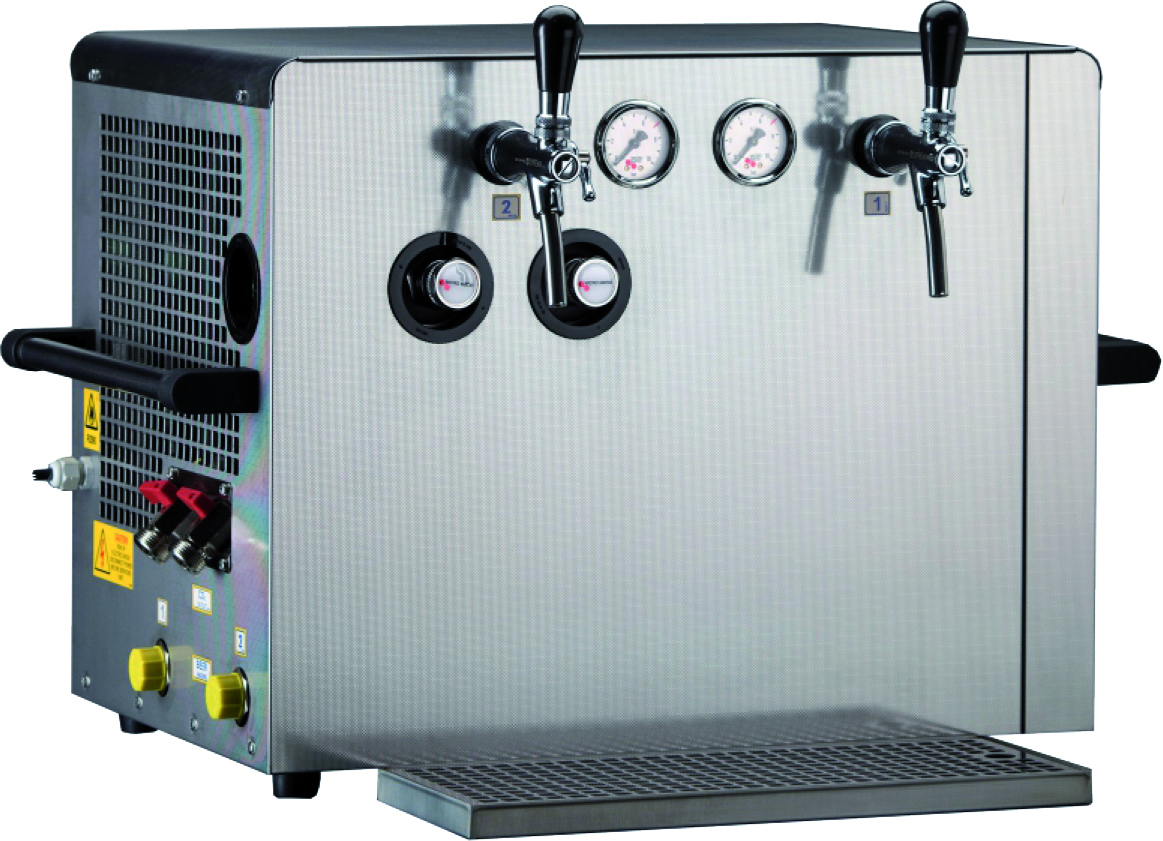

Ready-to-use dispensing system DRY XL 2R 2-pipe, 138 litres/h Continuous dispensing capacity: 138 litres/h at 10° C TD Line diameter/output: NW 7 mm / 2 x beer Cooling capacity: 1,457 W / 5,203 kJ/h (1,243kcal) Voltage: 230 V / 50 Hz, 270 W, 1.7 A Compressor: 14.3 cc Housing material: Stainless steel Dimensions W/D/H: 656/544/450 mm (D with drip tray 714 mm) Weight: 58 kg SK approved Supplied without tap Can be used with all taps from 55 mm threaded connection.
Ready-to-use dispensing system single-line, 40 litres/h at delta t 20 K with certificate of competence Ready-to-use dispensing system - dry-cooling and dispensing unit SK 269-001, with certificate of competence ex works. Ready for dispensing in 5 minutes. Delivery incl. compensator dispensing tap ( does not correspond to the illustration), drip tray, hoses, integrated pressure reducer, control pressure gauge and high-pressure hose. Special version for dispensing non-pre-chilled draught beer with extremely long beer cooling coil. With this device, 40 litres/hour of beer with an input temperature of 24° C can be cooled down to 4° C. If the beer temperature is lower than 24° C, the hourly output increases accordingly. Dispensing capacity continuous: 81 L/h at delta t 10K TD 40 L/h at delta t 20K TD Pipe diameter: NW 10 mm Pipes: 1 x beer Cooling capacity: 942 W/ 3.391 kJ/h (810 kcal/h) Voltage: 230 V, 50 Hz, 420 W, 2.9 A Compressor: 2/3 HP Material: Housing made of stainless steel Dimensions: W/D/H 590/380/415 mm Weight: 50 kg Dispensing system, 1-line
Reducer from 1/4 inch to 5/8 inch or 3/4 inch Reducer from 1/4 inch to 5/8 inch or 3/4 inch made of nickel-plated brass. Can be used for Co2 wall manifold or Co2 pressure reducer repair. Available versions Reducer from 1/4 inch to: 1/4" male thread to 5/8" male thread 1/4" male thread to 3/4" male thread
Refrigerated cabinet lock STUV without cylinder Material: Handle: Die-cast zinc Cap: Plastic Finish Handle: EPS coated, black (RAL 9005) Cap: EPS coated, black (RAL 9005) Use right or left for side mounting / rust-protected interior
Refrigerated cabinet lock STUV with cylinder Material: Handle: Die-cast zinc Cap: Plastic Finish Handle: EPS coated, black (RAL 9005) Cap: EPS coated, black (RAL 9005) Use right or left for side mounting / rust-proof interior 5 different locks / 2 keys
Refrigerated cabinet lock STUV with cylinder Material: Handle: Die-cast zinc Cap: Die-cast zinc Finish Handle: EPS coated, black (RAL 9005) Cap: EPS coated, black (RAL 9005) Use right or left for side mounting / rust-protected interior 5 different locks / 2 keys
