Heat exchanger pump, agitator motor for heat exchangers and python coolers
Defective trace cooler, python cooler - no problem
In most cases, it is only small things that are defective in a beer cooler or trace cooler, but these can have major consequences. Often it is the parts such as the accompanying cooling pump or the agitator motor in a beer cooler/python cooler that are defective, as these run continuously.
Replacing the trace cooling pump or agitator motor
If the trace cooling pump or agitator motor on your beer cooler is defective, you can replace it. You do not have to buy a new blast chiller or python cooler straight away. It is important to know how long your beer line is and what head (delivery head) you require.

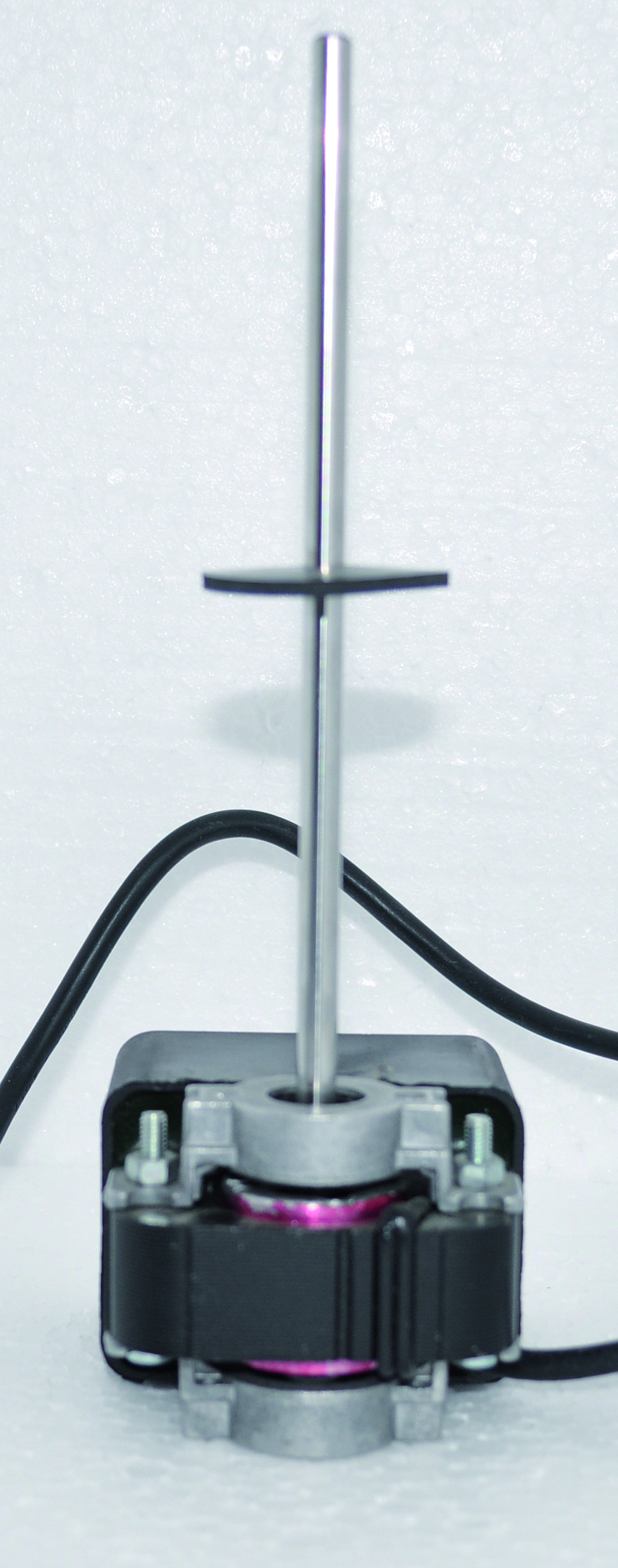

Agitator motor for beer cooler water bath
Agitator motor for beer cooler water bath Agitator motor for beer cooler with water bath complete with blade. Insulation class: B(155° C) Thermal protection: Impedance protected Power consumption: 20W Motor speed: 2,800 rpm IP protection: IP 55 Power supply: 230V, 50/60Hz
ebm papst agitator motor type iQ3612-310250 Energy-saving motor
ebm papst agitator motor type iQ3612-310250 energy-saving motor ebm papst agitator motor type iQ3612-310250 energy-saving motor Reduction of power consumption by up to 70% complete with plug and blade Technical data ebmpapst agitator motor: Power consumption 21 W Shaft height: 180 mm Total height: 255 mm 230V, 50Hz, 0.2A, 7W, 1,300 UmP Further EBM PAPST products

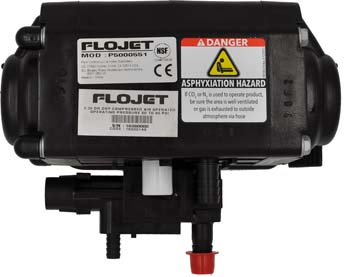

Flojet pump T5000130for Bag in Box
Flojet pump T5000130 for bag in box Flojet pump T5000130 is suitable for fruit juice concentrates (without fruit pulp), tea, wine, other alcoholic beverages. Vacuum switch switches off automatically when box is empty. Suitable for operation with air, nitrogen and CO2 and can be regulated via gas/air supply. With quick-release fasteners. Designed for pumping up to 75,000 litres Mulled wine dispenser with compressed air pump with compressed air pump. Pump: Compressed air double diaphragm pump Output up to 7.6 litres / min. Inlet pressure max 0.7 bar Delivery pressure up to 5.5 bar Compressed air max 5.5 bar Temperature +1 °C to -49 °C Materials Polypropylene, Santoprene®, EPDM, stainless steel Approval NSF, FDA, CE, SK 290-001 Dry self-priming up to 4.5 m.

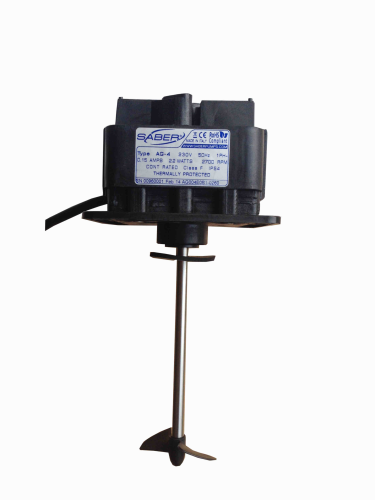

Saber AG04 agitator motor
Saber AG04 agitator motor Agitator motor for beer cooler, Saber type AG-4 complete with paddle Shaft length: 150 mm Motor dimensions: 67 x 94 x 71 mm (H/W/D) 230V, 50Hz, 22 W, 2,700 rpm ATTENTION: ONLY SUCCESSOR MODEL NAG20-ATEX AVAILABLE!!!!!
Saber MID7 agitator motor with pump, beer cooling pump
Saber MID7 agitator motor with pump, beer accompanying cooling pump The MID 7 beer accompanying cooling pump is easy to replace and suitable for almost all python coolers or beer accompanying coolers. You can find the technical data for the pump with agitator motor for your dispensing system in our download area. The pumps we offer ensure constant cooling of your beer line during the beer accompanying cooling process. Accompanying beer cooling pump including internal start-up condenser. Pump for accompanying cooler or pump for python cooler. (SH=head, LW=pipe path, WL=shaft length, GH=total height) SAMEC 6 (MID7) SH=6 m, LW=20 m, WL=195 mm, GH=284 mm
Saber Samec Agitator Motor With Pump, Beer Accompaniment Cooling Pump
Saber Samec Agitator Motor with Pump, Beer Accompaniment Cooling Pump The beer accompanying cooling pump is easy to exchange and suitable for almost all python coolers or beer accompanying coolers. The technical data of the pump with agitator motor for your beer tapping plant can be found in our download area. Our offered pumps provide a constant cooling of your beer line at the beer accompanying cooling. Beer accompanying cooling pump including internal starting condenser. Pump for beer tracing cooler or pump for python cooler. (SH = head, LW= line path, WL = wavelength, GH= total head) SAMEC 6 (MID7) SH = 6 m, LW = 20 m, WL = 195 mm, GH = 284 mm, SAMEC 12(STB) SH = 12 m, LW = 20 m, WL = 220 mm, GH = 327 mm, SAMEC 18 (STC) SH = 18 m, LW = 30 m, WL = 235 mm, GH = 358 mm,
Saber Samec agitator motor with pump, beer cooling pump
Saber Samec agitator motor with pump, beer accompanying cooling pump The SAMEC 18 beer accompanying cooling pump is easy to replace and suitable for almost all python coolers or beer accompanying coolers. You can find the technical data of the pump with agitator motor for your dispensing system in our download area. The pumps we offer ensure constant cooling of your beer line during the beer accompanying cooling process. Accompanying beer cooling pump including internal start-up condenser. Pump for accompanying cooler or pump for python cooler. (SH=head, LW=pipe path, WL=shaft length, GH=total height) SAMEC 18 (STC) SH=18 m, LW=30 m, WL=235 mm, GH=358 mm,
Saber Samec agitator motor with pump, beer cooling pump
Saber Samec agitator motor with pump, beer accompanying cooling pump The SAMEC 12 beer accompanying cooling pump is easy to replace and suitable for almost all python coolers or beer accompanying coolers. You can find the technical data of the pump with agitator motor for your dispensing system in our download area. The pumps we offer ensure constant cooling of your beer line during the beer accompanying cooling process. Accompanying beer cooling pump including internal start-up condenser. Pump for accompanying cooler or pump for python cooler. (SH=head, LW=pipe run, WL=shaft length, GH=total height) SAMEC 12(STB) SH=12 m, LW=20 m, WL=220 mm, GH=327 mm,
Saber pumps: Your source for premium heat tracing pumps and agitator motors of excellence!
Discover the world of excellence in industrial cooling and mixing technology with Saber SLR, a renowned company from Italy. We are proud to offer you premium tracer cooling pumps and agitator motors that meet the highest standards and integrate perfectly into your dispensing system.
Our premium products: Trace cooling pumps and agitator motors in a class of their own
Industrial cooling and mixing are critical processes in many industries. At Saber SLR, we understand the importance of every component of these processes. Our premium heat tracing pumps of the following designs:-
-
Samec 6 Mid 7
-
Samec 12 STB
-
Samec 18 STC
are masterpieces of engineering and precision. They not only provide efficient cooling, but also ensure reliable temperature control for optimised production processes. Our heat tracing pumps are designed to offer maximum performance and efficiency, whether in food processing, the chemical industry or other demanding sectors.
But cooling is only one part of the process - mixing substances also requires the highest precision. This is where our AG04 agitator motors come into play. These motors are designed to ensure accurate and consistent mixing, whatever the requirements of your application. With advanced technology and high-quality construction, our AG04 agitator motors guarantee even distribution and optimal reaction of your substances.
Why choose Saber SLR?
- Quality: the products are manufactured to the highest quality standards. Saber SLR stands for durable and reliable technology that optimises your production processes.
- Innovation: they focus on innovation to meet the needs of modern industries. The technologies are state of the art and set standards in the industry.
- Experience: With years of experience in industrial technology solutions, they know what is important. This expertise flows into every product.
- Variety : The rangeoffers a wide range of heat tracing pumps and agitator motors that can be customised to suit different applications and requirements.
- Customer service: At Saber SLR, our service doesn't end after the sale. Our dedicated team is on hand to ensure you get the best out of our products.
Become part of the Saber SLR success story!
Immerse yourself in the world of industrial cooling and mixing technology with Saber SLR. Our premium premium class heat tracing pumps and agitator motors set new standards for quality and performance. Whether you are in the food processing, chemical or other industries, Saber SLR is your reliable partner for outstanding industrial processes. Contact us today and experience top performance in every application!
