Beer tapping systems, beer coolers, dispensing systems and much more for tapping beer
A beer dispensing system, often also called a dispensing system or beverage dispensing system, is the prerequisite for filling beer from beer kegs, for example kegs, into drinking glasses. Good quality should always be ensured here, as several factors need to be taken into account for a perfect result:
- Temperature
- Carbon dioxide content
- Tap pressure
A professional dispensing system is standard in a restaurant, bar or pub. However, a high-quality beer dispensing system with the right accessories will also ensure a great atmosphere at any party at home. Tapping your own beer is not only fun, the result can also be convincing in terms of flavour and makes the barley juice from bottles and even from the popular can kegs look old. However, it is important to have a high-quality dispensing system, the right settings and a little practice. With the offers in our online shop, you can always be sure that you are only buying premium products in brewery quality at the best price. We are also available by telephone to provide you with advice and assistance - benefit from more than 25 years of experience in the field of beverage taps and accessories.
How does a beer dispensing system work?
Tapping systems or dispensing systems all work very similarly. The beer hose and the pressurised gas line, which is connected to a CO2 cylinder, are connected to the beer keg via the keg cap (or dispensing head). A pressure reducer allows the carbon dioxide (CO2) to flow into the beer keg so that both the carbon dioxide is formed in the beer and the beer is forced through the beer hose via a riser pipe at the outlet of the tap head. In this way, the beverage reaches the actual dispensing system, where it is usually cooled wet by a dry beer cooler or beer cooler and can be tapped at the beer or tap. Incidentally, a 2 kg bottle ofCO2 is sufficient for around 500 litres of freshly tapped beer.
Everything for beer dispensing from a single source
As a long-standing supplier of beverage taps and accessories, we offer everything "from keg to glass" in our online shop. In addition to tapping systems, tap heads and beer coolers, we also offer everything you need for cleaning beverage tapping systems. Compare our prices in what is probably the largest online shop for beverage dispensing systems and accessories. We always try to offer you the best price on the Internet. If you find the same item cheaper on the Internet, please contact us.
Beer hose, beer pipe, by the metre in 7 mm / 10 mm crystal clear, flexible You are bidding on one metre of 7 mm or 10 mm beer hose The specified quantity is the number of metres in one piece, e.g. 5 x 10 mm=5 metres of 10 mm beer hose High-quality beer hose for the catering trade NW 10 mm x 16 mm / 3 mm wall thickness NW 7 mm x 12 mm / 2.5 mm wall thickness 3 bar at 20 degrees C
Beer keg ventilator PVD gold coated Beer keg ventilator for beer kegs with flat and combi KEG closure.
Beer pipe BeveragesCO2 pipe for non-alcoholic beverages, beer, wine and spirits,CO2. By the metre Pressure load: 4 mm=11 bar 7 mm=8 bar 10 mm=8 bar NW 4 mm (4 x 8 mm) NW 7 mm (7 x 12 mm) NW 10 mm (10 x 16 mm) Price per metre. ATTENTION: BATCH PRICE!(see above)
Beer pipe Lindr beer cooler 1.5 mtr. long 1 x plug with locking ring 1 x 5/8 inch beer screw connection fully assembled
Beer pipe for gooseneck columns 1.5 mtr. beer pipe NW 7 (7/12 mm) one side with crimp fitting for 7/8 mm stainless steel pipe one side with beer screw connection (7 mm grommet/5/8" 6.-ct. nut) Nut
Beer pipe with 90 degree elbow fitting 1.5 mtr. beer pipe NW 7 (7/12 mm) one side 90° elbow fitting 7 mm one side beer screw connection (7 mm tulle / 5/8" hexagon nut) This beer pipe is particularly suitable for tight installation conditions, e.g. 80 mm diameter tower column.

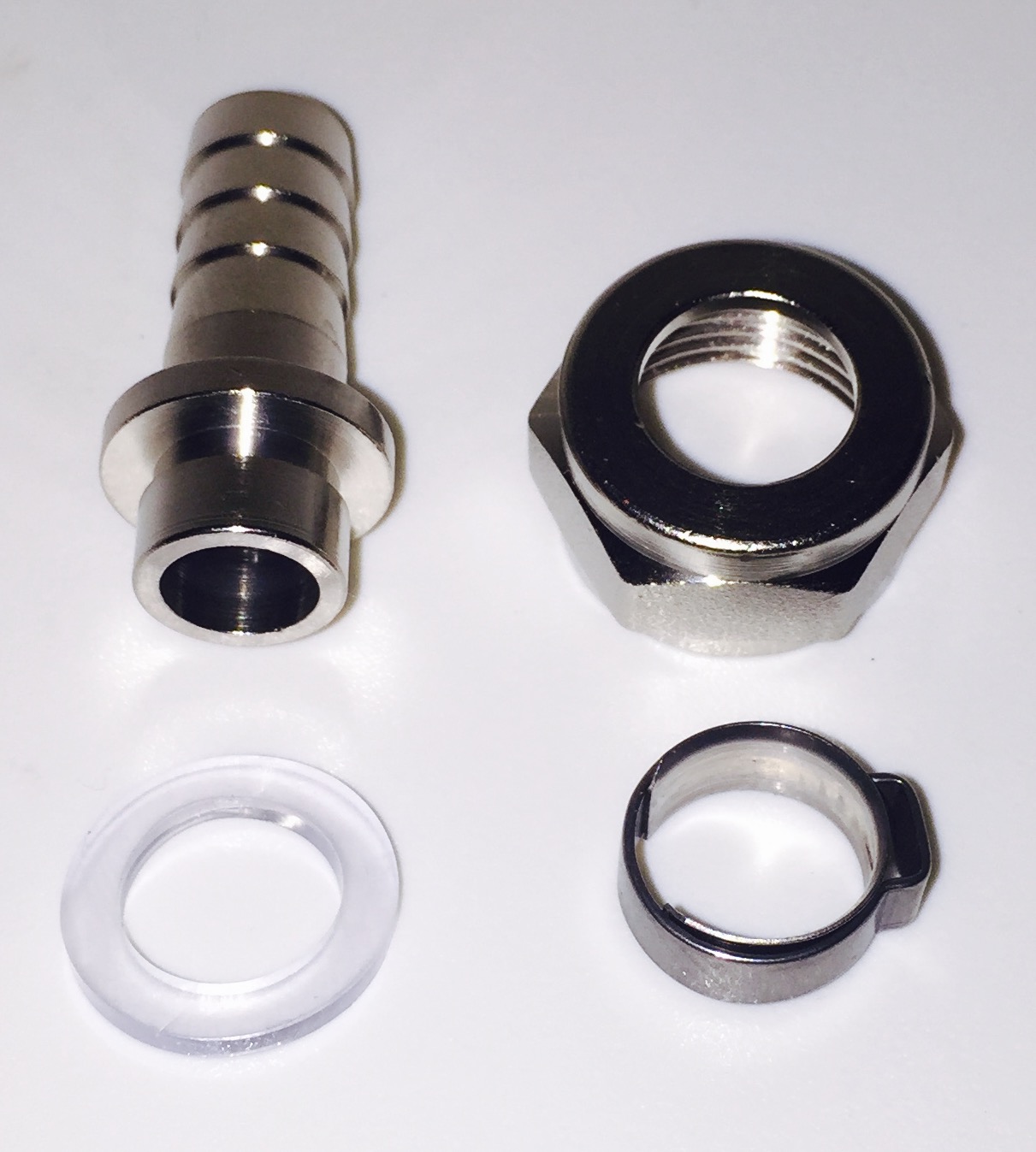

Beer screw connection 10 mm consisting of: Beer hose nozzle straight 10 mm Seal for beer hose nozzle 6 ct. nut 5/8 inch 1 ear clamp
Beer screw connection 10 mm consisting of: Beer hose nozzle straight 10 mm Seal for beer hose nozzle Wing nut 5/8 inch 1 ear clamp

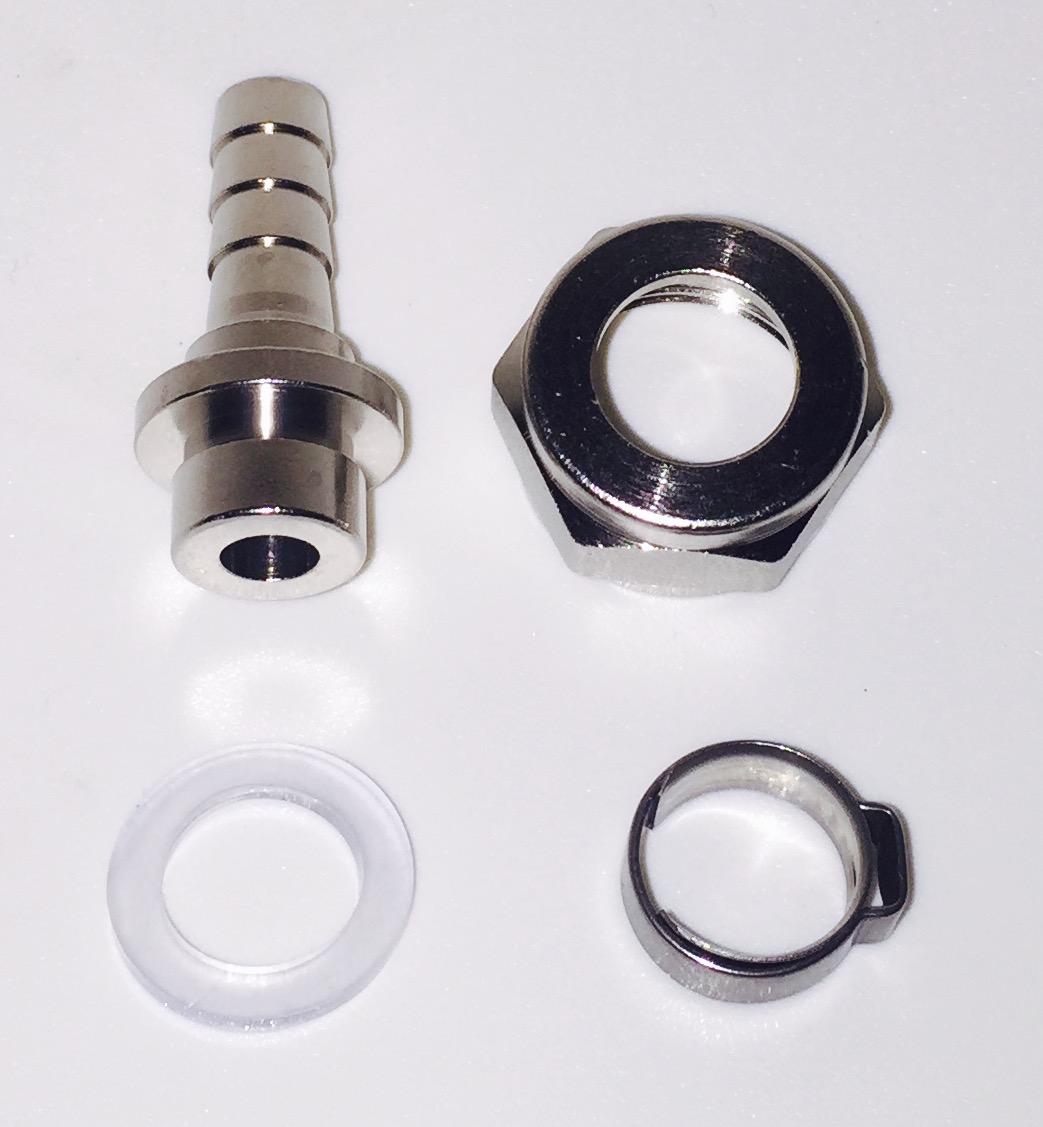

Beer screw connection 7 mm consisting of: Beer hose nozzle straight 7 mm Seal for beer hose nozzle 6 ct. nut 5/8 inch 1 ear clamp
Beer screw connection 7 mm consisting of: Beer hose nozzle straight 7 mm Seal for beer hose nozzle Wing nut 5/8 inch 1 ear clamp

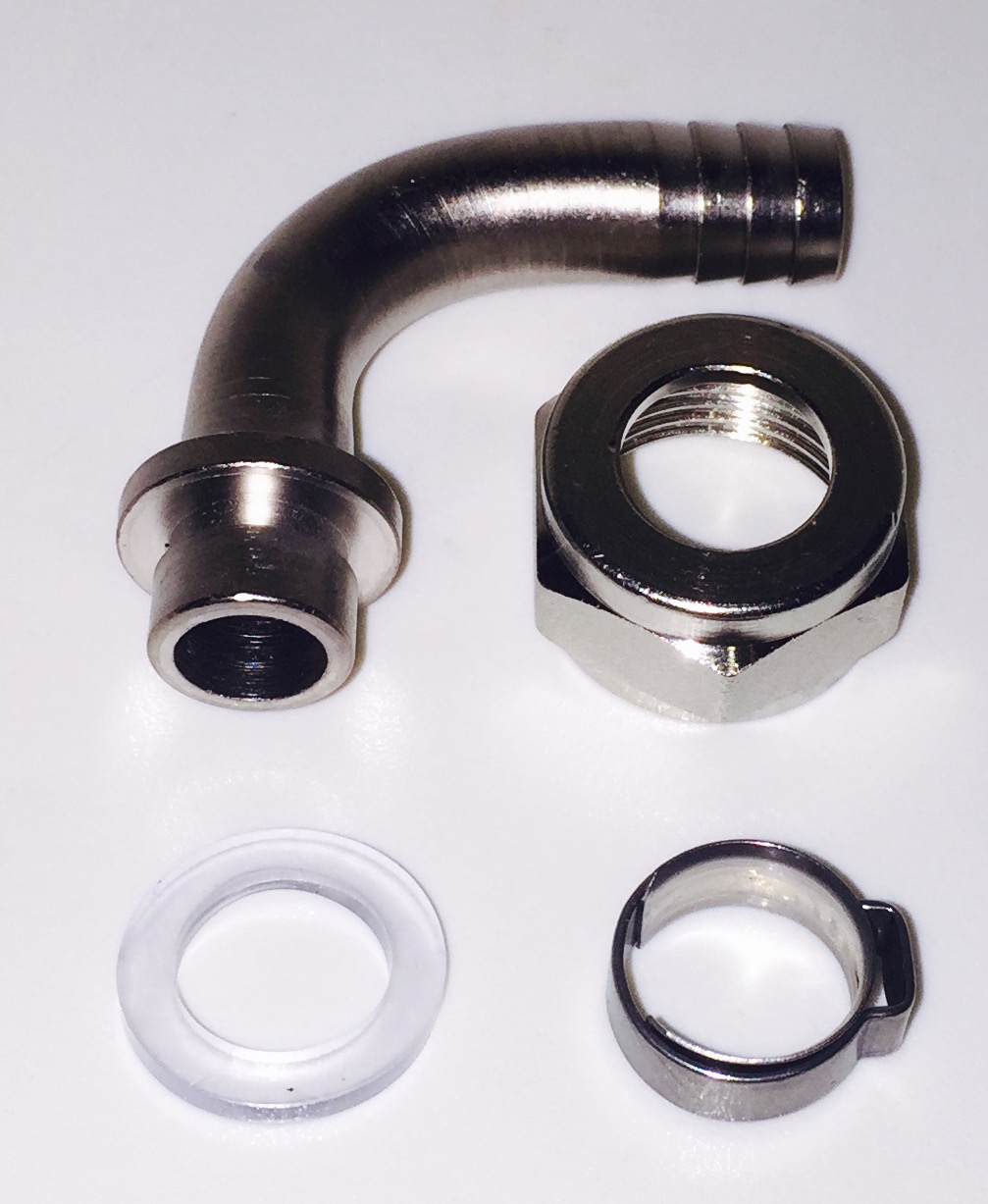

Beer screw connection bent 10 mm consisting of: Beer hose nozzle bent 10 mm Seal for beer hose nozzle hexagon nut 5/8 inch 1 ear clamp

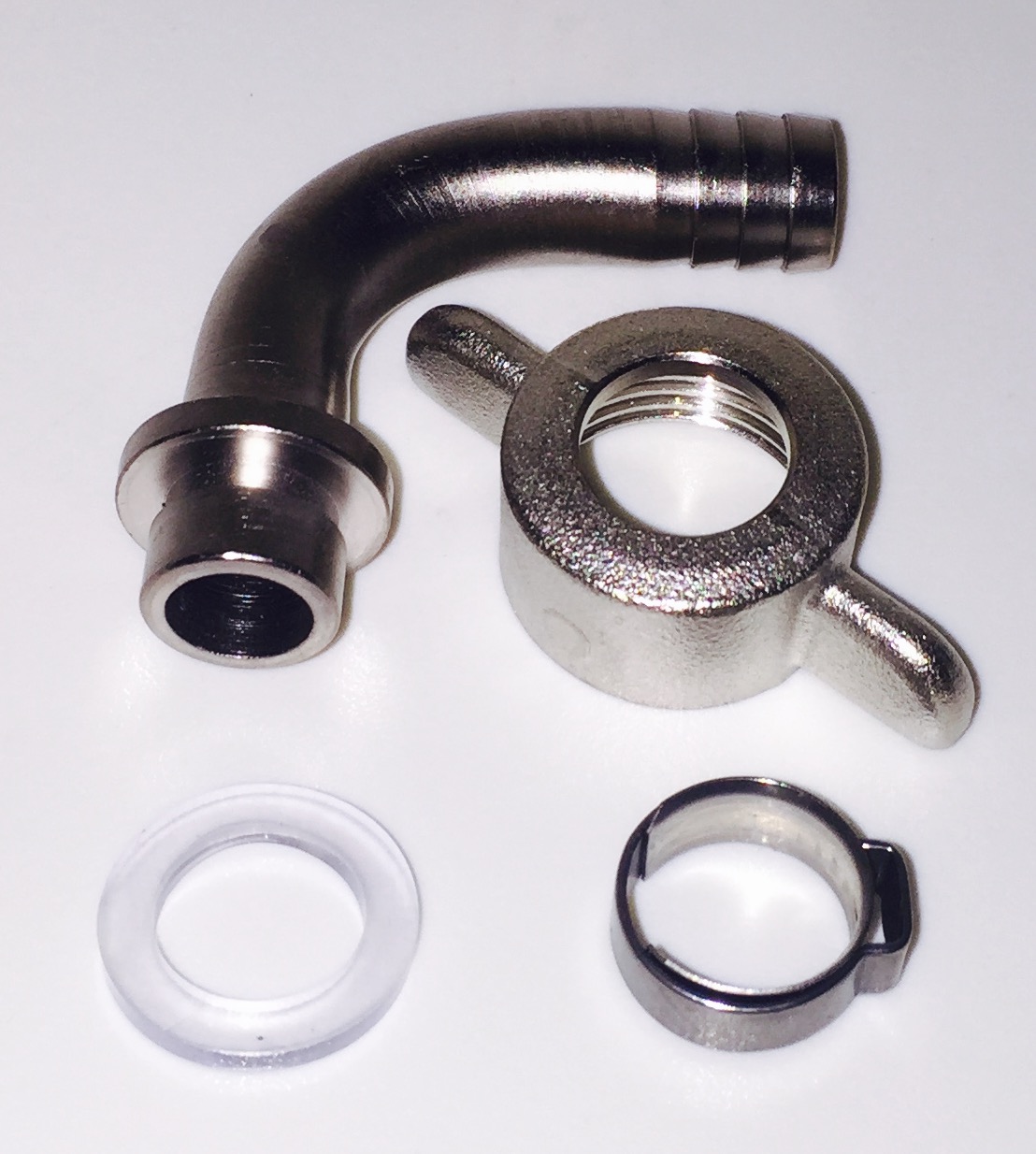

Beer screw connection bent 10 mm consisting of: Beer hose nozzle bent 10 mm Seal for beer hose nozzle Wing nut 5/8 inch 1 ear clamp
Beer screw connection bent 7 mm consisting of: Beer hose nozzle bent 7 mm Seal for beer hose nozzle hexagon nut 5/8 inch 1 ear clamp

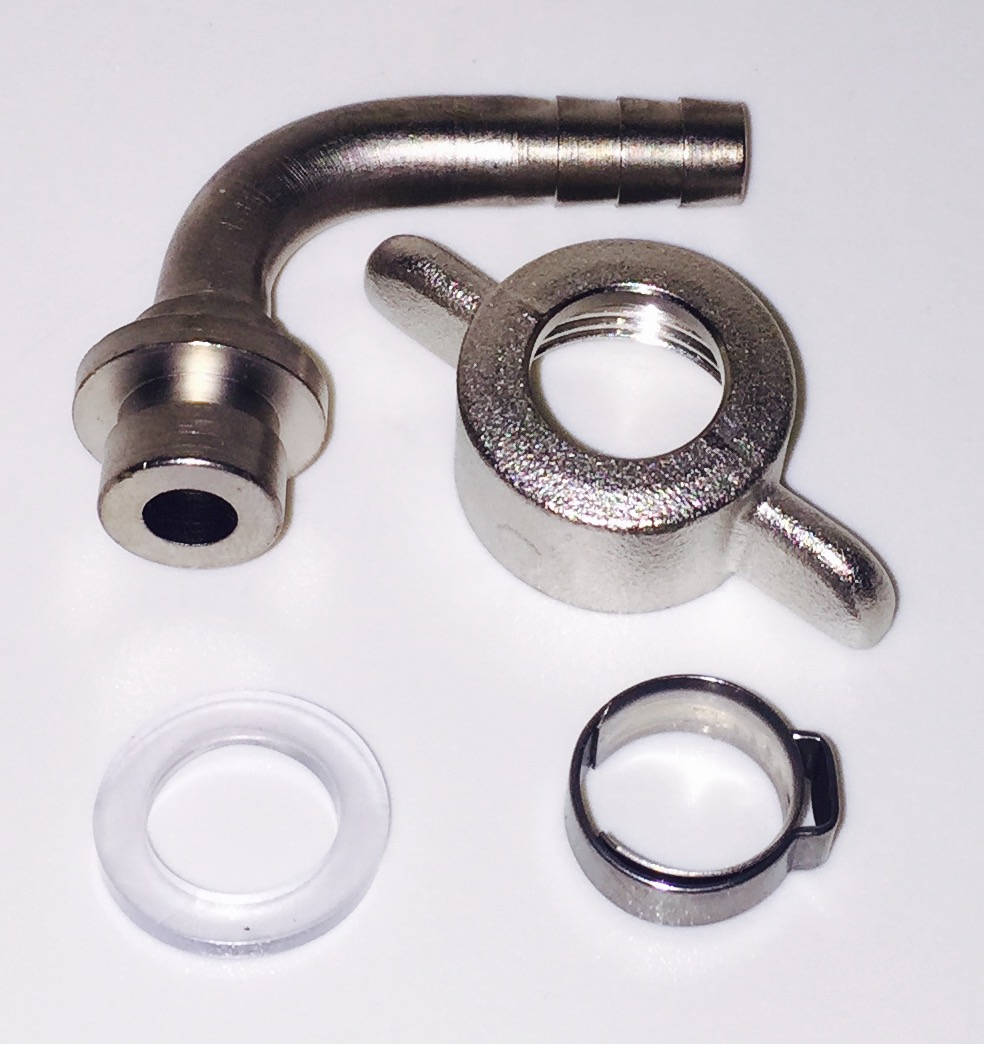

Beer screw connection bent 7 mm consisting of: Beer hose nozzle bent 7 mm Seal for beer hose nozzle Wing nut 5/8 inch 1 ear clamp
Beer stopcock for keg tap head on beer dispenser 5/8 inch Beer shut-off valve Beer stopcock for keg tap head small, 5/8 inch internal thread to 5/8 inch external thread. Small design for screwing onto the keg / tap headNo more beer backflow when changing kegs. Also suitable for the Köpi tap head.
Beer stopcock with stainless steel wall bracket Micro Matic beer stopcock for wall mounting made of stainless steel in brewery quality. made of chromium-nickel steel, recessed on both sides 14 x 8 mm, with grease-free ball beer stopcock and bracket made of CNS. available design: NW 7 mm NW 10 mm
Beer stopcock with wall bracket Stainless steel beer stopcock with wall bracket, grease-free stopcock. Threaded on both sides 5/8", complete with 2 hose fittings (spout, nut, seal). available version: NW 7 mm NW 10 mm
Beer tap Dispensing tap with compensator V10 stainless steel CMB made of stainless steel Finish: Housing CNS polished Matt housing Gold-plated housing With foam button. Housing, piston, compensator and thread made of CNS. Threaded spigot 55 mm. SK-168-013
Special price: Beer tapping system Beer cooler Tapping system Party keg 1-ltg. 60 litres We offer you here a top beer dispenser, beer cooler, party keg with single tap, 60 litres per hour dispensing capacity incl. drip tray. The party keg is technically identical to the VA beer case, but the housing of the party keg is made of plastic with stainless steel fittings. The high-quality beer keg shape is a real eye-catcher. You can also order this beer dispenser without a tap using the selection menu. With our beer dispenser accessory sets, you can complete this beer dispenser to a complete set, then all you need is the beer. Where is this beer dispenser used? This beer dispenser, beer cooler and beer case are suitable for parties of up to 50 people. Well suited for private parties, small catering establishments and trade fairs. Technical data: Tapping capacity continuous: 60 l/h at 10° C TD Pipe diameter: NW 7 mm Pipes: 1 x beer Cooling capacity: 660 W/ 2,376 kJ/h (570 kcal/h) Voltage: 230 V, 50 Hz, 435 W, 3.3 A Compressor: 1/4 HP Ready for operation in 10 minutes. Dimensions: W/D/H 300/425/400 mm (D=575 mm with drip tray) Weight: 29 kg Scope of delivery: Depending on the version, with beer tap or with through-spout as under-counter beer flow cooler. Further accessories: Beer tapping system accessory set
Bent beer tap with screw connection Beer stopcock, bent, made of stainless steel with screw connection for screwing on to KEG tapping heads or piercing spout, with fixed spout. Design: NW 7 mm bent, NW 10 mm bent
Beverage dispensing system set 1 pipe, NW 7 mm beer pipe With this dispensing system set, we offer you the opportunity to overhaul your dispensing system or to replace all relevant parts of the dispensing system. The dispensing system set consists of: 1 x NW 7 mm beer hose, length: 1.5 m, complete with 5/8" wing screw connection 1 x straight and 1 x 90° spout made of CNS 1 x CO2 hose NW 4 mm, length: 1.5 m, complete with 3/4" wing screw connection 2 x straight spout 1 x dispensing head, TOF, for cellar tapping (please select the appropriate dispensing head from the selection menu) 1 x compensator tap, chrome-plated brass - 35 mm spigot 35 mm nozzle 1 x CO2 pressure reducer, oxyturbo, 1-pipe, 3 bar 1 x carbon dioxide spanner
Beverage dispensing system set 2-pipe, NW 7 mm beer pipe With this dispensing system set, we offer you the opportunity to overhaul your dispensing system or to replace all relevant parts of the dispensing system. The dispensing system set consists of: 2 x beer hose NW 7 mm, length: 1.5 m, complete with 5/8" wing screw connection 1 x straight and 1 x 90° grommet made of CNS 2 x CO2 hose NW 4 mm, length: 1.5 m, complete with 3/4" wing screw connection 2 x straight spout 2 x tapping head, TOF, for cellar tapping (please select the appropriate tapping head from the selection menu) 2 x compensator tap, chrome-plated brass - 35 mm spigot 2 x CO2 pressure reducer, oxyturbo, 1-pipe, 3 bar 1 x carbon dioxide spanner 1 x tap spanner
Beverage pipe Beer pipe Beer hose - 7 x 12 mm, SK 017.029 crystal clear Beer connection line by the metre Nominal diameter 7 mm (7 x 12 mm) Pressure-resistant up to 3 bar Hose material: SK 017.029 - crystal clear and flexible Wall thickness: 2.5 mm Price per metre
