Beer tapping systems, beer coolers, dispensing systems and much more for tapping beer
A beer dispensing system, often also called a dispensing system or beverage dispensing system, is the prerequisite for filling beer from beer kegs, for example kegs, into drinking glasses. Good quality should always be ensured here, as several factors need to be taken into account for a perfect result:
- Temperature
- Carbon dioxide content
- Tap pressure
A professional dispensing system is standard in a restaurant, bar or pub. However, a high-quality beer dispensing system with the right accessories will also ensure a great atmosphere at any party at home. Tapping your own beer is not only fun, the result can also be convincing in terms of flavour and makes the barley juice from bottles and even from the popular can kegs look old. However, it is important to have a high-quality dispensing system, the right settings and a little practice. With the offers in our online shop, you can always be sure that you are only buying premium products in brewery quality at the best price. We are also available by telephone to provide you with advice and assistance - benefit from more than 25 years of experience in the field of beverage taps and accessories.
How does a beer dispensing system work?
Tapping systems or dispensing systems all work very similarly. The beer hose and the pressurised gas line, which is connected to a CO2 cylinder, are connected to the beer keg via the keg cap (or dispensing head). A pressure reducer allows the carbon dioxide (CO2) to flow into the beer keg so that both the carbon dioxide is formed in the beer and the beer is forced through the beer hose via a riser pipe at the outlet of the tap head. In this way, the beverage reaches the actual dispensing system, where it is usually cooled wet by a dry beer cooler or beer cooler and can be tapped at the beer or tap. Incidentally, a 2 kg bottle ofCO2 is sufficient for around 500 litres of freshly tapped beer.
Everything for beer dispensing from a single source
As a long-standing supplier of beverage taps and accessories, we offer everything "from keg to glass" in our online shop. In addition to tapping systems, tap heads and beer coolers, we also offer everything you need for cleaning beverage tapping systems. Compare our prices in what is probably the largest online shop for beverage dispensing systems and accessories. We always try to offer you the best price on the Internet. If you find the same item cheaper on the Internet, please contact us.
Beer hose nozzle straight NW 4 mm made of stainless steel 1.4301 with collar and shoulder for 14 x 8 mm insertion, ATTENTION: NOTE STACKED PRICES!!! (see below)
4 mm Co2 hose nozzle, straight with collar and shoulder, nickel-plated brass, tin-plated inside. CO2 nozzle, straight with collar and shoulder, nickel-plated brass. Inner diameter NW 2.8 mm ATTENTION: NOTE BULK PRICES!!! (see below)
5 seals 5/8" white hard beer fittings spigot 5 polythene rings 13 x 20 x 3
Contents: 5 Stück (£0.24 / 1 Stück)
5 seals 3/4" white for Co2 fittings spigot 5 polythene rings 13 x 23 x 3
Contents: 5 Stück (£0.24 / 1 Stück)
5 seals vulcanised fibre rings red for pressure reducer Co2 5 pieces vulcanised fibre rings 12 x 18 x 3
Contents: 5 Stück (£0.24 / 1 Stück)
5/8" wing nut union nut nut beer hose nozzle nozzle tap system
50 mtr. 10 mm beer hose Co2 hose soft crystal clear flexi 50 metre beverage hose with approved SK number 10 mm ID 16 mm OD up to 3 bar pressure load very soft, flexible and crystal clear suitable for all beverages e.g. beer, spirits, non-alcoholic drinks or wine
Contents: 50 Laufende(r) Meter (£2.15 / 1 Laufende(r) Meter)
50 mtr. 7 mm beer hose Co2 hose soft crystal clear flexi 50 metre beverage hose with approved SK number 7 mm ID 12 mm OD up to 7 bar pressure load very soft, flexible and crystal clear suitable for all beverages e.g. beer, spirits, non-alcoholic drinks or wine
Contents: 50 Laufende(r) Meter (£1.26 / 1 Laufende(r) Meter)

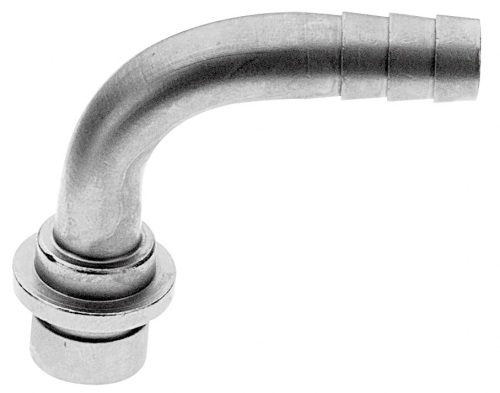

7 mm beer hose nozzle nozzle bent beer hose Co2 hose used on beer and Co2 hoses Material: nickel-plated brass, with seal Dimensions: 53 x 43 mm Nipple length: 20 mm Nipple outer diameter: 9 mm Nipple inner diameter: 7 mm clamp required: 7 mm (14.8 mm clamping range) required hose: 7 mm hard or soft (inside) suitable nut: 5/8"; 3/4"; as hexagon or wing nut

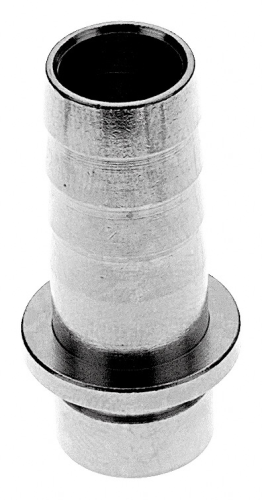

Beer hose nozzle straight NW 7 mm made of stainless steel 1.4301 with collar and shoulder for 14 x 8 mm insertion, ATTENTION: NOTE STACKED PRICES!!! (see below)
Beer hose nozzle straight NW 7 mm made of stainless steel 1.4301 with collar and shoulder for 14 x 8 mm insertion ATTENTION: NOTE STACKED PRICES!!! (see below)
7 mm beer hose nozzle nozzle straight beer hose Co2 is used on beer and Co2 hoses / Material: nickel-plated brass, with seal Length: 39 mm Nipple length: 20 mm Nipple outer diameter: 9.5 mm Nipple inner diameter: 7 mm clamp required: 7 mm (14.8 mm clamping range) required hose: 7 mm hard or soft (inside) suitable nut: 5/8"; 3/4"; as hexagon or wing nut
Optional Accessories Alarm relay and deficiency sensor integrated in control unit=surcharge Cannot be retrofitted! Alarm relay for connection of fan/horn etc., Delivery time approx. 1-2 weeks Shock protection cage CNS for sensor Signal light Xenon flashing light 230 V, AC Horn 92 dB, 230 V, AC Oxygen deficiency sensor For monitoring nitrogen and mixed gas for Analox Gas warning system (electro-chemical sensor must be replaced approx. every 2-3 years. If necessary this is indicated by the device) Delivery time approx. 1-2 weeks Spare parts Replacement Control unit Replacement Remote alarm transmitter 1-room, 2-room,

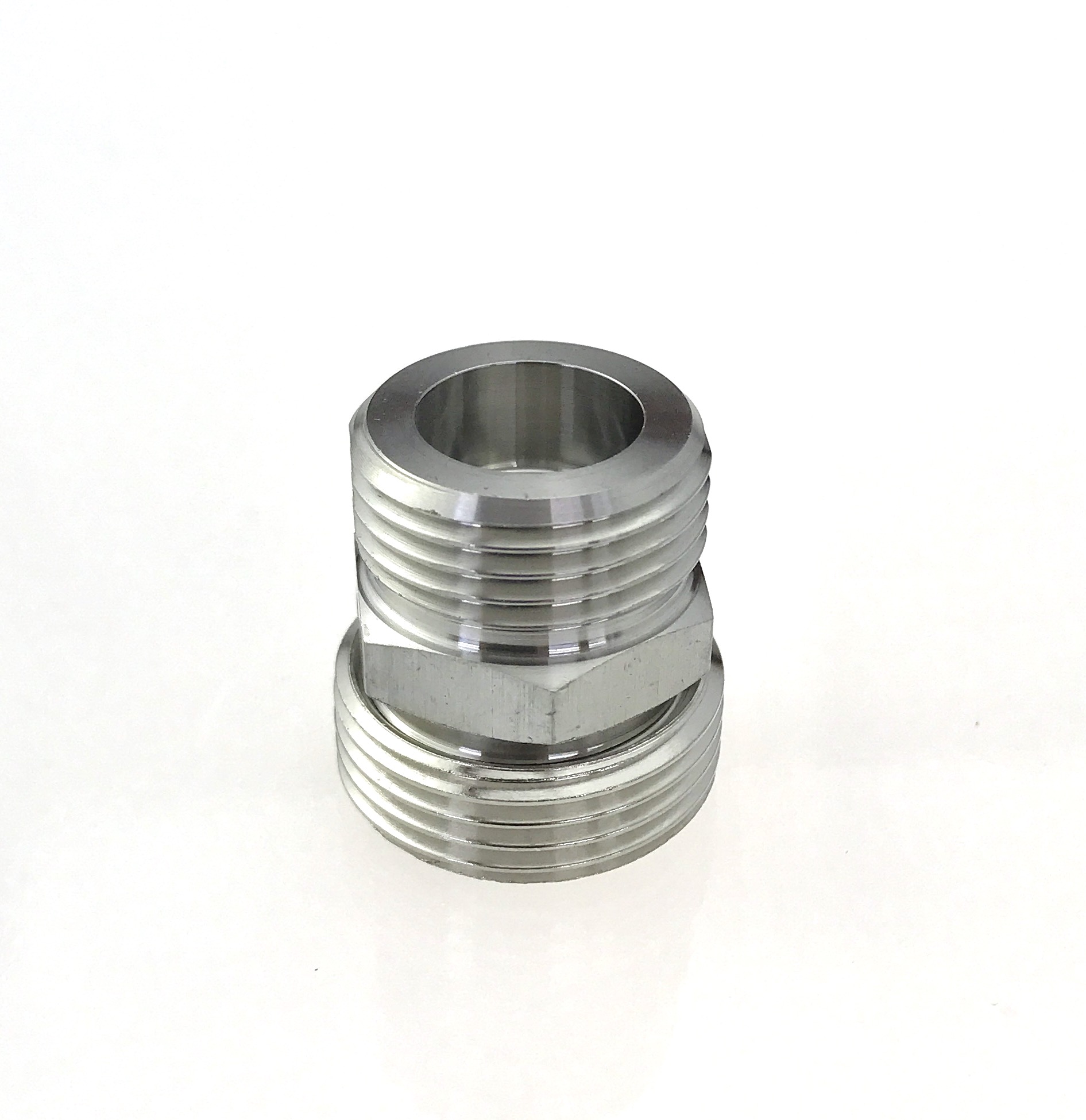

Adapter 5/8 inch AG to 3/4 inch AG Co2 carbon dioxide tap connector Adapter made of nickel-plated brass from 5/8" AG to 3/4" AG

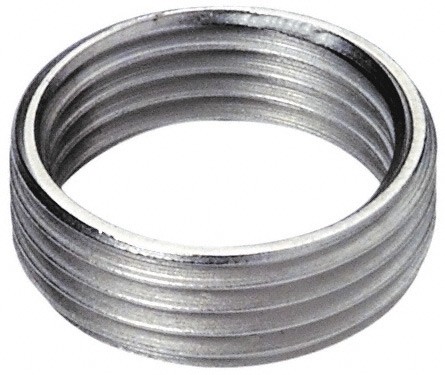

Adapter 5/8 inch IG to 3/4 AG Adapter Keg Co2 dispensing head dispensing system R-piece You need the adapter if you still have an old dispensing head (keg) where the Co2 connection is still designed with 5/8"

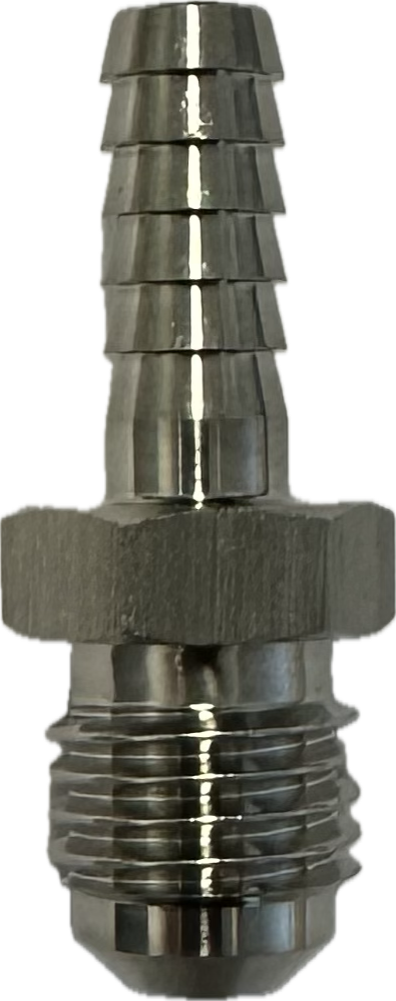

Adapter for AFG screw connection to beer tapping gun Our high-quality adapter allows you to easily connect your AFG screw fitting to your beer tapping gun. With a thread on the spout and a VA adapter, this adapter fits perfectly to a 1/2" CC x 6.7 mm spout. With this handy adapter, you can quickly and easily connect your tap gun to your AFG system to dispense your favourite beverages in style. Get your adapter today and enjoy effortless tapping!
AFG CMB Speedy compensator tap for 5/8 inch tap hole Self-closing, Trapezoidal handle Use plastic or stainless steel connection spout.
AFG compensator tap CMB For 36 mm tap hole Connection for yoke fitting see below, self-closing, trapezoidal handle SK-168-002
AFG compensator tap For 5/8” tap hole Electric-pneumatic with lever for one-hand operation for Premix, operating pressure min. 2.5 bar for CO2 -air connection hose 3x1mm, 24V - AC transformer on site. Use plastic connection nozzle or stainless steel.
Analox Aspida mobile measuring devices for safety personnel working in hazardous areas Analox ASPIDA for carbon dioxide Portable gas detector CO2 from 0 - 5 % visual and audible alarm at 0.5/1.5/4.0 % and 0.5 % TWA complete with alarm through “dead man's function IP65 protection class with OLED display and quick-fastening clip with charging cradle 230VAC - 9 VDC and Euro plug Equipped with USB cable and software for reading out the data. Analox ASPIDA for oxygen Portable warning device as described, but: O2 from 0 - 25 % visual and audible alarm at 18/19.5 % Sensor replacement required every 2-3 years! Analox ASPIDA for carbon dioxide and oxygen Portable gas warning device as described, but: CO2 from 0 - 5 % and O2 from 0 - 25 % visual and audible alarm at 0.5/1.5/4.0 and 0.5 % TWA for CO2 and visual and audible alarm at 18/19.5 for O2 Sensor replacement required every 2-3 years!
ANALOX CO2 gas detector Co2 gas warning device according to DIN 6653-2 Ready-to-connect CO2 warning device with remote display and on-site display Easy to install! Infrared sensor audiovisual alarm, own Error function check, no sensor replacement! Sensor drift alarm, protection class IP 65, devices ready to plug in, calibrated and wired (8m cable). 15-year guarantee on infrared sensor! Complete devices 1 Room monitoring Consisting of: 1 x main unit with remote display 1 x sensor for 1 room monitoring alternatively Complete devices 2 room monitoring Consisting of: 1 x main unit with remote display 1 x sensor for 2 room monitoring systems
AQUA QUBE countertop unit CT 30 black with touch operation - black/VA Carbonator and cooler in an elegant, harmonised design. Two beverage lines for chilled still and CO2-enriched sparkling water. Including high-quality touch control for fully electronic, needs-based control. LED lighting of the dispensing area (visualisation of the dispensing process by changing the lighting mood). Including warning functions for water and CO2 empty detection. Overflow package=accessory Technical data Electr. Connected loads 230 V 50 Hz 2.7 A 500 W Ready to dispense in 5 minutes Dispensing capacity 38 l/h at t 10 K Dimensions W/D/H in mm 395/500/504 Weight in kg 38 Compressor volume 62 dB
