Beer tapping systems, beer coolers, dispensing systems and much more for tapping beer
A beer dispensing system, often also called a dispensing system or beverage dispensing system, is the prerequisite for filling beer from beer kegs, for example kegs, into drinking glasses. Good quality should always be ensured here, as several factors need to be taken into account for a perfect result:
- Temperature
- Carbon dioxide content
- Tap pressure
A professional dispensing system is standard in a restaurant, bar or pub. However, a high-quality beer dispensing system with the right accessories will also ensure a great atmosphere at any party at home. Tapping your own beer is not only fun, the result can also be convincing in terms of flavour and makes the barley juice from bottles and even from the popular can kegs look old. However, it is important to have a high-quality dispensing system, the right settings and a little practice. With the offers in our online shop, you can always be sure that you are only buying premium products in brewery quality at the best price. We are also available by telephone to provide you with advice and assistance - benefit from more than 25 years of experience in the field of beverage taps and accessories.
How does a beer dispensing system work?
Tapping systems or dispensing systems all work very similarly. The beer hose and the pressurised gas line, which is connected to a CO2 cylinder, are connected to the beer keg via the keg cap (or dispensing head). A pressure reducer allows the carbon dioxide (CO2) to flow into the beer keg so that both the carbon dioxide is formed in the beer and the beer is forced through the beer hose via a riser pipe at the outlet of the tap head. In this way, the beverage reaches the actual dispensing system, where it is usually cooled wet by a dry beer cooler or beer cooler and can be tapped at the beer or tap. Incidentally, a 2 kg bottle ofCO2 is sufficient for around 500 litres of freshly tapped beer.
Everything for beer dispensing from a single source
As a long-standing supplier of beverage taps and accessories, we offer everything "from keg to glass" in our online shop. In addition to tapping systems, tap heads and beer coolers, we also offer everything you need for cleaning beverage tapping systems. Compare our prices in what is probably the largest online shop for beverage dispensing systems and accessories. We always try to offer you the best price on the Internet. If you find the same item cheaper on the Internet, please contact us.
CNS service column 3 to 4 conductors - 610 mm wide (incl. base) Base diameter Base diameter 139 mm Beam diameter 114 mm, 500 mm High (400 mm MH) CNS pedestal, WITHOUT TANK HANGERS, satin finish Beam optionally pointing to the left or right 3 conductive - 4 conductive - CNS pedestal, WITHOUT TANK HANGERS, polished Bar optionally facing left or right 3 conductors - 4 conductors - Please order taps in the Taps section The dispensing columns of type RJMF1 have the great advantage that the bar can be installed facing both left and right (this is even possible on site ) and the individual – listed separately below can be ordered according to requirements/application. Also „special panels“ with special drill holes (diameter, distance and number) according to your specifications are available after a short time (approx. 2 weeks).
CNS dispensing column, satin finish for BK160 Dispensing column for BK160 refrigerator, with 4 mounting holes in the flange, 77 mm pipe diameter, therefore suitable for pythons CNS dispensing column, single-pipe, 23 mm hole (without tap)
Wall fitting CNS between CO2 pressure reducer and Co2 bottle With this wall fitting, you can connect 1 or 2 bottles of carbon dioxide using a high-pressure hose. Version: for 1 CO2 cylinder for 2 CO2 bottles
Co2 adapter 3/4 inch to 8 mm hose - DMfit Co2 adapter 3/4" Dmfit to hose 8 mm outer diameter (e.g. for pressure reducer, intermediate pressure regulator, tap head). Without circlip (please order separately). ATTENTION: Graduated prices (see above)
Co2 bottle 0.5 kg for beer dispenser 0.5 kg Co2 bottle, with the 0.5 kg Co2 bottle you can dispense approx. 100 litres of beer. Our Co2 cylinders have a 10-year MOT and are not exchangeable cylinders. You can have your Co2 cylinder filled at any good drinks retailer. Alternatively, you can find companies for filling Co2 cylinders in the usual trade directory. All Co2 cylinders are new and freshly filled. We recommend this CO2 bottle holder as an accessory, as this bottle does not have a stand has Technical data of the 0.5 kg Co2 bottle: RAL grey with rotary valve with TÜV approval 10 years Ø=60.3 mm, total length 401 mm Weight including filling 2.17 kg You can dispense approx. 100 litres of beer with this 0.5 kg Co2 bottle this bottle does not have a safety handle the bottle does not have a stand Are you looking for another Co2 bottle? We offer you other Co2 bottles in different sizes: 2.0 kg Co2 bottle: RAL grey with rotary valve with TÜV approval 10 years lasts for approx. 400 litres of beer with stand with safety handle Ø=108 mm, total length 497 mm Weight including filling 7.01 kg 6.0 kg Co2 bottle: RAL grey with rotary valve with TÜV approval 10 years with stand with safety handle Ø=185 mm, total length 550 mm Weight including filling 17.0 kg With this 6.0 kg Co2 bottle you can dispense approx. 1200 litres of beer An alternative to the 0.5 kg Co2 cylinder or the 6.0 kg Co2 cylinder is the 2.0 kg Co2 cylinder.
Contents: 0.5 Kilogramm (£91.24 / 1 Kilogramm)
Co2 bottle 2.0 kg for beer dispenser, filled 2 kg Co2 bottle, filled, with safety handle. The safety handle protects the Co2 bottle from damage to the rotary valve. You can dispense approx. 400 litres of beer with the 2 kg Co2 bottle. Our Co2 cylinders have a 10-year MOT and are not exchangeable cylinders. You can have your Co2 cylinder filled at any good drinks retailer. Alternatively, you can find companies for filling Co2 cylinders in the usual trade directory. All Co2 cylinders are new and freshly filled. Technical data of the 2.0 kg Co2 cylinder: RAL grey with rotary valve also approved for food according to E290 with TÜV approval for 10 years lasts for approx. 400 litres of beer with safety handle Ø=108 mm, total length 497 mm Weight including filling 7.01 kg Are you looking for a different Co2 bottle? We offer you other Co2 bottles in different sizes: CO2 bottle 0.5kg (we recommend this CO2 bottle holder as an accessory, as this bottle does not have a stand has) Ø=60.3 mm, total length 401 mm Weight including filling 2.17 kg With this 0.5 kg Co2 bottle you can dispense approx. 100 litres of beer This bottle does not have a cage CO2 bottle 6kg with base and cap, Ø=185 mm, total length 550 mm Weight including filling 17.0 kg With this 6.0 kg Co2 cylinder you can tap approx. 1200 litres of beer Where can the 2.0 kg Co2 cylinder be used? Catering Food industry Aquaristics technical applications
Contents: 2 Kilogramm (£36.23 / 1 Kilogramm)
Co2 bottle 6.0 kg for beer dispenser 6 kg Co2 bottle, filled, with stand and safety handle. The safety handle protects the Co2 bottle from damage to the rotary valve. You can dispense approx. 1200 litres of beer with the 6 kg Co2 bottle. Our Co2 cylinders have a 10-year MOT and are not exchangeable cylinders. You can have your Co2 cylinder filled at any good drinks retailer. Alternatively, you can find companies for filling Co2 cylinders in the usual trade directory. All Co2 cylinders are new and freshly filled. Technical data of the 6.0 kg Co2 cylinder: RAL grey with rotary valve with TÜV approval 10 years with stand with safety handle Ø=185 mm, total length 550 mm Weight including filling 17.0 kg With this 6.0 kg Co2 bottle you can tap approx. 1200 litres of beer Are you looking for a different Co2 bottle? We offer you other Co2 bottles in different sizes: CO2 bottle 0.5kg (we recommend this CO2 bottle holder as an accessory, as this bottle does not have a stand has) Ø=60.3 mm, total length 401 mm Weight including filling 2.17 kg With this 0.5 kg Co2 bottle you can dispense approx. 100 litres of beer This bottle does not have a cage An alternative to the 0.5 kg Co2 cylinder or the 6.0 kg Co2 cylinder is the 2.0 kg Co2 cylinder. 2.0 kg Co2 cylinder: RAL grey with rotary valve with TÜV approval for 10 years lasts for approx. 400 litres of beer with stand with safety handle Ø=108 mm, total length 497 mm Weight including filling 7.01 kg
Contents: 6 Kilogramm (£39.87 / 1 Kilogramm)
Co2 bottle holder stainless steel Stainless steel Co2 bottle holder for 0.5 kg CO2 bottle, for hanging on the barrel for 1 bottle
CO2 combi pressure reducer type 3 and 7 bar with integrated safety valves, stopcock R 3/4" and R 1/2", with content indicator without grommets and nuts. CO2 combination pressure reducer beer/AFG 3 and 7 bar On request with: Wall plate + adapter for mounting the pressure reducer on the wall Wall plate
CO2 gas preheater The device is inserted between the CO2 cylinder and pressure reducer and prevents the pressure reducer and CO2 valve from icing up when CO2 consumption is high. CO2 gas preheater with cable 230 V / 25 W/ 50 Hz Protection class: IP44 Weight: 1.5 kg cE mark included
Co2 hexagon spanner SW 30 to DIN with suspension hole, chrome-plated
High-pressure hose CO2 armoured hose High-pressure hose CO2 for dispensing system 1 metre:1 x CO2 hexagon nut 1 x CO2 AG 2 metres: 1 x CO2 hexagon nut 1 x CO2 AG
Co2 hose complete in 4 mm per 1.7 mtr. This hose consists of: 1.7m Co2 hose with SK mark 3/4" connection on both ends, each with wing nut two straight nozzles

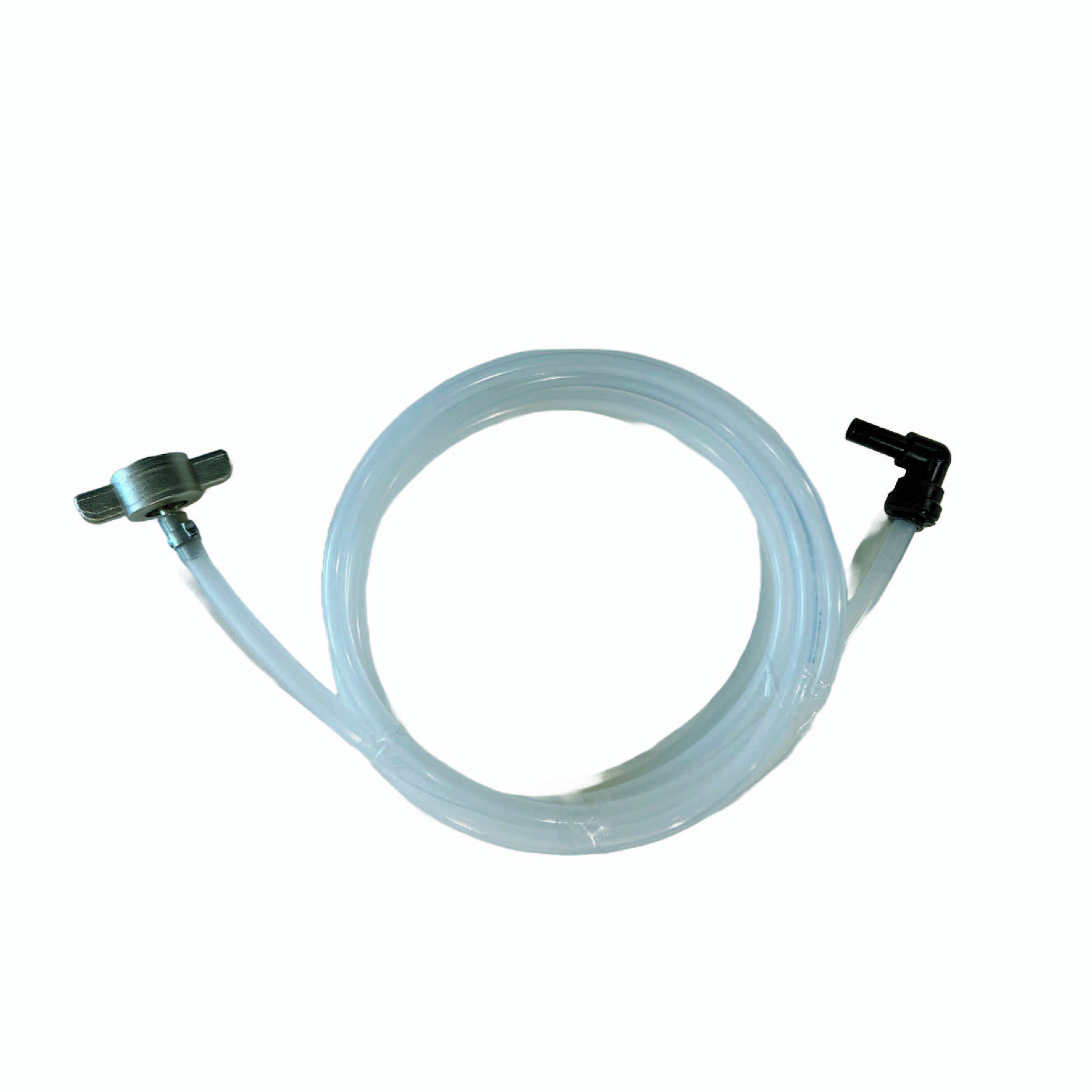

Co2 hose for Quooker conversion kit 3,0 mtr. Co2 hose mounted with 1/2 inch wing nut fitting for Premium Co2 pressure reducer 0-10/7 bar, on the other side with John Guest 90° elbow fitting Quooker Co2 inlet.
Co2 hose for Quooker conversion kit 3,0 mtr. Co2 hose mounted with 1/2 inch wing nut fitting for Premium Co2 pressure reducer 0-10/7 bar, on the other side with John Guest 90° elbow fitting Quooker Co2 inlet.
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
Co2 hose in 1.7 - 10 metres 4mm Ø fully assembled for Co2 dispensing system This hose consists of: Co2 hose with SK mark (length selectable) 3/4" connection on both sides, each with wing nut two straight spouts
