Python heat exchangerBK 90 Medi A water bath cooling (2/3 PS) Trace unit for water bath cooling (2/3 hp). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 3.7 A / 650 W Cooling capacity: 1105 W / 950 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg

Python BK 90 Medi water bath cooler (2/3 PS) Trace unit for water bath cooling (2/3 hp). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 3.7 A / 650 W Cooling capacity: 1105 W / 950 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg

Python heat exchanger BK 70 Medi water bath cooling (3/8 hp) Trace unit for water bath cooling (3/8 hp). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg

Python heat exchanger BK 40 water bath cooling (1/5 hp) Accompanying unit water bath cooling (1/5 PS) With - Agitator motor pump - analogue thermostat control - Water level indicator Trace cooling unit in stainless steel housing. Maximum delivery head 6 m, maximum delivery length 20 m. Cover can be easily removed using 1 Torx screw. Stable on 4 trapezoidal feet. Electrical connection values: 230 V / 50 Hz / 1.8 A / 278 W Cooling capacity: 382 W / 329 kcal/h Water bath: 14 litres W/D/H: 481/305/395 mm Weight: 24 kg

Python heat exchanger BK70A water bath cooling (3/8 hp) Trace unit for water bath cooling (3/8 hp). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 16 litres W/D/H: 655/315/430 mm Weight: 32 kg

Python heat exchanger BK 20 water bath cooling (1/6 hp) Accompanying unit water bath cooling (1/6 HP), with agitator motor pump and thermostat control Delivery capacity 6 m H/ 20 m L Electrical connection values: 230 V / 50 Hz / 1.4 A / 250 W Cooling capacity: 233 W / 200 kcal/h Water bath: 6.3 litres W/D/H: 390/295/325 mm Weight: 21 kg

Python heat exchanger for water bath cooling (3/8 hp) Accompanying unit for water bath cooling (3/8 PS). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 16 litres W/D/H: 655/315/430 mm Weight: 32 kg

Ready-to-use beer dispensing system 1-pipe, 35 litres/h Ready-to-use dispensing system, single-line, 35 litres/h with certificate of competence. Ready-to-use beer cooler, dry cooler and dispenser SK 269-001, with certificate of competence ex works. Ready to dispense in 5 minutes, including stainless steel compensator tap, drip tray, hoses, integrated pressure reducer, control pressure gauge, high-pressure hose and operating instructions. Technical data: Continuous dispensing capacity: 35 l/h at 10° C TD Pipe diameter: NW 7 mm Pipes: 1 x beer Cooling capacity: 407 W/ 1,465 kJ/h (350 kcal/h) Voltage: 230 V, 50 Hz, 280 W, 1.6 A Compressor: 1/5 HP Material: Stainless steel housing Dimensions: W/D/H 450/345/395 mm Weight: 33 kg

Ready-to-use dispensing system 2-line, 100 litres/h with certificate of competence Ready-to-use dispensing system, dry-cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery contents: incl. stainless steel compensator taps Drip tray Hoses 2 integrated pressure reducers (each line individually adjustable!) Control pressure gauge High pressure hose Please select : Line diameter 7 mm or 10 mm Dispensing capacity: continuous 100 L/h at 10° C TD Line diameter: NW 7 mm or 10 mm Lines: 2 x beer Cooling capacity: 1.151 W/ 4,143 kJ/h (990 kcal/h) Voltage: 230 V, 50 Hz, 550 W, 3.5 A Compressor: 2/3 HP Material: Stainless steel housing Dimensions: W/D/H 590/380/415 mm Weight: 52 kg

Ready-to-use dispensing system 2-pipe, 130 litres/h 2-pipe, 130 litres/h, with certificate of competence, Ready-to-use dispensing system Dry cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery incl. EDELSTAHAL compensator taps, drip tray, hoses, 2 integrated pressure reducers, each line individually adjustable! Control pressure gauge.High-pressure hose. Please specify: NW 7 or 10 mm! Continuous dispensing capacity: 130 l/h at 10° C TD Line diameter: NW 7 mm or 10 mm Lines: 2 x beer Cooling capacity: 1,512 W/ 5,443 kJ/h (1,300 kcal/h) Voltage: 230 V, 50 Hz, 900 W, 4.7 A Compressor: 4/5 HP Material: Stainless steel housing Dimensions: W/D/H 590/380/415 mm Weight: 55 kg

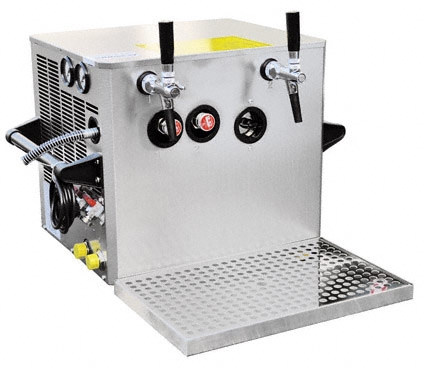

Ready-to-use dispensing system, 2-pipe, 75 litres/h 2-pipe, 75 litres/h with certificate of competence. Ready-to-use dispensing system • dry cooling and dispensing unit SK 269-001, with certificate of competence ex works. Delivery incl. stainless steel compensator taps, drip tray, hoses, 2 integrated pressure reducers, each line individually adjustable! Control pressure gauge and high-pressure hose. Please specify: NW 7 or 10 mm! Continuous tap capacity: 75 l/h at 10° C TD Line diameter: NW 7 mm or 10 mm Pipes: 2 x beer Cooling capacity: 872 W/ 3,139 kJ/h (750 kcal/h) Voltage: 230 V, 50 Hz, 400 W, 2.5 A Compressor: 3/8 HP Material: Stainless steel housing Dimensions: W/D/H 595/380/415 mm Weight: 48 kg

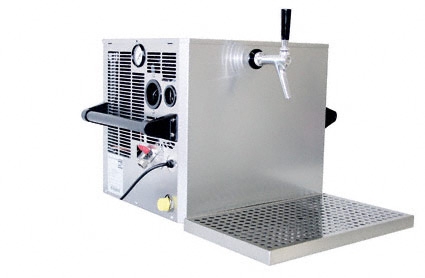

Ready-to-use dispensing system single-line, 40 litres/h at delta t 20 K with certificate of competence Ready-to-use dispensing system - dry-cooling and dispensing unit SK 269-001, with certificate of competence ex works. Ready for dispensing in 5 minutes. Delivery incl. compensator dispensing tap ( does not correspond to the illustration), drip tray, hoses, integrated pressure reducer, control pressure gauge and high-pressure hose. Special version for dispensing non-pre-chilled draught beer with extremely long beer cooling coil. With this device, 40 litres/hour of beer with an input temperature of 24° C can be cooled down to 4° C. If the beer temperature is lower than 24° C, the hourly output increases accordingly. Dispensing capacity continuous: 81 L/h at delta t 10K TD 40 L/h at delta t 20K TD Pipe diameter: NW 10 mm Pipes: 1 x beer Cooling capacity: 942 W/ 3.391 kJ/h (810 kcal/h) Voltage: 230 V, 50 Hz, 420 W, 2.9 A Compressor: 2/3 HP Material: Housing made of stainless steel Dimensions: W/D/H 590/380/415 mm Weight: 50 kg Dispensing system, 1-line

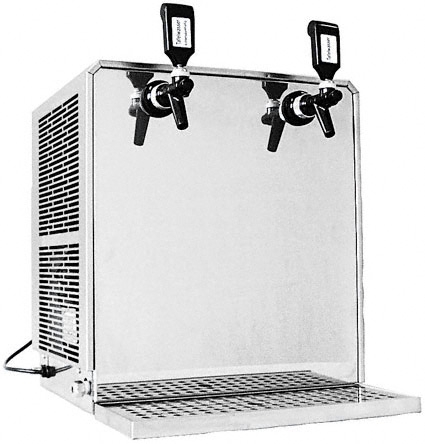

Sparkling & table water cooler CT 30, over-the-counter version Connection to normal water pipe Dispensing capacity: 38 l/h, 2-pipe, 1/5 HP, 230 V, 50 Hz, 395 W, 1.8 A. Drop height 330 mm. Supplied with 2 rapid taps, Cable diameter 5 mm. Dimensions: W/D/H 430/495/500 mm Weight: 28 kg Ready to dispense in 10 minutes The entire technology is integrated in the device, you only need CO2 bottle, Pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature. For catering, offices, hotels, doctors, etc. 1 line for sparkling water. 1 pipe for still water. Water inlet 3/8"

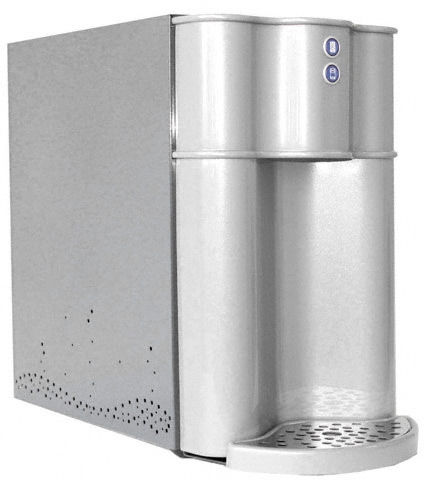

Sparkling & table water dispenser CT 30 Poseidon Cool sparkling & table water from the tap, CT 30 Poseidon table water dispenser, over-counter version Dispensing capacity: 38 l/h, 1/5 hp, 230 V, 50 Hz, 395 W, 1.8 A. Drop height 255 mm. Supplied with 2 electric premix taps with button operation, cable diameter 5 mm. The entire technology is integrated in the appliance, all you need is a CO2 cylinder, pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature. For self-service in catering, offices, hotels, doctors, etc. Water inlet 3/8" Dimensions: W/D/H 305/540/505 mm Weight: 28 kg Ready to dispense in 10 minutes

CT 60 sparkling and table water cooler, over-counter version Connection to normal water pipe Dispensing capacity: 53 l/h, 2-pipe, 3/8 HP, 230 V, 50 Hz, 420 W, 1.9 A. Drop height 330 mm. Supplied with 2 rapid taps, Pipe diameter 5 mm. Dimensions: W/D/H 430/495/500 mm Weight: 30 kg Ready to dispense in 10 minutes The entire technology is integrated in the appliance, you only need a CO2 bottle, pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature. For catering, fitness studios, sports facilities, etc. 1 line for sparkling water. 1 pipe for still water. Water inlet 3/8"

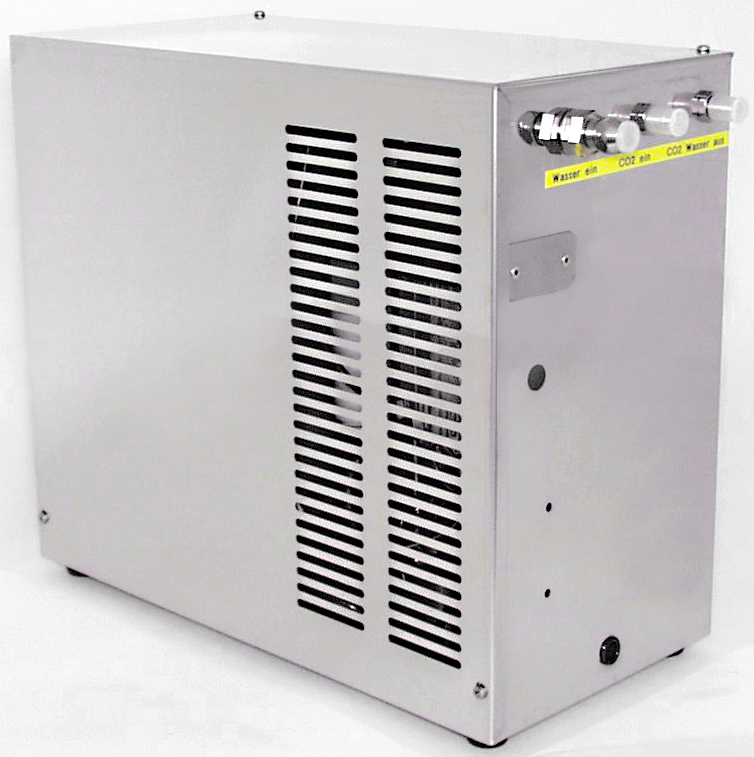

Sparkling water & table water dispenser under the counter Warm carbonator for the production of sparkling water Dispensing capacity: 220 l/h 230 V, 50 Hz, 180 W, 2.3 A Brass pump (increases the domestic water pressure to max. approx. 12 bar - can then be regulated to operating pressure by integrated pressure reducer), contactless level control, high-pressure safety pressostat, low-pressure water shortage protection, pressure gauge and backflow preventer. Water inlet 3/8", beverage outlets 1/2" BSF. Warm carbonator Dimensions: W/D/H 210/380/360 mm Weight: 17.5 kg We offer this sparkling water & table water dispenser with and without still water control, please select the desired version in the selection window above. Version: WITHOUT still water control - 1 x water & CO2 inlet, 1 x sparkling water outlet WITH still water control - 1 x water & CO2 inlet, 1 x sparkling water & 1 x still water outlet

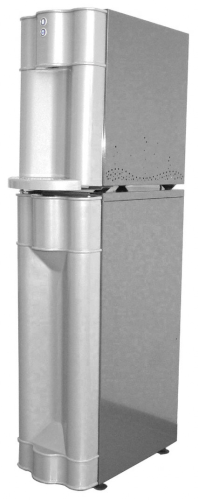

Sparkling water tap unit Poseidon CT 30 Cool sparkling & table water from the water line Table water device CT 30 Poseidon, standalone. We offer you with this device a "standalone" version, in the scope of supply is the sparkling and table water tap Poseidon CT30 with matching base cabinet. In this you can use the Co2 bottle with the corresponding Co2 pressure reducer for the sparkling and table water dispenser. Please order the Co2 bottle and the Co2 pressure reducer separately. We generally recommend for all sparkling and table water dispensing systems an Everpure water filter system to all sparkling and table water dispensers. Technical data of the sparkling and table water dispenser: Dispensing capacity: 38 L/h 1/5 HP, 230 V, 50 Hz, 395 W, 1.8 A. Drop height 255 mm Supplied with 2 electric premix taps with button operation, Pipe diameter 5 mm Water inlet 3/8" Dimensions: W/D/H 305/540/505 mm Ready to tap in 10 minutes. Supplied with base cabinet with bubbles and table water tap Dimensions cabinet: W/D/H 305/540/915 mm Inner volume 112 L, door with magnetic lock. Steel metal/plastic. Storage space for water filter and CO2 bottle, bottle holder integrated The entire technology is integrated in the unit, you only need CO2 bottle, pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature.For self-service in catering, offices, hotels, doctors and others.

Top counter cooler Craft beer cooler 6-pipe, 90 litre/h continuous tap capacity: 90 l/h at Δt 10 K Line diameter/output: 6 x beer Refrigerant: R 290 / 140 g Dispensing capacity: in 5 minutes Voltage: 230 V / 50 Hz / 3.0 A / 510 W, Housing material: stainless steel Dimensions W/D/H: 640/409/407 mm (D with drip tray 750 mm) Weight: 60 kg SK approved - Innovative, functional design - Compact design with low space requirement - powerful dry cooling / integrated pressure reducer (RJ90TG) - robust, easy to clean, durable and low-maintenance - perfect cold transfer in the cast aluminium block - Foamed insulation (= prevention of cold loss/condensation) - extremely easy to set/use - incl. drip tray - Rear advertising space / developed and manufactured in Germany Designed for the requirements of the "craft beer scene" (flexible use, perfect cold transfer/beverage preparation) for flexible use in outdoor and trendy catering, at beer fairs, trade fairs, festivals, parties, etc. ... . Compact dispensing with a wide range of varieties (6 different types of beer on tap) perfect for smaller containers and tasting quantities Advertising space for presenting specific brands and/or varieties. Delivery incl. taps

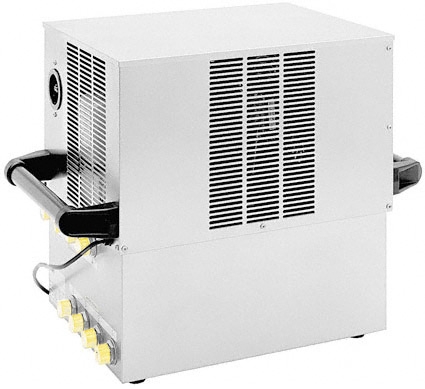

Undercounter beer cooler, 4-pipe, 130 litres/h Beer cooler, dry flow cooler from Selbach with large aluminium cooling block. You can only use this dry beer flow cooler as a pure under-counter cooler. 5/8 inch beer outlet nozzles are fitted as standard. Ideally suited for mobile bar trolleys. Technical data undercounter beer cooler 4-pipe unit, 130 litres/h: Tapping capacity continuous: 130 litres/h at 10° C TD Pipe diameter:NW 7 mm or 10 mm Line:4x beer Cooling capacity: 1,512 W / 5,434 kJ/h (1,300 kcal/h) Voltage:230 V / 50 Hz, 900 W, 4.7 A Compressor:4/5 HP Housing material:Stainless steel Dimensions W/D/H: 610/365/495 mm Weight:54 kg This beer cooler is particularly suitable for: Bar trolleys Catering Catering Events Fire brigade festivals Shooting clubs Scope of delivery Beer cooler under-table unit 4-pipe, 130 litres/h: Beer cooler with beer inlet and outlet spouts packed in individual carton on disposable pallet

Waterbath satellite cooler Combi-cooler for accompanying and Continuous cooling for connection to central cooling Stainless steel waterbath satellite cooler, for connection to on-site refrigeration unit, Medi 4-pipe, 4 beer cooling coils Please specify: NW 7 or 10 mm! Cooling capacity: 1,100 W/ 3,960 kJ/h (946 kcal/h) Water tank: 27 litres Pump: 20 m pipe run / 6 m headroom Supplied with R134a expansion valve, solenoid valve and thermostat. Water bath satellite cooler, combi cooler Required compressor cooling capacity: 400 W at -10° C evaporation. Dimensions: W/D/H 365/455/475 mm Weight: 20 kg

Waterbath satellite cooler Combi-cooler for accompanying and Continuous cooling for connection to central cooling Stainless steel waterbath satellite cooler, for connection to on-site refrigeration unit, Maxi 6-pipe, 6 beer cooling coils Please specify: NW 7 or 10 mm! Cooling capacity: 1,510 W/ 5,436 kJ/h (1,300 kcal/h) Water tank: 48 litres Pump: 20 m pipe run / 6 m headroom Supplied with R134a expansion valve, solenoid valve and thermostat. Water bath satellite cooler, combi cooler Required compressor cooling capacity: 800 W at -10° C evaporation. Dimensions: W/D/H 495/405/550 mm Weight: 22 kg

Water bath satellite cooler Trace cooling for connection to central cooling system Stainless steel waterbath satellite cooler, with R134a control for connection to on-site refrigeration unit. Cooling capacity: 620 W/ 2,232 kJ/h (532 kcal/h) Water tank: 8.7 litres Pump: 20 m pipe run / 6 m headroom Supplied with R134a expansion valve, solenoid valve and thermostat. Water bath satellite cooler, heat exchanger Required compressor cooling capacity: 300 W at -10° C evaporation. Dimensions: W/D/H 350/310/475 mm Weight: 15 kg

Waterbath satellite cooler Trace cooling for connection to central cooling Stainless steel waterbath satellite cooler, with R134a control for connection to on-site refrigeration unit. Cooling capacity: 620 W/ 2,232 kJ/h (532 kcal/h) Water tank: 8.7 litres Pump: 30 m pipe run / 18 m headroom Supplied with R134a expansion valve, solenoid valve and thermostat. Water bath satellite cooler, heat exchanger Required compressor cooling capacity: 300 W at -10° C evaporation Dimensions: W/D/H 350/310/515 mm Weight: 17 kg

Wet cooling unit BN 500 4-pipe, 500 litres/h Continuous cooling, ice water generation, Waterbath cooling unit - Cooling coils of your choice Please specify: NW 10 mm! Stainless steel housing Ready to dispense in 120 minutes. The footprint is no larger than the size of a EURO pallet. This makes transport easy despite its heavy weight. Can also be used individually for industrial cooling thanks to the different cooling coil configurations, the trace cooling pump and the control unit. Two separate refrigeration circuits. Even if one compressor fails, continues to cool at 50% capacity. Continuous flow volume of 800 l/h (increases due to ice bank in surge operation)! Continuous dispensing capacity: 500 L/h at 10° C TD Pipe diameter: NW 10 mm or 15 mm Pipes: 4 x beer Pump: 6/18/2 x 18 m head Ice bank: 100 kg/800 litres, 33,440 kJ/h (8,000 kcal/h) Cooling capacity: 5.815 W/ 20,900 kJ/h (5,000 kcal/h) Voltage: 230 V, 50 Hz, 2,560 W, 14 A Compressor: 2 x 1 1/3 HP Dimensions 10 mm appliance: W/D/H 900/1,200/805 mm Weight 10 mm appliance: 160 kg ALSO AVAILABLE WITH STRONGER PUMPS FOR AN ADDITIONAL CHARGE
