AQUA QUBE countertop unit CT 30 black with touch operation - black/VA Carbonator and cooler in an elegant, harmonised design. Two beverage lines for chilled still and CO2-enriched sparkling water. Including high-quality touch control for fully electronic, needs-based control. LED lighting of the dispensing area (visualisation of the dispensing process by changing the lighting mood). Including warning functions for water and CO2 empty detection. Overflow package=accessory Technical data Electr. Connected loads 230 V 50 Hz 2.7 A 500 W Ready to dispense in 5 minutes Dispensing capacity 38 l/h at t 10 K Dimensions W/D/H in mm 395/500/504 Weight in kg 38 Compressor volume 62 dB

AQUA QUBE countertop unit CT 30 white with touch operation - white/VA Carbonator and cooler in an elegant, harmonised design. Two beverage lines for chilled still and CO2-enriched sparkling water. Including high-quality touch control for fully electronic, needs-based control. LED lighting of the dispensing area (visualisation of the dispensing process by changing the lighting mood). Including warning functions for water and CO2 empty detection. Overflow package=accessory Technical data Electr. Connected loads 230 V 50 Hz 2.7 A 500 W Ready to dispense in 5 minutes Dispensing capacity 38 l/h at t 10 K Dimensions W/D/H in mm 395/500/504 Weight in kg 38 Compressor volume 62 dB

Base cabinet (shaped) for CT 30 Poseidon with magnetic door closer, storage space 112 litres, Finish: plastic/sheet steel powder-coated.

Base cabinet for AQUA QUBE black Matching base cabinet for AQUA QUBE countertop cooler in black. Powder-coated steel panelling, interior parts made of VA. Sufficient storage space for CO2 bottle and other accessories. A bottle holder is permanently mounted. The cabinet is lockable. Technical data Storage space . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 litres Dimensions W/D/H in mm . . . . . . . . . . . . . . 395/500/1.050

Base cabinet for AQUA QUBE white Matching base cabinet for AQUA QUBE countertop cooler in white. Powder-coated steel panelling, interior parts made of VA. Sufficient storage space for CO2 bottle and other accessories. A bottle holder is permanently mounted. The cabinet is lockable. Technical data Storage space . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 litres Dimensions W/D/H in mm . . . . . . . . . . . . . . 395/500/1.050

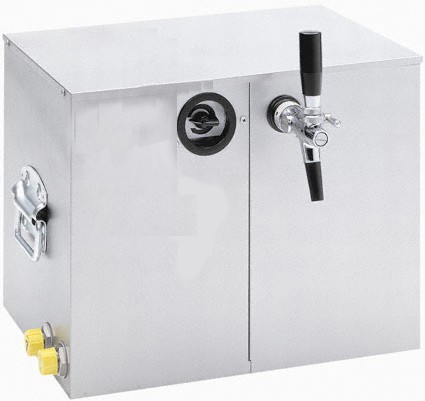

Beer cooler dispenser 1-line, 35 litres/h Lines: 1 x beer DELIVERY WITHOUT TAPS Cooling capacity: 505 W/ 1,818 kJ/h (434 kcal/h) Voltage: 230 V, 50 Hz, 350 W, 2.7 A Compressor: 1/5 HP Dimensions: W/D/H 460/330/345 mm Weight: 1-line 30 kg Use as an over-the-counter cooler OPTIONAL All dispensing taps from 55 mm Threaded connection possible! See chapter Dispensing taps

Beer cooler tap system 2 lines, 130 litres/h Beer cooler, dry flow cooler from Selbach with large aluminium cooling block. You can use this dry beer flow cooler as a table-top unit or as an under-counter cooler. 5/8 inch beer outlet spouts are fitted as standard. The spigots can be replaced with beer taps in a few simple steps, meaning that the beer cooler can also be used on the beer counter. All beer taps with a 55 mm tap spigot length can be installed. Technical data beer cooler dispensing system 2-line, 130 litres/h: Tapping capacity continuous: 130 litres/h at 10° C TD Line diameter:NW 7 mm or 10 mm Line:2x beer Cooling capacity: 1,512 W / 5,434 kJ/h (1,300 kcal/h) Voltage:230 V / 50 Hz, 900 W, 4.7 A Compressor:4/5 HP Housing material:Stainless steel Dimensions W/D/H: 595/365/415 mm Weight:55 kg This beer cooler is particularly suitable for: Catering Catering Events Fire brigade festivals Shooting clubs Dispensing system hire Scope of delivery beer cooler dispensing system 2 lines, 130 litres/h: Beer cooler with beer inlet and outlet spouts packed in individual carton on one-way pallet DELIVERY WITHOUT TAPS - use as an over-the-counter cooler OPTIONAL. All taps from 55 mm threaded connection possible! See chapter Dispensing taps

Beer cooler dispenser 2-pipe, 35 litres/h Lines: 2 x beer DELIVERY WITHOUT TAPS Cooling capacity: 505 W/ 1,818 kJ/h (434 kcal/h) Voltage: 230 V, 50 Hz, 350 W, 2.7 A Compressor: 1/5 HP Dimensions: W/D/H 460/330/345 mm Weight: 2-line 34 kg Use as an over-the-counter cooler OPTIONAL All dispensing taps from 55 mm Threaded connection possible! See chapter Dispensing taps

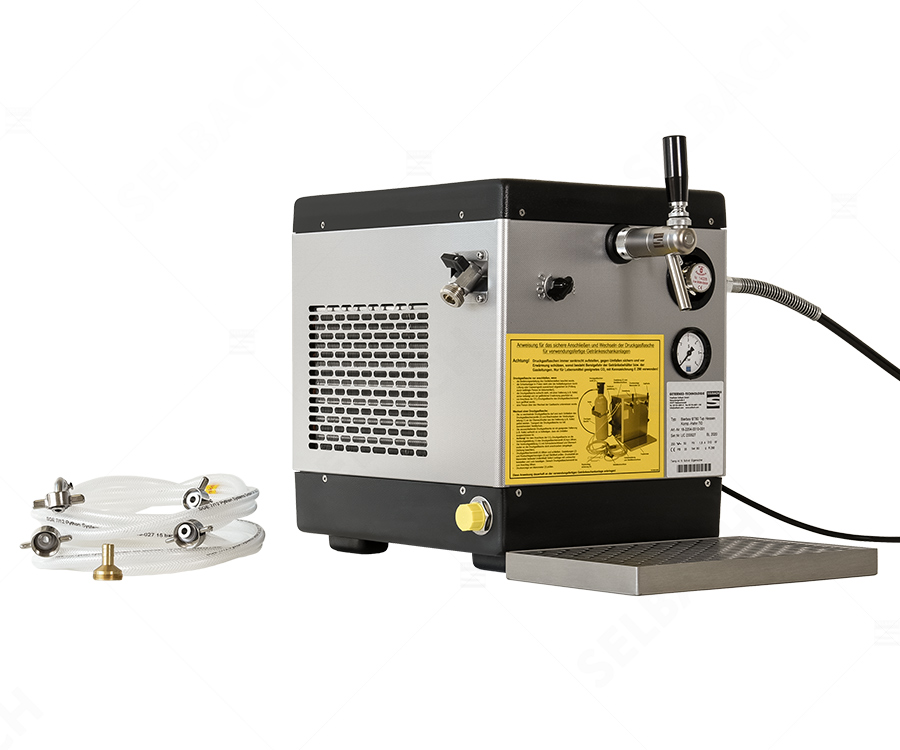

Beer cooler dispensing system ready for use 1-pipe, 64 litres/h Ready-to-use dispensing system 1-pipe, 64 litres/h with certificate of competence, ready-to-use dispensing system - dry continuous flow cooler and dispenser SK 269-001, with certificate of competence ex works. Ready to dispense in 5 minutes. Delivery contents of the dispensing system: incl. compensator tap (does not correspond to the illustration) Drip tray Beer pipe Co2 line integrated pressure reducer with control pressure gauge High pressure hose Operating instructions. Technical data of the ready-to-use dispensing system: Dispensing capacity: continuous: 64 L/h at 10° C TD Line diameter: NW 7 mm Lines: 1 x beer Cooling capacity: 740 W/ 2,664 kJ/h (640 kcal/h) Voltage: 230 V, 50 Hz, 420 W, 2.5 A Compressor: 3/8 HP Material: Stainless steel housing, black plastic lid and base Dimensions: W/D/H 310/380/395 mm Weight: 30 kg

Beer cooler Wet cooling unit 6-pipe, 100 litre/h combination cooling unit Accompanying and continuous cooling in one appliance with Lines: 6 x beer Pump: Agitator motor with accompanying cooling pump, 6/18 m head, 20/30 m pipe run Water tank: 48 litres Ice bank: 10 kg, 3,343 kJ (800 kcal/h) Cooling capacity: 1,163 W / 4,000 kJ/h (993 kcal/h) Voltage: 230 V / 50 Hz, 650 W, 3.7 A Compressor: 1/2 HP Dimensions 7 or 10 mm appliance: W/D/H 600/405/605 mm Housing material: Stainless steel Dimensions W/D/H / weight: 610/400/550 mm /54 kg DELIVERY WITHOUT TAPS, use as an over-the-counter cooling unit OPTIONAL All taps from 55 mm threaded connection possible! See Dispensing taps Built-in flow and return for use as a blast chiller

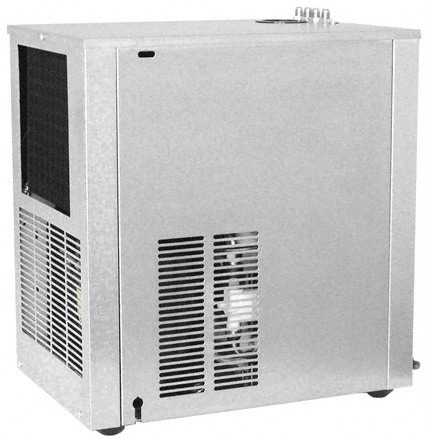

CT 30 sparkling and table water dispenser Cool sparkling & table water from the water pipe Table water dispenser UTK CT 30, under-counter version Dispensing capacity: 38 l/h, 2-pipe, 1/5 HP, 230 V, 50 Hz, 395 W, 1.8 A Pipe diameter 5 mm. Under-counter appliance for connection to dispensing column. The entire technology is integrated in the appliance,. All you need is a CO2 cylinder, pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature. For catering, offices, hotels, doctors, etc. 1 line for sparkling water 1 line for still water Water inlet 3/8" Beverage outlets 1/2" BSF Dimensions: W/D/H 413/285/456 mm Weight: 30 kg Ready to dispense in 10 minutes

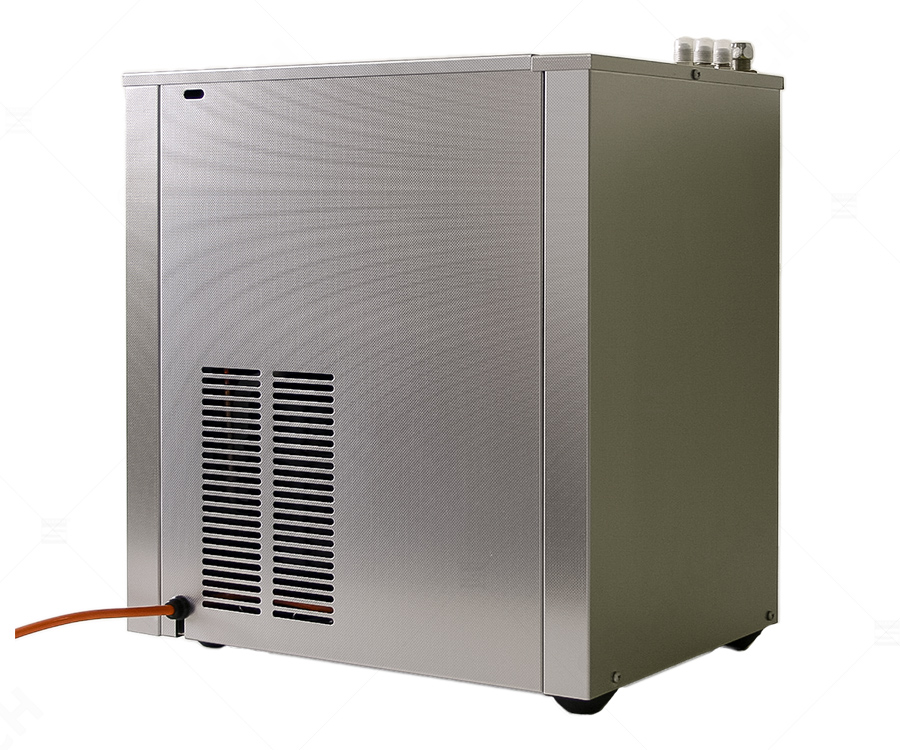

Sparkling and table water dispenser CT 60- undercounter Cool sparkling & table water from the water pipe Table water unit UTK CT 60, under-counter version The under-counter cooling units for table water (dry carbonators) are used in combination with a dispensing column. They are suitable for installation in existing counters or cabinets. The system is easy to install, simple to operate and easy to clean. All components that come into contact with water are made of high-quality stainless steel. With refrigerant R290environmentally friendly and energy efficient Water types: chilled sparkling water + chilled table water Electrical connection values: 230 V / 50 Hz / 3.4 A / 540 WPipes: 2 (5 i.D.)Ready to dispense in: 5 minutesDispensing capacity: 58 l/h at Δt 10KW/D/H: 413/285/456 mmWeight: 28 kg Compressor volume 62 dB: Quieter than most fully automatic coffee machines: At full compressor output (ambient temperature 32°C, relative humidity 65%), the volume corresponds to a normal conversation (approx. 60 dB). In standby mode, the appliances are virtually silent.

Beer dry blocks up to 1,000 kcal/h 2 ltg. (1,160 W at -5° C VT) complete with control system R134a (expansion valve, solenoid valve, thermostat). Required compressor cooling capacity: 950 W at -10° C evaporation. Please specify the desired nominal width 7 mm or 10 mm! Dimensions: W/D/H 350/420/175 mm Weight: 19 to 23 kg

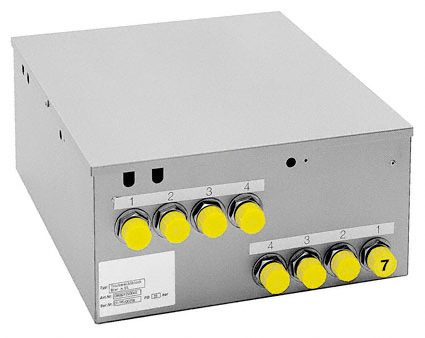

Dry cooling blocks for after-cooling, for counter installation, for connection to central cooling system 4 ltg. Beer dry blocks up to 1,000 kcal/h (1,160 W at -5° C VT) complete with control R134a (expansion valve, solenoid valve, thermostat). Required compressor cooling capacity: 950 W at -10° C evaporation. Please specify the desired nominal width 7 mm or 10 mm! Dimensions: W/D/H 350/420/175 mm Weight: 19 to 23 kg

Dry cooling blocks for after-cooling, for counter installation, for connection to central cooling system 5 ltg. Beer dry blocks up to 1,000 kcal/h (1,160 W at -5° C VT) complete with control R134a (expansion valve, solenoid valve, thermostat). Required compressor cooling capacity: 950 W at -10° C evaporation. Please specify the desired nominal width 7 mm or 10 mm! Dimensions: W/D/H 350/420/175 mm Weight: 19 to 23 kg

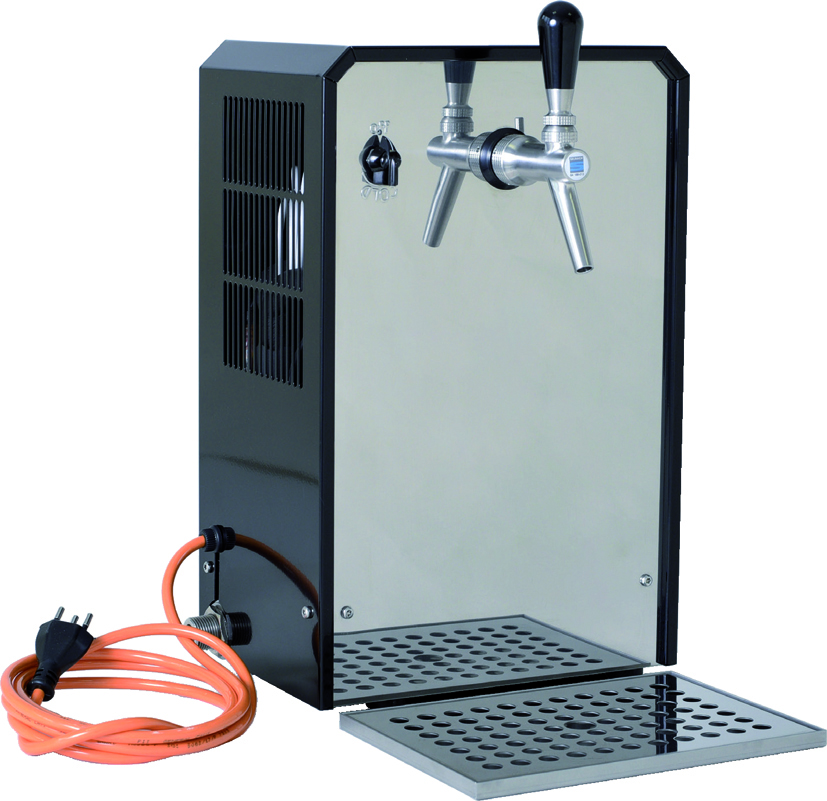

Dry cooler "Craft-Beer" 1-pipe, 18 litres/h Delivery incl. drip tray, without tap. Continuous tap capacity: 18 litres/h at 10° C TD Pipe diameter: NW 7 mm Line: 1 x beer Cooling capacity: 265 W / 920 kJ/h (220 kcal) Voltage: 230 V / 50 Hz, 220 W, 1.3 A Comperessor: 1/6 PS Housing material: Stainless steel Dimensions W/D/H: 264/186/420 mm (D with drip tray 360 mm) Weight: 19 kg Delivery without tap Can be used with all taps from 35 mm threaded connection

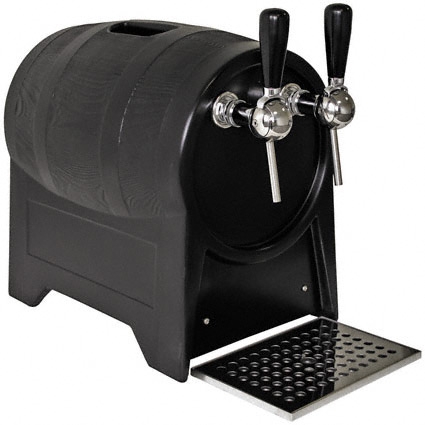

Mulled wine heater Mulled wine appliance Hot keg for easy tapping of mulled wine, punch, children's punch, Jagertee, grog, Julischka Temperature setting infinitely variable 35° C to 85° C adjustable. Ready to plug in, ready to tap in 10 minutes. With drip tray, heated taps. Device with electric pumps=simple installation, preset dispensing speed. Dimensions: W/D/H 308/580/445 mm Weight: 32 kg Dispensing capacity: 100 l/h 8.400 W, 400 V, 50 Hz, 12.5 A Hot water tank With integrated electric pump 2-ltg.

Mulled wine heater Mulled wine appliance Hot keg for easy tapping of mulled wine, punch, children's punch, Jagertee, grog, Julischka Temperature setting infinitely variable 35° C to 85° C adjustable. Ready to plug in, ready to tap in 10 minutes. With drip tray, heated taps. Appliance with compressed air-driven pumps, here the pumps can be operated using either a compressed air compressor N2 or CO2. With these appliances, the dispensing speed can be variably adjusted. Dimensions: W/D/H 308/580/445 mm Weight: 32 kg Dispensing capacity: 100 l/h 8.400 W, 400 V, 50 Hz, 12.5 A Hot tank With integrated compressed air pump 2-ltg.

Mulled wine heater Mulled wine appliance for easy tapping of mulled wine, punch, children's punch, Jagertee, grog, Julischka, mulled beer Temperature setting infinitely variable 35° C to 85° C adjustable. Ready to plug in, ready to dispense in 10 minutes. With drip tray 520 mm deep, heated taps. Device without pumps for dispensing kegs, CO2 / N2 pressure reducer required. Dimensions: W/D/H 295/520/465 mm Weight: 35 kg Dispensing capacity: 100 l/h 400 V, 50 Hz, 8,400 W, 12.5 A Mulled wine device complete without pump 3-ltg

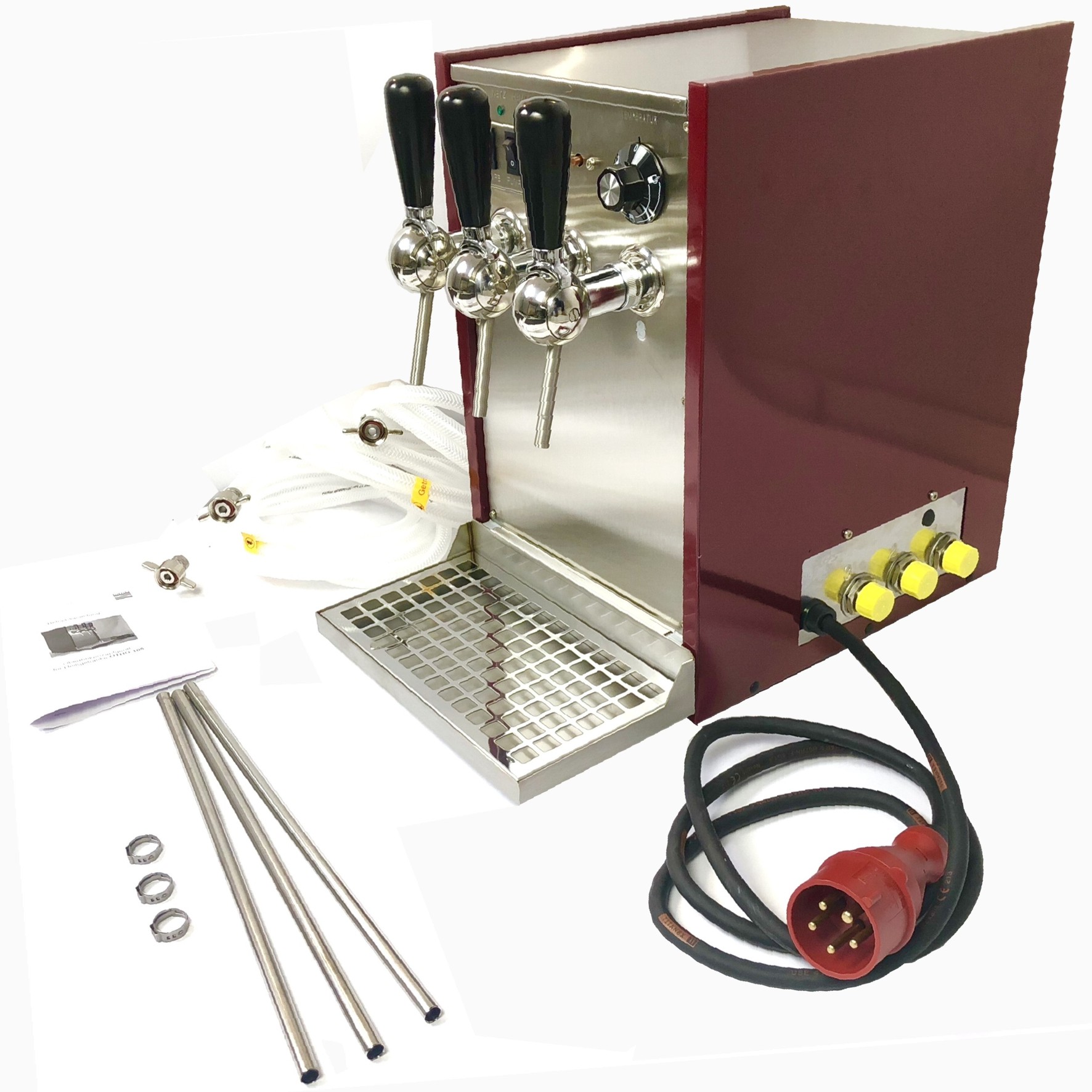

Mulled wine heater Mulled wine dispenser with electric pump Mulled wine dispenser with electric pump for easy dispensing of mulled wine, punch, children's punch, Jagertee, Grog, Julischka. Temperature setting continuously adjustable from 35° C to 85° C. Ready to plug in, ready to tap in 10 minutes. With 520 mm deep drip tray and heated taps. Appliance with electric pumps=simple installation, preset dispensing speed. See connection diagram! Function of the mulled wine dispenser with electric pump A self-priming electric pump is installed in the mulled wine heater. The mulled wine is sucked out of the containers via the electric pump using the supplied hose + suction pipes. The mulled wine is only heated in the mulled wine dispenser during the tapping process and is then tapped hot into the mulled wine cup. This ensures that the mulled wine retains its full flavour and alcohol content. Dimensions: W/D/H 295/520/465 mm Weight: 40 kg Dispensing capacity: 100 l/h Optionally with 2 or 3 taps (please select via selection window) 400 V, 50 Hz, 8,400 W, 12.5 A Mulled wine device With integrated electric pump

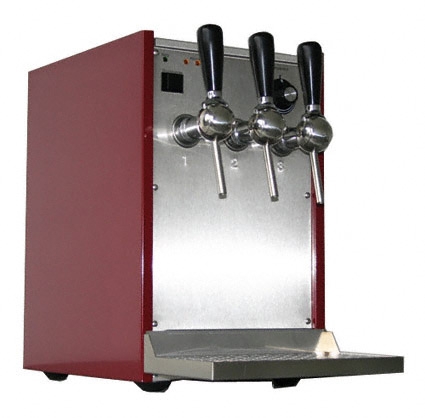

Mulled wine heater Mulled wine device with compressed air pump Mulled wine dispenser for easy dispensing of mulled wine, punch, children's punch, Jagertee, Grog, Julischka Temperature setting infinitely variable 35° C to 85° C adjustable. Ready to plug in, ready to dispense in 10 minutes. With drip tray 520 mm deep, heated taps. Appliance with compressed air-driven pumps, here the pumps can be operated using either an air compressor N2 or CO2. With these appliances, the dispensing speed can be variably adjusted. Dimensions: W/D/H 295/520/465 mm Weight: 40 kg Dispensing capacity: 100 l/h 400 V, 50 Hz, 8,400 W, 12.5 A Mulled wine device With integrated compressed air pump

Python heat exchanger BK 130 Maxi water bath cooling (4/5 hp) Accompanying unit for water bath cooling (4/5 HP). With agitator motor pump, thermostat control, water level indicator and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 4.7 A / 900 W Cooling capacity: 1511 W / 1300 kcal/h Water bath: 48 litres W/D/H: 750/400/550 mm Weight: 51 kg

Python heat exchanger BK 130 Maxi water bath cooling (4/5 hp) Accompanying unit for water bath cooling (4/5 HP). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 4.7 A / 900 W Cooling capacity: 1511 W / 1300 kcal/h Water bath: 48 litres W/D/H: 750/400/550 mm Weight: 51 kg

Python heat exchanger BK 70 Medi A water bath cooling (3/8 hp) Trace unit for water bath cooling (3/8 hp). With agitator motor pump, thermostat control, water level indicator, analogue temperature display and water supply and return G 5/8 Electrical connection values: 230 V / 50 Hz / 2.6 A / 420 W Cooling capacity: 814 W / 700 kcal/h Water bath: 27 litres W/D/H: 700/370/495 mm Weight: 40 kg
