Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 9 KW

Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 9KW

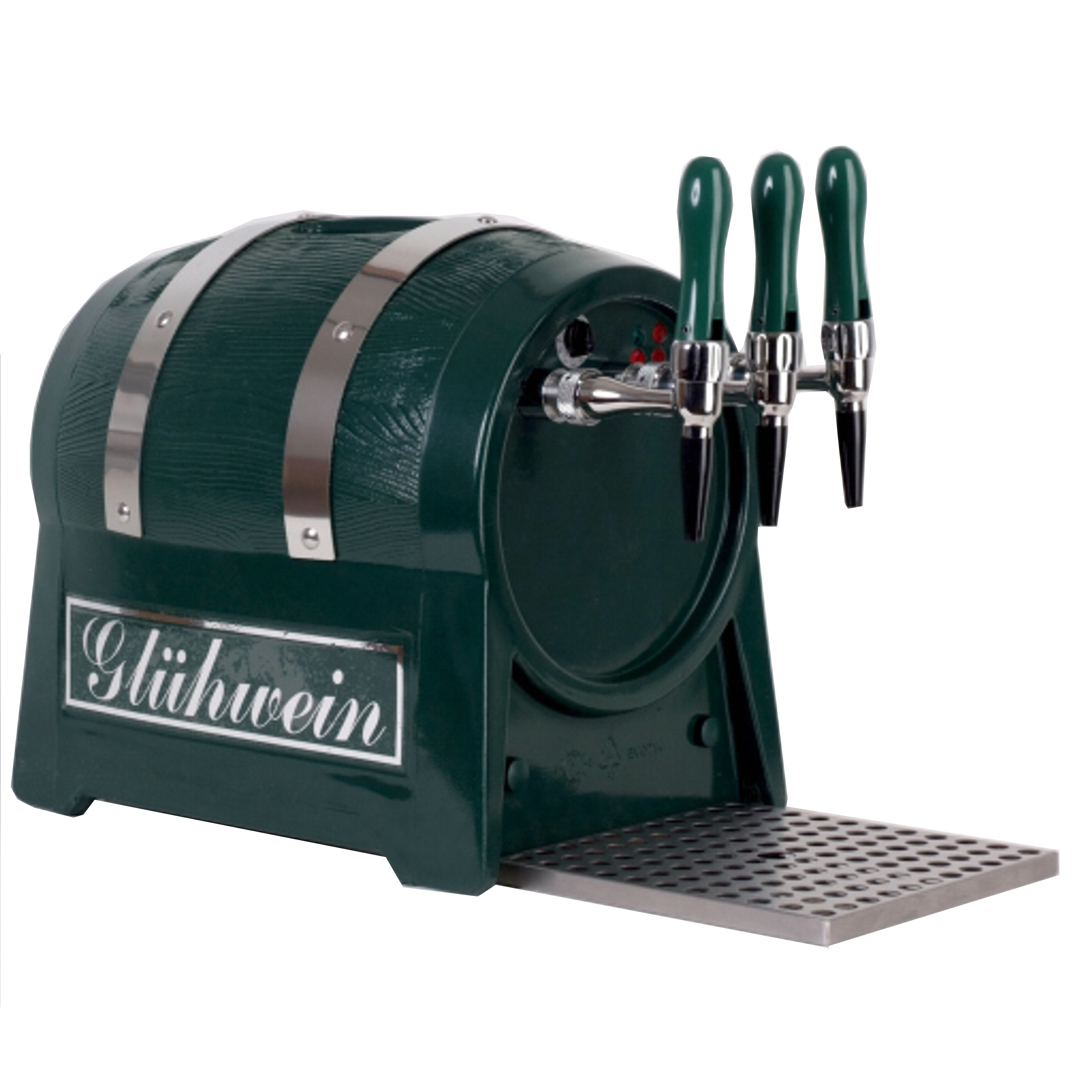

Instant beverage heater (mulled wine dispenser) in barrel form, 3-pipe, power consumption: 9 kW/h with electric pumps.

Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature.
Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with integrated self-priming, low-noise electric pumps. The pumps enable dispensing from non-pressurised containers (e.g. canisters).

Equipment:

• 3 heated taps
• 3 beverage hoses with screw connection, riser pipe and filter
• 1 drip tray
• 1 operating manual
• 1 cleaning manual

Dispensing capacity: 500 x 0.2 I/h
Beverage temperature: adjustable up to max: 85° C
Mains connection: 400 V / 50 Hz
Current consumption: 16 A
Fuse: 3 x 16 A slow-blow
Weight: 28 kg.
