Mulled wine dispenser with electric pump
Mulled wine dispenser with drip tray and ball tap
Mulled wine over-the-counter dispenser with drip tray and ball tap Continuous dispensing capacity: 100 l/h Dimensions W/D/H: 290/520/384 mm (D incl. drip tray) Weight: 28 kg with integrated electric pump 2 litres per hour

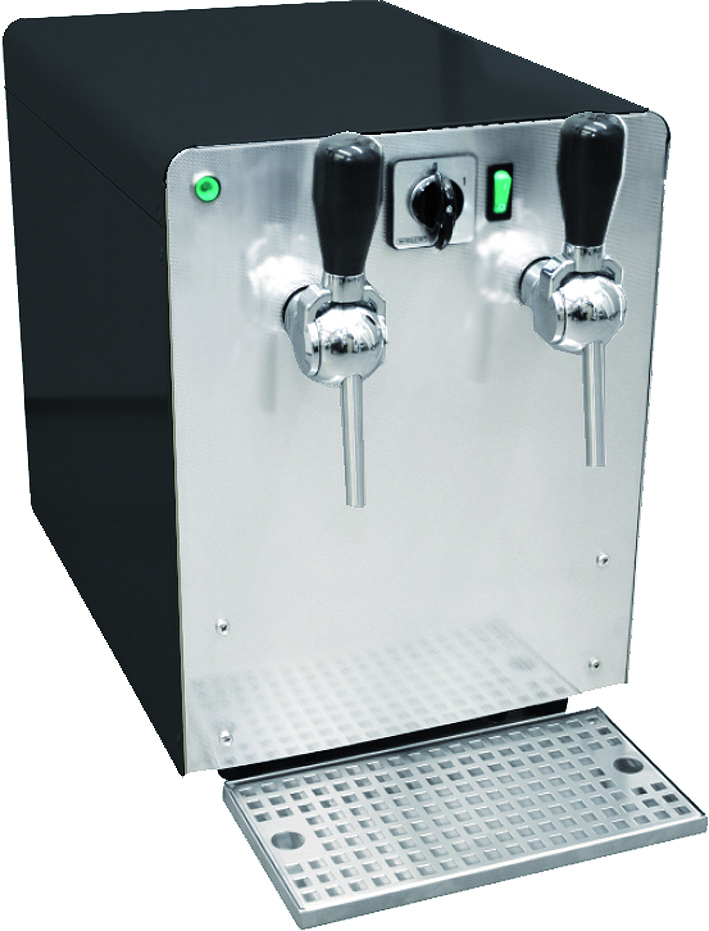

Mulled wine dispenser with drip tray and ball taps
Mulled wine over-the-counter dispenser with drip tray and ball taps Continuous dispensing capacity: 40 litres per hour at Dt=60 °C Temperature setting: 40 °C to 70 °C Cable: 2 Voltage: 230 V / 50 Hz, 3,000 W, 13 A Material Housing: Stainless steel Dimensions W/D/H: 260/372/394 mm (D with drip tray 472 mm) Weight: 19 kg with integrated electric pump 2 litres

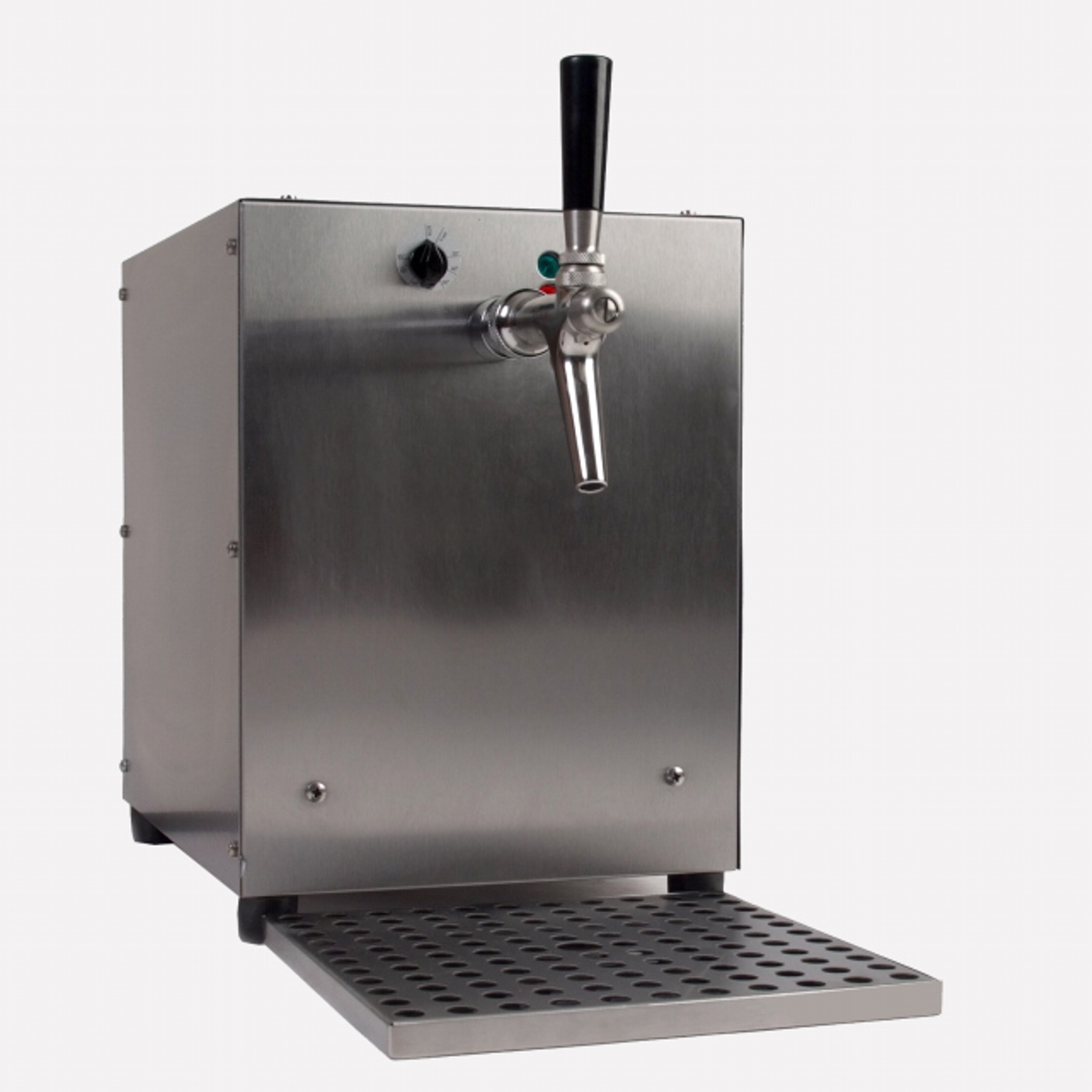

Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 3KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 3KW Beverage heater (mulled wine dispenser) made of stainless steel, 1-pipe, power consumption: 3 kW/h with integrated electric pump. equipped with stainless steel tap. Compact, powerful, reliable Dimensions: Width 25cm, depth 35cm, height 34cm Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 1 heated tap 1 beverage hose with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 set of cleaning instructions Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 3KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 3KW Beverage heater (mulled wine dispenser) made of stainless steel, 1-pipe, power consumption: 3 kW/h with integrated electric pump. equipped with stainless steel tap. Compact, powerful, reliable Dimensions: Width 25cm, depth 35cm, height 34cm Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 1 heated tap 1 beverage hose with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 set of cleaning instructions Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 9 KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 1 x tap, 9 KW Beverage flow heater (mulled wine dispenser) in stainless steel, 1-pipe Power consumption: 9 kW/h with electric pump. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: heated tap 1 beverage hose with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 set of cleaning instructions Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 16 A slow-blow Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 2 x tap, 3 KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 2 x tap, 3KW Beverage heater (mulled wine dispenser) made of stainless steel, 2-pipe, power consumption: 3 kW/h with integrated electric pump. equipped with stainless steel tap. Compact, powerful, reliable Dimensions: Width 25cm, depth 35cm, height 34cm Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 2 heated taps 2 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.

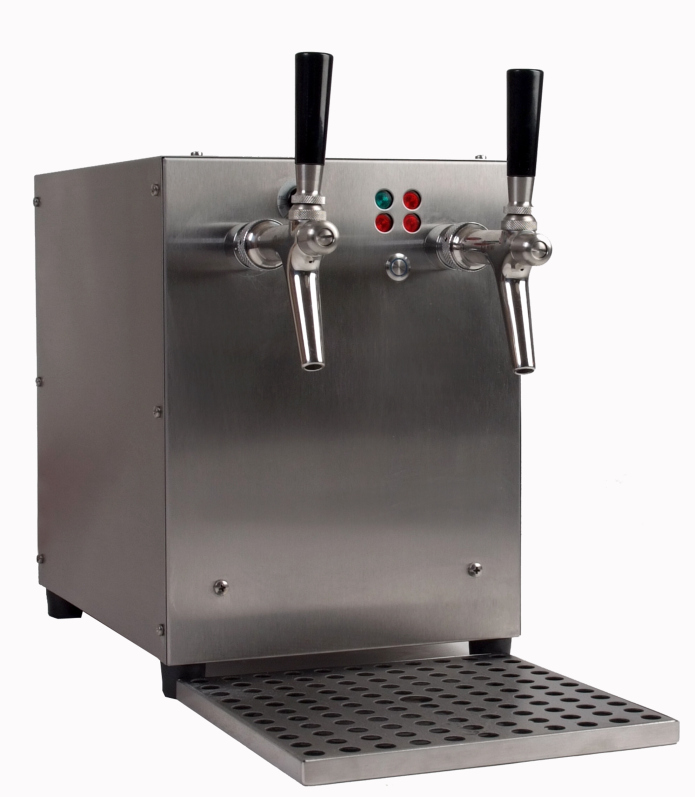

Mulled wine dispenser, mulled wine device, mulled wine heater VA with 2 x tap, 9 KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 2 x tap, 9 KW Beverage flow heater (mulled wine dispenser) in stainless steel, 2-pipe, power consumption: 9 kW/h with electric pump. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 2 heated taps 2 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 2 x 16 A slow-blow Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 3 x tap, 3KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 3 x tap, 3KW Beverage heater (mulled wine dispenser) made of stainless steel, 3-pipe, power consumption: 3 kW/h with integrated electric pump. equipped with stainless steel tap. Compact, powerful, reliable Dimensions: Width 25cm, depth 35cm, height 34cm Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 3 heated taps 3 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.

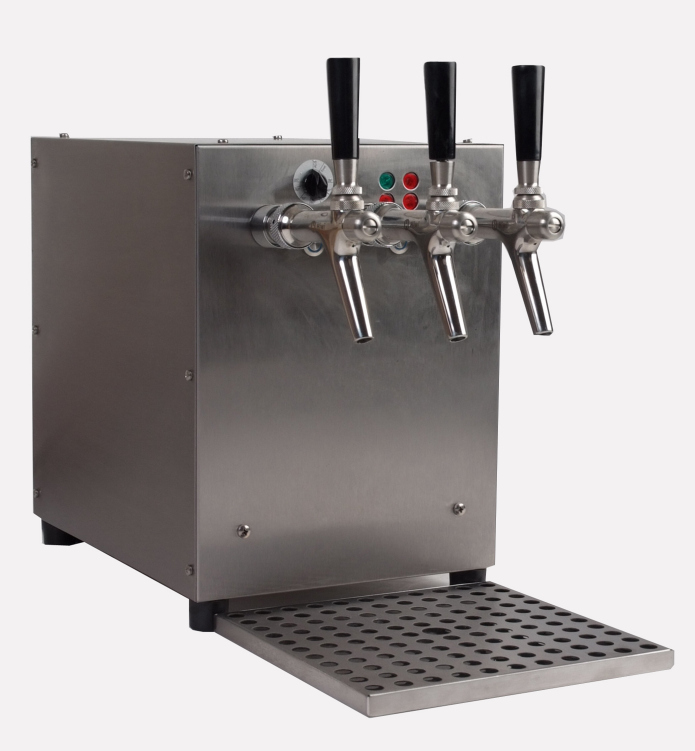

Mulled wine dispenser, mulled wine device, mulled wine heater VA with 3 x tap, 9 KW
Mulled wine dispenser, mulled wine device, mulled wine heater VA with 3 x tap, 9 KW Beverage flow heater (mulled wine dispenser) in stainless steel, 3-pipe, power consumption: 9 kW/h with electric pumps. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with integrated self-priming, low-noise electric pumps. The pumps enable dispensing from non-pressurised containers (e.g. canisters). Equipment: 3 heated taps 3 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 3 x 16 A slow-blow Weight: 28 kg.

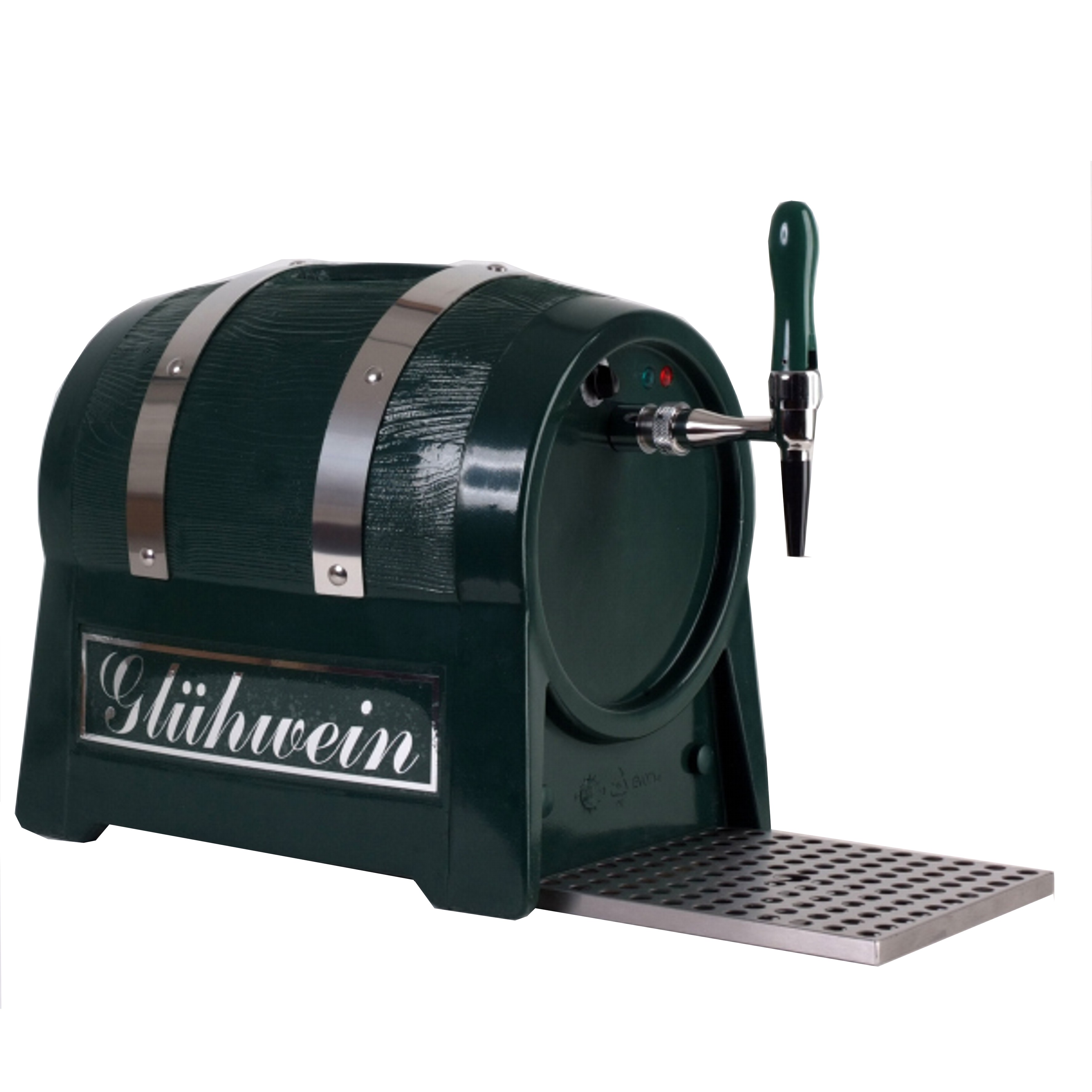

Mulled wine dispenser, mulled wine device, mulled wine heater with 1 x tap, 9 KW
Mulled wine dispenser, mulled wine appliance, mulled wine heater with 1 x tap, 9KW Instant beverage heater (mulled wine dispenser) in barrel form, 1-pipe Power consumption: 9 kW/h with electric pump. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: heated tap 1 beverage hose with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 set of cleaning instructions Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 16 A slow-blow Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater with 1 x tap, 9 KW
Mulled wine dispenser, mulled wine appliance, mulled wine heater with 1 x tap, 9KW Instant beverage heater (mulled wine dispenser) in barrel form, 1-pipe Power consumption: 9 kW/h with electric pump. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: heated tap 1 beverage hose with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 set of cleaning instructions Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 16 A slow-blow Weight: 28 kg.

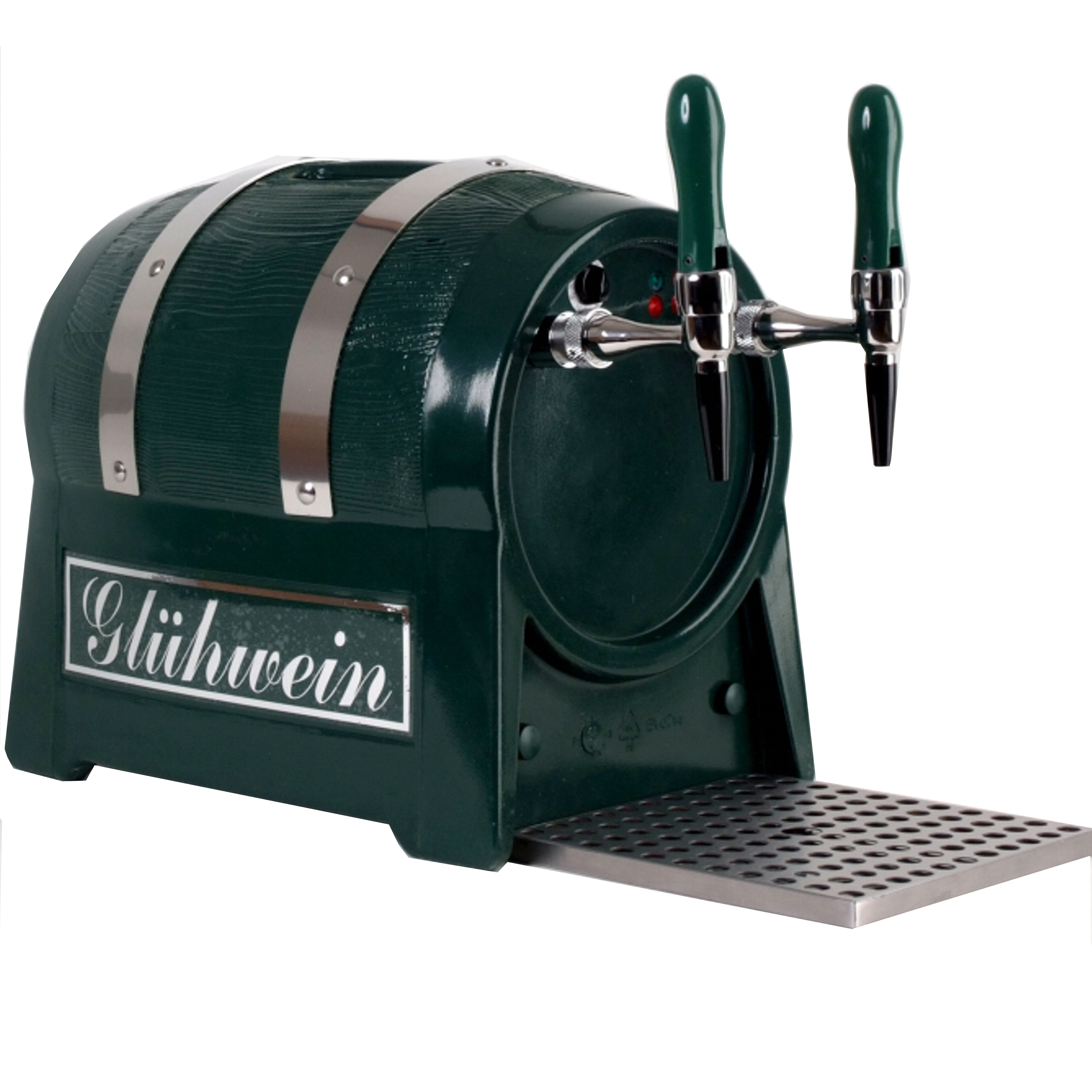

Mulled wine dispenser, mulled wine device, mulled wine heater with 2 x tap, 3 KW
Mulled wine dispenser, mulled wine device, mulled wine heater with 2 x tap, 3KW Instant beverage heater (mulled wine dispenser) in barrel form, 2-pipe power consumption: 3 kW/h with electric pump. Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with integrated self-priming, low-noise electric pumps. The pumps enable dispensing from non-pressurised containers (e.g. canisters). Equipment: 2 heated taps 2 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater with 2 x tap, 9 KW
Mulled wine dispenser, mulled wine device, mulled wine heater with 2 x tap, 9KW Instant beverage heater (mulled wine dispenser) in barrel form, 2-pipe, power consumption: 9 kW/h with electric pump. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with an integrated self-priming, low-noise electric pump. This pump enables dispensing from non-pressurised containers (e.g. canisters). Equipment: 2 heated taps 2 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 16 A slow-blow Weight: 28 kg.
Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 3KW
Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 3KW Instant beverage heater (mulled wine dispenser) in barrel form, 3-pipe power consumption: 3 kW/h with electric pumps. Dispensing capacity 35 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with integrated self-priming, low-noise electric pumps. The pumps enable dispensing from non-pressurised containers (e.g. canisters). Equipment: 3 heated taps 3 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 175 x 0.2 I/h Beverage temperature: adjustable up to 85° C Mains connection: 230V / 50 Hz Power consumption: 13 A Fuse: 16 A Weight: 28 kg.

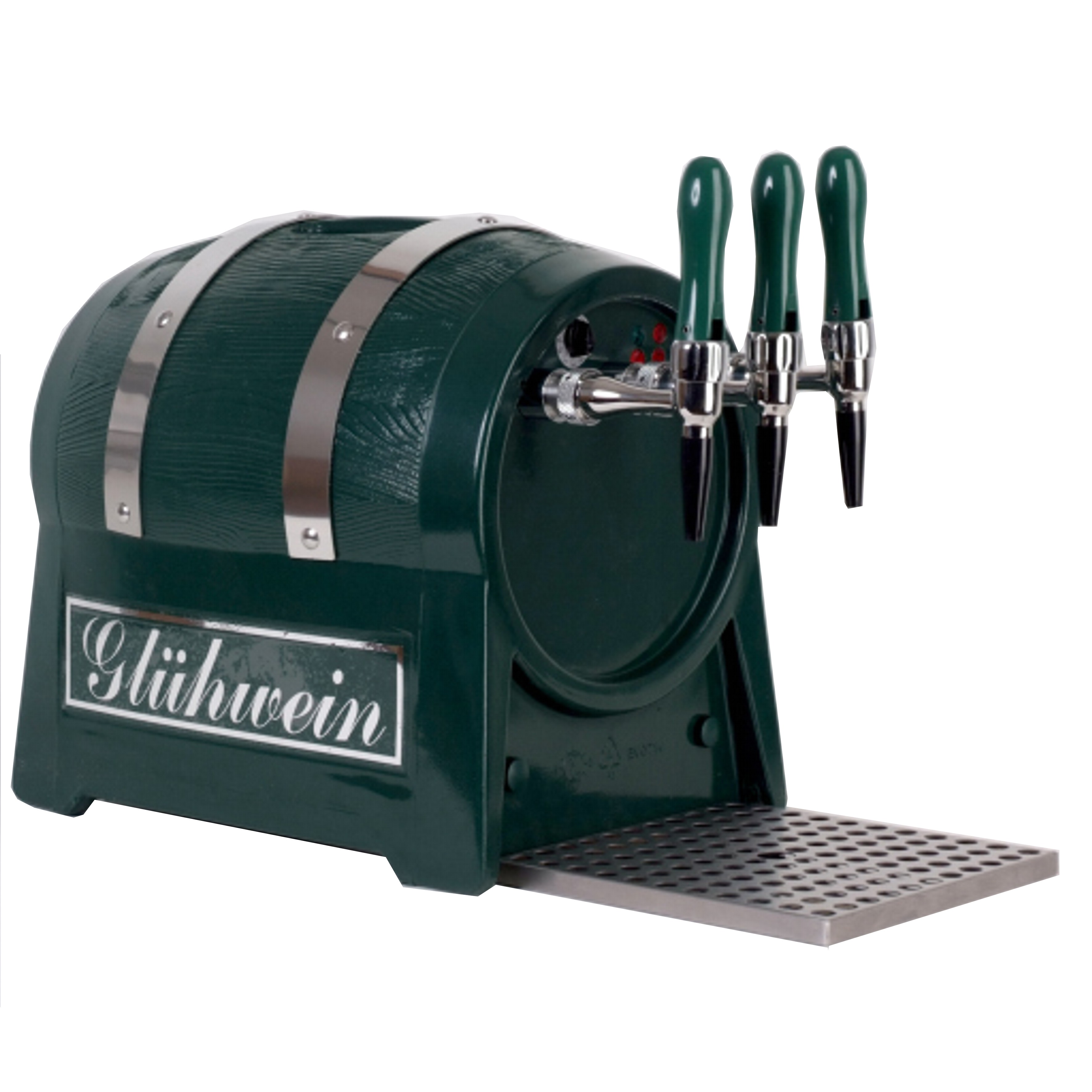

Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 9 KW
Mulled wine dispenser, mulled wine device, mulled wine heater with 3 x tap, 9KW Instant beverage heater (mulled wine dispenser) in barrel form, 3-pipe, power consumption: 9 kW/h with electric pumps. Dispensing capacity 100 l/h with a temperature difference of 75°C between inlet and outlet temperature. Infinitely variable temperature control from 7°C to 85°C possible. The appliance is equipped with integrated self-priming, low-noise electric pumps. The pumps enable dispensing from non-pressurised containers (e.g. canisters). Equipment: 3 heated taps 3 beverage hoses with screw connection, riser pipe and filter 1 drip tray 1 operating manual 1 cleaning manual Dispensing capacity: 500 x 0.2 I/h Beverage temperature: adjustable up to max: 85° C Mains connection: 400 V / 50 Hz Current consumption: 16 A Fuse: 3 x 16 A slow-blow Weight: 28 kg.
Mulled wine heater Mulled wine appliance
Mulled wine heater Mulled wine appliance Hot keg for easy tapping of mulled wine, punch, children's punch, Jagertee, grog, Julischka Temperature setting infinitely variable 35° C to 85° C adjustable. Ready to plug in, ready to tap in 10 minutes. With drip tray, heated taps. Device with electric pumps=simple installation, preset dispensing speed. Dimensions: W/D/H 308/580/445 mm Weight: 32 kg Dispensing capacity: 100 l/h 8.400 W, 400 V, 50 Hz, 12.5 A Hot water tank With integrated electric pump 2-ltg.
Mulled wine heater Mulled wine appliance with electric pump
Mulled wine heater Mulled wine dispenser with electric pump Mulled wine dispenser with electric pump for easy dispensing of mulled wine, punch, children's punch, Jagertee, Grog, Julischka. Temperature setting continuously adjustable from 35° C to 85° C. Ready to plug in, ready to tap in 10 minutes. With 520 mm deep drip tray and heated taps. Appliance with electric pumps=simple installation, preset dispensing speed. See connection diagram! Function of the mulled wine dispenser with electric pump A self-priming electric pump is installed in the mulled wine heater. The mulled wine is sucked out of the containers via the electric pump using the supplied hose + suction pipes. The mulled wine is only heated in the mulled wine dispenser during the tapping process and is then tapped hot into the mulled wine cup. This ensures that the mulled wine retains its full flavour and alcohol content. Dimensions: W/D/H 295/520/465 mm Weight: 40 kg Dispensing capacity: 100 l/h Optionally with 2 or 3 taps (please select via selection window) 400 V, 50 Hz, 8,400 W, 12.5 A Mulled wine device With integrated electric pump
Wine cooler, wine flow cooler, wine barrel with 3 taps
Wine cooler, wine flow cooler, wine barrel with 3 taps Dry cooler for wine, wine barrel with 3 taps 40 litres/h Supplied with drip tray. The housing offers space on the side for product advertising. The cooling coils of different lengths ensure differentiated cooling of the various types of wine. With 3 pre-set beverage lines for white wine, rosé and red wine. Beverage line 4 mm! Dimensions: W/D/H 308/410/408 mm (D=580 mm with drip tray) Weight: 29 kg Dispensing capacity: 40 l/h 230V, 50Hz, 190W, 1.6 A Wine barrel with 3 taps Pressure reducer N2 and nitrogen on site,
A mulled wine dispenser with instantaneous water heater and electric pump
The pump draws the mulled wine through a pump from an external container and transports the drink to the tap. Here is a more detailed explanation of the process:
How it works:
-
Mulled wine container:
First, the mulled wine is stored in a separate container, usually a large cooking pot or a special mulled wine container, tetrapack or bag in box. This container is connected to the dispensing system. -
Continuous flow heater:
The dispensing system has a flow heater that is connected to the mulled wine container and the dispensing area. The instantaneous water heater heats the mulled wine as it flows through the dispenser. -
Electric pump:
The mulled wine dispenser is equipped with an electric pump that draws the mulled wine from the container and transports it through the pipes. The pump is controlled via the tap to regulate the flow. -
Pipes and hoses:
The heated mulled wine is transported from the instantaneous water heater to the tap through insulated pipes and hoses. The insulation ensures that the heat is retained during transport. -
Dispensing area:
In the dispensing area, the mulled wine is fed through a tap or nozzle into cups or mugs. This enables controlled dispensing. -
Temperature control:
The mulled wine dispenser monitors the temperature of the mulled wine by means of a thermostat in the appliance. This ensures that the mulled wine always remains at the optimum serving temperature.
Advantages:
-
Continuous serving:
Thanks to the continuous flow heater principle, the mulled wine dispenser can continuously heat and serve mulled wine without any interruptions. -
Consistent dispensing:
The electric pump ensures an even flow and therefore even dispensing, which guarantees consistent quality. -
Temperature control:
Precise temperature monitoring ensures that the mulled wine is always at the perfect serving temperature.
Overall, the combination of the instantaneous water heater principle and electric pump provides an efficient and reliable way of dispensing mulled wine in large quantities with consistent quality.
