Dispensing column, petrol pump for dispensing system

"Classic-Elegant" model swan-neck dispensing column "Classic-Elegant" model swan-neck dispensing column, chrome-plated or gold-plated, WITHOUT dispensing taps, with 40 mm Allen spacer(s) for taps with 55 mm threaded connector and stainless steel beer lines NW 7 mm, chrome-plated 1-pipe, with trace cooling, 2-pipe, with trace cooling, 3-pipe, with trace cooling, NW 10 mm, chrome-plated 1-pipe, with trace cooling, 2-pipe, with trace cooling, 3-pipe, with trace cooling, NW 7 mm, gold-plated 1-pipe, with trace cooling, 2-pipe, with trace cooling, 3-pipe, with trace cooling, NW 10 mm, gold-plated 1-pipe, with trace cooling, 2-pipe, with trace cooling, 3-pipe, with trace cooling Proceed as follows for tap installation: Pull the trace cooling line approx. 20 cm out of the column,Screw in the dispensing taps, CAREFULLY push the trace cooling line back in Please order the dispensing taps separately in the chapter Dispensing taps

Dispensing column Model „Flemish shape WITHOUT TAPS“ Version Chrome or brass. Height 475 mm, centre tap 375 mm, base 115 mm Ø. Dispensing columns not suitable for Python trace cooling lines Chrome 1-line 2-line Brass 1-line 2-line ATTENTION! For hose assembly, please order socket at the same time: for 7 mm order no. T26 for 10 mm order no. T27 For 10 mm order no. T27 Order no. T27 For taps with 35 mm spigot Order spacer sleeve: Spacer sleeve 20 mm chrome Order no. T10A Spacer sleeve 20 mm brass Order no. T12A Taps Please order in the Taps section!

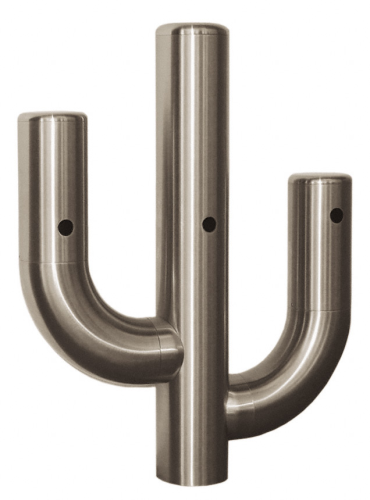

Dispensing column WITHOUT DISHES Model „KAKTUS“ Version CNS matt-polished, CNS polished, TIN-gold-coloured or RAL-coloured. Made of Stainless steel tube 114/104 mm Ø. Height approx. 680/540/480 mm, height MH 400 mm. CNS matt-polished B=width 3-pipe, B 550 mm CNS polished B=width 3-pipe, B 550 mm TIN-gold-coloured (SCRATCH-RESISTANT GOLD OPTICS)or coloured according to RAL specification B=width 3-wire, B 550 mm Please order dispensing taps in the chapter dispensing taps

Dispensing column model "Lindenthal" 3-pipe - tap distance 145 mm 4-pipe - tap distance 110 mm Ø base 101 mm, Ø bar 114 mm Front inspection panel, H approx. 460 mm - height MH 400 mm, W 530 mm, polished stainless steel end cap with cover WITHOUT taps. Please order the taps separately.

Dispensing column model "Parisienne" 3-pipe Height 493 mm, height centre tap 368 mm, base 289 mm Ø WITHOUT TAPS Finish: Polished brass, chrome-plated brass. Dispensing columns are not suitable for Python trace cooling lines ATTENTION: For hose assembly, order socket: for 7 mm order no. T26 for 10 mm order no. T27 For dispensing taps with 35 mm spigot, order spacer sleeve: Spacer sleeve 20 mm chrome order noPart no. T10A Spacer sleeve 20 mm Brass Part no. T12A Please order taps in the taps section!

Dispensing column model "RJ1" Dispensing column WITHOUT TAPS Version CNS matt or CNS polished in elliptical shape Height 535 mm, height MH 420 mm, Width 560 mm, depth 234 mm, base 204 mm Ø.ATTENTION: the dispensing column is supplied without taps, please order your desired tap in the category Tap/dispensing tap Tap/beer tap

Dispensing column WITHOUT DISHES Model „RJ2“ Version CNS matt-polished, CNS polished or TIN gold-coloured. Height 580 mm, height MH 400 mm, width 500 mm, D 160 mm, base 129 mm Ø. CNS matt-polished 3-pipe, 4-pipe, CNS polished 3-pipe, 4-pipe, TIN gold-coloured, (SCRATCH-RESISTANT GOLD COLOUR) 3-pipe, 4-pipe Please order dispensing taps in the dispensing taps section

Dispensing column WITHOUT DISHES Dispensing column Model „RJ2211“ Finish CNS matt-polished, CNS polished, TIN-gold-coloured or copper. Suitable for pythons. Height 500 mm, height MH 400 mm, base 154 mm Ø, bar 168 mm Ø. CNS matt-polished (available to 10-wire), B=width 3-wire, B 616 mm 4-wire, B 616 mm 5-wire, B 816 mm 6-wire, B 816 mm CNS polished (available to 10-wire), B=width 3-wire, B 616 mm 4-wire, B 616 mm 5-wire, B 816 mm 6-wire, B 816 mm TIN gold-coloured (SCRATCH-RESISTANT GOLD OPTICS) Available to 10-wire), B=width 3-wire, B 616 mm 4-pipe, B 616 mm 5-pipe, B 816 mm 6-pipe, B 816 mm Please order dispensing taps in the dispensing taps section

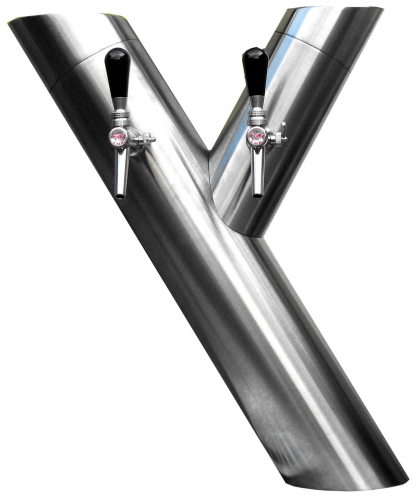

Dispensing column WITHOUT DISHES Model „RJY“ Version CNS matt-polished, CNS polished or TIN gold-coloured. Stainless steel made of tube 114 mm Ø and 104 mm Ø. Height 550 mm, height MH 400 mm. CNS matt polished 2-pipe, CNS polished 2-pipe, TIN gold-coloured (SCRATCH RESISTANT GOLD OPTICS) 2-pipe Please order taps in the taps section

"Widdersdorf" model dispensing column 2-tier column, T-shape black, matt-polished Ø base 112 mm Ø decorative flange 130 mm Ø bar 40 mm, height 380 mm Height centre tap 350 mm, width 225 mm, tap spacing 142 mm WITHOUT taps. Please order the taps separately.

Dispensing column model "Worringen" Stainless steel matt-polished finish With inspection flap at the bottom Height 454 mm, height centre of tap 400 mm Tap distance 110 mm Tube 108 mm Ø Width 2-pipe 450 mm Width 3-pipe 560 mm Width 4-pipe 670mm ATTENTION: the dispensing column is supplied without taps, please order your desired tap in the category Tap/dispensing tap

Dispensing column model baby swan neck WITHOUT tap 1-pipe Chrome or brass with centre pipe mounting Height centre of tap 270 mm ATTENTION: For hose assembly, please also order bushing:for 7 mm order no. T26, for 10 mm order no. T27Order spacer sleeve for taps with 35 mm spigot:Spacer sleeve 20 mm chrome order no. T10A, spacer sleeve, 20 mm brass order no. T12A

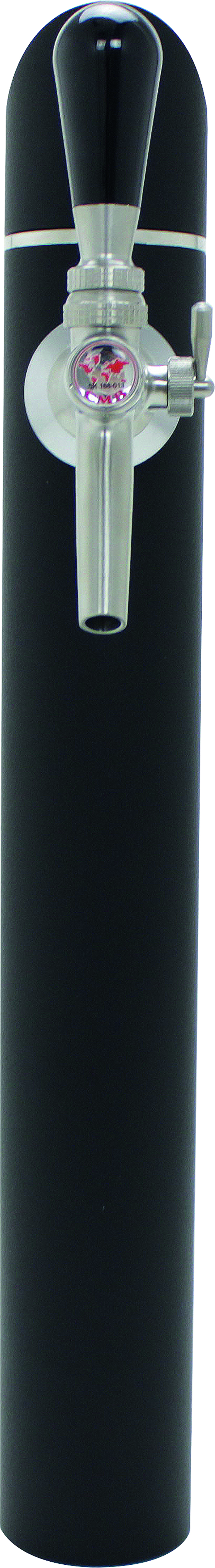

Dispensing column model Bocklemünd 1-pipe 60 mm Ø Finish / colour aluminium / black matt, powder-coated Decorative ring in CHROM Spacer sleeve/s in CHROM The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

Dispensing column model Bocklemünd 1-pipe 60 mm Ø with decorative flange Fastening suitable for refrigerator BK160 Finish / colour aluminium / black matt, powder-coated Decorative ring in CHROM Spacer sleeve/s in CHROM The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

Dispensing column model Bocklemünd 2-pipe 100 mm Ø Finish / colour aluminium / black matt, powder-coated Decorative ring in CHROM Spacer sleeve/s in CHROM The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

Dispensing column model Klettenberg 2-pipe column Ø base 101 mm, Ø bar 114 mm Front inspection flap Height approx. 460 mm - height MH 400 mm, width 310 mm, polished stainless steel end cap incl. cover WITHOUT taps. Please order the taps separately.

Dispensing column model Pulsar WITHOUT TAPS Version available in: CNS matt-polished CNS polished TIN gold-coloured made of stainless steel tube 154/129 mm Ø, Inspection opening at the front. Dimensions: Height: 475 mm, tap spacing 110 mm, Height: centre of tap 400 mm. Width (depending on the number of tap holes) 3-pipe, W 450 mm 4-pipe, W 560 mm 5-pipe, W 670 mm 6-pipe, W 780 mm Please refer to the chapter Dispensing taps order

Dispensing column model RJMF1 The dispensing columns of type RJMF1 have the great advantage that the bar can be installed pointing both to the left and to the right (this is even possible on site) and the individual panels can be ordered as required/inserted. RJMF1 3 - 4-pipe stainless steel pillar 610 mm wide (incl. base) Base diameter 139 mm Beam diameter 114 mm 500 mm high (400 mm MH) matt-polished WITHOUT panel, beam pointing either left or right WITHOUT taps. Please order the taps separately.

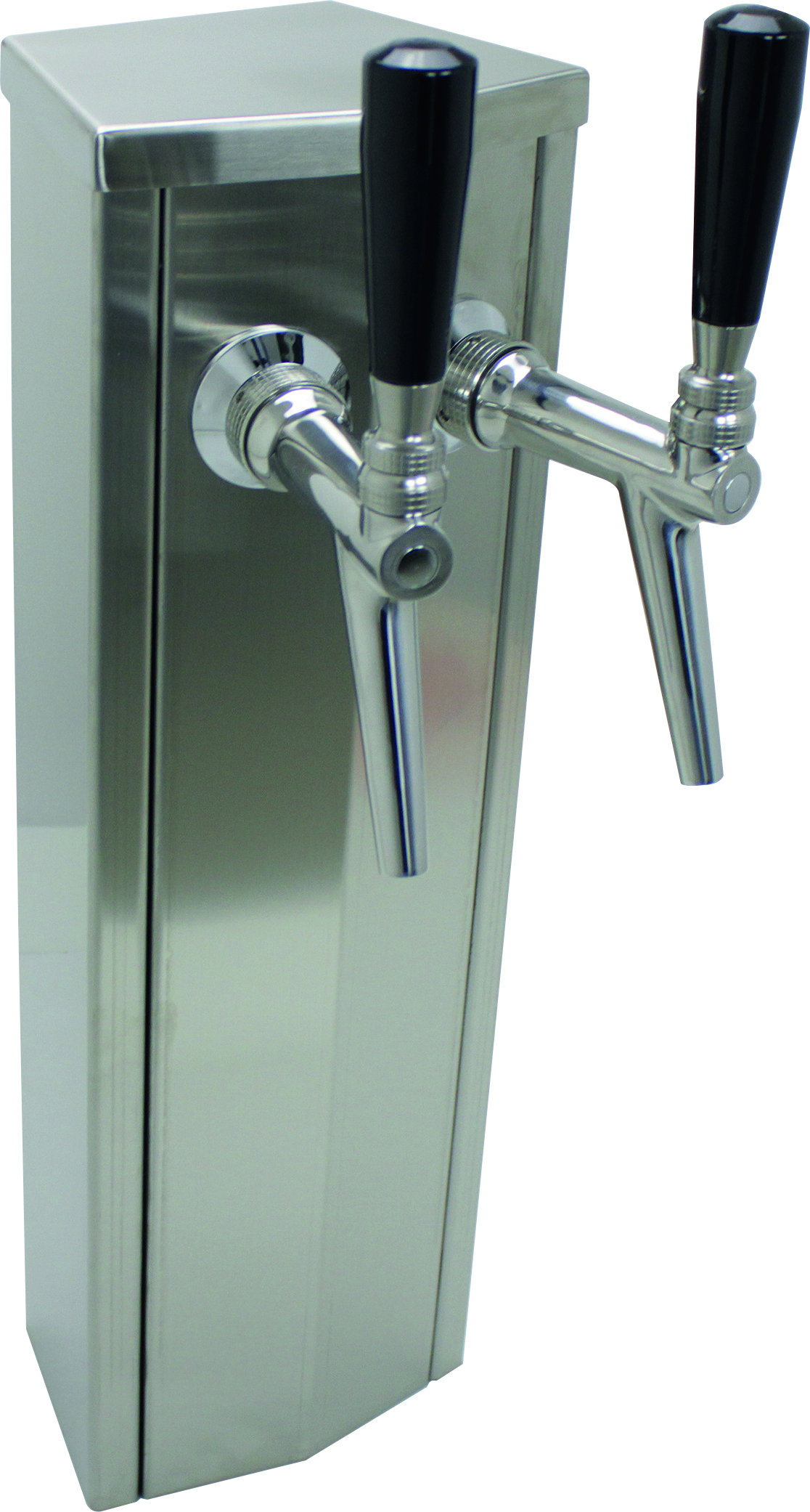

Dispensing column model Vogelsang made of stainless steel 1-pipe and 2-pipe Dimensions 1-pipe: Height 480 mm, height centre of tap 400 mm Dimensions: W/D/H 140(95)/100/480 mm Dimensions 2-pipe: W/D/H 155(110)/120/480 mm The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

Dispensing column WITHOUT DISHES with Crossbar Version CNS matt-polished, CNS polished or TIN gold-coloured. Made of tube 104 mm Ø. Base square 80/80 mm wide, 120 mm deep. Inspection flap at the top. Tap spacing 110 mm, Mounting flange (foot) W 120 mm x D 140 mm. CNS matt-polished, B=width 3-pipe, B 410 mm 4-pipe, B 520 mm CNS polished, B=width 3-pipe, B 410 mm 4-pipe, B 520 mm TIN gold-coloured (SCRATCH RESISTANT GOLD OPTICS)B=width 3-wire, B 410 mm 4-pipe, B 520 mm Dispensing taps please order in the chapter dispensing taps

Dispensing column, dispenser for beer 2 to 4 lines We offer you here a dispensing column in L shape for 3 to 6 taps, please note that the dispensing column is supplied WITHOUT TAPS. In the sales category Dispensing tap Dispensing tap we offer you the corresponding taps. You can order the dispensing bar on the right or left when viewed from the operator's side Design version: Stainless steel matt-polished CNS polished CNS or TIN gold-coloured Dispensing bar operator side right or left Inspection flap at the bottom. Made of tube 108 mm Ø, height 455 mm, height MH 400 mm, tap distance 100 mm Width of the dispensing column: 2-pipe, W 450 mm 3-pipe, W 560 mm 4-pipe, W 670 mm

Dispensing pump Dispensing pump 3- and 4-pipe Dispensing pump WITHOUT TAPS Finish: CNS matt-polished CNS polished Made from 108 mm Ø tube. With inspection flap at the bottom. Height: 454 mm, height MH 400 mm, base 60° inclined, tap distance 110 mm Width: 3-pipe, W 730 mm matt-finished 4-pipe, W 840 mm matt-polished 3-pipe, W 640 mm polished 4-pipe, W 770 mm polished Please refer to the chapter Dispensing taps order

Dispensing pump Dispensing pump model RJ5 WITHOUT DISPENSING TAPS Design: CNS matt-polished, 4 alternatively 5 ltg. CNS polished 4 alternatively 5 ltg. Made of stainless steel with 2 tubes 129 mm Ø and 88 mm Ø. Height 586 mm, height MH 396 mm, width 720 mm. The matching tap can be found in the chapter Dispensing taps

Dispensing pump Pisa model WITHOUT TAPS Finish: CNS matt brushed, CNS polished, TIN gold-coloured CNS coloured lacquered. tilted 10° to the right, made of 88 mm Ø chromium-nickel steel tube. Height: 550 mm, to centre of tap 400 mm. Please see chapter Dispensing taps section!
