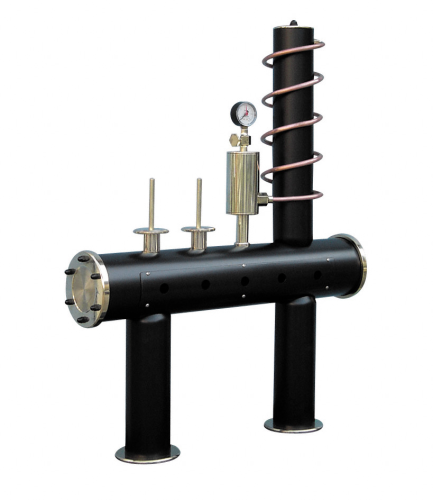

Dispensing column WITHOUT TAPS Model „Brauhaus“ made of CNS black matt lacquered, brass parts polished, with snake and pressure gauge. Height total 1,025 mm, height crossbar approx. 477 mm, height centre of tap 400 mm. Base 104 mm Ø, cross tube diameter 154 mm or 168 mm. With inspection opening on the host side, tap distance 110 mm. Delivery including two solid mushroom lid holders. CNS black, matt, B=width 4-pipe, B 600 mm 5-pipe, B 740 mm 6-pipe, B 880 mm 7-pipe, B 1,020 mm 8-pipe, B 1,160 mm Please order dispensing taps in the dispensing taps section

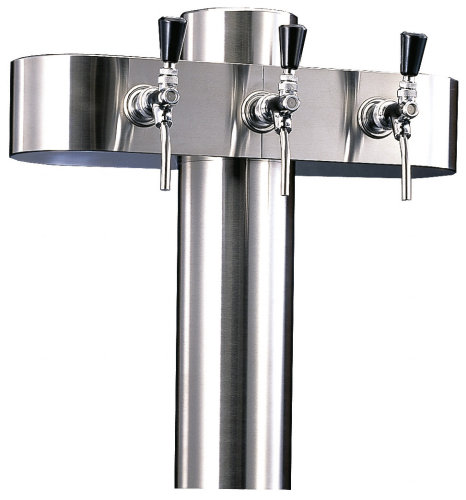

Bar dispensing column model "RJ3" 3 to 4 conductors
Here we offer you our popular bar dispensing column model "RJ3". You can order the beer dispensing column in various surface designs. Of course, this dispensing column is also used in the catering trade. The beer dispenser is fastened with 4 x M8 threaded rods. The fastening material is included in the scope of delivery.
Technical data:
Material: stainless steel, removable lid
510 mm, height MH 400 mm
Width 500 mm
Depth 160 mm
Base 129 mm Ø.
3 or 4 lines (for 3 or 4 taps)
Design:
Matt brushed stainless steel,
Polished stainless steel,
TIN-gold coloured, (SCRATCH RESISTANT GOLD OPTICS)
Scope of delivery:
Dispensing column
4 x M8 threaded rods for fastening
The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

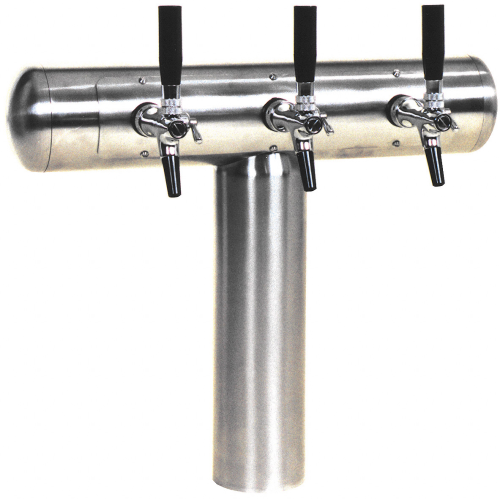

Dispensing column Beer dispenser STAINLESS STEEL model Tera
Here we offer you our popular beer dispenser model Terar. You can order the beer dispenser in various surface designs. Of course, this dispenser is also used in the catering trade. The beer dispenser is attached to the beer counter or beer bar using 4 x threaded rods Beer bar or counter counter. The fastening material is included in the scope of delivery.
Technical specifications:
Material: Stainless steel, with inspection flap for tap mounting
Height: 460 mm, to centre of tap 400 mm
Diameter of standpipe 104 mm
Dispensing pipe diameter 114 mm
2 ltg. Width 310 mm, tap distance 110 mm
3 ltg. Width 530 mm, tap distance 145 mm
4 ltg. Width 530 mm, tap spacing 110 mm
Design:
Matt brushed stainless steel
Polished stainless steel
Polished stainless steel TIN-gold coloured (SCRATCH RESISTANT GOLD OPTICS)
Scope of delivery:
Dispensing column
4 x M8 threaded rods for fastening
The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

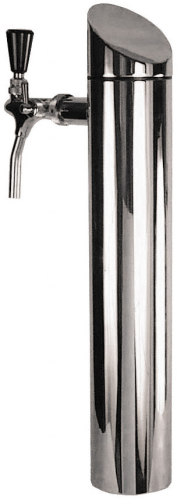

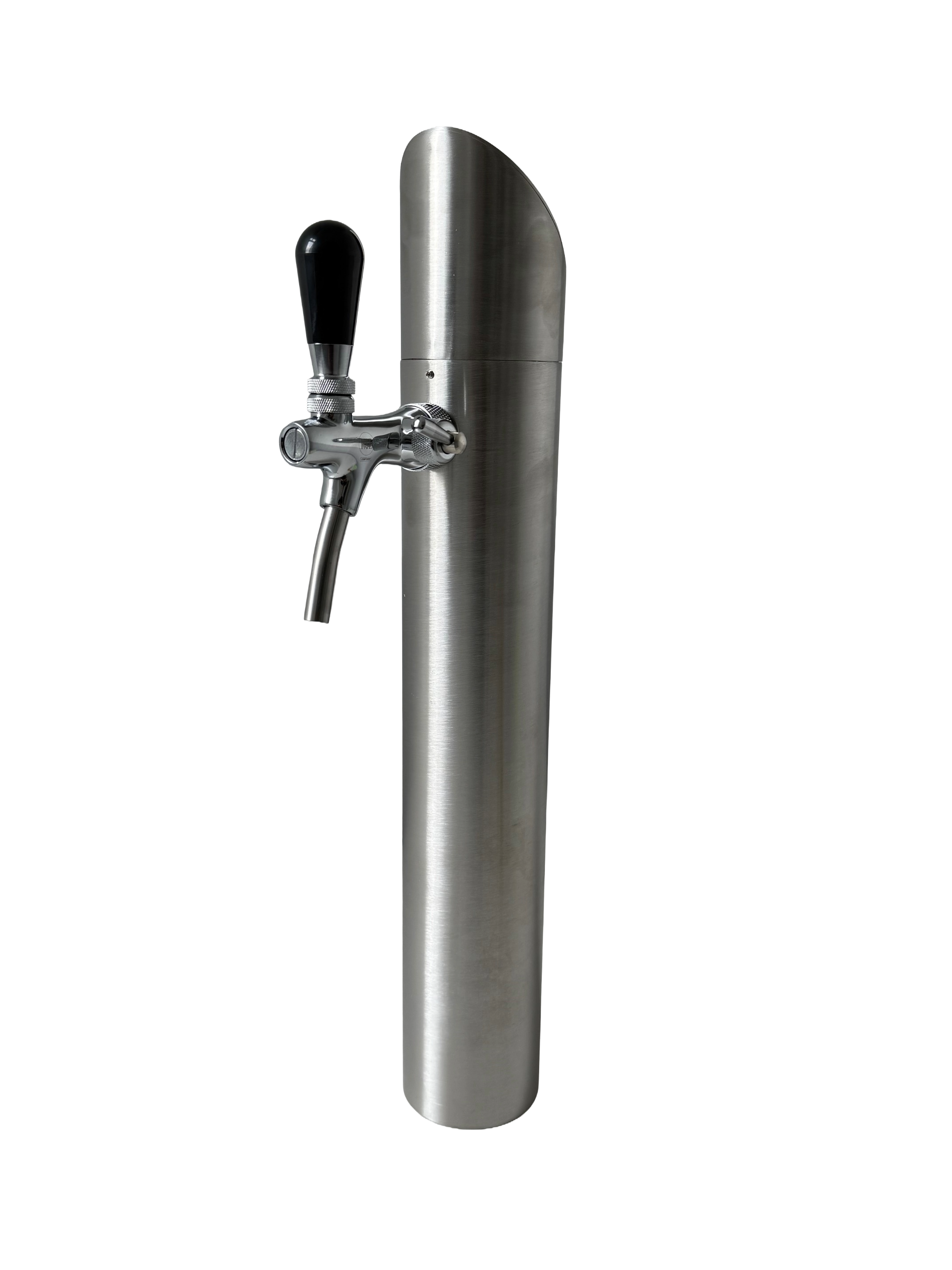

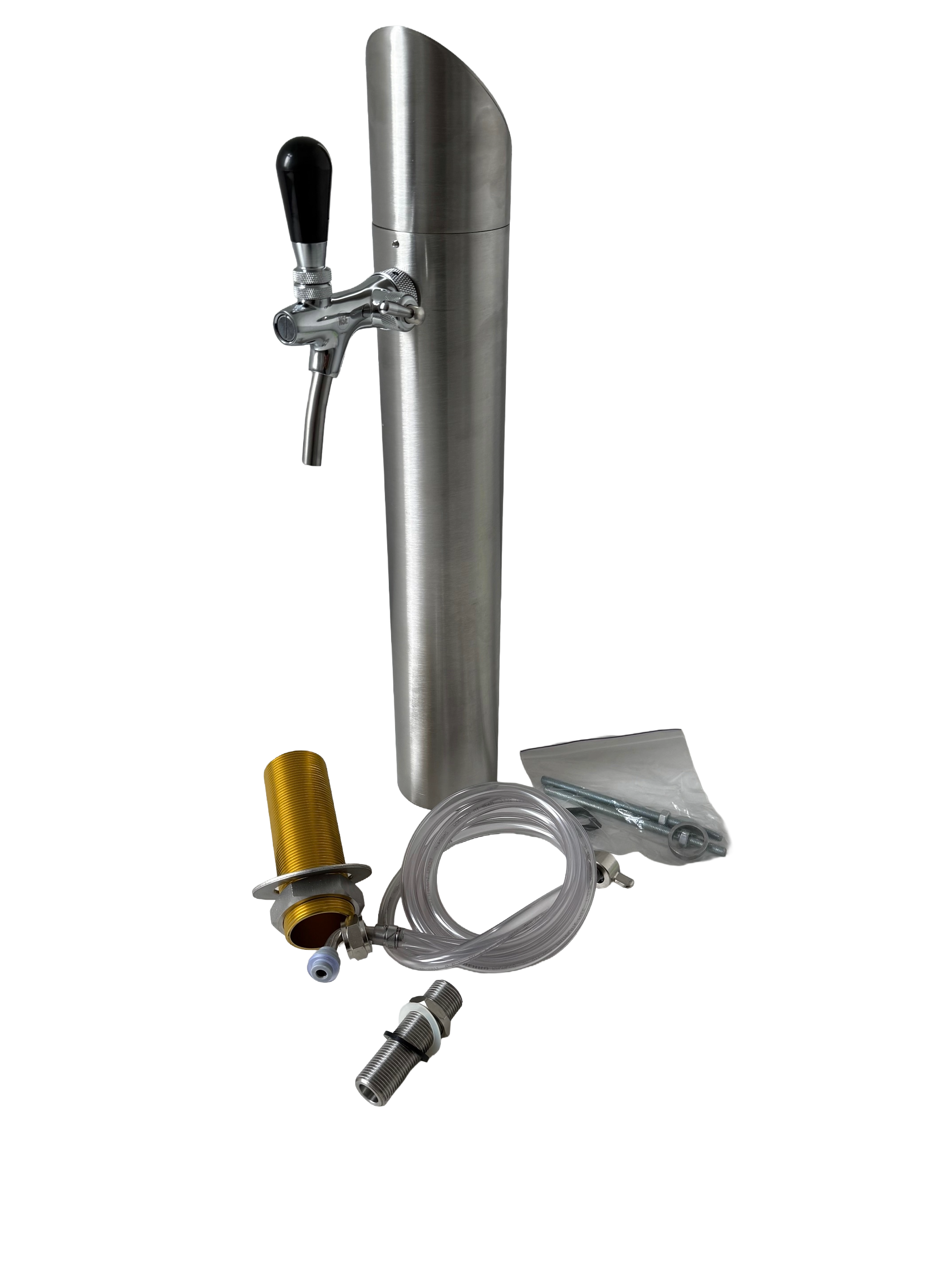

Dispensing tower Beer dispenser STAINLESS STEEL model Tower
Here we offer you our popular Tower model beer dispenser. You can order the beer dispenser in various surface designs. The 2-pipe dispensers have a larger diameter so that you have more space when installing them. Of course, this dispenser is also used in the catering trade. The beer dispenser can be installed with a central threaded pipe with union nut in the beer counter or beer bar Beer bar or counter counter. Alternatively, you can also attach the beer dispenser with 2 x M8 threaded rods. Both mounting options are included in the scope of delivery. For the Tap Spacer sleeves adapted to the diameter are also Spacer sleeves are also included in the scope of delivery.
Technical data of the beer dispenser:
Material: Stainless steel, removable lid
Height: 510 mm, to centre of tap 410 mm
Diameter 80 mm or 114 mm
1 or 2 lines (for 1 or 2 taps)
Design:
Matt brushed stainless steel, 1-pipe, 80 mm Ø, 1-pipe, 114 mm Ø, 2-pipe 114 mm Ø,
Polished stainless steel, 1-pipe, 80 mm Ø, 1-pipe, 114 mm Ø, 2-pipe 114 mm Ø,
Polished stainless steel TIN-gold coloured (SCRATCH-RESISTANT GOLD OPTICS), 1-pipe, 80 mm Ø, 2-pipe 114 mm Ø,
Scope of delivery Dispensing column:
Dispensing column
Central threaded tube for fastening
2 x M8 threaded rods for fastening
adapted spacer sleeves for tap installation
The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

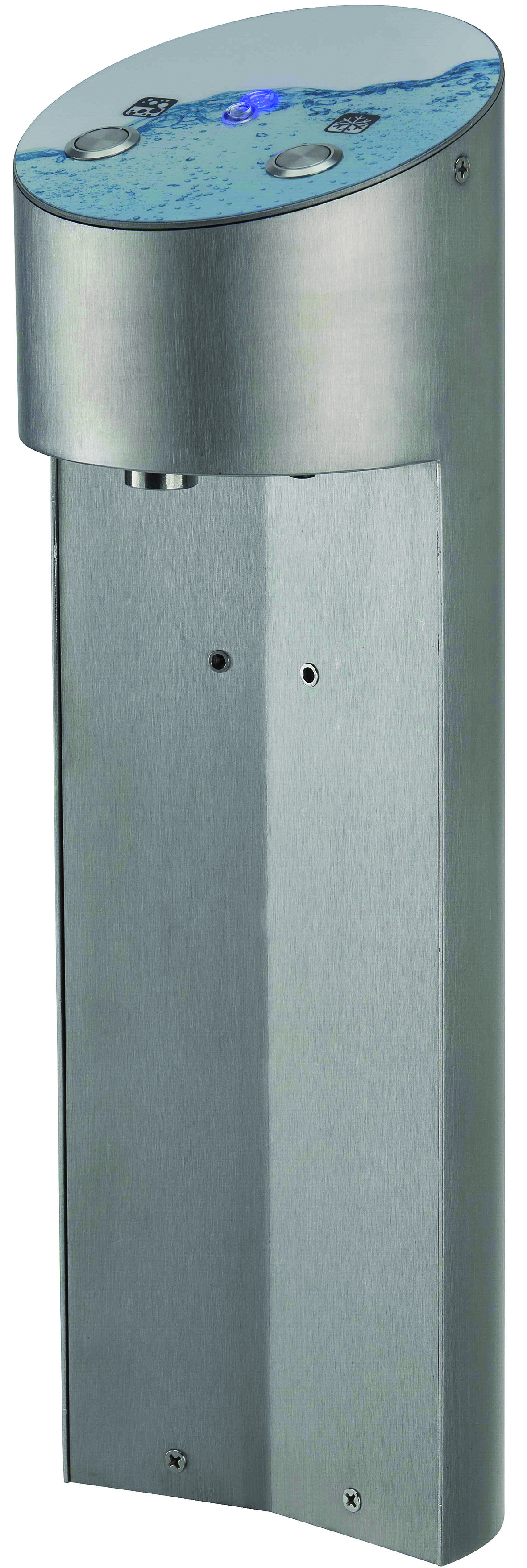

BluTower dispensing tower for water dispenser
Dispensing tower for table-top installation, specially designed for serving table water.
140 mm Ø, front height 400 mm,
Rear height 444 mm,
Dispensing height 322 mm
Weight: 5 kg

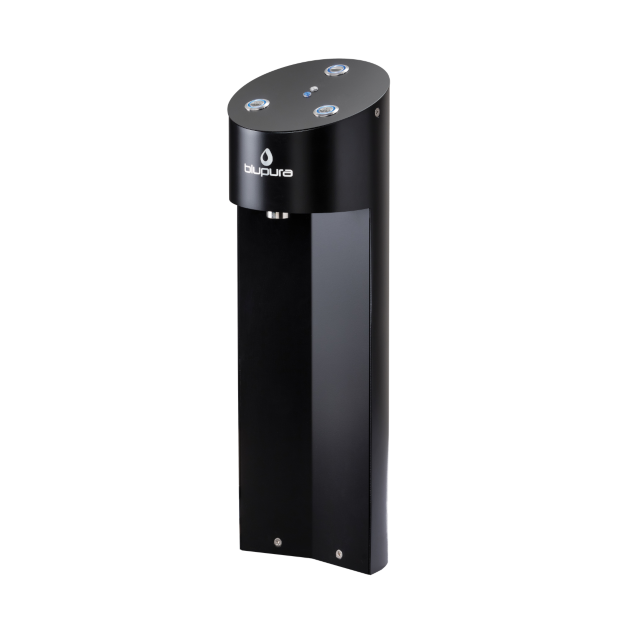

BluTower dispensing tower for BLACK water dispenser
Dispensing column for table-top installation, specially designed for serving table water.
140 mm Ø, front height 400 mm,
Rear height 444 mm,
Dispensing height 322 mm
Weight: 5 kg

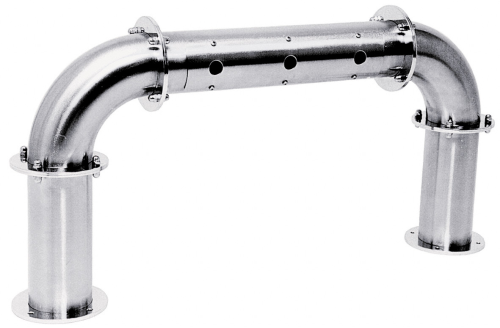

Bridge dispensing column WITHOUT TAPS Version CNS matt-polished, CNS polished or TIN gold-coloured. with flange, made of 104 mm Ø tube Height 452 mm, height MH 400 mm, Tap spacing 110 mm. CNS matt-polished, B=width 3-pipe, B 815 mm 4-pipe, B 925 mm 5-pipe, B 1,035 mm 6-pipe, B 1,145 mm CNS polished, B=width 3-pipe, B 815 mm 4-pipe, B 925 mm 5-pipe, B 1.035 mm 6-pipe, B 1,145 mm TIN gold-coloured (SCRATCH-RESISTANT GOLD OPTICS) B=Width 3-pipe, B 815 mm 4-pipe, B 925 mm 5-pipe, B 1,035 mm 6-pipe, B 1,145 mm Please order dispensing taps in the dispensing taps section

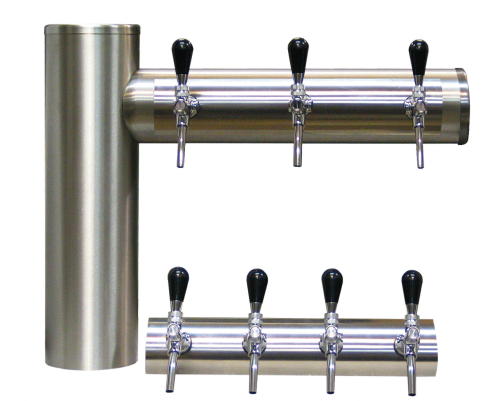

CNS service column 3 to 4 conductors - 610 mm wide (incl. base) Base diameter Base diameter 139 mm Beam diameter 114 mm, 500 mm High (400 mm MH) CNS pedestal, WITHOUT TANK HANGERS, satin finish Beam optionally pointing to the left or right 3 conductive - 4 conductive - CNS pedestal, WITHOUT TANK HANGERS, polished Bar optionally facing left or right 3 conductors - 4 conductors - Please order taps in the Taps section The dispensing columns of type RJMF1 have the great advantage that the bar can be installed facing both left and right (this is even possible on site ) and the individual – listed separately below can be ordered according to requirements/application. Also „special panels“ with special drill holes (diameter, distance and number) according to your specifications are available after a short time (approx. 2 weeks).

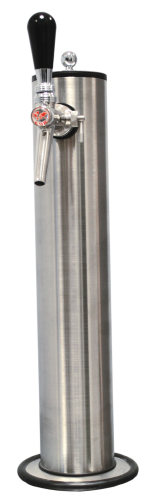

CNS dispensing column, satin finish for BK160
Dispensing column for BK160 refrigerator, with 4 mounting holes in the flange, 77 mm pipe diameter, therefore suitable for pythons CNS dispensing column, single-pipe, 23 mm hole (without tap)
ATTENTION! For hose assembly, also order socket: for 7 mm order no. T26 for 10 mm order no. T27 For taps with 35 mm spigot Order spacer sleeve: Spacer sleeve 20 mm chrome order no. T10A Spacer sleeve 20 mm brass order no. T12A

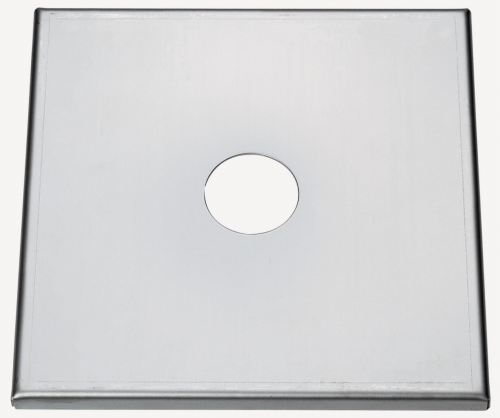

Cover plates CNS 1 cm bevelled, for covering column holes. Cover shelf 220 x 220 mm without hole, Cover shelf 220 x 220 mm 45 mm hole, 60 mm hole, 90 mm hole, Cover shelf 280 x 280 mm 45 mm hole, 90 mm hole,

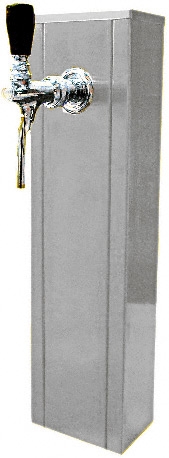

Crate dispensing column stainless steel
Stainless steel dispensing column for 1 or 2 taps. The height in the centre of the tap is 400 mm. Dispensing column WITHOUT TAPS Dimensions: W/D/H
1-pipe, 140(95)/100/480 mm
2-pipe, 155(110)/120/480 mm
Please order taps in the taps section!

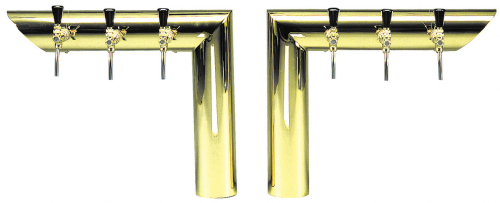

Dispensing column Beer dispenser Double dispensing column 4 - 8 ltg.
Here we offer you our popular double beer dispenser. With this dispenser you can install up to 8 taps (max. 4 taps per side) The beer dispenser can be ordered in various surface designs. Of course, this dispensing column is also used in the catering trade. The beer dispensing column is attached to the beer counter or beer bar using 4 x threaded rods Beer bar or beer counter counter. The fixing material is included in the scope of delivery.
Technical specifications:
Material: Stainless steel, with inspection flap for tap mounting
Height: 454 mm, to centre of tap 400 mm
Diameter of standpipe 108 mm
4 ltg. Width 2 x 450 mm
6 ltg. Width 2 x 560 mm
8 ltg. Width 2 x 670 mm
Design:
Matt brushed stainless steel
Polished stainless steel
Polished stainless steel TIN-gold coloured (SCRATCH RESISTANT GOLD OPTICS)
Scope of delivery:
Bar columns
4 x M8 threaded rods for fastening
The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !
Dispensing column beer dispenser gooseneck
Beer dispenser fashion swan neck Chrome or brass finish, WITHOUT TAPS Height 450 mm, height with beer tap centre 415 mm, base 142 mm Ø. Available versions:
Chrome-plated brass 1-pipe
Chrome-plated brass 2-pipe*
Polished brass 1-pipe
Polished brass 2-pipe*
*Attention! Only suitable for 7 mm hose line! ATTENTION: For hose assembly, also order a socket: for 7 mm order no. T26, for 10 mm order no. T27 For taps with 35 mm spigots, order a spacer sleeve: Spacer sleeve 20 mm chrome order no. T10A, spacer sleeve, 20 mm brass order no. T12A Please order taps in the Taps section!
Dispensing column Beer dispenser model Adria
Dispensing column model "Adria" incl. beverage line 6.7/9.5
5/8" thread for hand-turned tapHeight 504 mm, height centre of tap 430 mm, base 70 mm Ø.
Design:
Completely made of chrome, running to the right, from the bartender's point of view 1-pipe
Completely made of chrome, running to the left, 1 pipe from the bartender's perspective
Completely made of chrome, running to the centre, from the bartender's point of view, 1-line
The dispensing column is supplied WITHOUT taps, please order these in the section Taps !

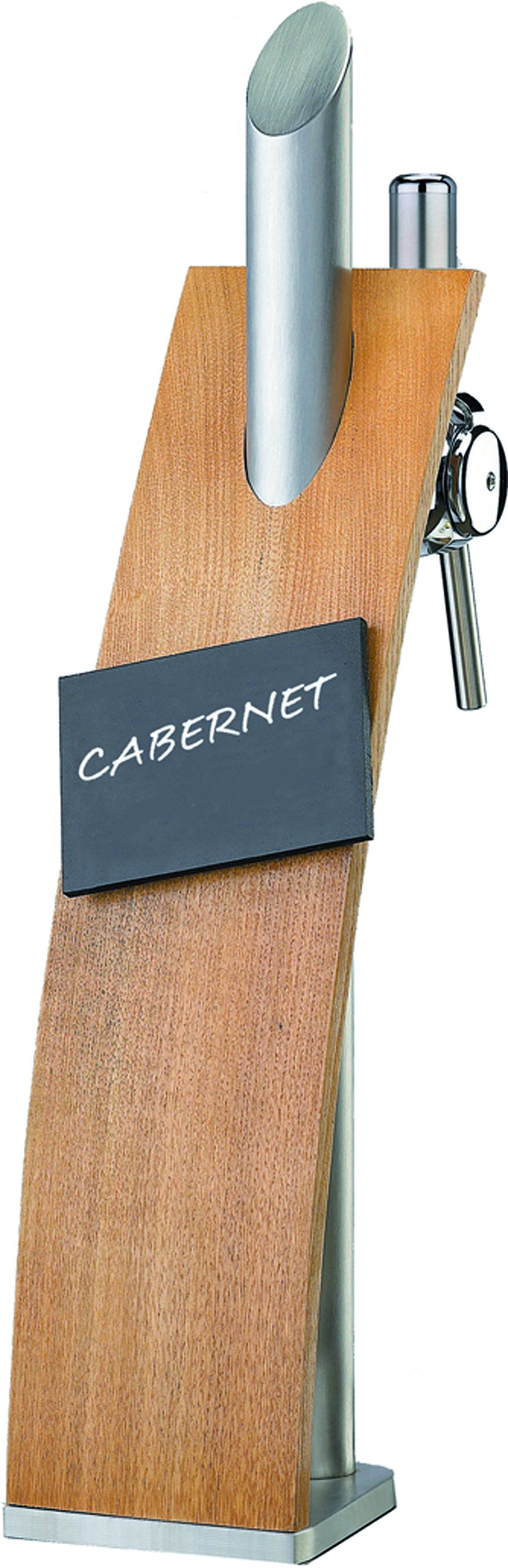

Dispensing column Beer dispenser model Bistro
Dispensing column model "Bistro" incl. beverage line 6.7/9.5 mm
5/8" thread for tapHeight 480 mm, height centre of tap 350 mm, base: width 105 mm depth 130 mm
Finish: chrome matt wood with chalkboard 1-line
The dispensing column is supplied WITHOUT taps, please order these in the section Taps !

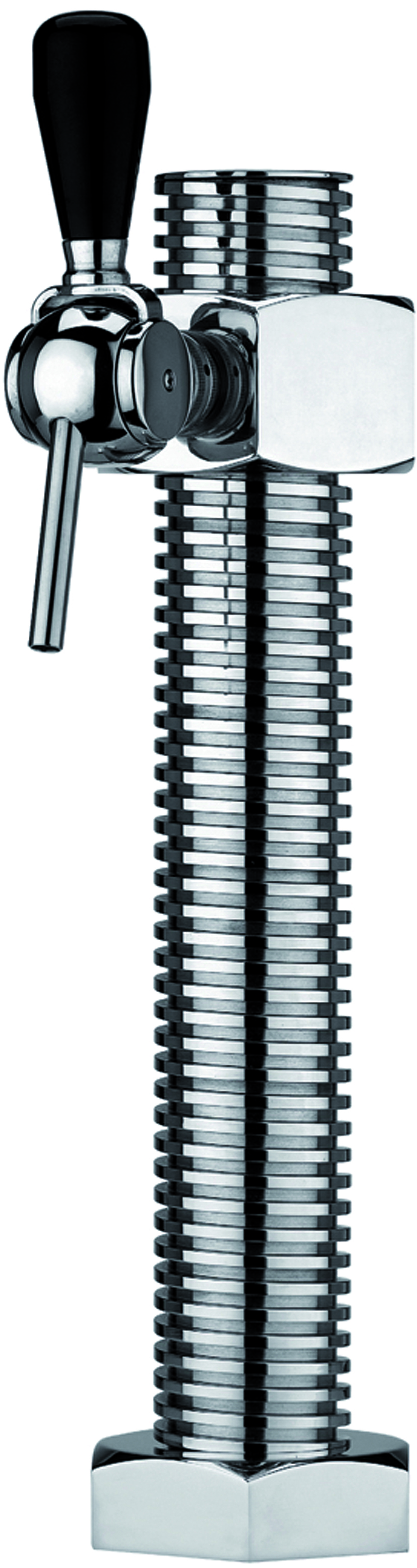

Dispensing column Beer dispenser Model Bolt
Dispensing column model "Bolt" incl. beverage line and accompanying cooling 6.7/9.5 mm
5/8" thread for hand-turned tapHeight 415 mm, height centre of tap 350 mm, base 110 mm Ø.
Design:Completely made of chrome 1-pipe
The dispensing column is supplied WITHOUT taps, please order these in the section Taps !

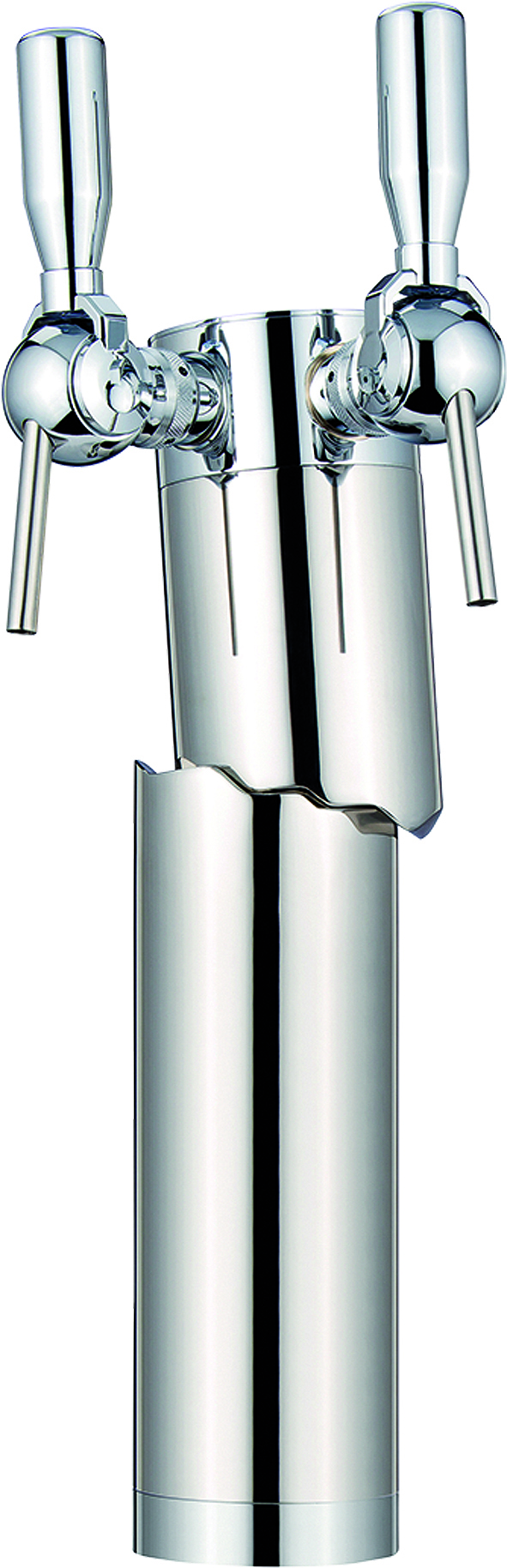

Dispensing column Beer dispenser Model Break
Dispensing column model "Break" incl. beverage line and accompanying cooling 6.7/9.5 mm
5/8" thread for hand-turned tapHeight 410 mm, height centre of tap 380 mm, base 90 mm Ø.
Design:
Completely made of chrome 1-pipe
Completely made of chrome 2-pipe
The dispensing column is supplied WITHOUT taps, please order these in the section Taps !

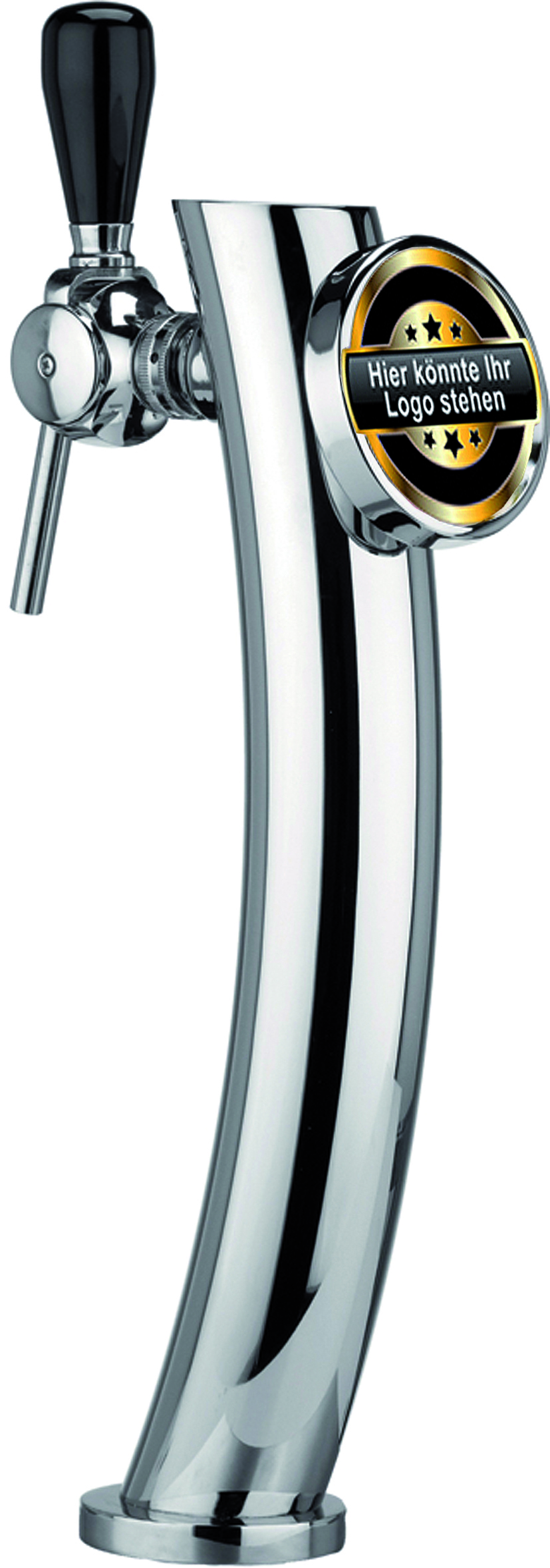

Dispensing column Beer dispenser Model Cavus
Dispensing column model "Cavus" incl. beverage line and accompanying cooling 6.7/9.5 mm
5/8" thread for hand-turned tapHeight 380 mm, with medallion 485 mm Height centre of tap 365 mm, base 90 mm Ø.
Design:
Completely made of chrome 1-pipe (without advertising emblem)
Completely made of chrome 2-pipe (without advertising emblem)
Chrome - matt chrome 1-pipe (without advertising emblem)
Chrome - matt chrome 2-wire (without advertising emblem)
The advertising emblem in neutral can be ordered at an extra charge and is not included in the scope of delivery.
The dispensing column is supplied WITHOUT taps, please order these in the section Dispensing taps !

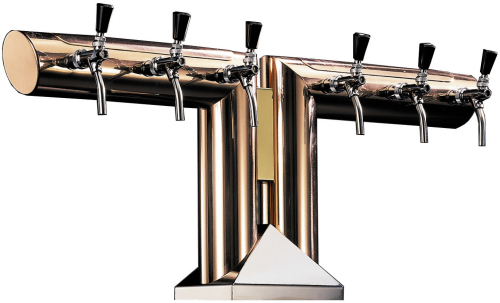

Dispensing column for gastro counter model 9010
Dispensing column model „RJ9010“ Version CNS matt, CNS polished, TIN gold-coloured or copper polished with CNS polished base. Made of 2 angled copper or brass base tubes on a pyramid base and connecting piece made of stainless steel.
Tube 104 mm Ø. Height 462 mm, height MH 410 mm, width 990 mm, weight 12 kg
available finishes:
CNS matt 6-pipe,
CNS polished 6-wire,
CNS TIN-gold coloured (SCRATCH RESISTANT GOLD OPTICS) 6-pipe,
Polished copper, base CNS polished 6-wire,
ATTENTION: the dispensing column is supplied without taps, please order your desired tap in the category Tap/dispensing tap Tap/beer tap

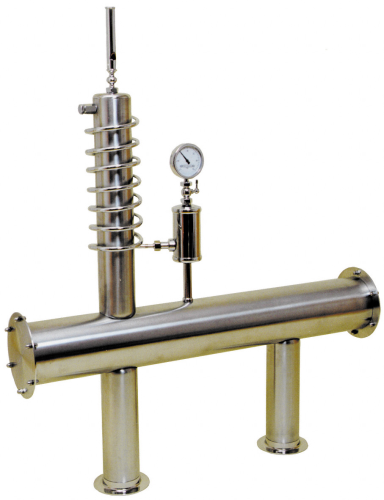

Dispensing column
WITHOUT TAPS
Model
„Brauhaus“
made of
polished stainless steel,
with
steam whistle and pressure gauge.
With
inspection opening on the host side.
Height
total 1,025 mm,
height
crossbar approx. 477 mm,
height
centre of tap 400 mm.
Base
104 mm Ø,
Cross tube diameter
154 or 168 mm.
Tap spacing
110 mm.
CNS,
B=width
4-pipe, B
600 mm
5-pipe,
B 740 mm
6-pipe,
B 880 mm
7-pipe,
B 1.020 mm
8-pipe,
B 1,160 mm
Dispensing taps
please order in the dispensing taps section

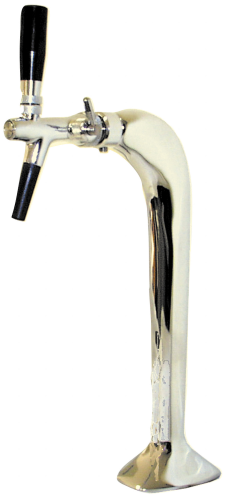

"Classic-Elegant" model swan-neck dispensing column
"Classic-Elegant" model swan-neck dispensing column, chrome-plated or gold-plated, WITHOUT dispensing taps, with 40 mm Allen spacer(s) for taps with 55 mm threaded connector and stainless steel beer lines NW 7 mm, chrome-plated
1-pipe, with trace cooling,
2-pipe, with trace cooling,
3-pipe, with trace cooling,
NW 10 mm, chrome-plated
1-pipe, with trace cooling,
2-pipe, with trace cooling,
3-pipe, with trace cooling,
NW 7 mm, gold-plated
1-pipe, with trace cooling,
2-pipe, with trace cooling,
3-pipe, with trace cooling,
NW 10 mm, gold-plated
1-pipe, with trace cooling,
2-pipe, with trace cooling,
3-pipe, with trace cooling
Proceed as follows for tap installation: Pull the trace cooling line approx. 20 cm out of the column,Screw in the dispensing taps, CAREFULLY push the trace cooling line back in Please order the dispensing taps separately in the chapter Dispensing taps

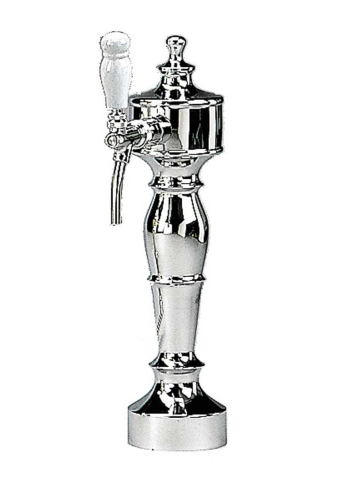

Dispensing column Model „Flemish shape WITHOUT TAPS“ Version Chrome or brass. Height 475 mm, centre tap 375 mm, base 115 mm Ø. Dispensing columns not suitable for Python trace cooling lines Chrome 1-line 2-line Brass 1-line 2-line ATTENTION! For hose assembly, please order socket at the same time: for 7 mm order no. T26 for 10 mm order no. T27 For 10 mm order no. T27 Order no. T27 For taps with 35 mm spigot Order spacer sleeve: Spacer sleeve 20 mm chrome Order no. T10A Spacer sleeve 20 mm brass Order no. T12A Taps Please order in the Taps section!
