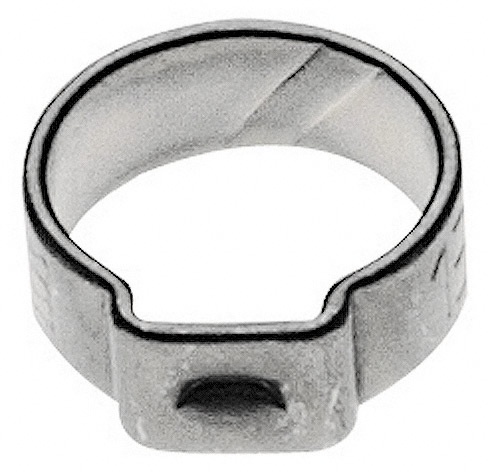

1-ear clamps At a glance: • Quick, simple and secure installation • Specially moulded band edges reduce the risk of damage to the material to be clamped • Tying control through visibly completed forming of the clamp ear Material: • Stainless steel, material no. 1.4301 / UNS S30400 1-ear clamps 7.5 - 9 mm Clamping range, for NW 4 mm hoses 11.8 - 13.8 mm Clamping range, for NW 7 mm hoses 16.3 - 18.5 mm Clamping range, for NW 10 mm hoses

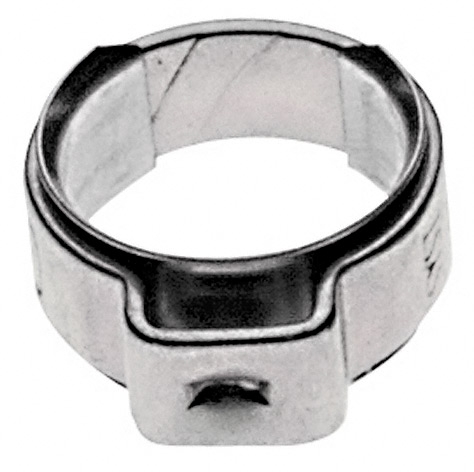

1-ear clamps stainless steel version with stainless steel insert ring At a glance: • Quick, easy and secure installation • Specially shaped band edges reduce the risk of damage to the material to be clamped • Clamp control through visible forming of the clamp ear • Flanged insert ring bridges the ear gap of the clamp ear, ensuring all-round binding Material: • Clamp: stainless steel, material no. 1.4301 / UNS S30400 • Bearing ring: Stainless steel, material no. 1.4310 / UNS S30100 1-Ear clamp design: 7.5 - 9 mm clamping range, for 4 mm CO2 hoses 8.5 - 10 mm clamping range, for 4 mm hoses 12.3 - 14.3 mm clamping range, for 7 mm hoses 16.5 - 18.8 mm clamping range, for 10 mm hoses

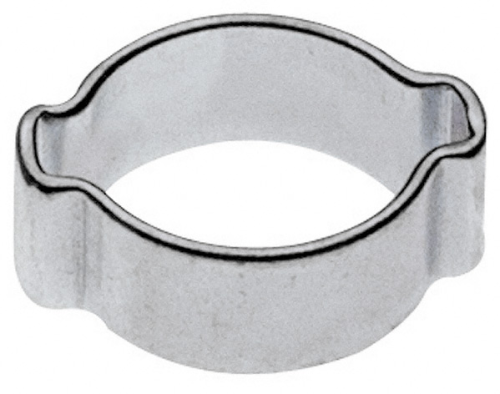

Oetiker 2 ear clamp Durable, good sealing thanks to robust design. For fluid and air lines, extended clamping range - thanks to the 2-eared design. Specially shaped band edges reduce the risk of damage to the material to be clamped, clamping check by visibly forming the clamp ear, quick, easy and secure installation Material: stainless steel, material no. 1.4301 / UNS S30400 2 ear clamp Design selectable: 7 - 9 mm clamping range, for NW 4 mm hoses 13 - 15 mm clamping range, for NW 7 mm hoses 15 - 18 mm clamping range, for NW 10 mm hoses

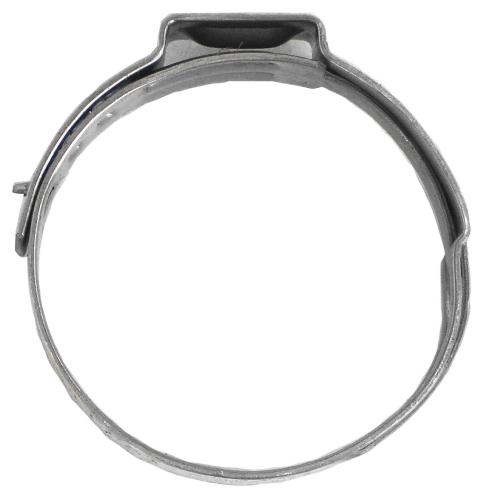

Stepless 1-ear clamp At a glance: • 360° stepless design - no steps and/or overlaps on the inner circumference • Narrow band, concentrated clamping force transmission • specially shaped band edges reduce the risk of damage to the material to be tied • Weight-saving Design • Tying control through visible moulding of the clamping tube • Belt thickness 0.6 mm / belt width 7.0 mm Material: • Stainless steel, material no. 1.4301 / UNS S30400 1-ear clamps 17.8 - 21 mm Clamping range, for 1/2“ water hoses 23.9 - 27.1 mm Clamping range, for 3/4“ water hoses
