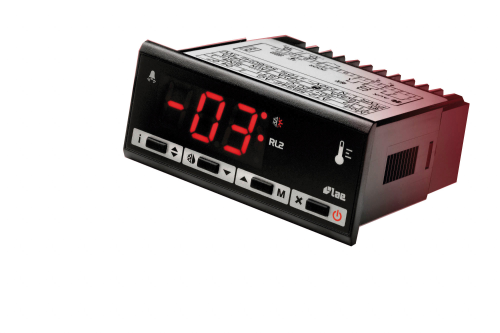

Low-cost LAE refrigeration controller - AT1-5 AS1E-G with heating and cooling function Main functions of the LAE refrigeration controller: - Universal controller for built-in installation- Choice of cooling or heating function- Mains supply- Direct compressor control by means of high-power relay 16(4)A or 30(6)A- Selectable NTC10K or PTC input - Integrated defrost functions - Configurable auxiliary output for four operating modesInput - Integrated defrost functions- Configurable auxiliary output for four operating modes- Alarm message - Absolute or relative temperature alarms- Alarm for door opening - Automatic condenser management- On/off button- Optional light control button- Quick programming using ZOT-AT1 programming key- Connection to monitoring systems such as LAE TAB Where is the LAE refrigeration controller used? Refrigerators and refrigerated counters, cold rooms, plug-in refrigeration units, switch cabinets, heating cabinets. Technical data: Control range: -50÷120°C Resolution: 0.1 / 1 °C; °F Accuracy: NTC10K: <±0.3°C (-40.0÷70.0°C) PTC1000: <±0.5°C (-50÷120°C) Sensor type: choice between NTC10K Power supply: 230V~ ±10% 50÷60Hz 3W Front protection: IP55 Installation cut-out: 71x29 mm Operating temperatures: -10÷50°C Scope of delivery: LAE refrigeration controller 1 x NTC sensor 2 mtr.

Special offer: LAE thermostat LTR-5 CSRE with two-point or PID control Main functions of the LAE thermostat LTR-5 CSRE: - Mains supply- PID with auto-tuning or two-point control- Output via relay (16A) or for SSR control- Input for PTC, NTC or 0÷1V - Display resolution 0.1 / 1°C or 1°F- Selection of cooling (dehumidification) or heating (humidification) function- ON/OFF button on the front- Switch-on limitation - Safety function in case of sensor break- Quick configuration via ZOT-LTR programmer - Connection for LAE monitoring systems LAE TAB Where is the LAE thermostat LTR-5 CSRE used? Temperature: Controller for cold storage cells, cabinets and tables, heating systems, water baths, galvanic baths, ovens, laboratory systems.Humidity: Controller for greenhouses, storage cells/maturing cells, cold storage cells, air-conditioned rooms. Scope of delivery: LAE thermostat LTR-5 CSRE 1 x NTC sensor All technical data for the LAE thermostat LTR-5 CSR can be found in our Download area
