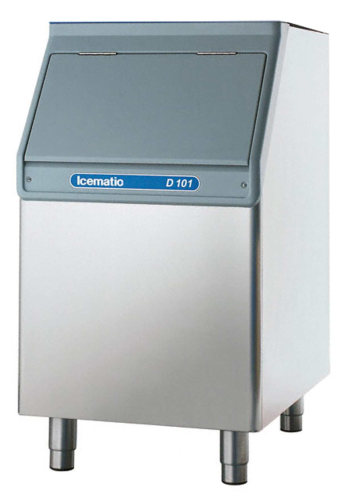

For use with: Flake ice (no cover required) - F 120 / F 120 W - F 200 / F 200 W Full cone (no cover required) - N 132 M / N 132 MW - N 192 M / N 192 MW D 101 Storage container

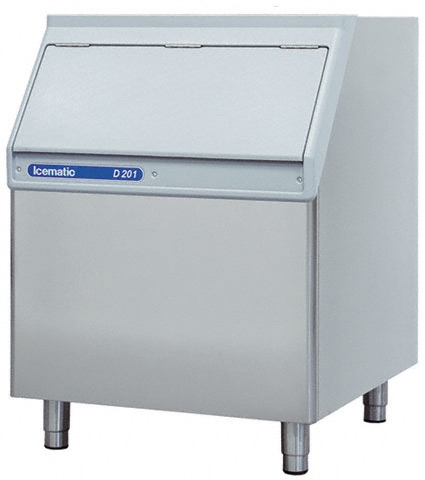

Flake ice (cover required) - F 120 / F 120 W (cover NKF 201) - F 200 / F 200 W (cover NKF 201) - SF 300 / SF 300 W (cover NKF 201) - SF 500 / SF 500 W (cover NKF 201) Full cone (cover required) - N 132 M / N 132 MW (cover KN 201) - N 192 M / N 192 MW (cover KN 201) Full cone (no cover required) N 132 M / N 132 MW (cover KN 201) - N 192 M / N 192 MW (cover KN 201) Full cone (no cover required) - N 202 M / N 202 MW - N 302 M / N 302 MW - N 402 M / N 402 MW N 502 M / N 502 MW D 201 Storage tank

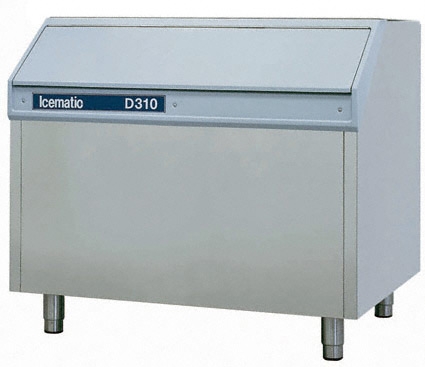

Flake ice (cover required) - F 120 / F 120 W (cover NKF 310) - F 200 / F 200 W (cover NKF 310) - SF 300 / SF 300 W (cover NKF 310) - SF 500 / SF 500 W (cover NKF 310) Full cone (no cover required) - N 202 M / N 202 MW(cover NKF 311) - N 302 M / N 302 MW(cover NKF 311) - SF 300 / SF 300 W (cover NKF 310) Cover required) - N 202 M / N 202 MW(cover NKF 311) - N 302 M / N 302 MW(cover NKF 311) - N 402 M / N 402 MW(cover NKF 311) N 502 M / N 502 MW(cover NKF 311) D 310 Storage tank

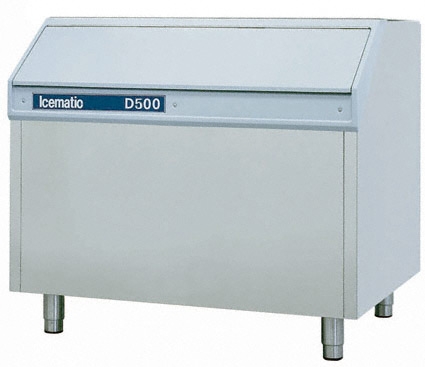

Power consumption 467 kg Width/depth/height 1,321/801/1.270 mm Weight 112 kg For use with: Flake ice (cover required) - SF 300 / SF 300 W (cover NKF 500) - SF 500 / SF 500 W (cover NKF 500) Full cone (no cover required) - N 202 M / N 202 MW - N 302 M / N 302 MW - N 402 M / N 402 MW - N 502 M / N 502 MW D 500 Storage container

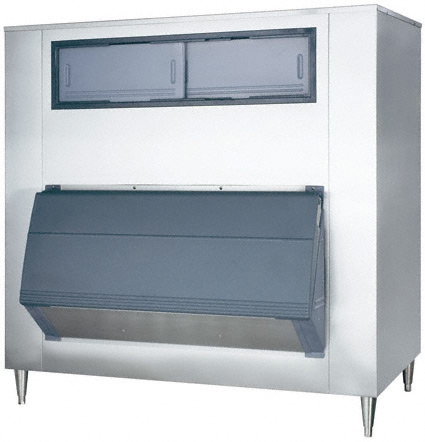

Power consumption 676 kg Width/depth/height 1,545/992/1,537 mm Weight 148 kg For use with: Flake ice (cover required) - SF 500 / SF 500 W (cover NKF 500) - SF 1,000 / SF 1,000 W (cover NKF 700) D 700 Storage container

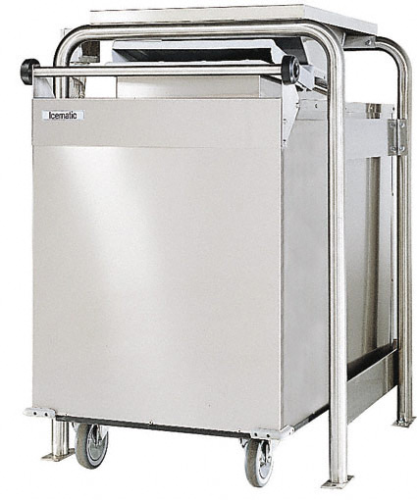

Power consumption 180 kg Width/depth/height 673/1,011/985 mm Weight 66 kg Only available with castors! For use with: Flake ice (cover required) - F 120 / F 120 W (cover SP 180) - F 200 / F 200 W (cover SP 180) - SF 300 / SF 300 W (cover SP 180) - SF 500 / SF 500 W (cover SP 180) DR 180 Storage container

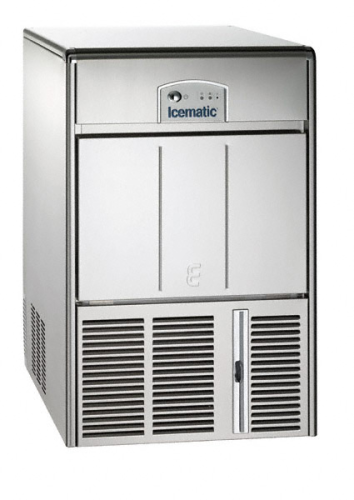

Ice cube maker with storage bin Max. Production capacity up to E35=37 kg/24 h E35W=35 kg/24 h Storage bin 14 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height (without feet) 450/545/690 mm Weight E21=37 kg E21W 35 kg

Max. Production capacity up to E60=60 kg/24 h E60W=58 kg/24 h Storage container 28 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height (without feet) 600/585/880 mm Weight E25L=50 kg E21W=50 kg

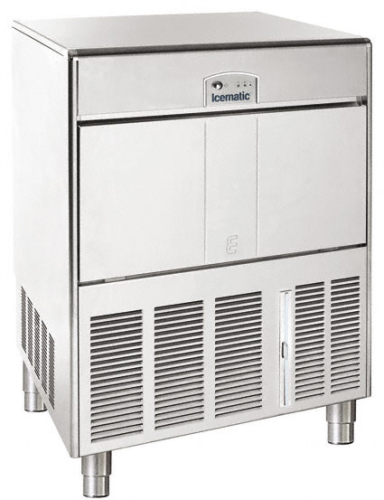

Max. Production capacity up to E75=75 kg/24 h E75W=72 kg/24 h Storage container 36 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height (without feet) 700/585/880 mm Weight E75=55 kg E75W=55 kg

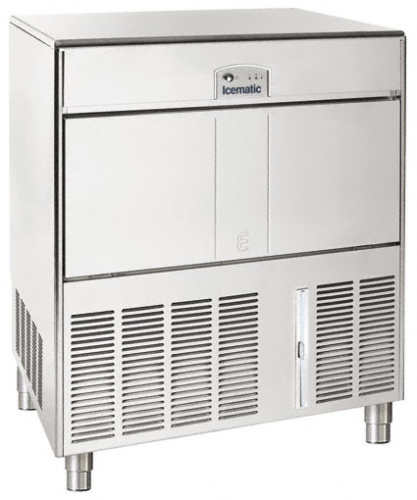

Max. Production capacity up to E90=92 kg/24 h E90W=90 kg/24 h Storage container 40 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height (without feet) 800/585/880 mm Weight E90=68 kg E90W=68 kg

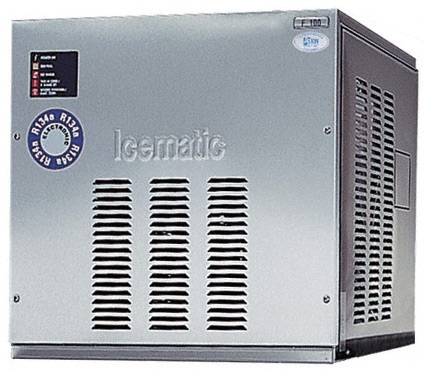

Max. Production capacity up to F 120 C=120 kg/24 h F 120 CW=120 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 560/533/542 mm Weight F 120 C=50 kg F 120 CW=52 kg

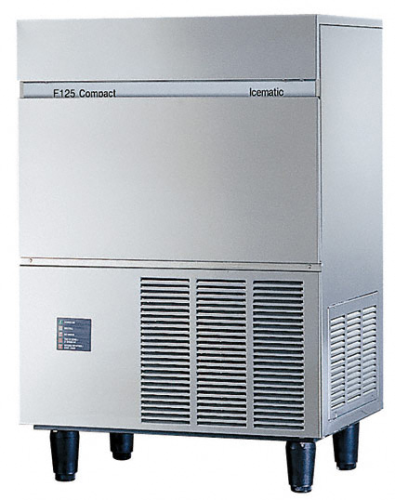

Max. Production capacity up to F 125 C=120 kg/24 h F 125 CW=120 kg/24 h Storage container 27 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 680/510/905 mm Weight F 125 C=74 kg F 125 CW=74 kg

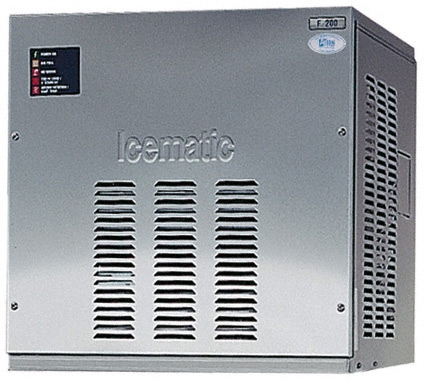

Max. Production capacity up to F 200=200 kg/24 h F 200 W=200 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 560/533/542 mm Weight F 200=57 kg F 200 W=56 kg

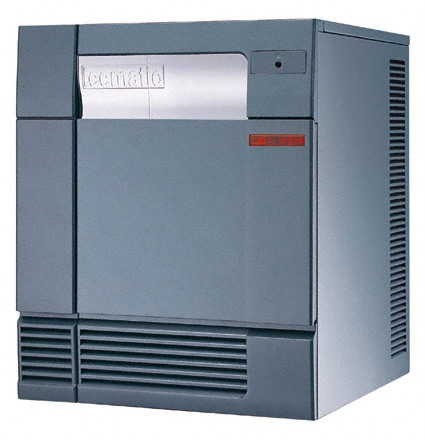

Max. Production capacity up to F 80 C=90 kg/24 h F 80 CW=90 kg/24 h Storage container 20 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 570/600/695 mm Weight F 80 C=60 kg F 80 CW=59 kg

Front output kit for SFN 1,000 Dimensions: (WxDxH) 650x450x260 mm Weight: 1 kg

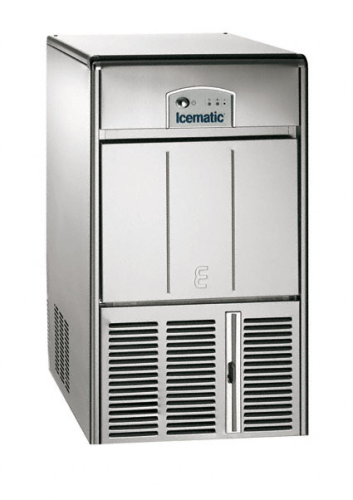

Joly Ice hollow cone ice cream maker Max. Production capacity up to E25=25 kg/24 h E25W=23 kg/24 h Storage bin 10 kg Voltage 220-240 V/50 Hz/1 Ph Width/depth/height (without feet) 400/545/690 mm Weight E21=39 kg E21W 23 kg

Max. Production capacity up to N 132 M=154 kg/24 h N 132 MW=136 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 560/620/575 mm Weight N 132 M=63 kg N 132 MW=61 kg

Max. Production capacity up to N 192 M=225 kg/24 h N 192 MW=205 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 560/620/660 mm Weight N 192 M=78 kg N 192 MW=78 kg

Max. Production capacity up to N 202 M=240 kg/24 h N 202 MW=220 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 760/620/575 mm Weight N 202 M=85 kg N 202 MW=85 kg

Max. Production capacity up to N 302 M=320 kg/24 h N 302 MW=285 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 760/620/575 mm Weight N 302 M=86 kg N 302 MW=86 kg

Max. Production capacity up to N 402 M=430 kg/24 h N 402 MW=370 kg/24 h Voltage 380-400 V/50 Hz/3 Ph Width/depth/height 760/620/725 mm Weight N 402 M=106 kg N 402 MW=101 kg

Max. Production output up to N 502 M=465 Kg/24 h N 502 MW=415 Kg/24 h Voltage 380-400 V/50 Hz/3 Ph Width/depth/height 760/620/800 mm Weight N 502 M=116 Kg N 502 MW=116 Kg

Max. Production capacity up to SF 300=320 kg/24 h SF 300 W=320 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 536/660/707 mm Weight SF 300=89 kg SF 300 W=88 kg

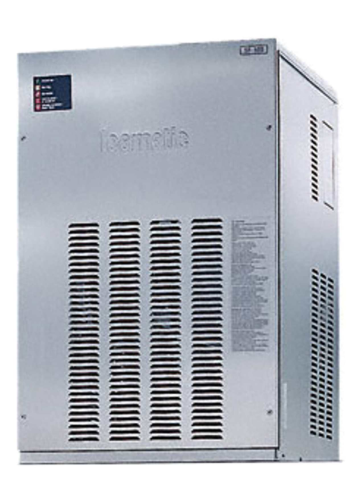

Max. Production output up to SF 500=600 kg/24 h SF 500 W=600 kg/24 h Voltage 220-240 V/50 Hz/1 Ph Width/depth/height 536/660/847 mm Weight F 500=106 kg F 500 W=102 kg
