BB900 beer bar Completely plug-and-play, mobile serving counter with 35 l/h dispensing capacity immediately after tapping an UNCHILLED keg! Equipment: Equipped for 1 KEG Ø 425 mm in the tap Powerful continuous room cooling with approx. 450 watts cooling capacity (at t0=0°C) Panelling, door fronts and machine part in anthracite-coated sheet metal Large-volume, easily replaceable hollow chamber plug-in seal Energy-saving 45 mm insulation, 100% CFC-free, seamlessly pressure-foamed in one piece Base in sheet steel, specially coated grey (N2PVA studded), incl. drum joint edge Sturdy frame with 4 swivel castors, 2 of which can be locked Worktop in brushed stainless steel (1.4301) Column hole Ø 50 mm as standard Machine part for 2 kg bottle of CO2 Options: 1-line dispensing column (surcharge) Drip tray (surcharge) Beer pressurisation system (surcharge) CNS finish: stainless steel panelling. NIROSTA® with Silver Ice® coating (surcharge) Cover with deep-drawn drip tray (surcharge) General temperature range: Temperature range +4 to +12°C Electrical connection 230 V / 50 HZ Electrical input 1.2 A Fuse 16 A Refrigerant R134a, 0.095 kg max. ambient temperature 32°C Protection class IP22 Dimensions (W/D/H) 900/600/1,014 mm Weight approx. 60 kg Advertising on the counter possible for an extra charge! Please contact us.

Countertop evaporator TVI K&M Holland for catering refrigeration units for centre bar mounting Ideal for use in catering refrigeration units with a cabinet width of up to 1.2 m Technical details: • without valve • incl. holder and defrost water tray • evaporator surface 1.8 m2 • cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

Countertop evaporator DTV1 „Holland“ for ceiling mounting Ideal for use in catering refrigeration units with body width up to 1.2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 1.8 m2 • Refrigeration capacity approx. Holder and defrost water tray • Evaporator surface 1.8 m2 • Cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

Countertop evaporator TV2 „Holland“ for centre bar installation Ideal for use in catering refrigeration units with body width up to 2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 2.2 m2 • Cooling capacity approx. Holder and defrost water tray • Evaporator surface 2.2 m2 • Cooling capacity approx. 500 W (at R404A, DT1=10K) • Tube capacity 0.34 litres • Nominal voltage 230 V / 50 Hz • Electrical power 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

Countertop evaporator WTV1 „Holland“ for WALL mounting Ideal for use in catering refrigeration units with body width up to 1.2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 1.8 m2 • Refrigeration capacity approx. Holder and defrost water tray • Evaporator surface 1.8 m2 • Cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

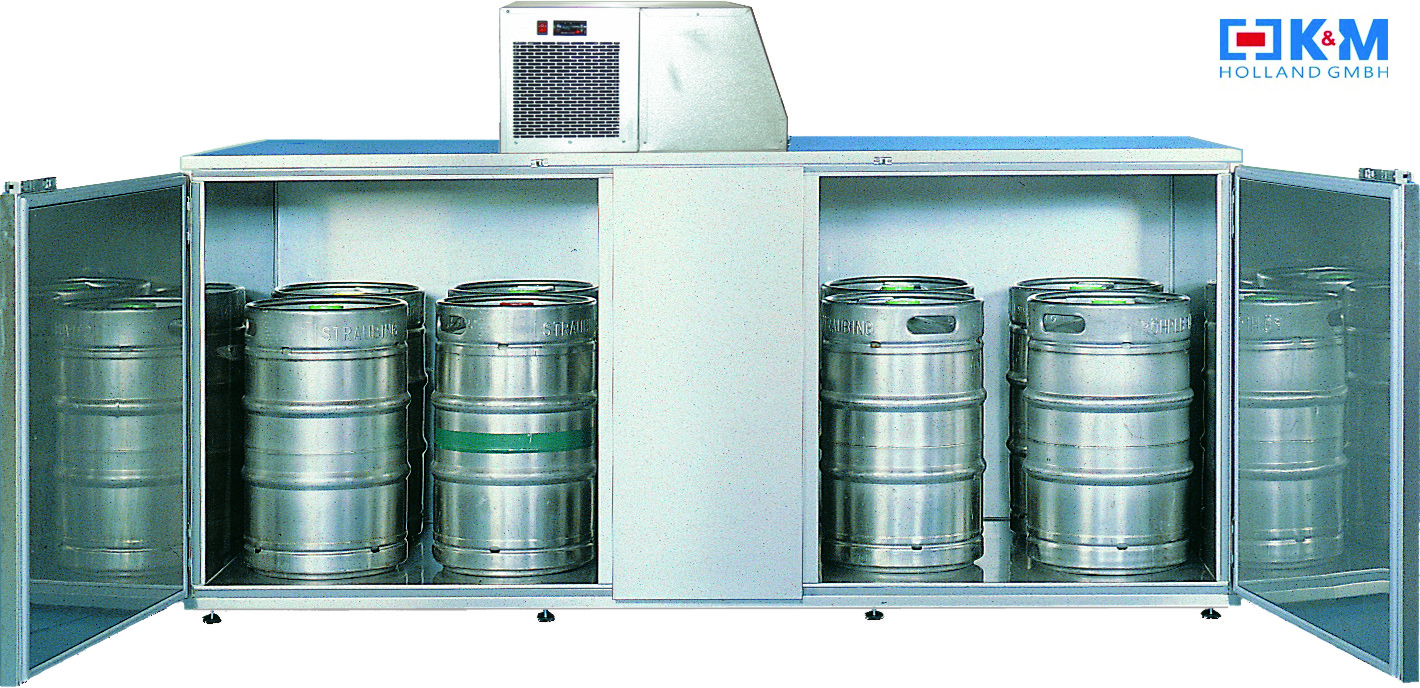

Drum pre-cooler, drum cooler, drum box for 10 KEG drums Galvanised sheet steel design: made of Galvalume outside and inside galvalume=galvanised sheet steel, Bottom sheet steel grey special coated N2PVA studded. Side, rear wall and top in sheet steel, sealed with aluminium-zinc clear coat (1.0242) Super insulation 56 mm, CFC-free. Stainless steel version: made of stainless steel for KEG drums, CNS base. Side, rear wall and top in stainless steel (1.4301) super insulation 56 mm, CFC-free. Adjustable feet, replaceable seals apply to both versions. Delivery disassembled on pallet. Assembly time 5 minutes. Cooling unit see :Ready to plug in Cooling unit Barrel box without cooling unit, Dimensions: W/D/H: For 10 drums, 2,300/920/1,094 mm You can find the matching cooling units for the drum pre-cooler, drum cooler HERE:

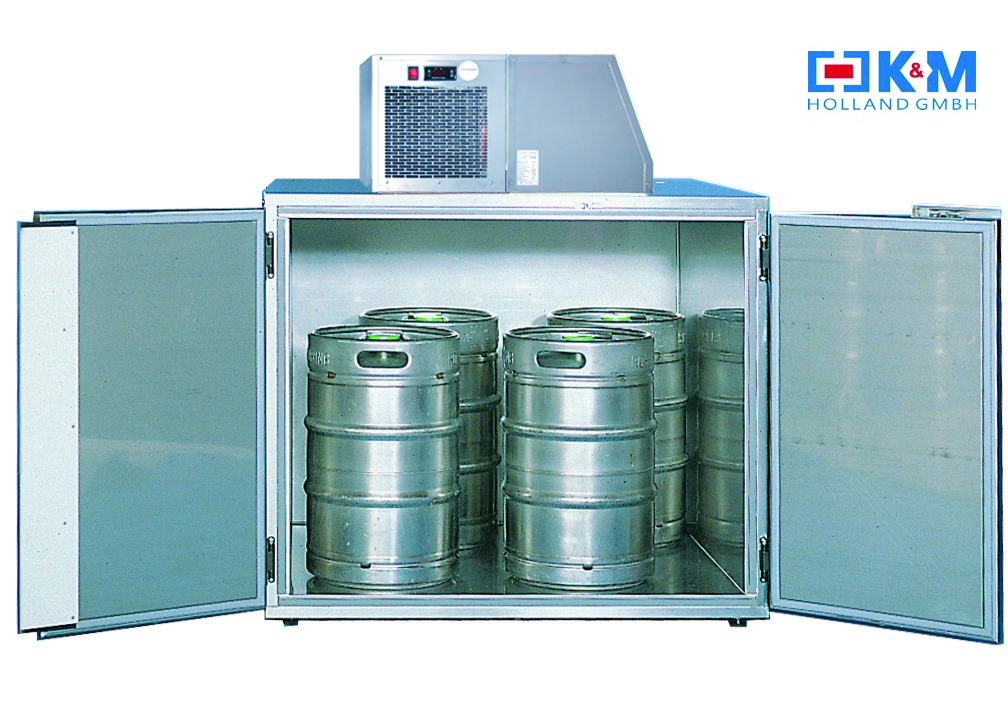

Drum pre-cooler, drum cooler, drum box for 4 KEG drums Galvanised sheet steel design: made of Galvalume outside and inside galvalume=galvanised sheet steel, Bottom sheet steel grey special coated N2PVA studded. Side, rear wall and top in sheet steel, sealed with aluminium-zinc clear coat (1.0242) Super insulation 56 mm, CFC-free. Stainless steel version: made of stainless steel for KEG drums, CNS base. Side, rear wall and top in stainless steel (1.4301) super insulation 56 mm, CFC-free. Adjustable feet, replaceable seals apply to both versions. Delivery disassembled on pallet. Assembly time 5 minutes. Cooling unit see :Ready to plug in Cooling unit Barrel box without cooling unit, Dimensions: W/D/H: For 4 drums, 1160/920/1085 mm You can find the matching cooling units for the drum pre-cooler, drum cooler HERE:

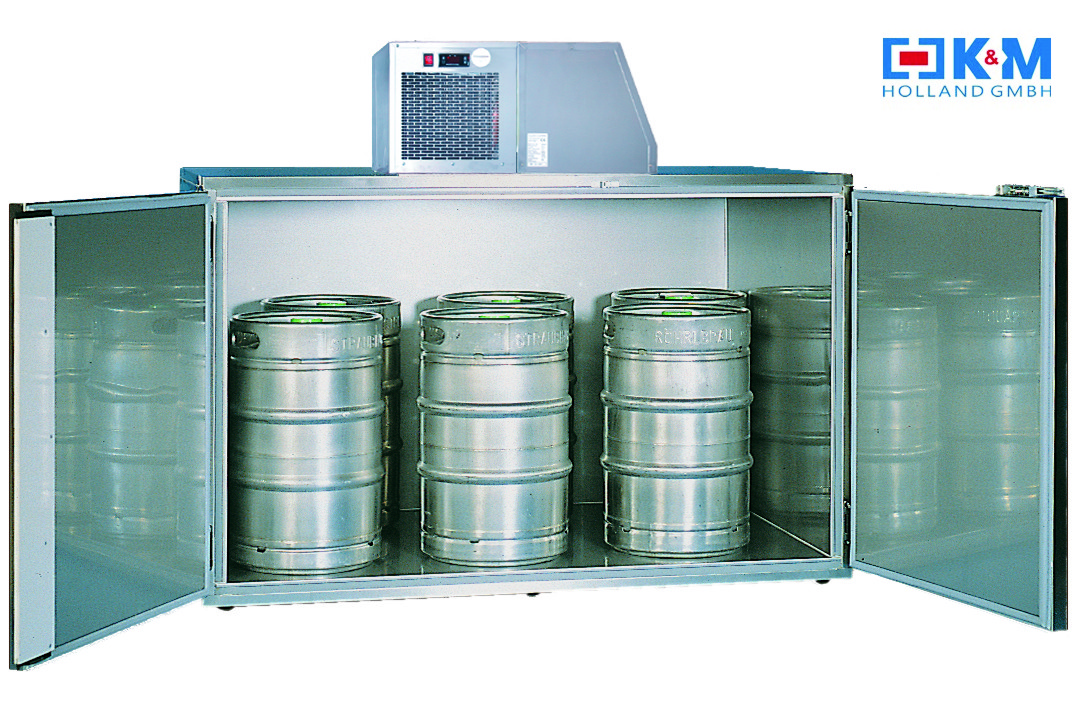

Drum pre-cooler, drum cooler, drum box for 6 KEG drums Galvanised sheet steel design: made of Galvalume outside and inside galvalume=galvanised sheet steel, Bottom sheet steel grey special coated N2PVA studded. Side, rear wall and top in sheet steel, sealed with aluminium-zinc clear coat (1.0242) Super insulation 56 mm, CFC-free. Stainless steel version: made of stainless steel for KEG drums, CNS base. Side, rear wall and top in stainless steel (1.4301) super insulation 56 mm, CFC-free. Adjustable feet, replaceable seals apply to both versions. Delivery disassembled on pallet. Assembly time 5 minutes. Cooling unit see :Ready to plug in Cooling unit Barrel box without cooling unit, Dimensions: W/D/H: For 6 drums, 1,560/920/1,094 mm You can find the matching cooling units for the drum pre-cooler, drum cooler HERE:

Drum pre-cooler, drum cooler, drum box for 8 KEG drums Galvanised sheet steel design: made of Galvalume outside and inside galvalume=galvanised sheet steel, Bottom sheet steel grey special coated N2PVA studded. Side, rear wall and top in sheet steel, sealed with aluminium-zinc clear coat (1.0242) Super insulation 56 mm, CFC-free. Stainless steel version: made of stainless steel for KEG drums, CNS base. Side, rear wall and top in stainless steel (1.4301) super insulation 56 mm, CFC-free. Adjustable feet, replaceable seals apply to both versions. Delivery disassembled on pallet. Assembly time 5 minutes. Cooling unit see :Ready to plug in Cooling unit Barrel box without cooling unit, Dimensions: W/D/H: For 8 drums, 1,880/920/1,094 mm You can find the matching cooling units for the drum pre-cooler, drum cooler HERE:

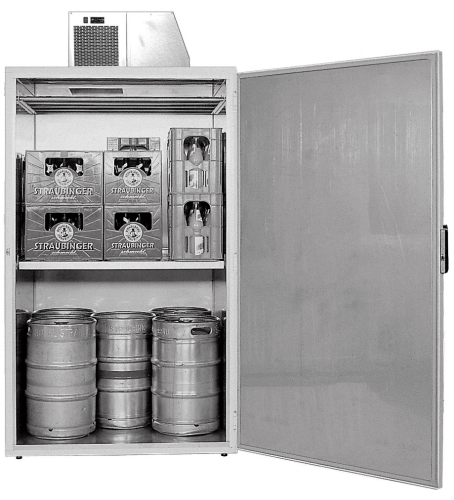

Large-capacity refrigerator for the catering trade, ideal for use as a: Beverage refrigerator Storage cabinet (e.g. food) Game cabinet Equipment: Meat rack (4 racks, 75 kg load each) Dimensions: H/W/D 1960/1160/970 mm.Height including cooling unit 2260 mm Refrigerated body: 100% CFC-free, seamless pressure-foamed, Insulation thickness 56 mm Inner body: Stainless steel (1.4301) Outer body: white coated sheet metal Large-capacity refrigerator with intermediate shelf and plug-in top cooler,Large-capacity refrigerator like GRKOL with plug-in side cooler Reinforced cooling unit Additional price for reinforced cooling unit incl. defrost timer and hot gas defrosting, temperature range 2-10°C. Mandatory when used as a meat cabinet! When used as a game cabinet, depending on the storage quantity and time. Ask your refrigeration specialist for advice!

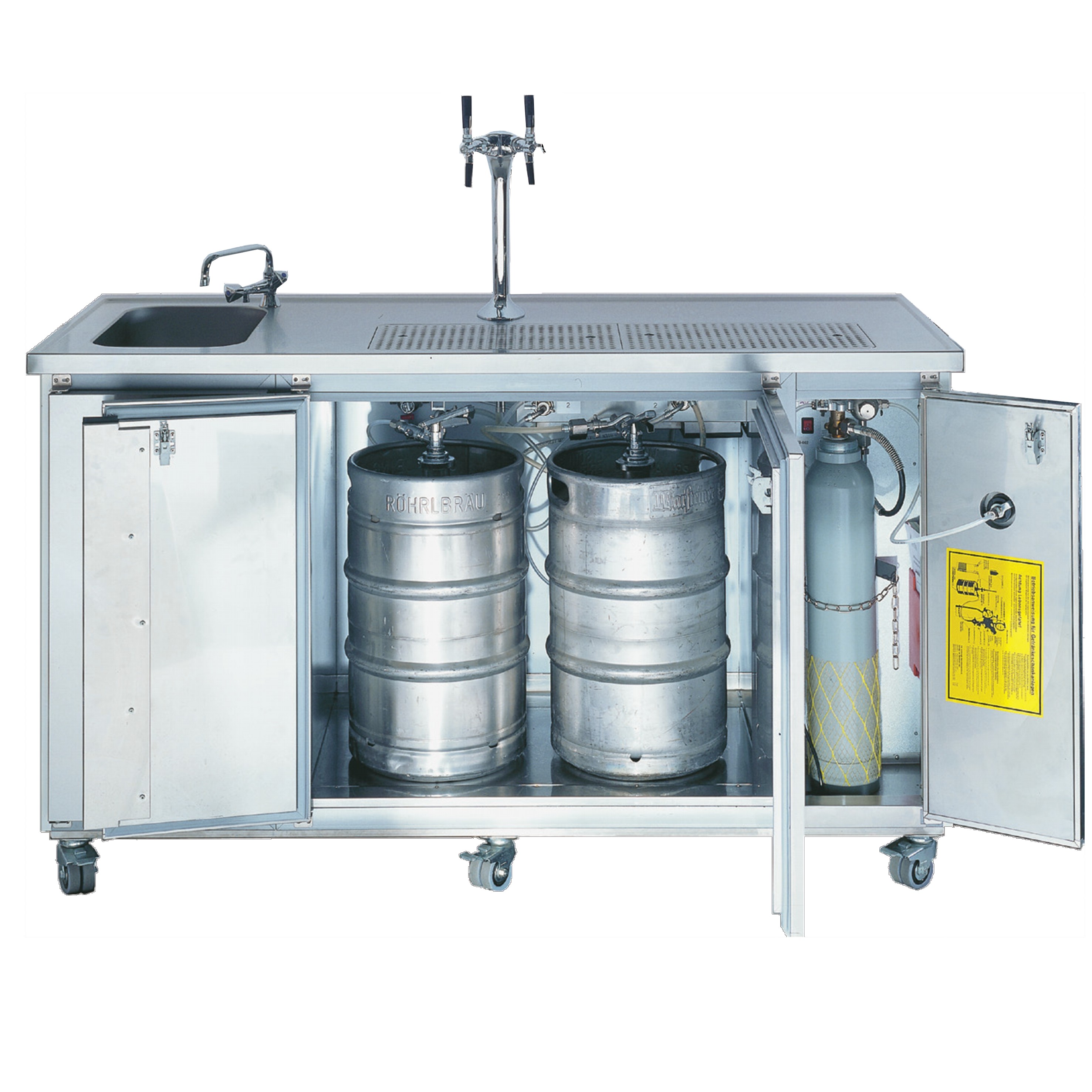

Mobile beer bar, beer bar MT4 2-line with continuous cooling 70 l/h 2-line with room and continuous cooling 70 l/h, with double barrel compartment and a basin on the left CNS cover with beaded edge and deep-drawn drip tray. Including cold water tap. 6 swivel castors (3 lockable). Panelling: door fronts and machine part in stainless steel NIROSTA® with „Silver Ice®“coating, Optional: top and bottom stainless steel rails for inserting 10 mm thick advertising panels. Even a non-pre-chilled keg can be tapped cold immediately. Usable capacity: 2 KEG kegs Ø 425 mm Dimensions: W/D/H 1,800/730/1,050 mm Delivery without dispenser & accessories Advertising on the counter possible for an extra charge! Please contact us.

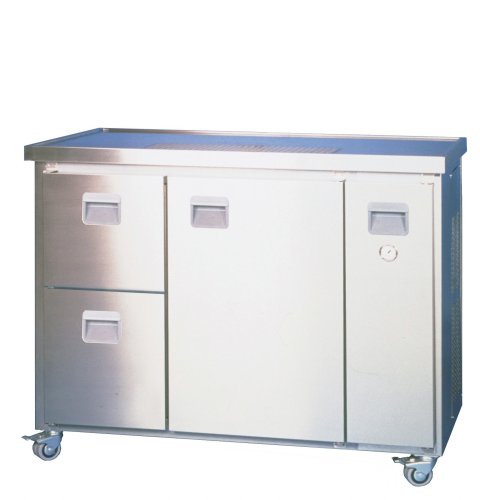

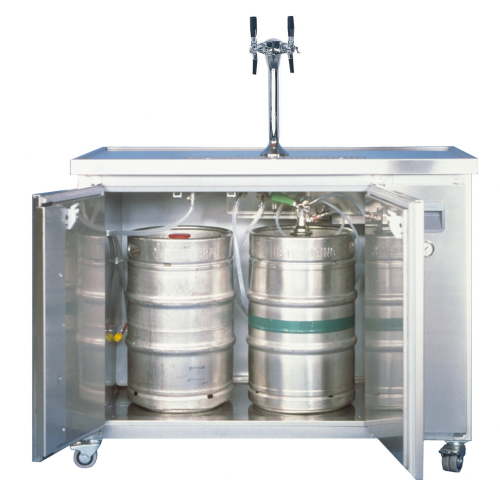

Mobile beer counter MT2 with continuous cooling for 2 beer kegs 2-pipe with room and continuous cooling 70 l/h, CNS cover with beaded edge and deep-drawn drip tray. 4 swivel castors (2 lockable) Panelling: Door fronts and machine part in stainless steel NIROSTA® with „Silver Ice®“coating, Optional: top and bottom stainless steel rails for inserting 10 mm thick advertising panels With the built-in continuous cooling system, even a non-pre-chilled keg can be tapped cold immediately. Usable capacity: 2 KEG kegs Ø 425 mm Dimensions: W/D/H 1,350/730/1,050 mm Advertising on the counter possible for an extra charge! Counter without dispensing column and accessories, on request we can supply this counter as a complete ready-to-use counter for an extra charge ready-to-use counter, please contact us.

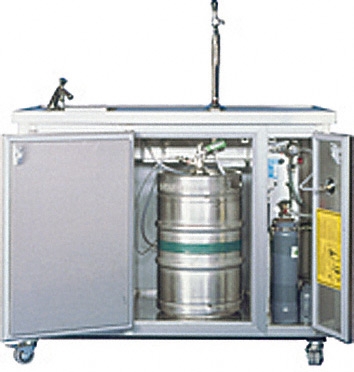

Mobile beer counter MT3 1 line 60 litre tap capacity with room and continuous cooling 60 litres/h, with one basin on the left, CNS cover with beaded edge and deep-drawn drip tray. Including cold water tap, 4 swivel castors (2 lockable). Panelling: door fronts and machine part in stainless steel NIROSTA® with Silver Ice® coating, Optional: top and bottom stainless steel rails for inserting 10 mm thick advertising panels. Even a non-pre-chilled keg can be cold tapped immediately. Usable capacity: 1 KEG keg Ø 425 mm Dimensions: W/D/H 1,350/730/1,050 mm Delivery without dispenser & accessories Advertising on the counter possible for an extra charge! Please contact us.

1-line with room and continuous cooling 60 l/h, CNS cover with beaded edge and deep-drawn drip tray. 4 swivel castors (2 lockable). Panelling: door fronts and machine part in stainless steel NIROSTA® with „Silver Ice®“coating, Optional: top and bottom stainless steel rails for inserting advertising panels 10 mm thick. Even a non-pre-chilled keg can be tapped immediately cold. Usable capacity 1 KEG keg Ø 425 mm and in the pull-out section (Euro/litre full pull-outs) 39 NRW 0.5 L bottles (top) 22 1.0 L bottles or 27 0.75 L-bottles (bottom) Dimensions W/D/H 1,350/730/1,050 mm Delivery without petrol pump & accessories Advertising on the counter possible for an extra charge! Please contact us at : :

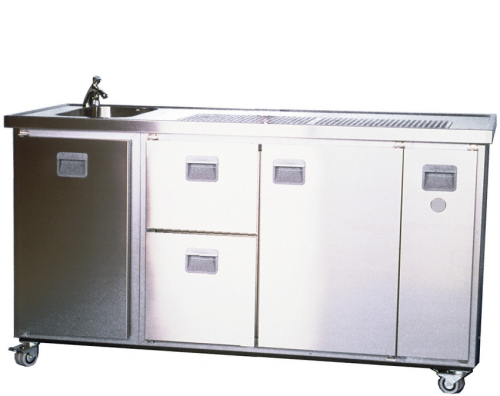

single-line with room and continuous cooling 60 l/h, with one sink on the left, CNS cover with beaded edge and deep-drawn drip tray. Including cold water tap. 6 swivel castors (3 lockable). Panelling: door fronts and machine part in stainless steel NIROSTA® with „Silver Ice®“coating, Optional: top and bottom stainless steel rails for insertion of advertising panels 10 mm thick. Also a non-pre-chilled keg can be tapped immediately cold. Usable capacity: 1 KEG keg Ø 425 mm and in the pull-out compartment with Euro/litre full pull-outs 39 NRW 0.5 L bottles (top) 22 x 1.0 L bottles or 27 x 0.5 L bottles. 27 x 0.5 L bottles (bottom) Dimensions: W/D/H 1,800/730/1,050 mm Delivery without petrol pump & accessories Advertising on the counter possible for an extra charge! Please contact us at

Mobile counter, bar counter on castors MT1 with 1-pipe refrigeration Mobile counter MT 1 with room and continuous cooling 60 l/h, CNS cover with beaded edge and deep-drawn drip tray. 4 swivel castors (2 lockable). Panelling: door fronts and machine part in stainless steel NIROSTA® with „Silver Ice®“coating, Optional (surcharge): top and bottom stainless steel rails for inserting 10 mm thick advertising panels With the built-in continuous cooling system, even a non-pre-chilled keg can be tapped cold immediately. Technical data of the mobile counter MT1: Usable capacity 1 keg Ø 425 mm (50 litres) Dispensing capacity 60 l/h (ΔT=10°) Cooling capacity / electrical power (t0=0 °C): 725 W / 350W Temperature range +4 to +12 °C Electrical connection 220/230 V / 50 Hz Electrical input / fuse 2.2 A / 16 A Refrigerant R134a / 0.35 kg Max. Max. ambient temperature 32 °C Protection class IP22 Dimensions (W x D x H)950 x 730 x 1,050 mm Weight approx. 150 kg Delivery without petrol pump & accessories Advertising: possible on the counter for an extra charge! Please contact us.

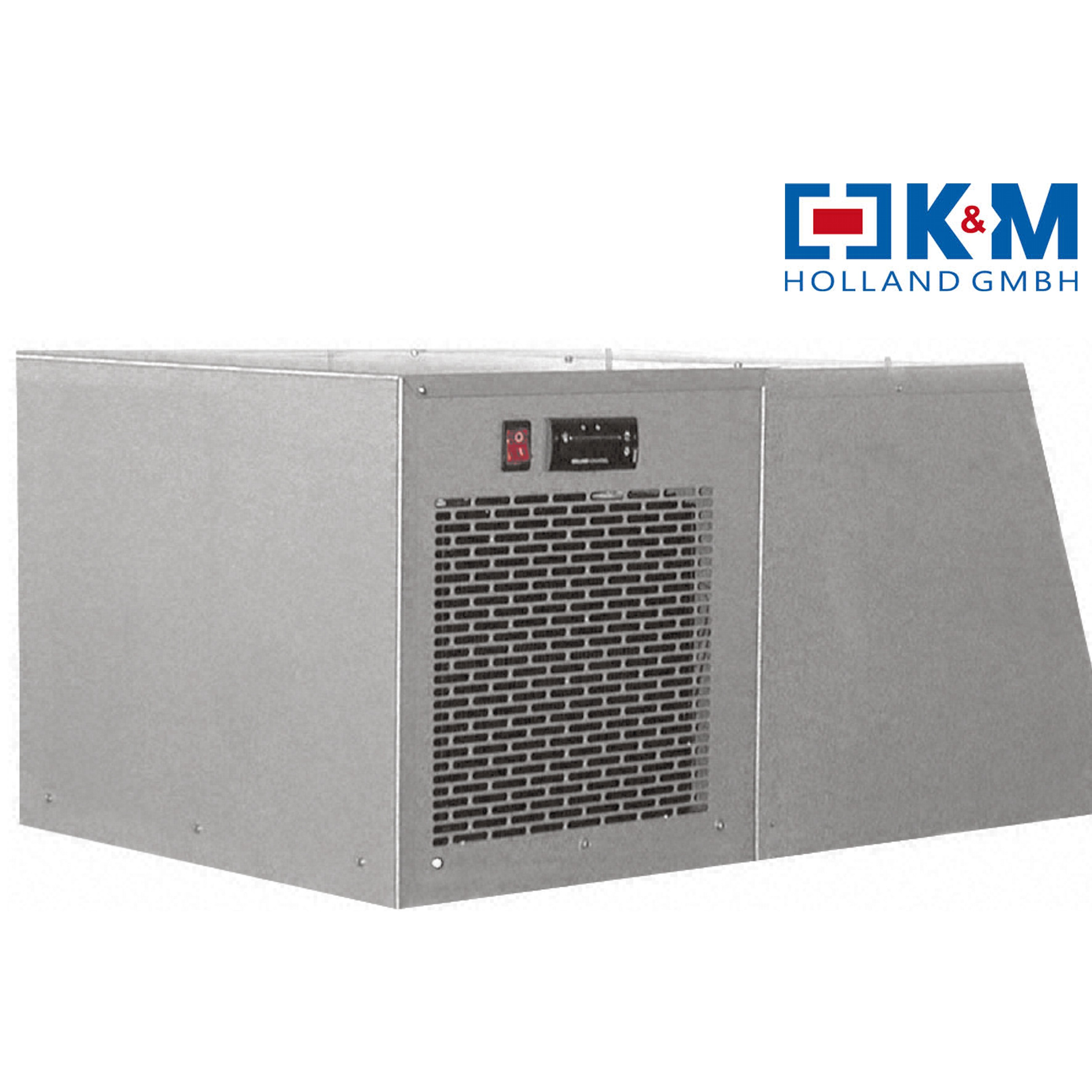

Plug-in cooling unit for barrel precooler, barrel cooler, barrel cooling box thermostatically controlled with digital display for set or actual temperature. Automatic condensation evaporation. Height: approx. 337 mm This cooling unit requires a cut-out of 29.7 x 36.7 cm in the cooling box. You have the following choice: Top cooler for 2 to 8 drums* Side cooler CNS for 2 to 8 drums* Reinforced side cooler CNS for 10 drums* Reinforced top cooler for 10 drums* Top-mounted cooler CNS for 2 to 8 drums* Reinforced top cooler CNS for 10 drums* Super reinforced top cooler for drum boxes & large capacity refrigerator** Super reinforced top cooler for drum boxes and large capacity refrigerator CNS** Top-mounted CNS cooler for 2-8 drums with integrated auxiliary cooling 15/6 m** Attention: Water bath not controlled separately, runs as post evaporator for room cooling of the drum precooler, when the room temperature is reached, the cooling of the water bath also switches off! To the barrel pre-cooler, barrel cooler, barrel cooling box you can reach HERE:

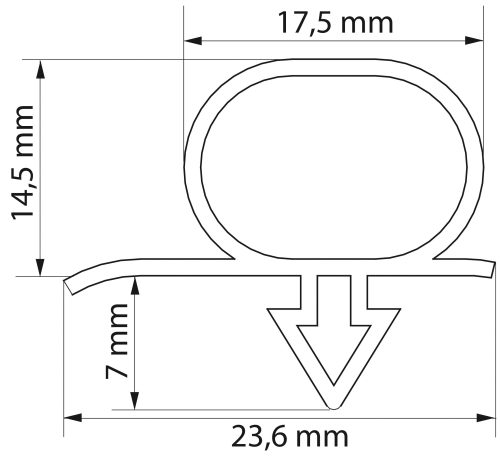

Seals Drum KC GRK KRT Frigo Large-volume, easy-to-change hollow chamber plug-in seals made of PVC. Colour: RAL7001 silver-grey Order number External panel dimensions Price Drum cooler new Height 1110 mm from 01-2005 E45-301-010 Gasket T2/4FASS-H1110 550 x 1.040 E45-301-012 Gasket T6FASS-H1110 750 x 1.040 E45-301-013 Gasket T8/10FASS-H1110 910 x 1.040 Drum cooler old until 12-2004 E45-301-000 Gasket T2/4FASS 550 x 940 E45-301-002 Gasket T6FASS 750 x 940 E45-301-003 Gasket T8/10FASS 910 x 940
