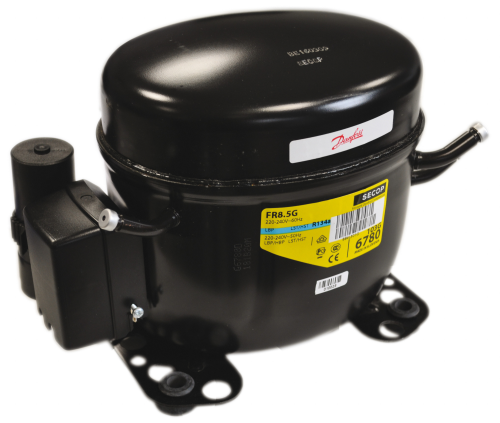

Danfoss Secop compressor R134a High and medium pressure -25°C / +10°C Static ventilation, injection capillary tube/expansion valve 220-240 V / 50Hz Compressor Danfoss TL4G Displacement 3.86 cm3 Cooling capacity at -10°C approx. 140 W Compressor Danfoss FR7,5G Displacement 6.93 cm3 Cooling capacity at -10°C approx. 254 W Danfoss FR8.5G compressor Displacement 7.95 cm3 Cooling capacity at -10°C approx. 298 W Compressor Danfoss FR10G Displacement 9.05 cm3 Cooling capacity at -10°C approx. 324 W Danfoss SC12G compressor Displacement 12.87 cm3 Cooling capacity at -10°C approx. 464 W Danfoss SC15G compressor Displacement 15.28 cm3 Cooling capacity at -10°C approx. 568 W Danfoss SC18G compressor Displacement 17.69 cm3 Cooling capacity at -10°C approx. 684 W Danfoss SC21G compressor Displacement 20.95 cm3 Cooling capacity at -10°C approx. 792 W Danfoss GS34MFX compressor Displacement 33.8 cm3 Cooling capacity at -10°C approx. 1,648 W

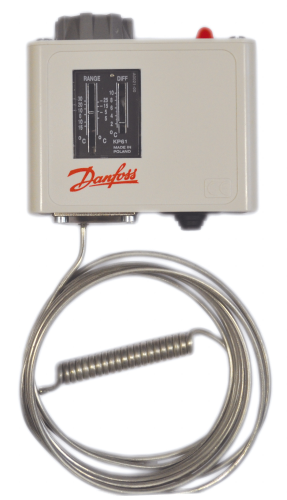

Thermostat Danfoss KP61 WITH stop auto switch Ambient temperature: 40 - +65°C (+80 °C for max. 2 hours). Switch: single-pole, changeover switch (SPDT. Contact load, AC: AC1: 16 A, 400 VAC3: 16 A, 400 VAC15: 10 A, 400 VMaximum starting current (L.R.): 112 A, 400 VContact load, DC: DC13: 12 W, 220 V control currentCable connection: A Pg 13.5 cable gland can be used for cables with a diameter of 6 - 14 mm. For cables with 8-16 mm, a Pg 16 cable gland can be used.Protection class: IP 30 according to IEC 529 if the unit is mounted on a flat surface or with a mounting bracket with all unused holes covered. Type code KP61 Unit weight 0.370 [kg] Ambient temp. -40 - 65 °C Ambient temp. -40 - 150 °F Approval BV, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, LVD, PZH, RINA, RMRS, RoHS China Cap. tube length 78 3/4 in Cap. tube 2.000 mm Filling type Vapour Contact function SPDT Contact class AC1=16 A, 400 V Contact class AC15=10 A, 400 V Contact class AC3=16 A, 400 V Contact class DC13=12 W, 220 V Contact class LR=112 A, 400 V Diff./max. range 1,5 - 7,0 K Diff. Max. Range setting 1,5 - 7,0 °C Diff./min. Range 5,5 - 23,0 K Diff. Min. range setting 5,5 - 23,0 °C Difference type adjustable EAN 5702428010955 Electrical connection - additional information Rubber cable glands Electr. connection size 6-14 mm Electrical specification Standard EN 60947-5 IP30 1 Further information With µ stop Glow lamp No Max. Sensor temp. 120 °C Max. Sensor temp. 248,0 °F Pack size Multi pack Pack description Temperature control Product group Switches and thermostats Prod. name Thermostat Quantity/Pack 32 pc Reset Auto reset Sensor size (Ø x L) 3/8 x 2 3/4 in Sensor size 9.5 x 70 mm Sensor Remote sensor Temp. range -30 - 15 °C Temp. range -22 - 59 °F UL approval E31024

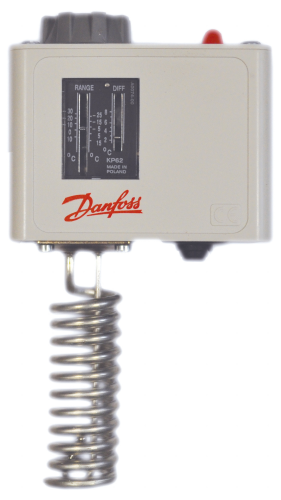

Thermostat Danfoss KP62 WITH stop/auto switch and protective cover Danfoss no. 060L111066 Range: -30°C ... 15°C Differential: 5 ... 20 K / 2 ...8 K Sensor: Room sensor
