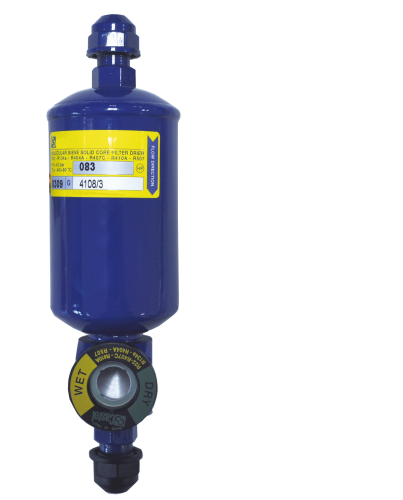

CASTEL Dryer/sight glass combination with Solder connection TSK with Filter drier FT082, with 6 mm Solder connection Order noPart no. TSK6S TSK with filter drier FT083, with 10 mm Solder connection Part no. TSK10S TSK with filter drier FT164, with 12 mm Solder connection Part no. TSK12S

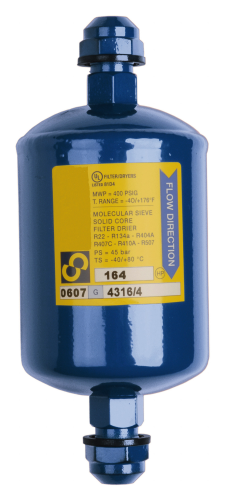

Filter drier with screw thread 7/16“ UNF (for 6mm CU pipe) 052 Order no. FT052 5/8“ UNF (for 10mm CU pipe) 053 Order noNo. FT053 7/16“ UNF (for 6mm CU pipe) 082 Order no. FT082 5/8“ UNF (for 10mm CU pipe) 083 Order no. FT083 3/4“ UNF (for 12mm CU pipe) 084 Order no Part no. FT084 7/16“ UNF (for 6mm CU pipe) 162 Part no. FT162 5/8“ UNF (for 10mm CU pipe) 163 Part no No. FT163 3/4“ UNF (for 12mm CU pipe) 164 Order no. FT164 7/8“ UNF (for 15mm CU pipe) 165 Please specify version, please pay attention to the FT values!!!

Filter-drier with Solder connection 6 mm Solder connection 032S Order no. FT032S 6 mm Solder connection 052S Order no. FT052S 6 mm Solder connection 082S Order no. FT082S 10 mm Solder connection 083S Order no. FT083S Part no. FT082S 10 mm solder connection 083S Part no. FT083S Please specify version, please pay attention to the FT values!!!

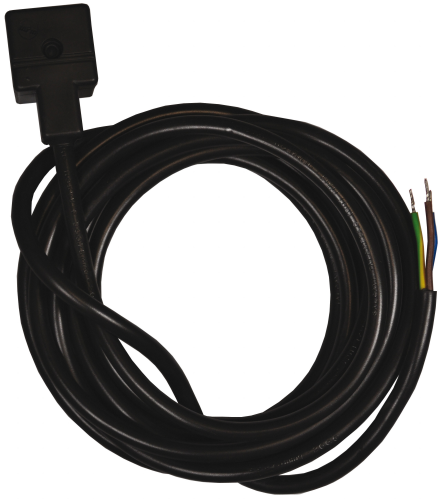

CASTEL Plug suitable for solenoid valves 6-15 mm including 3 m connection cable

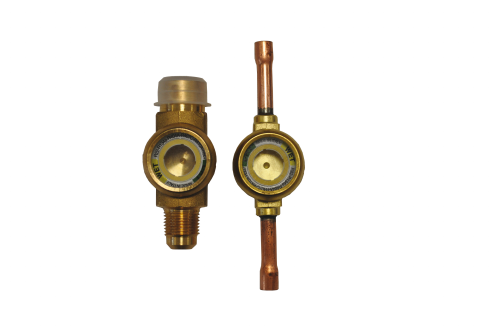

CASTEL Sight glass with internal and external thread 7/16“ UNF (for 6 mm CU pipe) Order no. SG6IA 5/8“ UNF (for 10 mm CU pipe) Order noNo. SG10IA 3/4“ UNF (for 12 mm CU pipe) Order no. SG12IA 7/8“ UNF (for 15 mm CU pipe) Order no. SG15IA

CASTEL Sight glass with Solder connection Sight glass 6 mm Order no. SG6L Sight glass 10 mm Order no. SG10L

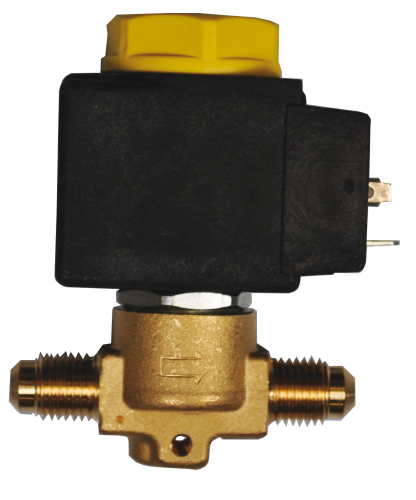

Castel solenoid valve MV series Castel solenoid valve 1020/3A6 MV including coil 230 V, without plug Flare fitting Version: 6 mm, order no. MV 6B 10 mm, order no. MV 10B 12 mm, order no. MV 12B 15 mm, order no. MV 15B Solder connection version: 6 mm, order no. MV 6L 10 mm, order no. MV 10L 12 mm, order no. MV 12L 15 mm, order no. MV 15L

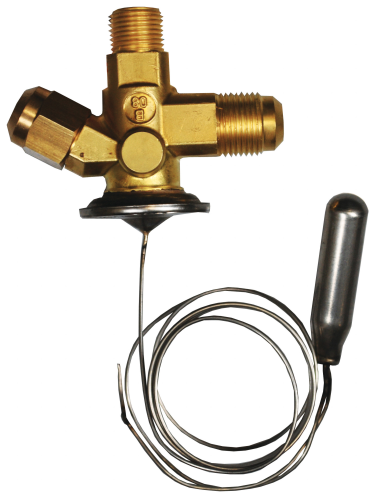

Castel thermostatic expansion valve Evaporation temperature range -40°C to +10°C, Replaceable nozzle insert (compatible with standard nozzle inserts from various manufacturers, e.g. Danfoss). Supplied without nozzle insert. Includes practical sensor clip. Flared design with internal pressure equalisation SAE flare 3/8 inch and 1/2 inch R134a Order no. EB-TN2 R404A / R507 Order no. EB-TS2 Flared version with external pressure equalisation SAE flare 3/8 inch and 1/2 inch as well as 1/4 inch R134a Order no. EB-TEN2 R404A / R507 Order no. EB-TES2 Brazed version with internal pressure equalisation SAE flare 3/8 inch and 12 mm solder. R134a Order no. EL-TN2 R404A / R507 Order no. EL-TS2 Brazed version with external pressure equalisation SAE flare 3/8 inch and 12 mm as well as 6 mm solder. R134a Order No. EL-TEN2 R404A / R507 Order No. EL-TES2
