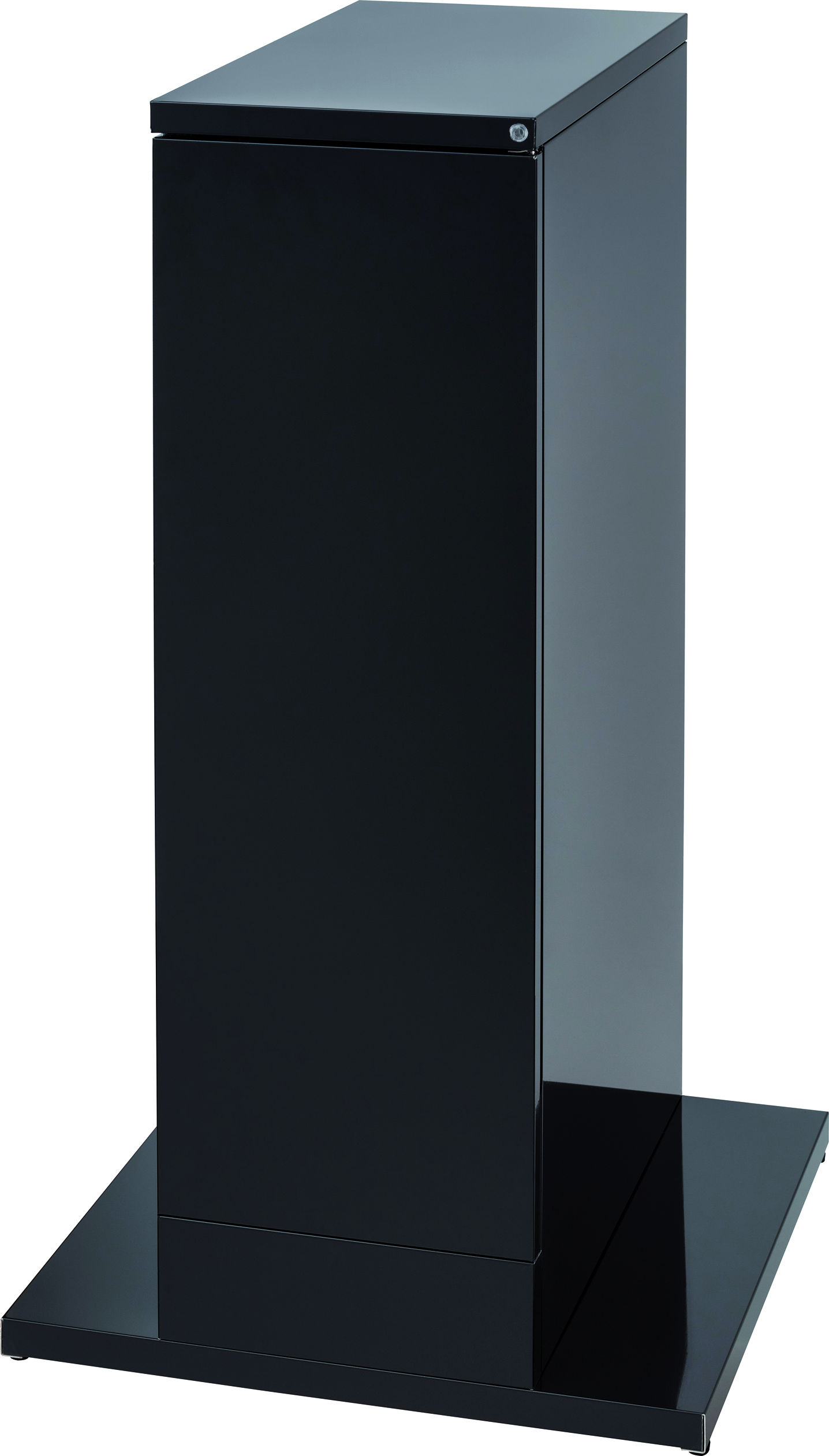

Base cabinet for AQUA QUBE black
Matching base cabinet for AQUA QUBE countertop cooler in black.
Powder-coated steel panelling, interior parts made of VA.
Sufficient storage space for CO2 bottle and other accessories. A bottle holder is permanently mounted. The cabinet is lockable.
Technical data
Storage space . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 litres
Dimensions W/D/H in mm . . . . . . . . . . . . . . 395/500/1.050
Base cabinet for AQUA QUBE white
Matching base cabinet for AQUA QUBE countertop cooler in white.
Powder-coated steel panelling, interior parts made of VA.
Sufficient storage space for CO2 bottle and other accessories. A bottle holder is permanently mounted. The cabinet is lockable.
Technical data
Storage space . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 litres
Dimensions W/D/H in mm . . . . . . . . . . . . . . 395/500/1.050
Base cabinet for Blupura 15 FIZZ
Base cabinet for Blupura 15 Fizz water dispenser
Black lacquered sheet metal, lockableDimensions W/D/H: 450/450/811 mm
Blupura warm carbonator sparkling water device
How the Blupura warm carbonator sparkling water machine works
With the Blupura warm carbonator sparkling water device, you can professionally produce sparkling water for your catering business from tap water at low cost. The device has three connections; 1 x Co2 input, 1 x water input and 1 x sparkling water output. In the warm carbonator, the Co2 is compressed (carbonised) with the tap water and sparkling water is produced, which you can then connect to your dispensing system via the sparkling water outlet. The integrated brass pump delivers 200 litres of uncooled sparkling water per hour at a pressure of approx. 12 bar. The electronic pump control (Niceauelektronik) recognises a lack of water and switches the pump off if necessary. The machine has a robust stainless steel carbonator tank
Technical data of the Blupura sparkling water warm carbonator:
Water pump: 200l/h
Water and gas inlet pipe connection: 8 mm OD (5/16")
Line connection for sparkling water outlet: 8 mm OD (5/16") max.
DimensionsD/D/H: 170/440/420 mm
Weight: 10.3 kg
Tapping capacity of the sparkling water system:
220 l/h
230 V, 50 Hz,
180 W, 1.65 A.
If not available, you will also need an AFG Co2 pressure reducer and a Co2 bottle. We also recommend a water filter system from Everpure.

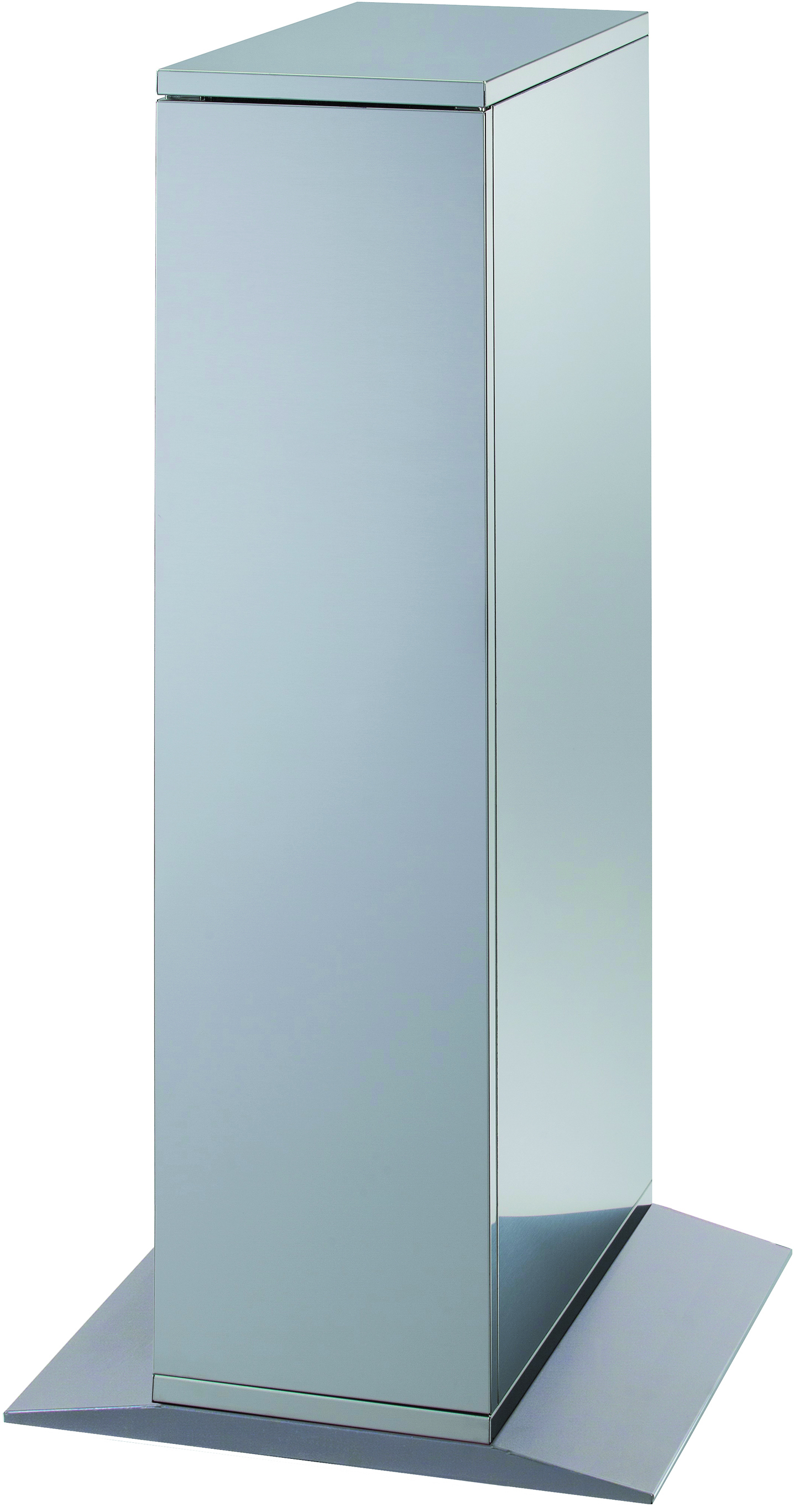

BluSoda 30 base cabinet
Matching base cabinet for Blusoda 30 countertop cooler.
Sufficient storage space for CO2 bottle and other accessories.
Technical data
Base cabinetDimensions W/D/H: 495/484/1,051 mmMaterial: Stainless steelWeight: 15 kg
BluSoda 30 BLACK base cabinet
Matching base cabinet for Blusoda 30 BLACK countertop cooler.
Sufficient storage space for CO2 bottle and other accessories.
Technical data
Base cabinetDimensions W/D/H: 495/484/1,051 mmMaterial: Stainless steelWeight: 15 kg
BluSoda 45 base cabinet
Matching base cabinet for Blusoda 45 and Bluegass 30 Fizz countertop coolers.
Sufficient storage space for CO2 bottle and other accessories.
Technical data
Weight: 17 kg
Dimensions W/D/H:554/491/959 mm
Blusoda Box 30 fizz
Cool sparkling & table water from the tap
Undercounter/recessed version
with environmentally friendly refrigerant R290.
3 types of water (still uncooled, still cooled, soda cooled). Ready to dispense in 10 minutes (dry cooling technology)
Water and gas inlet pipe connection: 8 mm OD (5/16")
Water inlet pressure: max. 3 bar
Dimensions W/D/H: 260/415/502 mm (depth without exhaust air duct: 370 mm)
Weight: 23 kg
Dispensing capacity: 30 l/h (delta T=6°), 18 l/h (delta T=10°) 1/12 HP, 230 V, 50 Hz, 265 W, 1.2 A
Box 80 fizz with accompanying cooling
Cool sparkling & table water from the tap
Undercounter/built-in version with accompanying cooling
Wet cooler with an ice bank weight of 5 kg and environmentally friendly refrigerant R290.
3 types of water (still uncooled, still cooled, soda cooled).
Water and gas inlet pipe connection: 8 mm OD (5/16")
Water inlet pressure: max. 3 bar
Dimensions W/D/H: 318/457/467 mm
Weight: 37 kg
Dispensing capacity: (peak): 127 L/h (delta T=6°), 76 L/h (delta T=10°)
(continuous): 60 L/h (delta T=6°), 36 L/h (delta T=10°) 1/6 HP, 230 V, 50 Hz, 500 W, 2.2 A.
Box 80 fizz without accompanying cooling
Cool sparkling & table water from the water pipe
Under-counter/built-in version without accompanying cooling
Wet cooler with an ice bank weight of 5 kg and environmentally friendly refrigerant R290.
3 types of water (still uncooled, still cooled, soda cooled).
Water and gas inlet pipe connection: 8 mm OD (5/16")
Water inlet pressure: max. 3 bar
Dimensions W/D/H: 318/457/467 mm
Weight: 37 kg
Dispensing capacity: (peak): 127 L/h (delta T=6°), 76 L/h (delta T=10°)
(continuous): 60 L/h (delta T=6°), 36 L/h (delta T=10°) 1/6 HP, 230 V, 50 Hz, 500 W, 2.2 A.
CT 30 sparkling and table water dispenser
Cool sparkling & table water from the water pipe Table water dispenser UTK CT 30, under-counter version Dispensing capacity: 38 l/h, 2-pipe, 1/5 HP, 230 V, 50 Hz, 395 W, 1.8 A Pipe diameter 5 mm. Under-counter appliance for connection to dispensing column. The entire technology is integrated in the appliance,. All you need is a CO2 cylinder, pressure reducer 7 bar and CO2 hose (filter system optional). Individually adjustable dispensing temperature. For catering, offices, hotels, doctors, etc. 1 line for sparkling water 1 line for still water Water inlet 3/8" Beverage outlets 1/2" BSF Dimensions: W/D/H 413/285/456 mm Weight: 30 kg Ready to dispense in 10 minutes
Sparkling and table water dispenser CT 60- undercounter
Cool sparkling & table water from the water pipe Table water unit UTK CT 60, under-counter version
The under-counter cooling units for table water (dry carbonators) are used in combination with a dispensing column. They are suitable for installation in existing counters or cabinets. The system is easy to install, simple to operate and easy to clean. All components that come into contact with water are made of high-quality stainless steel.
With refrigerant R290environmentally friendly and energy efficient
Water types: chilled sparkling water + chilled table water
Electrical connection values: 230 V / 50 Hz / 3.4 A / 540 WPipes: 2 (5 i.D.)Ready to dispense in: 5 minutesDispensing capacity: 58 l/h at Δt 10KW/D/H: 413/285/456 mmWeight: 28 kg
Compressor volume 62 dB: Quieter than most fully automatic coffee machines: At full compressor output (ambient temperature 32°C, relative humidity 65%), the volume corresponds to a normal conversation (approx. 60 dB). In standby mode, the appliances are virtually silent.
Sparkling water & table water dispenser under the counter
Warm carbonator for the production of sparkling water
Dispensing capacity: 220 l/h
230 V, 50 Hz, 180 W, 2.3 A
Brass pump (increases the domestic water pressure to max. approx. 12 bar - can then be regulated to operating pressure by integrated pressure reducer), contactless level control, high-pressure safety pressostat, low-pressure water shortage protection, pressure gauge and backflow preventer. Water inlet 3/8", beverage outlets 1/2" BSF.
Warm carbonator
Dimensions: W/D/H 210/380/360 mm
Weight: 17.5 kg
We offer this sparkling water & table water dispenser with and without still water control, please select the desired version in the selection window above.
Version:
WITHOUT still water control - 1 x water & CO2 inlet, 1 x sparkling water outlet
WITH still water control - 1 x water & CO2 inlet, 1 x sparkling water & 1 x still water outlet

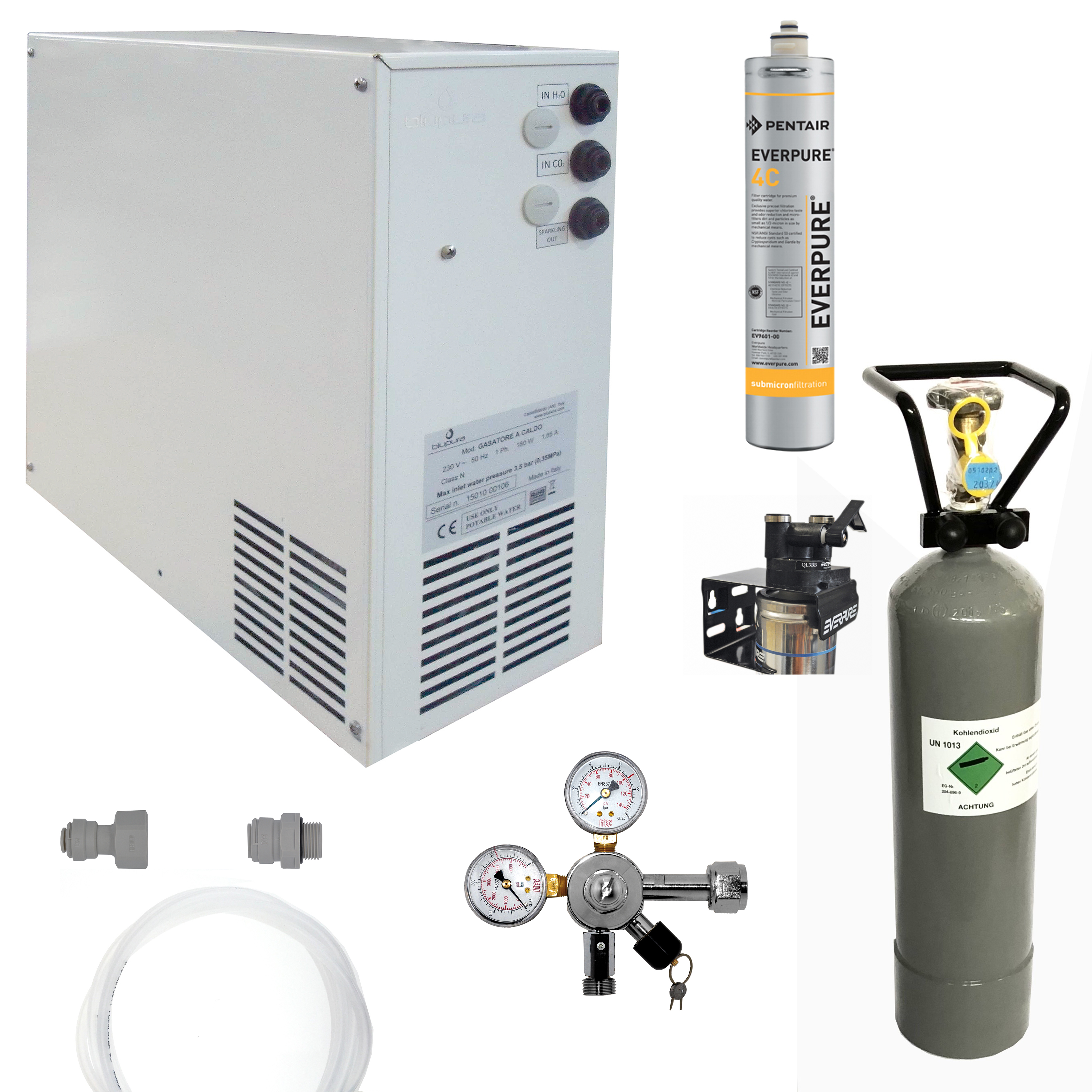

Sparkling water dispenser under counter set
We offer you a professional sparkling water dispenser that can be installed under the counter. With this water dispenser you can produce sparkling water at low cost. The device is a warm carbonator from the company Blupura. The complete set of the sparkling water dispenser includes all components for ready use and is ready for use within a few minutes.
With this sparkling water dispenser you can prepare fresh sparkling water from tap water.
The complete sparkling water dispenser consists of the following components:
Blupura warm carbonator
Co2 pressure reducer 0-10/7 bar 2.0 kg
Co2 bottle
Everpure water filter head
Everpure water filter cartridge
Water pipe + Co2 pipe
All connection fittings
The water dispenser is suitable for the following areas
Catering
Event & catering
Offices
Fitness studios
Tap sparkling water from the water pipe
You too can offer your customers fresh sparkling water from your own tap at low cost. Ready to tap after 10 minutes!!! With invoice and 2-year guarantee!!!
Technical data for under-sink sparkling water dispenser:
Stainless steel carboy tank.
Water and gas inlet pipe connection: 8 mm OD (5/16") pipe connection
Sparkling water outlet: 8 mm OD (5/16") max.
DimensionsD/D/H: 170/440/420 mm
Weight: 10.3 kg
Dispensing capacity: 220 l/h 2
30 V, 50 Hz, 180 W, 1.65 A.
Hot sparkling water carbonator KT1A
How the KT1A hot sparkling water carbonator works
With the KT1A sparkling water warm carbonator, you can professionally produce sparkling water for your catering business from tap water at low cost. The device has three connections; 1 x Co2 input, 1 x water input and 1 x sparkling water output. In the warm carbonator, the Co2 is compressed (carbonated) with the tap water and sparkling water is produced, which you can then connect to your dispensing system via the sparkling water outlet.
Technical data of the hot sparkling water carbonator:
Water pump: Procon 300 litres
Carbonator tank: 1.8 litres
Housing: Stainless steel
Connections: 1/2" BSF
DimensionsD/D/H: 201/420/406 mm
Weight: 15 kg
Tapping capacity of the sparkling water system:
Dispensing capacity: 285 l/h
230 V, 50 Hz,
180 W, 2.0 A.
If not available, you will also need an AFG Co2 pressure reducer and a Co2 bottle. We also recommend a water filter system from Everpure.
Under-sink water dispenser Blupura Box 60 fizz
Cool sparkling & table water from the tap
Under-counter/recessed version wet cooler with an ice bank weight of 3 kg and environmentally friendly refrigerant R290.
3 types of water (still uncooled, still cooled, soda cooled).
Water and gas inlet pipe connection: 8 mm OD (5/16")
Water inlet pressure: max. 3 bar
Dimensions W/D/H: 318/335/467 mm
Weight: 33 kg
Dispensing capacity: (peak): 87 L/h (delta T=6°), 52 L/h (delta T=10°)
(continuous): 47 L/h (delta T=6°), 28 L/h
(delta T=10°) 1/10 HP, 230 V, 50 Hz, 265 W, 1.6 A
