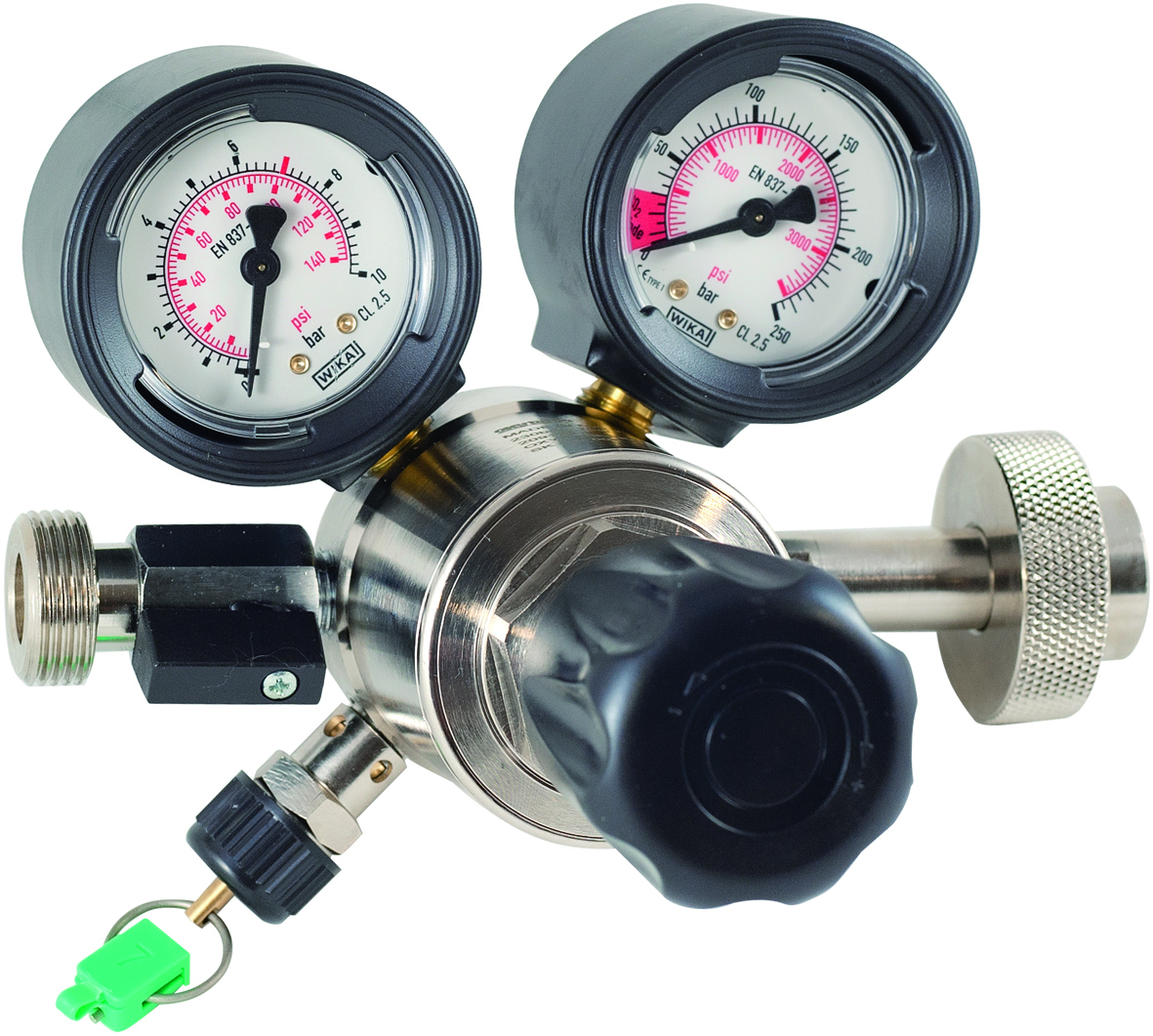

CO2 pressure regulator 7 bar, 1-line
suitable for use with up to 15 intermediate pressure regulators with rubber protective caps for manometers
SK 427-006
7 bar

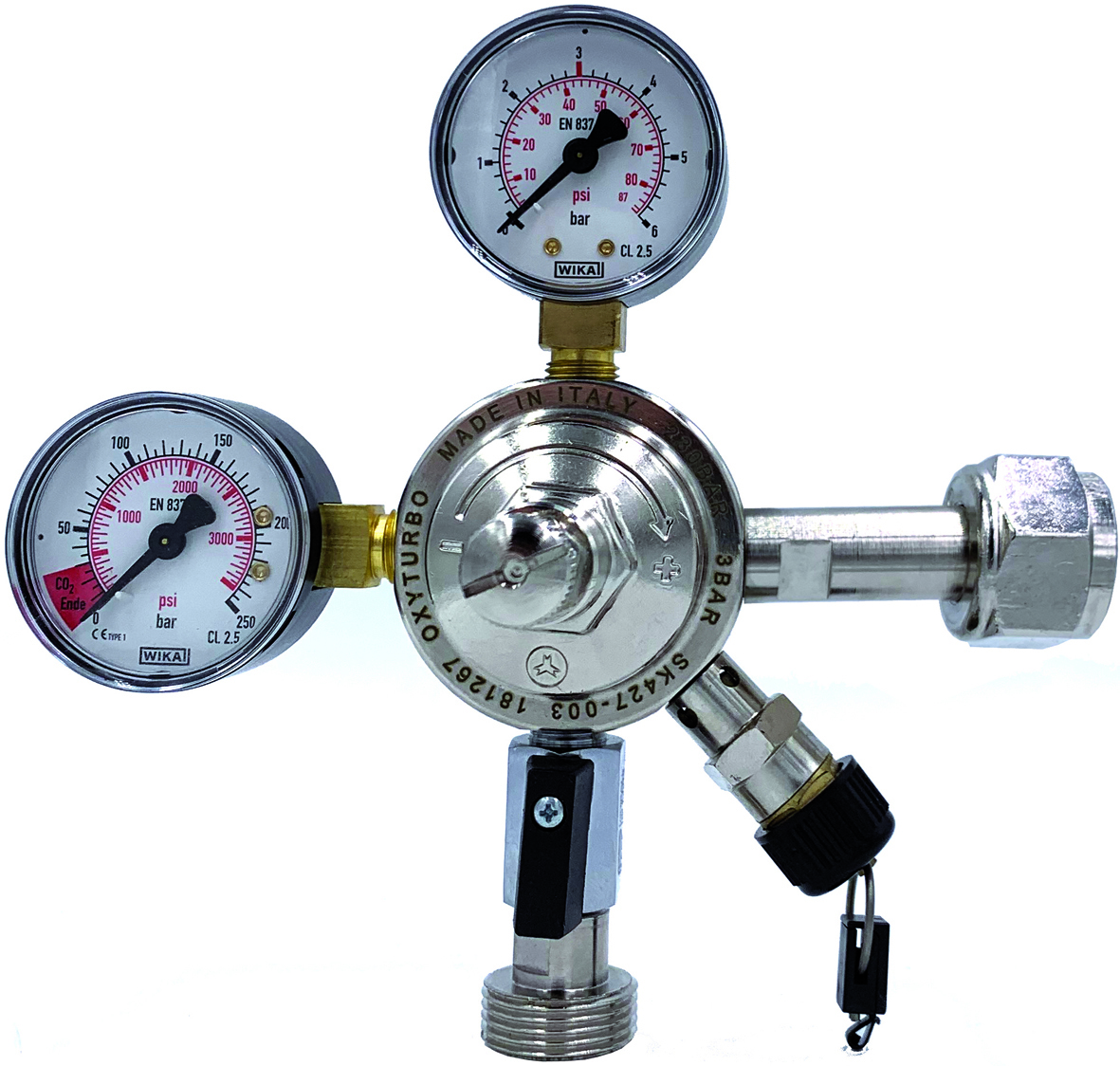

CO2-AFG pressure regulator type PremiumPLUS
Connection right, outlet AG 1/2"Cylinder contents pressure gauge 0-250 bar
SK 184-036
Better control thanks to visible tamper protection.
7 bar
Convert Quooker Cube to Co2 cylinder complete set
Optimise your QUOOKER CUBE with our premium pressure regulator for the use of reusable CO2 cylinders (500 g, 2 kg, 6 kg or 10 kg - without riser tube!)
Converting your Quooker CUBE system offers you long-term savings on CO2 filling costs and frees you from the manufacturer's own CO2 cylinders. You also have the option of returning to the original state at any time.
Retrofitting is straightforward and requires no special technical knowledge. You can do this yourself by simply changing a hose connection. It is also possible to relocate the CO2 supply cylinder to other premises such as a plant room or cellar.

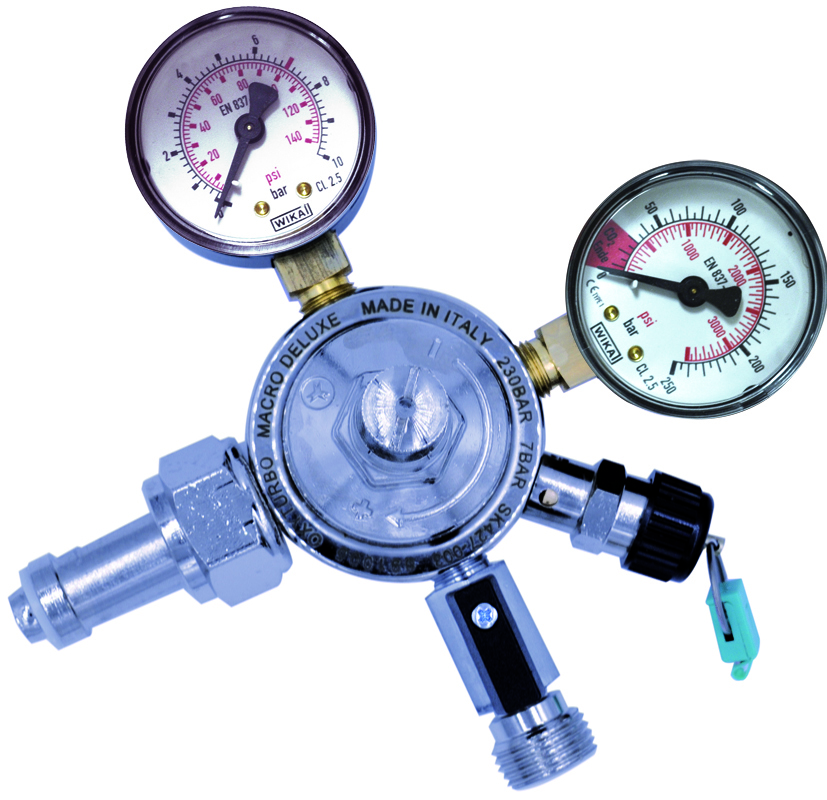

Our premium pressure regulator, with a working pressure capacity of 7 bar and an inlet connection, can be connected to all commercially available reusable CO2 cylinders (500 g, 2 kg, 6 kg, 10 kg) WITHOUT a riser pipe (W 21.8 x 1/14"). Installation is carried out using the Co2 spanner included in the set.
Our pressure regulator is compatible with all QUOOKER devices that use the QUOOKER CUBE element, including the QUOOKER CUBE (1st generation) and the QUOOKER CUBE "Next Generation" (2nd generation / from the end of 2021). The conversion is simple, as only one hose needs to be reconnected thanks to the push-in connector from John Guest. For the QUOOKER CUBE (2nd generation / from the end of 2021), you need an optional CO2 pressure hose to convert your CUBE reversibly.
Our pressure regulator has a compact design that is perfect for confined spaces in the base cabinet. With two pressure gauges for working and cylinder pressure, you have full control over the respective values. By adjusting the working pressure in the range from 0 to approx. 4 bar, you can set the bubble strength according to your individual preferences. The pressure should not exceed 4 bar and our conversion kit contains a pre-assembled 3 metre long carbonic acid hose measuring 8x4 mm for seamless connection to your Quooker Cube. This hose is ready for immediate use and makes installation much easier. The connection to the pressure reducer is made effortlessly using a 1/2 inch wing nut, while a practical 6mm/8mm 90 degree angle plug-in connector is used on the Quooker.
In addition to the hose, the scope of delivery also includes a carbon dioxide bottle holder with chain for bottles with a diameter of 120 - 210 mm. A spanner for the pressure reducing valve is also included to make handling and maintenance even easier
Scope of delivery set in construction & catering quality:
CO2 pressure regulator Pressure regulator 7 bar with working and content pressure gauge suitable for cylinder connection W 21.8 x 1 1/4 inch
Spanner for pressure reducing valve 30mm & 32mm
Wall bracket for carbon dioxide bottle (Co2 bottle) for screwing on with chain for 1 bottle 120mm - 210mm
3 metre CO2 hose ready assembled with 1/2 inch wing nut, straight stainless steel grommet, seal and 6mm/8mm 90 degree angle plug-in connector
Everpure filter cartridge for hot drinks type BH2
Capacity for approx. 11 300 liters
Dimensions in mm Ø x H: 80 x 370
Flow rate: 1,9 l/min.
(approx. 170 cups per day or 30 liters)
Filtration: up to 0,5 µm
Contains MicroPure II with AgION - TechnologyThis filter series was developed to provide premium water quality for hot beverage machines, coffee machines, as well as for small ice machines, as these are particularly susceptible to scale build-up.These filters also work according to the precoat filter process.A hardness stabilizer is added to the water. In this way, theEverpure filter reduces the level of precipitation of minerals in order to reduce limescale.By adding a hardness stabilizer, the tendency to form larger formations of mineral crystals is counteracted.In addition, these cartridges contain our MICRO-Pure II filter medium in silvered form. This has a germicidal or -reducing effect.
Everpure water filter head exclusive for Everpure cartridges
Everpure filter head QL3BBFilter head with solid, durable construction, food grade.
All water-bearing parts meet NSF specifications for durability, corrosion & longevity.

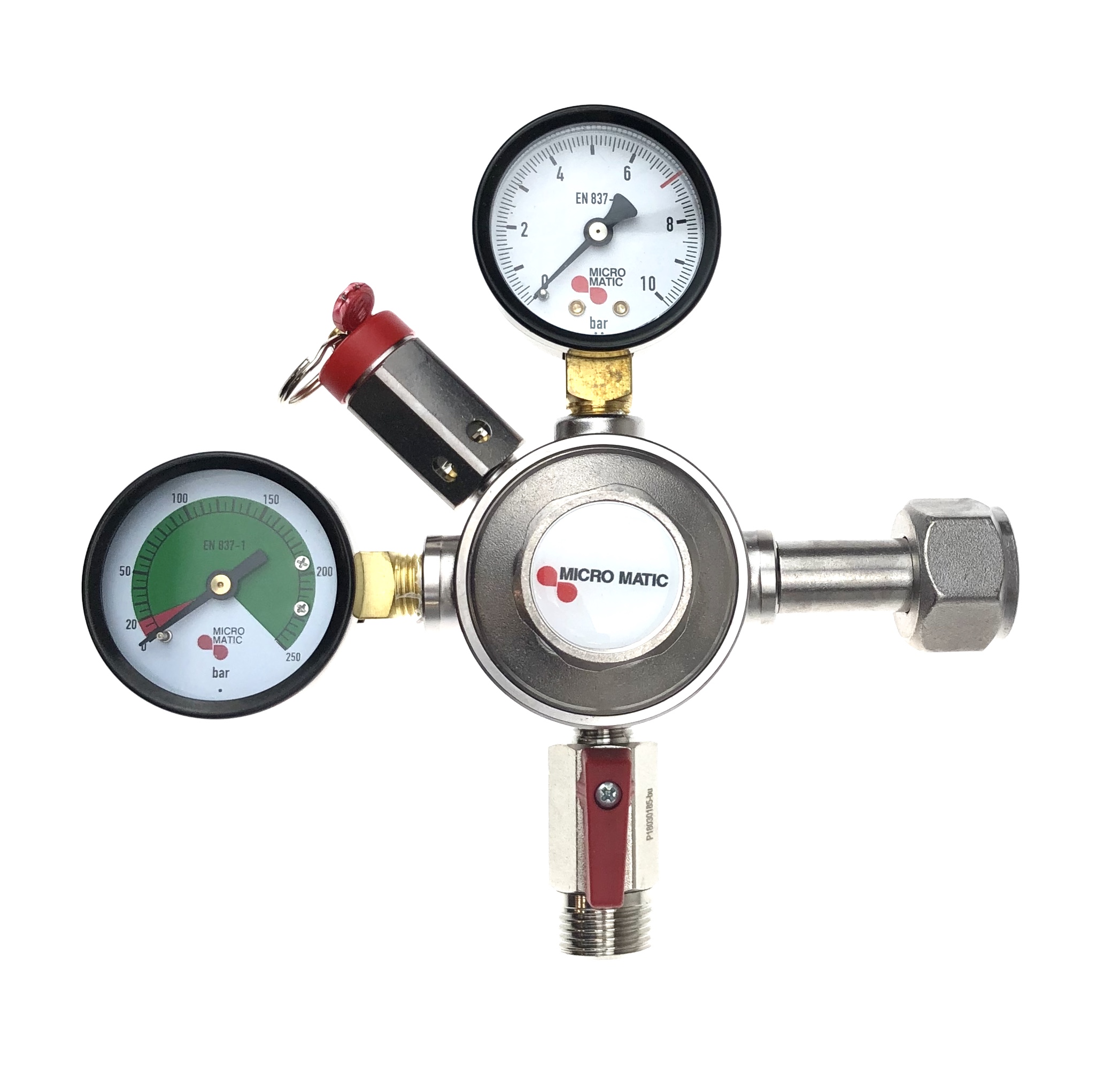

Micro Matic CO2 pressure regulator AFG 7 bar Type Premium Micro-Matic, 7 bar with integrated safety valve with stopcock without spout and nut. With content indicator. On request with: wall plate + adapter for attaching the pressure reducer to the wall

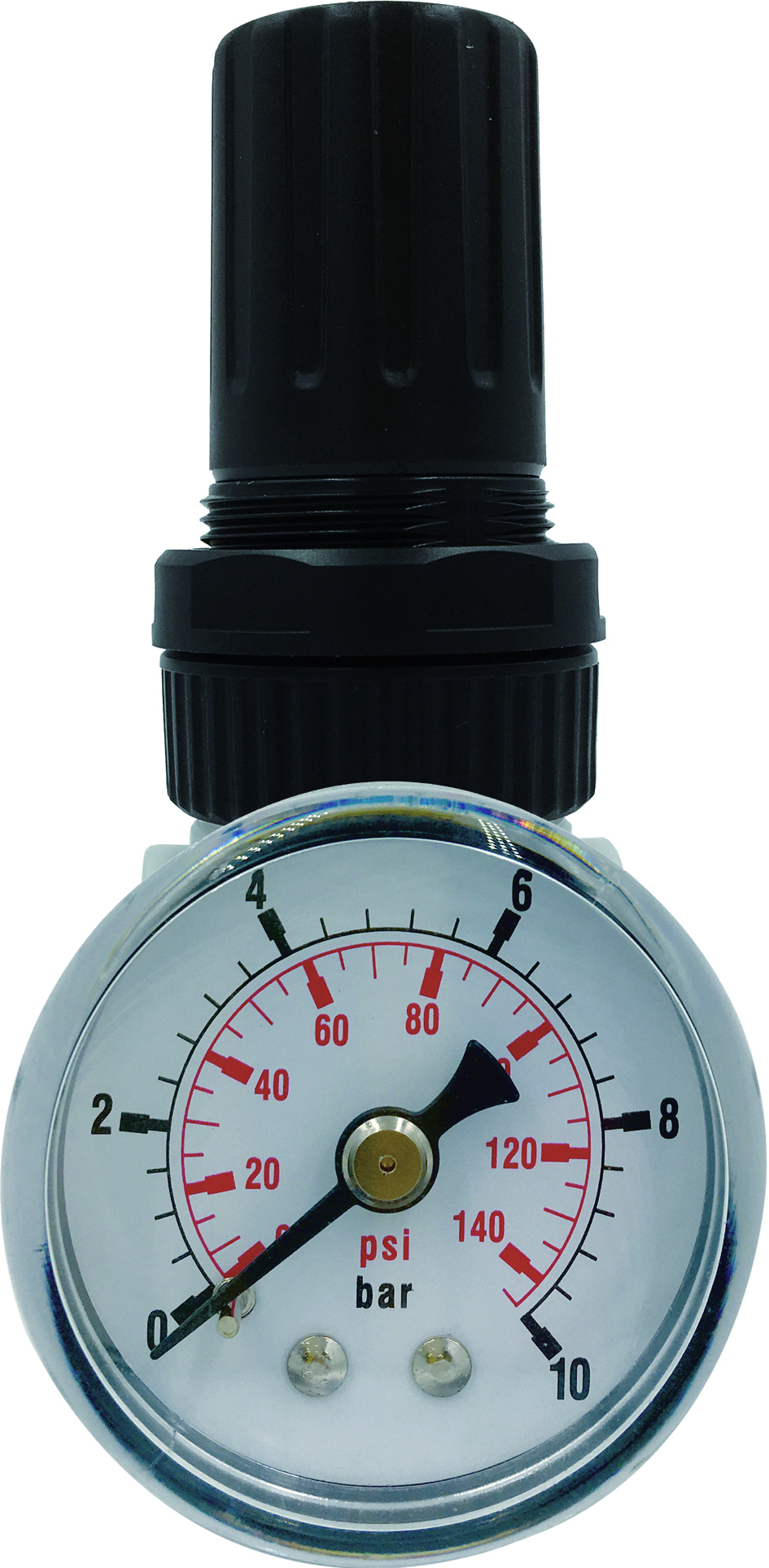

Water pressure reducer with plastic housing
Grivory handle black / connection G1/4"
Control range 0.5 - 10 bar
1 pressure gauge Ø 40 mm 0 - 10 bar
Connection G1/8" mounted on the back Mounting nut for retaining bracket mounted
