Wet coolers: Powerful continuous flow coolers for beer

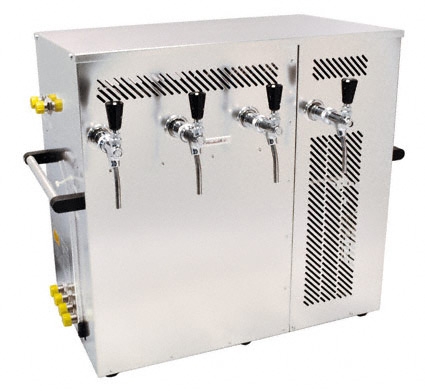

Beer cooler, 4-pipe wet cooling unit, 100 litre/h combination cooling unit, Accompanying and continuous cooling in one unit with Pipes: 4 x beer Pump: SAMEC 6 Mid 7 agitator motor with accompanying cooling pump, 6/18 m head, 20/30 m pipe run Water tank: 44 litres Ice bank: 14 kg, 4,681 kJ/h (1,120 kcal/h) Cooling capacity: 1,363 W/ 4,688 kJ/h (1,163 kcal/h) Voltage: 230 V, 50 Hz, 835 W, 6 A Compressor: 3/4 HP Dimensions 7 or 10 mm appliance: W/D/H 640/430/835 mm Weight 7 or 10 mm appliance: 51 kg With ice bank approx. 90 litres additional Litre additional dispensing capacity in surge mode! DELIVERY WITHOUT TAPS, use as an over-the-counter cooling unit OPTIONAL All taps from 55 mm threaded connection possible! See Dispensing taps Built-in flow and return for use as a blast chiller

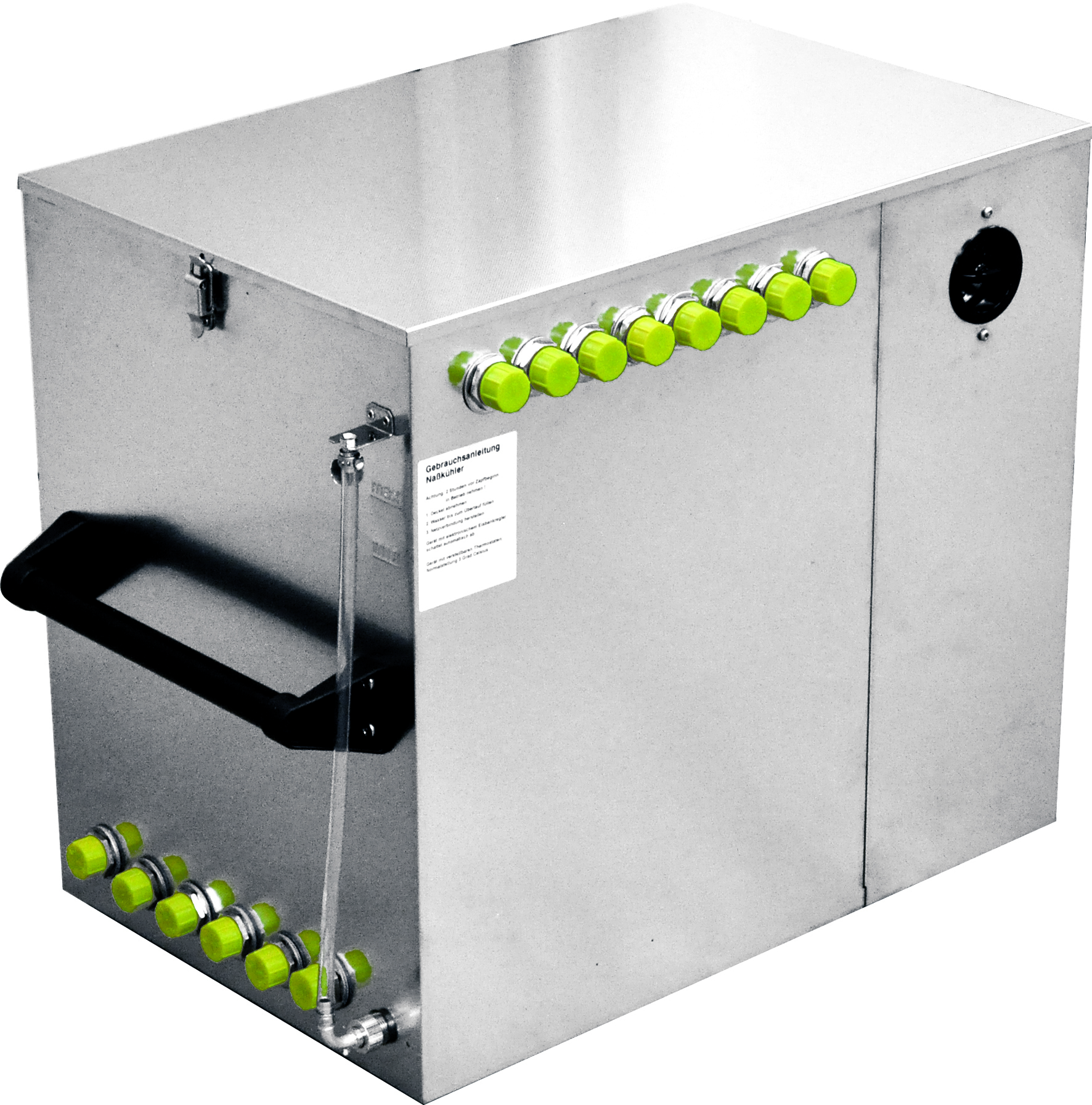

Beer cooler Wet cooling unit 6-pipe, 100 litre/h combination cooling unit Accompanying and continuous cooling in one appliance with Lines: 6 x beer Pump: Agitator motor with accompanying cooling pump, 6/18 m head, 20/30 m pipe run Water tank: 48 litres Ice bank: 10 kg, 3,343 kJ (800 kcal/h) Cooling capacity: 1,163 W / 4,000 kJ/h (993 kcal/h) Voltage: 230 V / 50 Hz, 650 W, 3.7 A Compressor: 1/2 HP Dimensions 7 or 10 mm appliance: W/D/H 600/405/605 mm Housing material: Stainless steel Dimensions W/D/H / weight: 610/400/550 mm /54 kg DELIVERY WITHOUT TAPS, use as an over-the-counter cooling unit OPTIONAL All taps from 55 mm threaded connection possible! See Dispensing taps Built-in flow and return for use as a blast chiller

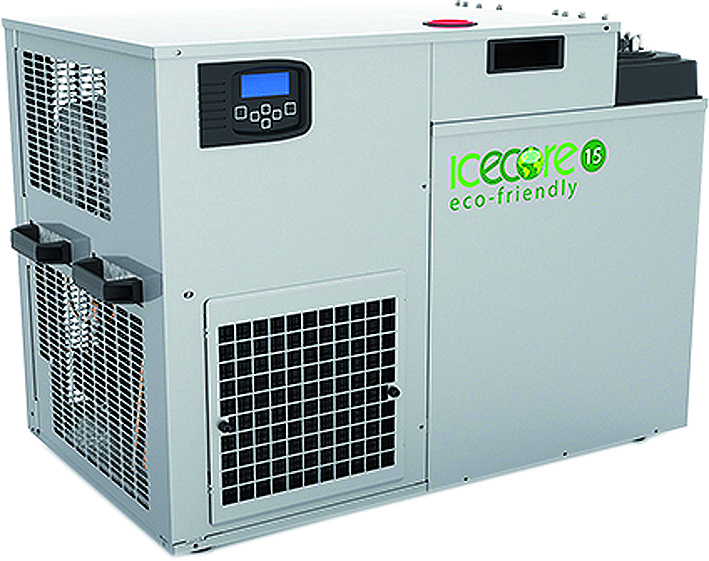

Cooler circuit carbonator ICE CORE ECO plus 2 drinks per minute incl. connection kit Refrigerant: R290 electrical still water control Connection consisting of: Water inlet: nozzle + nut for 3/8" hose ID CO2 inlet: nozzle + nut for 1/4" hose ID Flow and return: nozzle + nut for 1/2" + 3/8" hose ID Syrup: Spout + nut for 3/8" hose ID Still water: Spout + nut for 3/8" hose ID Dispensing capacity 181 Drinks A 340 ml Ice bank 7 kg Water bath 25 litres Cooling coil still 1 Cooling coil syrup 6 Premix cooling coil - max. python length 30m Dimensions in mm W/D/H 762/440/530 Weight in kg 63 Speed-controlled recirculation - galvanised housing Galvanised housing

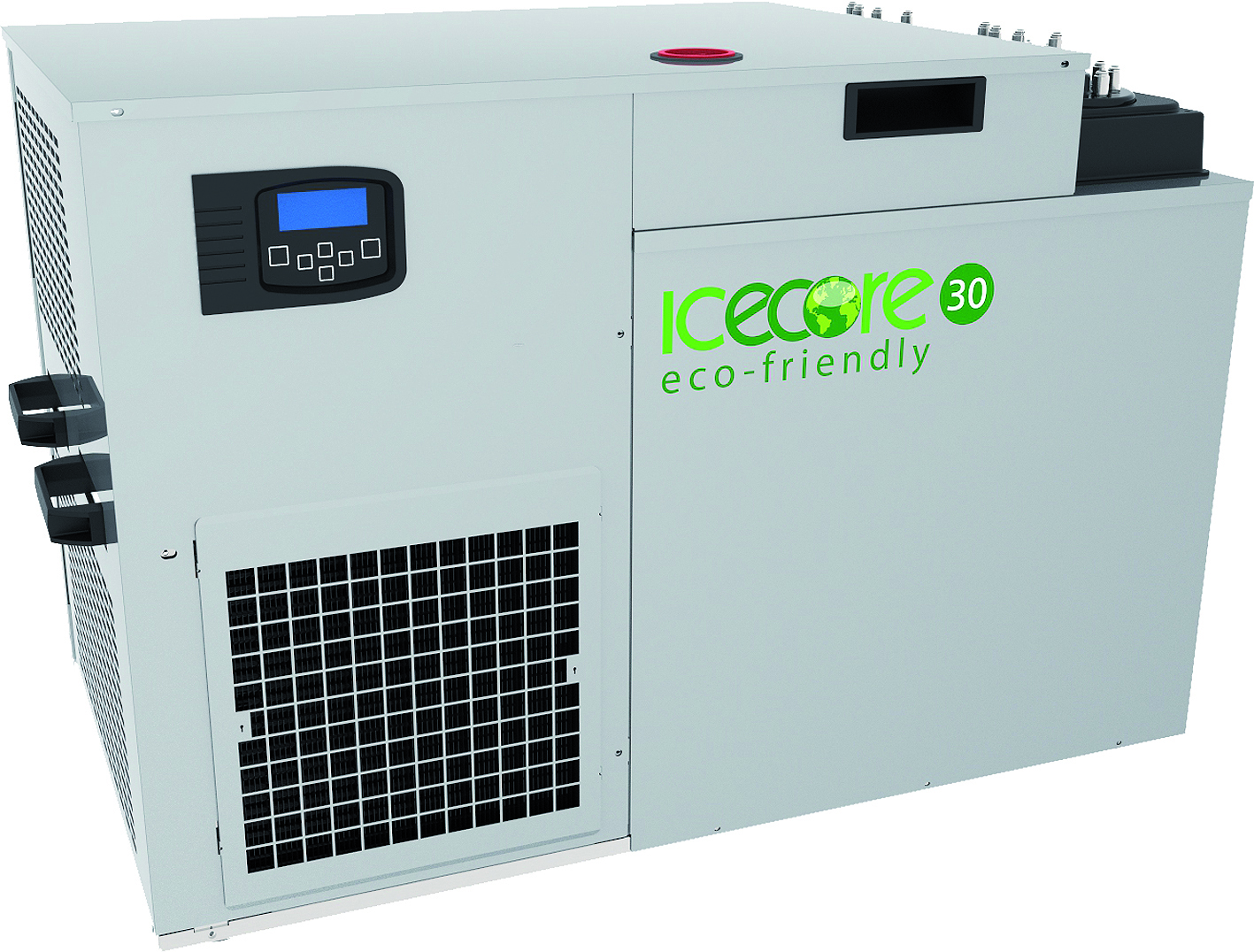

Cooler circuit carbonator ICE CORE ECO plus 2 drinks per minute incl. connection kit Refrigerant: R290 electrical still water control Connection consisting of: Water inlet: nozzle + nut for 3/8" hose ID CO2 inlet: nozzle + nut for 1/4" hose ID Flow and return: nozzle + nut for 1/2" + 3/8" hose ID Syrup: Spout + nut for 3/8" hose ID Still water: Spout + nut for 3/8" hose ID Dispensing capacity 459 Drinks A 340 ml Ice bank 15 kg Water bath 43 litres Cooling coil still 1 Cooling coil syrup 8 Premix cooling coil 2 max. python length 40m Dimensions in mm W/D/H 870/526/648 Weight in kg 77 Speed-controlled recirculation x Stainless steel housing

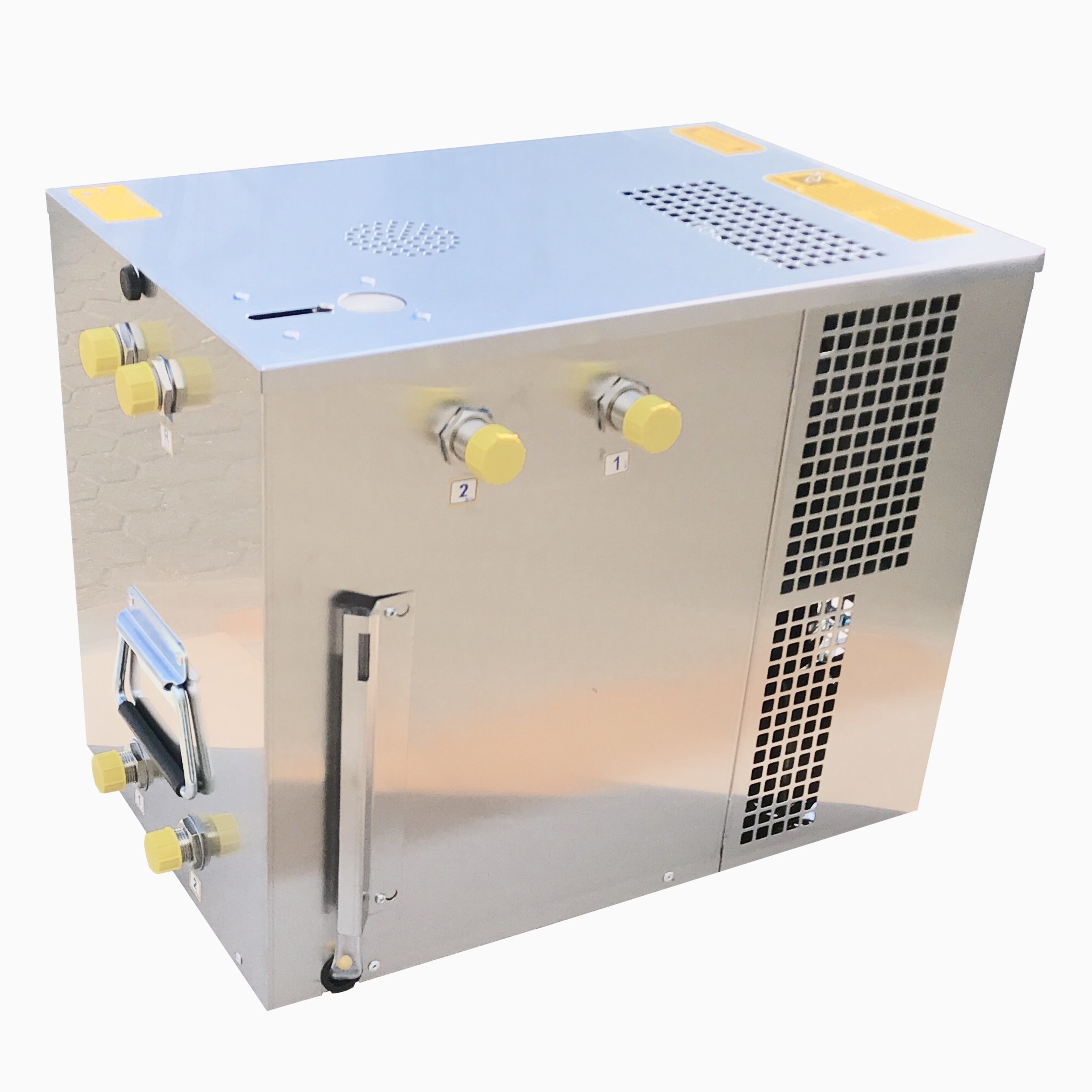

Wet beer cooler 2 ltg., 60 ltr./h with accompanying cooling Beer cooler "Messebau" 2 ltg., 60 ltr./h tapping capacity with ice bank 75 ltr./h tapping capacity 2 x beer pipe NW 7 / 2 x NW10 with Samec pump for accompanying cooling with water level indicator, with water filler neck at the top of the lid Pump: 6/18 m head, 20/30 m pipe run Water tank: 20 litres Ice bank: 6.5 kg, 2,174 kJ/h (520 kcal/h) Cooling capacity: 739 W/ 2639 kJ/h (631 kcal/h) Voltage: 230 V, 50 Hz, 450 W, 3.7 A Compressor: 1/5 HP Dimensions: W/D/H 340/515/415 mm Weight: 32 kg This wet beer cooler is particularly suitable as an under-counter beer flow cooler for "small" catering establishments or trade fairs. Thanks to the integrated accompanying cooling pump, the beer is cooled right up to the tap. Even with longer breaks between taps, there is no loss of cold and you can tap a perfect beer directly without increased foam content. You can find more beer coolers, wet beer flow coolers HERE:

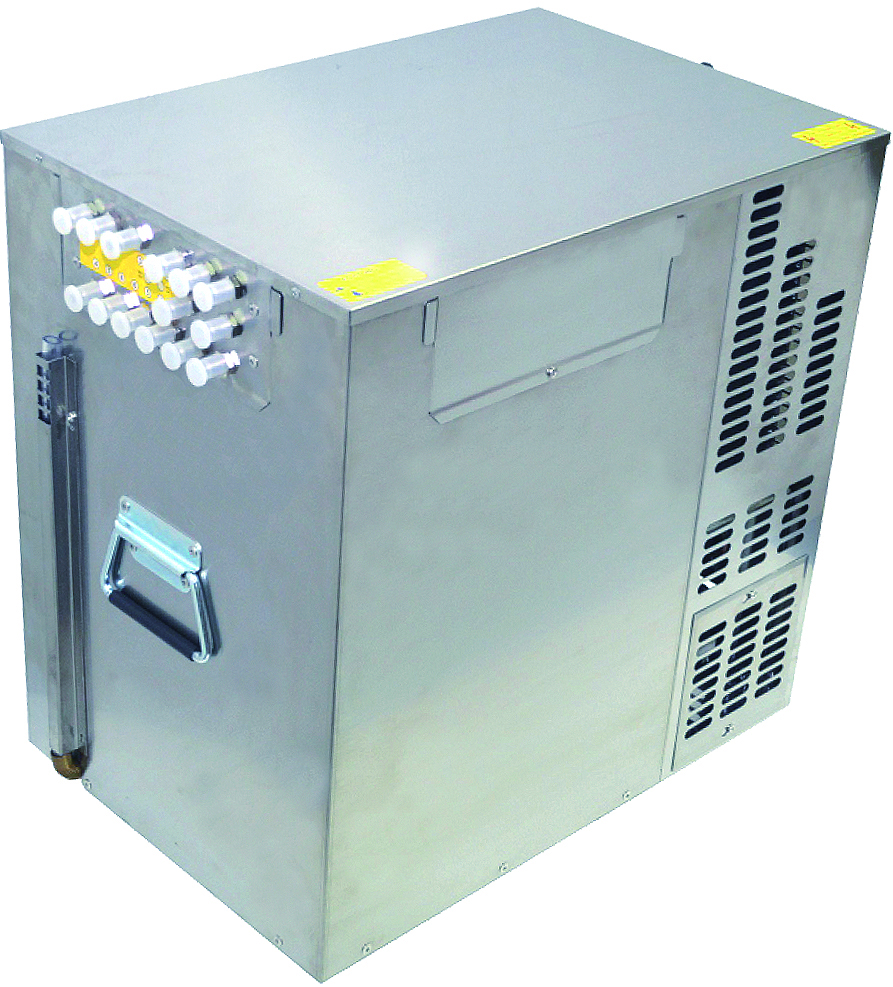

Wet cooling unit / AFG cooling unit 6-pipe, 100 litres/h with water level indicator Combi, trace and continuous cooling in one appliance. Continuous tap capacity: 100 litres/hour at 10° C TD Line: 6 Water tank: 40 litres Ice bank: 10.5 kg, 3,516 kJ (840 kcal) Cooling capacity: 1,363 W / 4,868 kJ/h (1,164 kcal) Voltage: 230 V / 50 Hz, 790 W, 5.67 A Compressor: 3/4 HP Housing material: Stainless steel Dimensions W/D/H / Weight: 627/407/607 mm / 49.5 kg 6 m climbing height, 20 m pipe run Accompanying cooling UTK or OTK

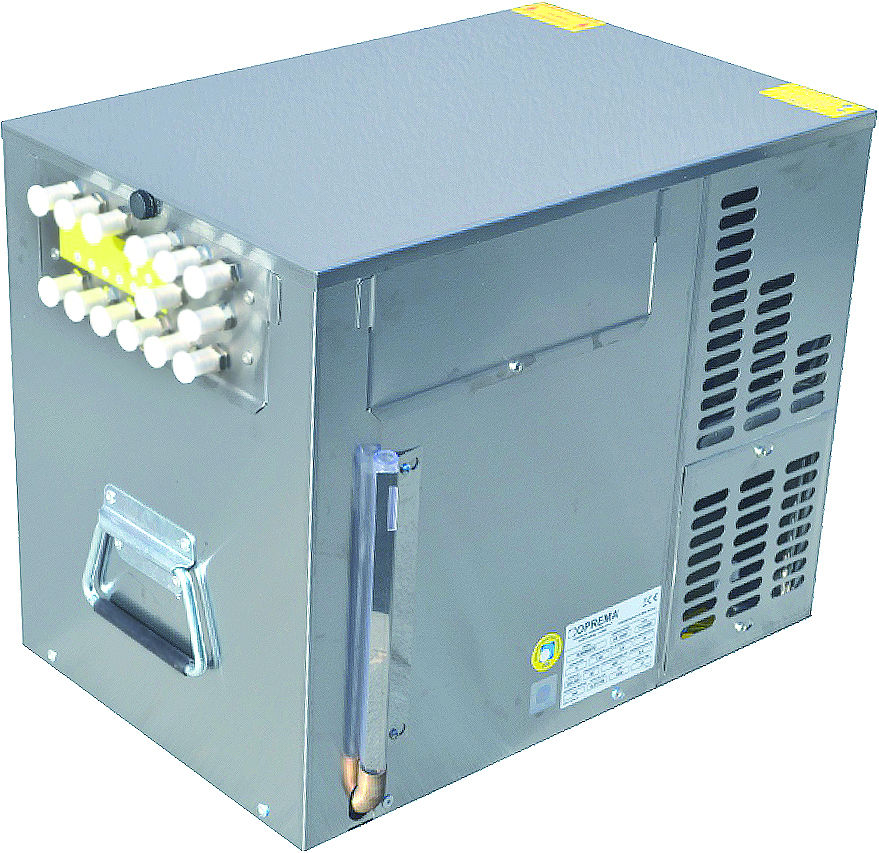

Wet cooling unit / AFG cooling unit 6-pipe, 60 litres/h with water level indicator Combi, trace and continuous cooling in one appliance. Continuous tap capacity: 60 litres/hour at 10° C TD Line: 6 Water tank: 17 litres Ice bank: 6.5 kg, 2,176 kJ (520 kcal) Cooling capacity: 739 W / 2,660 kJ/h (636 kcal) Voltage: 230 V / 50 Hz, 400 W, 2.6 A Compressor: 1/3 HP Housing material: Stainless steel Dimensions W/D/H / Weight: 543/355/415 mm / 29.5 kg 6 m climbing height, 20 m cable run Accompanying cooling UTK or OTK

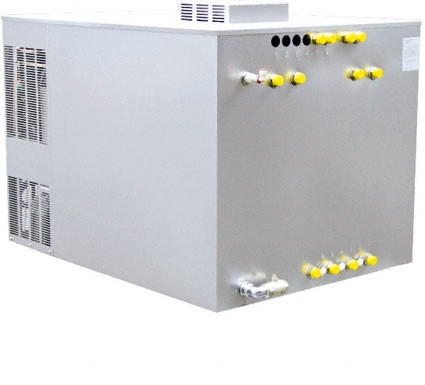

Wet cooling unit BN 500 4-pipe, 500 litres/h Continuous cooling, ice water generation, Waterbath cooling unit - Cooling coils of your choice Please specify: NW 10 mm! Stainless steel housing Ready to dispense in 120 minutes. The footprint is no larger than the size of a EURO pallet. This makes transport easy despite its heavy weight. Can also be used individually for industrial cooling thanks to the different cooling coil configurations, the trace cooling pump and the control unit. Two separate refrigeration circuits. Even if one compressor fails, continues to cool at 50% capacity. Continuous flow volume of 800 l/h (increases due to ice bank in surge operation)! Continuous dispensing capacity: 500 L/h at 10° C TD Pipe diameter: NW 10 mm or 15 mm Pipes: 4 x beer Pump: 6/18/2 x 18 m head Ice bank: 100 kg/800 litres, 33,440 kJ/h (8,000 kcal/h) Cooling capacity: 5.815 W/ 20,900 kJ/h (5,000 kcal/h) Voltage: 230 V, 50 Hz, 2,560 W, 14 A Compressor: 2 x 1 1/3 HP Dimensions 10 mm appliance: W/D/H 900/1,200/805 mm Weight 10 mm appliance: 160 kg ALSO AVAILABLE WITH STRONGER PUMPS FOR AN ADDITIONAL CHARGE

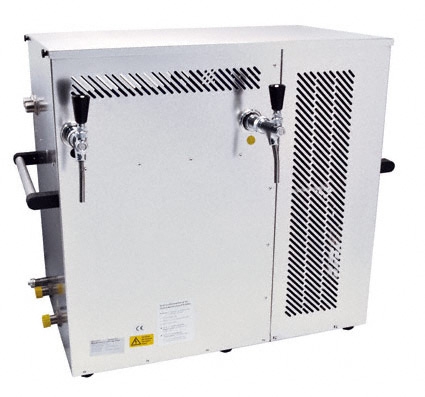

Wet beer cooler Beer dispenser 100 litres/hour Lines: 2 x beer Pump: 6/18 m head, 20/30 m pipe run Water tank: 45 litres Ice bank: 14 kg, 4,681 kJ/h (1,120 kcal/h) Cooling capacity: 1,390 W/ 5,004 kJ/h (1,195 kcal/h) Voltage: 230 V, 50 Hz, 835 W, 6 A Compressor: 1/2 HP Appliance dimensions: W/D/H 600/405/605 mm Weight 7 or 10 mm appliance: 48 kg With ice bank approx. 90 litres additional dispensing capacity in surge mode! Built-in flow and return for use as an accompanying cooler DELIVERY WITHOUT TAPS OPTIONAL Use as an over-the-counter cooler with dispensing taps from 55 mm threaded connection possible! You can find the matching dispensing taps HERE

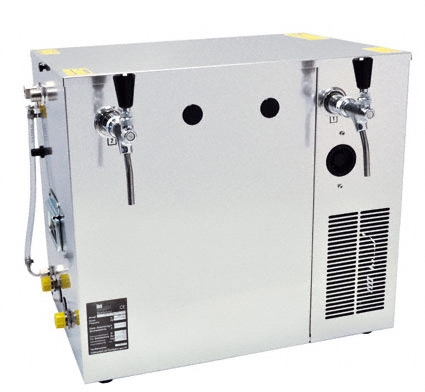

Wet cooling unit, 2-pipe, 200 litres/h Combi cooling unit, ambient and continuous cooling in one unit Pipes: 2 x beer DELIVERY WITHOUT HOLES Pump: 6 m headroom, 20 m pipe run Water tank: 44 litres Ice bank: 18 kg, 6,019 kJ/h (1,440 kcal/h) Cooling capacity: 2,560 W/ 9,216 kJ/h (2,201 kcal/h) Voltage: 230 V, 50 Hz, 1.450 W, 8.5 A Compressor: 1 HP Dimensions 7 mm appliance: W/D/H 780/500/655 mm Weight 7 mm appliance: 75 kg Dimensions 10 mm appliance: W/D/H 740/500/610 mm Weight 10 mm appliance: 75 kg With ice bank approx. 144 litres additional dispensing capacity in surge mode! Use as an over-the-counter cooling unit OPTIONAL All dispensing taps from 55 mm threaded connection possible! Built-in flow and return for use as an accompanying cooler

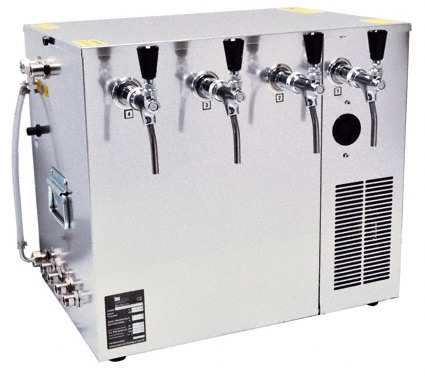

Pipes: 4 x beer DELIVERY WITHOUT TAPS Pump: 6 risers, 20 pipe runs Water tank: 44 litres Ice bank: 18 kg, 6,019 kJ/h (1,440 kcal/h) Cooling capacity: 2,560 W/ 9,216 kJ/h (2.201 kcal/h) Ice bank provides approx. 144 litres of additional dispensing capacity in batch mode OPTIONAL Use as an over-the-counter cooling unit All dispensing taps from 55 mm threaded connection possible! See chapter Dispensing taps Voltage: 230 V, 50 Hz, 1,450 W, 8.5 A Compressor: 1 HP Dimensions 7 mm appliance: W/D/H 715/395/655 mm Weight 7 mm appliance: 76 kg Dimensions 10 mm appliance: W/D/H 780/425/655 mm Weight 10 mm appliance: 76 kg
