Thermostats for beer cooling and cold rooms
Order thermostats for reliable and energy-saving cooling of your beer coolers or cold rooms. We offer high-quality thermostats for brands such as Ranco, Danfoss and LAE. With our thermostats, you can ensure that your refrigeration unit provides consistent cooling.

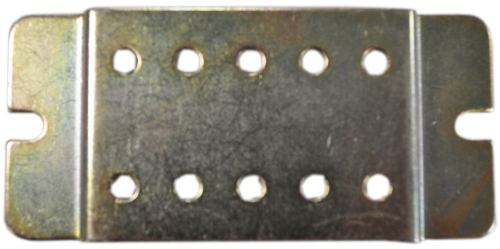

Bracket for pressostat/thermostat for Mounting on e.g. slab floor

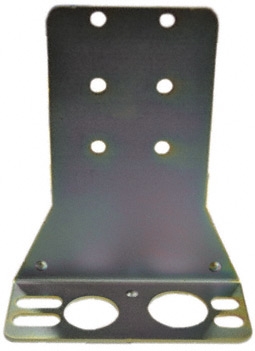

Bracket for pressostat/thermostat For wall mounting

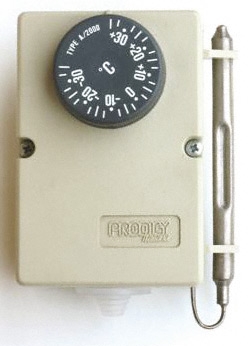

ITE Thermostat TSWM-35 with room sensor Thermostat A2000 with room sensor Thermostat for wall mounting in an impact-resistant plastic housing with nickel-plated sensor. The thermostats are designed with a changeover contact with fixed differential setting. Technical data thermostat TSWM-35 Temperature range: -35°C to +35°C Switch: 1 changeover contact Switching capacity: 16(4) A, 230 V AC Switching differential: 1.5 K (fixed) Electrical connection: blade terminal or screws Protection class: IP44 Dimensions: 86 x 58 x 35 mm

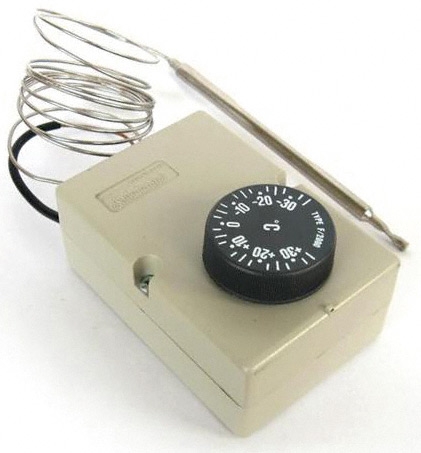

ITE Thermostat TSWM-35/Ext with remote sensor Thermostat F2000 with remote sensor Thermostat for wall mounting in an impact-resistant plastic housing with nickel-plated sensor. The thermostats are designed with a changeover contact with fixed differential setting. Temperature range: -35°C to +35°C Capillary tube: 1.7 m Switch: 1 Changeover contact Switching capacity: 16(4) A, 230 V AC Switching differential: 2 K (fixed) Electrical connection: blade terminal or screws Protection class: IP44 CE tested Dimensions: 86 x 58 x 35 mm
Special offer: LAE thermostat LTR-5 CSRE with two-point or PID control Main functions of the LAE thermostat LTR-5 CSRE: - Mains supply- PID with auto-tuning or two-point control- Output via relay (16A) or for SSR control- Input for PTC, NTC or 0÷1V - Display resolution 0.1 / 1°C or 1°F- Selection of cooling (dehumidification) or heating (humidification) function- ON/OFF button on the front- Switch-on limitation - Safety function in case of sensor break- Quick configuration via ZOT-LTR programmer - Connection for LAE monitoring systems LAE TAB Where is the LAE thermostat LTR-5 CSRE used? Temperature: Controller for cold storage cells, cabinets and tables, heating systems, water baths, galvanic baths, ovens, laboratory systems.Humidity: Controller for greenhouses, storage cells/maturing cells, cold storage cells, air-conditioned rooms. Scope of delivery: LAE thermostat LTR-5 CSRE 1 x NTC sensor All technical data for the LAE thermostat LTR-5 CSR can be found in our Download area
Pressostat Ranco Model O 160H4758 DA Combined high and low pressure switch HD, component-tested to DIN 32733. Version: DWK, Switching direction: ND closes (1+4) and opens (1+2) with pressure increase Operating range: -0.3 -7 bar Switching differential: 0.6 - 4 bar Max. permissible test pressure: 20 bar
Pressostat Ranco Model O 160H6703 NA Low pressure switch Version: ND Switching direction: closes (1+4) and opens (1+2) at Pressure increase Operating range: -0.3 - 7 bar Switching differential: 0.6 - 4 bar Max. permissible test pressure: 20 bar
Pressostat Ranco Model O 160H6758 HA Component tested. High-pressure switch to DIN 32733 Version: DWK Switching direction: ND closes (1+4) and opens (1+2) at Pressure increase Operating range: 7 - 30 bar Switching differential: 3 - 8 bar Max. permissible test pressure: 35 bar
Ranco thermostat K14-Po142-000 Ranco thermostat +1°C to +11°C for beer dry coolers and plug-in beer coolers and beer flow coolers without water bath. Ranco item no.: K14-Po142-000
Thermostat beer cooler, python cooler water bath cooler Ranco The RANCO thermostat ice K50H1121007 This Ranco thermostat is used in beer coolers such as the Python cooler or also Water bath cooler. The temperature can be regulated up to + 12 degrees Celsius. Ice up to +12°C for water bath machines Ranco item no.: K50H1121007

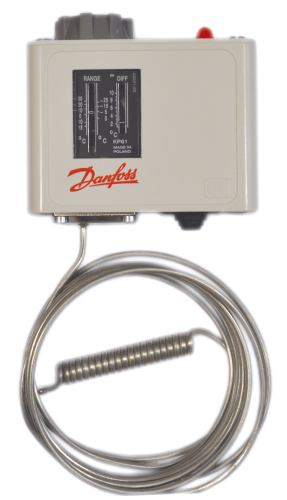

Thermostat Danfoss KP61 WITH stop auto switch Ambient temperature: 40 - +65°C (+80 °C for max. 2 hours). Switch: single-pole, changeover switch (SPDT. Contact load, AC: AC1: 16 A, 400 VAC3: 16 A, 400 VAC15: 10 A, 400 VMaximum starting current (L.R.): 112 A, 400 VContact load, DC: DC13: 12 W, 220 V control currentCable connection: A Pg 13.5 cable gland can be used for cables with a diameter of 6 - 14 mm. For cables with 8-16 mm, a Pg 16 cable gland can be used.Protection class: IP 30 according to IEC 529 if the unit is mounted on a flat surface or with a mounting bracket with all unused holes covered. Type code KP61 Unit weight 0.370 [kg] Ambient temp. -40 - 65 °C Ambient temp. -40 - 150 °F Approval BV, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LR, LVD, PZH, RINA, RMRS, RoHS China Cap. tube length 78 3/4 in Cap. tube 2.000 mm Filling type Vapour Contact function SPDT Contact class AC1=16 A, 400 V Contact class AC15=10 A, 400 V Contact class AC3=16 A, 400 V Contact class DC13=12 W, 220 V Contact class LR=112 A, 400 V Diff./max. range 1,5 - 7,0 K Diff. Max. Range setting 1,5 - 7,0 °C Diff./min. Range 5,5 - 23,0 K Diff. Min. range setting 5,5 - 23,0 °C Difference type adjustable EAN 5702428010955 Electrical connection - additional information Rubber cable glands Electr. connection size 6-14 mm Electrical specification Standard EN 60947-5 IP30 1 Further information With µ stop Glow lamp No Max. Sensor temp. 120 °C Max. Sensor temp. 248,0 °F Pack size Multi pack Pack description Temperature control Product group Switches and thermostats Prod. name Thermostat Quantity/Pack 32 pc Reset Auto reset Sensor size (Ø x L) 3/8 x 2 3/4 in Sensor size 9.5 x 70 mm Sensor Remote sensor Temp. range -30 - 15 °C Temp. range -22 - 59 °F UL approval E31024

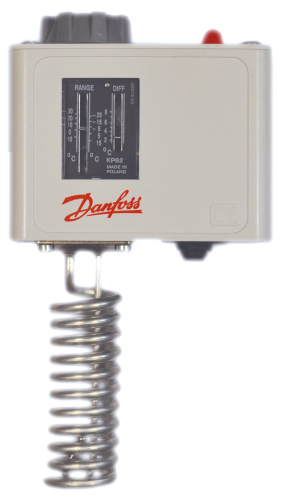

Thermostat Danfoss KP62 WITH stop/auto switch and protective cover Danfoss no. 060L111066 Range: -30°C ... 15°C Differential: 5 ... 20 K / 2 ...8 K Sensor: Room sensor

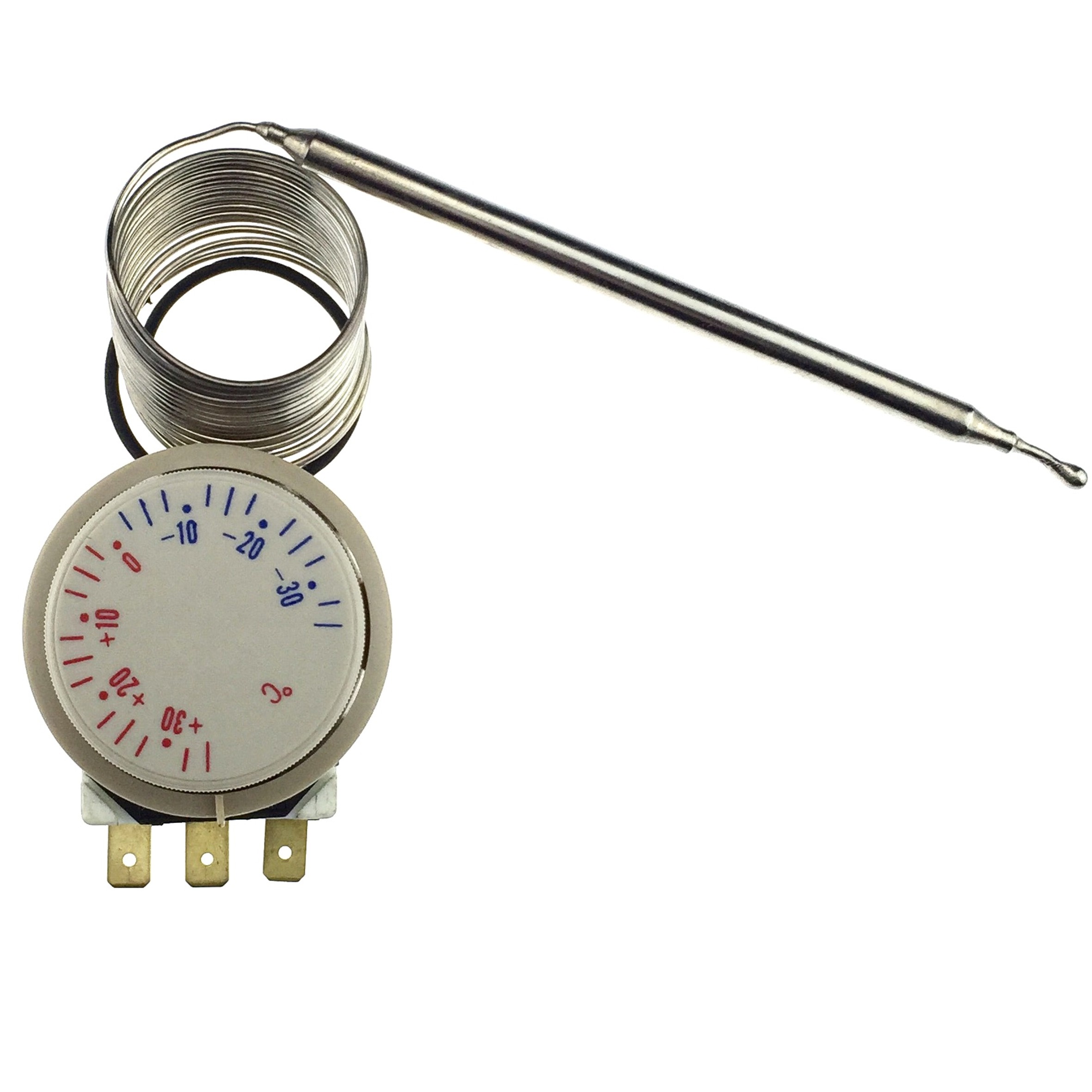

Thermostat TR711 with remote sensor One-way thermostat with nickel-plated sensor. The thermostats are designed with a changeover contact with fixed set differential. Temperature range: -35°C to +35°C Capillary tube: 1.5 m Switch: 1 changeover contact Switching capacity: 16(4) A, 230 V AC Switching differential: 2 K (fixed) Electrical connection: blade terminal Protection class: -
