Cooling point controller for beer cooling

Dixell Universal digital controller UNIV - 4 R Features of the Dixel Universa digital regulator UNIV -4 R Dixell presents the new versatile Universal-R4, the controller with two power supplies. The UNIVERSAL-R4 replaces the majority of cooling and heating controllers (over 150 models) in a standard 32 x 74 mm housing in the most common applications. The UNIVERSAL-R4 offers a convenient, versatile and quick-to-install solution: suitable for both 12 V AC/DC and 230 V AC. Many functions characterise this device as the optimal solution for many typical applications. The controller can be used for double evaporator defrosting. Two evaporator sensors and a specific parameter enable the specification of two defrost ends. The UNIVERSAL-R4 is ready for use in three simple steps: 7 different parameter presets - selectable via the parameter tc - cover most of the main applications. The 6 buttons on the front panel allow direct access to the main functions, while the display gives the user information for alarms and working status in real time. The controller can be programmed using a HOTKEY. Energy-saving measures are becoming increasingly important these days: For this reason, this controller is equipped with complete compressor management. By monitoring the compressor temperature during operation, it is possible to recognise when maintenance of the compressor is necessary to maintain the best energy efficiency. The compressor can be switched off if the compressor temperature rises. This prevents technical faults or impairment of the application. Functions- dual voltage 12 V AC/DC and 230 V AC - low voltage (12 V AC/DC) and mains voltage (230 V AC), selectable at the connection terminals- quick and easy commissioning - direct selection of the various functions at the touch of a button- new front in CX design - display with various icons such as status messages and alarm. 6 buttons for programming and operating the device.- Function for second evaporator possible - the fourth relay (AUX) and the sensor Pb3 can be realised for the use of a second evaporator. These can be set independently via the parameters.- On/off button available for the on/off function (standby)n. Front protection: IP65 Operating temperature: 0 ... +60°C Humidity in the operating environment: 20 ... 85% RH (non-condensing) Display: three digits, red LED, height 14.2 Inputs: 1 or 2 sensors PTC / NTC.configurable Relay:.configurable Compressor: normally open contact 8(3)A, 250V Defroster: NO contact 8(3)A, 250V Fan: normally open contact 8(3)A, 250V˜ Alarm or auxiliary relay: normally open contact 8(3)A, 250V Additional output: acoustic alarm TTL output: serial connection for XJ500 and hot key Data storage: non-volatile memory (EEPROM) Measuring range: PTC sensor: -50°C to 150°C NTC sensor: From -50°C to 110°C Resolution: 0.1°C Dimensions W/H/D: 74 x 32 x 70 mm Cut-out W/H: 71 x 26 mm Order transformer and sensor separately! What is the Dixel Universa digital controller UNIV -4 R used for? The Universal-R can directly replace the following controllers and also many others which are not listed. Who in the field/emergency service knows the problem „of not having the correct“ regulator in the vehicle. Service application - Models and sensor types LAE: MTR11/T1RDS, MTR11/T1RES, SDU11/T1RES, SDU11/T1REBS, SDU112, MCDU11/T1RDS/1, MCDU11/T1RDS/2, MCDU11/T1RDS/3, CDC112/T1R2S, CDC112/T1RES, CDC112/T1RBS, SDU12/TORES, SDU12/TOREB, SDU12/TORD, SDU12TORDC, LDU151E, LDU152E, CDC112/T1R2, CDC112/T1R3B Carel: IR32S, IR32Y, IR32C, CR32S, CR32T, CR32X, CR32Y, PJ32S, PJ32X, PJ32C Eliwell EWPC901, EWPC902, EWPC961, EWPC970, EWPC971, EWPC974, EWPX977A, EWTC101, EWPX161, EWPX161AR, EWPX170, EWPX171, EWPX174, EWPX174AR, EWPX117A, EWPX185 (without real time), IC901, IC902, ID961, ID961LX, ID970, ID970LX, ID971, ID971LX, ID974, ID974LX SAE RT31, RC31, RC31-1000, RC31-0100, RC32-0000, RC33, DC31 (PTC) Intek RK31, RK32, RK33, TK31, DK31 (PTC) Every EC3-120, EC3-130, EC3-131, EC3-110, EC3-111, EC3-180, EC3-181, EC3-185, FK200A, FK201A, FK201T, FK202A, FK202T, FK203B, FK203C, FK203T, FK214A Dixell XR110C*, XR120C*, XR130C*, XR140C*, XR150C*, XR160C*, XR170C*, XR10C, XR20C, XR30C, XR40C, XR50C, XR60C, XR70C, *not RS485 version TeddingtoneK-R31, EK-R32, EK-R33 Danfoss EKC201-084B7005, EKC201-084B7008, EKC201-084B7011, EKC201-084B7012, EKC201-084B7006, EKC201-084B7007, EKC201-084B7009, EKC201-084B7010 Penn MR1PM12R-1C, MR1PM230R-1C, MR2PM12R-1C, MR3PM12R-2C, MR4PM12R-2C Beta RD31, RT31, BL21, RC31, BL32, RC32, BL33, RC33

ELIWELL DST-30 Digital Solar cell thermometer Especially for refrigerated counters and display cabinets Display: LCD 24 x 14 mm Resolution: 0.1°C Display range: -20°C to +80°C Protection class: IP68 Probe: 1 m Operating environment: >100 lux Dimensions (W/H/D): 66 x 30 x 11.6 mm Cut-out: 59.5 x 26 mm

eliwell ID 971 Plus refrigeration controller The IDPlus 961, 971 and 974 controllers are the new version of the ID 961, 971 and 974 models with a modern design and extended functions. The outstanding technical control reliability of the refrigeration points is implemented in the new IDPlus with a larger display, coloured symbols and the rounded front panel; available with display in blue, amber and red as well as white, blue and dark grey front panel.The new ID also offers numerous personalisation options to meet the requirements and wishes of customers. Technical specifications Power supply: 240Va 50/60 Hz Standard ON/OFF function Terminals: Screw terminals / separable (on request) The ID Plus includes an input for PTC/NTC temperature sensors and a relay output for compressor management.The recorded sensor value is shown on the 3-digit display plus sign. TTL port available for the use of the "Copy Card" accessory for quick programming. The corresponding instructions can be found in the download area

eliwell ID 974 Plus refrigeration controller German version The IDPlus 961, 971 and 974 controllers are the new version of the ID 961, 971 and 974 models with a modern design and extended functions. The outstanding technical control reliability of the refrigeration points is implemented in the new IDPlus through a larger display, coloured symbols and the rounded front panel; available with display in blue, amber and red as well as white, blue and dark grey front panels.The new ID also offers numerous personalisation options to meet the requirements and wishes of customers. Technical specifications Power supply: 240Va 50/60 Hz Standard ON/OFF function Terminals: Screw terminals / separable (on request) The ID Plus includes an input for PTC/NTC temperature sensors and a relay output for compressor management.The recorded sensor value is shown on the 3-digit display plus sign. TTL port available for the use of the "Copy Card" accessory for quick programming. Supplied complete with 2 NTC sensors. The corresponding instructions can be found in the download area

Low-cost LAE refrigeration controller - AT1-5 AS1E-G with heating and cooling function Main functions of the LAE refrigeration controller: - Universal controller for built-in installation- Choice of cooling or heating function- Mains supply- Direct compressor control by means of high-power relay 16(4)A or 30(6)A- Selectable NTC10K or PTC input - Integrated defrost functions - Configurable auxiliary output for four operating modesInput - Integrated defrost functions- Configurable auxiliary output for four operating modes- Alarm message - Absolute or relative temperature alarms- Alarm for door opening - Automatic condenser management- On/off button- Optional light control button- Quick programming using ZOT-AT1 programming key- Connection to monitoring systems such as LAE TAB Where is the LAE refrigeration controller used? Refrigerators and refrigerated counters, cold rooms, plug-in refrigeration units, switch cabinets, heating cabinets. Technical data: Control range: -50÷120°C Resolution: 0.1 / 1 °C; °F Accuracy: NTC10K: <±0.3°C (-40.0÷70.0°C) PTC1000: <±0.5°C (-50÷120°C) Sensor type: choice between NTC10K Power supply: 230V~ ±10% 50÷60Hz 3W Front protection: IP55 Installation cut-out: 71x29 mm Operating temperatures: -10÷50°C Scope of delivery: LAE refrigeration controller 1 x NTC sensor 2 mtr.

Sensor NTC (SN8P0A1500) NTC 6 x 40 mm, stainless steel sleeve AISI 304 with 1.5 m PVC cable (-30 ... +80° C) IP 67 For e.g. eliwell ID961A Price per piece, order no. B998FNo. B998F Sensor PTC (ST1K20P1) PTC with 2 m cable For e.g. eliwell MTR122T1RE Price per unit, order no. B790FA No. B790FA Sensor NTC (SN4K20P1) NTC with 2 m cable For e.g. eliwell MTR122T1RE Price per unit, order noNo. B790FB Sensor NTC (SNK20P1) NTC with 2 m cable For e.g. eliwell LDU151E-G Price per piece, order no. B339F No. B339F Sensor NTC (NG6) NTC with 1.5 m cable For e.g. eliwell Dixell Universal R3 Price per unit, order no. B1186F

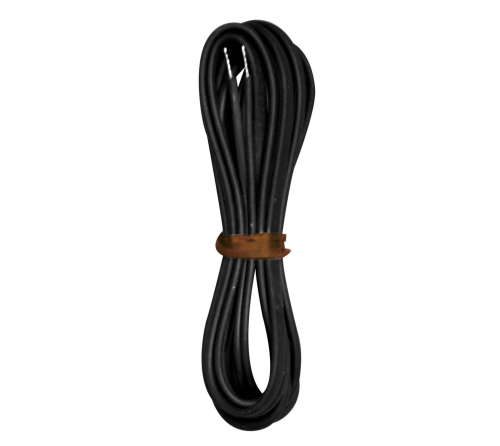

Sensor (probe) NTC to R3

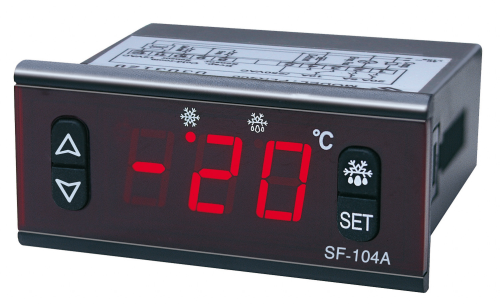

Universal refrigeration controller for deep-freezing Universal refrigeration controller for deep-freezing type DR2 Front panel installation, 230 V supply voltage PTC/NTC sensor compatible, therefore ideal for service/customer service as no complex sensor replacement necessary Dimensions: W/D/H 60/77/35 mm Cut-out: W/H 71/29 mm Thermostat sensor: 2 x NTC Measuring range: -45°C to + 66°C. 1 relay output compressor 16 A, 1 relay output evaporator fan, 1 relay output heating

Universal refrigeration controller for normal cooling type DR1 Universal refrigeration controller for normal cooling type DR1 Front panel mounting, 230 V supply voltage PTC/NTC sensor compatible therefore ideal for service/customer service as no time-consuming sensor replacement necessaryDimensions/cut-out: (W/D/H) 60/77/35 / (W/H) 71/29 mm Sensor: 1 x NTC Measuring range: -45°C to + 66°C. 1 relay output compressor 16 A

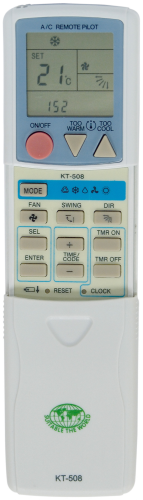

Remote control UNIVERSAL for air conditioners Programmable for the following manufacturers: ARISTON, ARTEL,CARRIER, CHANGHONG, CHIGO, DAIKIN, FUJITSU, GENERAL, GREE, HAIER, HITACHI, MITSUBISHI, MUNDOCLIMA, NATIONAL, PANASONIC, PHILCO, PHILIPS, ROCA, SAMPO, SANYO, SHARP, SHINCO, TOSHIBA and YORK.
