Countertop evaporator TVI K&M Holland for catering refrigeration units for centre bar mounting Ideal for use in catering refrigeration units with a cabinet width of up to 1.2 m Technical details: • without valve • incl. holder and defrost water tray • evaporator surface 1.8 m2 • cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

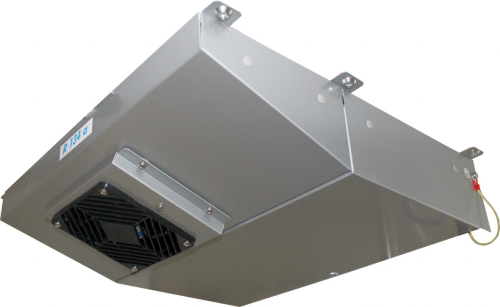

Countertop evaporator DTV1 „Holland“ for ceiling mounting Ideal for use in catering refrigeration units with body width up to 1.2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 1.8 m2 • Refrigeration capacity approx. Holder and defrost water tray • Evaporator surface 1.8 m2 • Cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

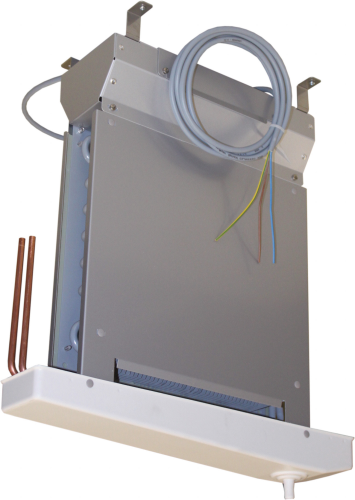

Countertop evaporator TV2 „Holland“ for centre bar installation Ideal for use in catering refrigeration units with body width up to 2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 2.2 m2 • Cooling capacity approx. Holder and defrost water tray • Evaporator surface 2.2 m2 • Cooling capacity approx. 500 W (at R404A, DT1=10K) • Tube capacity 0.34 litres • Nominal voltage 230 V / 50 Hz • Electrical power 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

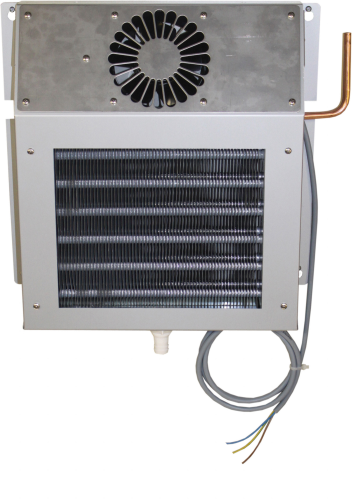

Countertop evaporator WTV1 „Holland“ for WALL mounting Ideal for use in catering refrigeration units with body width up to 1.2 m Technical Details: • without valve • Incl. holder and defrost water tray • Evaporator surface 1.8 m2 • Refrigeration capacity approx. Holder and defrost water tray • Evaporator surface 1.8 m2 • Cooling capacity approx. 300 W (with R404A, DT1=10K) • Tube capacity 0.28 litres • Nominal voltage 230 V / 50 Hz • Electrical output 19 W • Degree of protection IP20 • Max. permissible pressure 28 bar • Fluid group 2 • Min. permissible temperature -40 C° • Max. permissible temperature 100 C° • Mains cable 3 m, 3 x 1 mm2

FRIGA BOHN evaporator MF / MFE cold room evaporator Evaporator FRIGA-BOHN, evaporator for cold store, cold room The compact design of the MF fan air cooler makes this series particularly suitable for equipping refrigerated cabinets, catering establishments and small cold rooms for applications in the plus (MF) or minus (MFE) range. Options: KIT EMA kit for wall installation ISO 9001: Our company is certified by the LRQA under the ISO 9001 2000 quality assurance system. RoHs - WEEE: Our products are compliant with the European Directive 2002/95/CE and 2002/96/CE regarding electrical and electronic equipment. CE: Our products are compliant with the European Directive. GOST: Our products are compliant with the CIS standards. Modern technology Aesthetics: White ABS housing. MF louvres with polyester finish Hygiene: Declaration of conformity - CETIM. Hygiene and safety (MF 2) (compliant with standard EN 1672-2). Housing with rounded edges to prevent water accumulation, easy cleaning, low condensation. Corrosion protection: Corrosion-protected housing, fan blades and protective grille. Frame of the MF(E) 2 made of polyamide. Easy access: fully and easily removable housing for cleaning and servicing (all components attached to the upper housing plate). Robust design: Monobloc construction made of impact-resistant ABS. Performance: low refrigerant volume. Low-noise 4-pole motors, fan blades Design: made of polypropylene. Flexibility: Wall mounting possible for MF 2 when using the EMA kit (do not use for MFE 1 and 2).

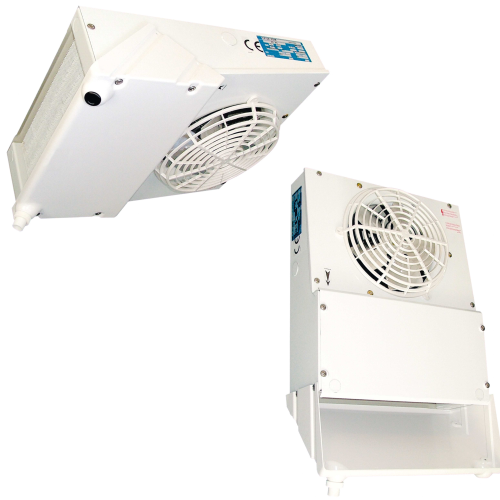

FRIGA BOHN Evaporator XR Firga Bohn evaporator XR series cooling capacity from 435 W to 1,030 W The evaporators in the XR series are designed for equipping refrigerated cabinets, drinks bars, counters and small cooling chambers, for normal or deep-freezing. The 5 models in the XR series cover a power range from 435 to 1,030 W. Firga Bohn XR evaporator options : KIT / E1K Electronic heating. ATTENTION: The SC3 is only suitable for ceiling mounting. An E1K kit must be fitted ISO 9001: Friga Bohn is certified by the LRQA under the ISO 9001 2000 quality assurance system. RoHs - WEEE: Our products are compliant with the European Directive 2002/95/CE and 2002/96/CE with regard to electrical and electronic equipment. CE: Our products are compliant with the European Directive. GOST: Our products are compliant with the CIS standards. High-performance heat exchanger of the FirgaBohn XR evaporator : The finned coils of the XR series consist of sinusoidally corrugated aluminium fins with a polyester coating and a fin spacing of 4.23 mm as well as internally finned copper tubes. Fans of the Firga Bohn XR vaporiser: The XR series is equipped with closed fans Ø 200 mm, single-phase, 230 V. 50-60 Hz. Class B and is supplied with long-term lubrication and a 1 m long cable 3 x 0.75 mm 2: - 4P=1,500 rpm impedance-protected motor (low noise level) - 2P=3,000 rpm. Motor with built-in thermal contact (high performance) Housing of the Firga Bohn vaporiser XR: Elegant housing made of galvanised steel and plastic, painted white. Access to all components from the front. Mounting in the keyhole-shaped holes can be carried out by a single person. Drilling template printed on the packaging. 8 pre-punched openings for pipe and cable routing. Intermediate drip tray on ceiling-mounted models to reduce condensation. 4 different positions of the drain pipe for ceiling mounting (2 for wall mounting) enable optimum space utilisation. Supplied ex works in the ceiling-mounted version. Simple conversion for wall mounting. Standardised packaging in cardboard boxes

Friga-Bohn evaporators MR MR series from MR135R to MRE270E Evaporators FRIGA-BOHN The evaporators in the MR series are designed to equip cold rooms for cooling or deep-freezing. The 6 models in the MR series cover a power range from 840 to 2,620 W. ISO 9001: Our company is certified by the LRQA under the ISO 9001 2000 quality assurance system. RoHs - WEEE: Our products are compliant with the European Directive 2002/95/CE and 2002/96/CE regarding electrical and electronic equipment. CE: Our products are compliant with the European Directive. GOST: Our products are compliant with the CIS standards. The MR series evaporators are designed to equip cold rooms for refrigeration or deep-freezing. The 6 models in the MR series cover a power range from 840 to 2,620 W. High-performance heat exchangers the finned blocks of the MR series consist of sinusoidally corrugated aluminium fins with a fin spacing of 4.23 or 6.35 mm and internally finned copper tubes. In the MR 270/250/ and MRE 135/120 to MRE 270/250 models, the refrigerant is distributed via a venturi distributor. The MR battery is fully protected with polyester against corrosive atmospheres, among other things FansTheMR andMRE series is equipped with a fan. It is operated with a motor connected to the terminal box (except forMR 75/65), 50-60 Hz in closed design, class B, with impedance protection and permanent lubrication.The protective grilles comply with safety standards. Housing The housing made of recyclable ABS stands for: Robust design: High resistance to thermal shocks (at high and low temperatures) and high mechanical strength, Aesthetic design: The external shape, the careful finishing and the white textured surface allow these devices to be harmoniously integrated into their surroundings. MR slats with polyester finish. Hygiene: Thanks to the rounded corners, bacteria-promoting deposits are avoided. Improved hygiene thanks to the use of non-oxidising parts (e.g. stainless steel fixing screws), safety: no sharp corners or edges Defrosting: The electric heating elements (230 V, single-phase) are mounted in slots under the battery and connected to a terminal box (only for theMRE series). This arrangement makes all maintenance work much easier and ensures homogeneous heat distribution in the battery. This leads to perfect defrosting.The condensate is collected in an intermediate drip tray and drained via a large connection piece (Ø 1“ G). EASY ACCESS: The structure of the MR was designed to facilitate all installation work for commissioning, maintenance and cleaning. Thanks to the polyamide hinges attached to the housing, all evaporator parts are completely accessible (battery, fan motor, heating rods of the defrost heater, connections ... ). These hinges allow the housing to be completely removed.
