ebm papst fan Aci 4420 H
3% discount for advance payment:
£53.07*
Price with other payment methods:
£54.71*
Available immediately, delivery time: 1-3 days
Product information "ebm papst fan Aci 4420 H"
ebm papst fan Aci 4420 H
i-maxx axial fan energy-saving,
119 x 119 x 38 mm
MAX 180m3/h
Special features:
Energy-efficient AC fan with EC technology.
Fully integrated converter and fan electronics.
Significantly lower power consumption than conventional AC fans.
Significantly quieter than existing AC fans.
Significantly longer service life than existing AC fans.
Fan speed independent of the mains frequency
General properties:
Material: Glass fibre reinforced plastic,
Fan wheel PA, housing PBT.
Electronic blocking protection.
Technical description

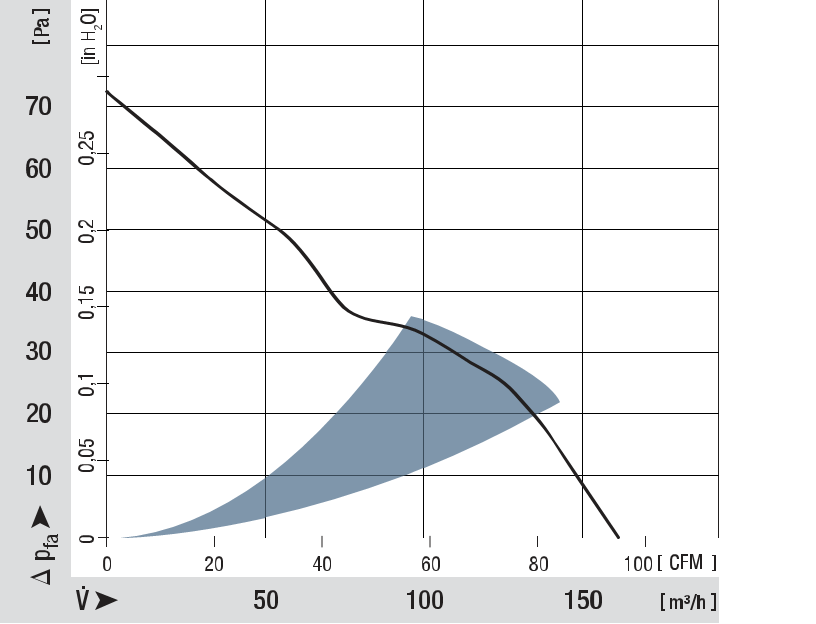

Volume flow m3/h: 160
Volume flow CFM: 94.1
Nominal voltage VAC: 230
Voltage range VAC: 195 ... 265
Sound pressure dB(A): 39
Sound power Bel(A): 5.1
Ball bearing : yes
Power consumption Watt: 3.3
Nominal speed min-1: 3,000
Temperature range °C: -20 ... + 75
Service life expectancy L10 (40 C°), hours: 140,000
| General description | Converter electronics and fan electronics fully integrated |
| Weight | 0.25 kg |

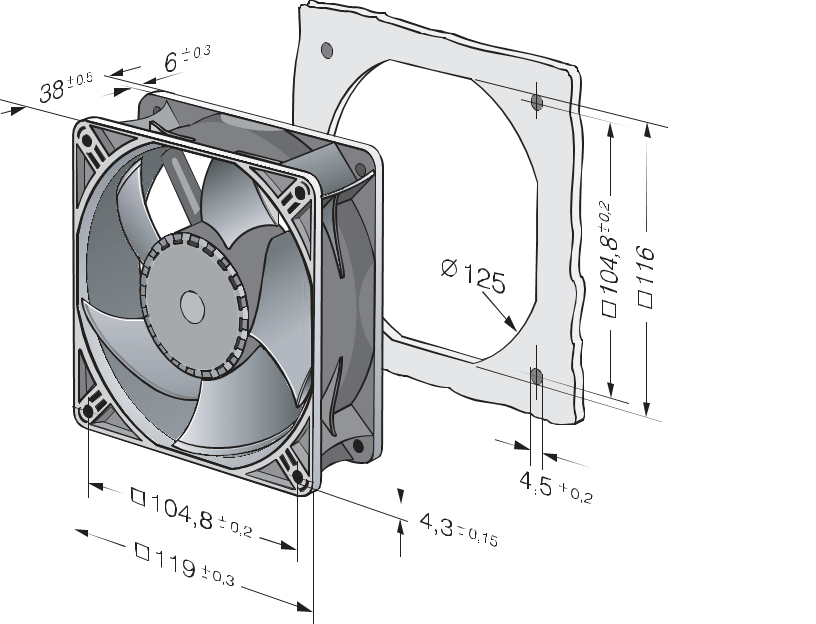

| Dimensions | 119 x 119 x 38 mm |
| Impeller material | Glass fibre reinforced plastic (PA) |
| Housing material | Glass fibre reinforced plastic (PBT) |
| Conveying direction | Blowing over bars |
| Direction of rotation | Right, seen on rotor |
| Bearing | Ball bearing |
| Service life L10 at 40 °C | 65000 h |
| Service life L10 at max. temperature | 25000 h |
| Connection cable | via 2.8 x 0.5 blade terminals, optionally also with free-form stranded wires |
