ebm papst fan 4650 N
4650 N AC Axiallüfter ebmpapst
230 V, 18 Watt, robustes Aluminium Druckgussgehäuse
3% discount for advance payment:
£22.24*
Price with other payment methods:
£22.93*
Available immediately, delivery time: 1-3 days
Free shipping for orders over 82 GBP
Product number:
voT25
Manufacturer:
ebm Papst
EAN:
4251263509519
Manufacturer no:
4650N
Delivery time
1-3 days
Product information "ebm papst fan 4650 N"
ebm papst fan 4650 N
Pabst type 4650 N, 230 V 18 W for various cooling appliances
Technical description:
| Weight | 0.550 kg |

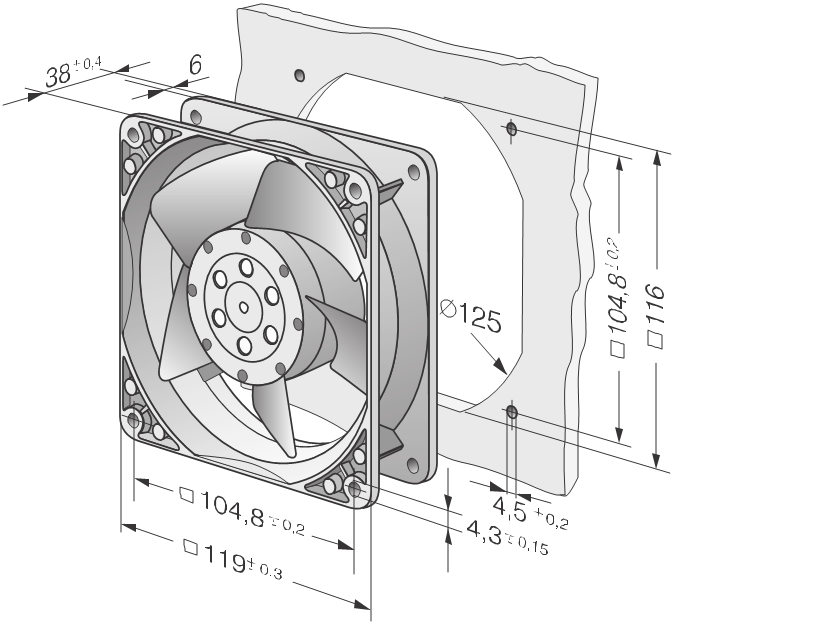

| Dimensions | 119 x 119 x 38 mm |
| Impeller material | Sheet steel, painted black |
| Housing material | Die-cast aluminium |
| Conveying direction | suction via bars |
| Direction of rotation | right, seen on rotor |
| Bearing | Sintec plain bearing |
| Service life L10 at 40 °C | 37500 h |
| Service life L10 at max. temperature | 27500 h |
| Connection cable | 2 spade connectors 3.0 x 0.5 mm. Housing with earthing lugs with M4 thread and UNC. |
| Motor protection | protected against overload by impedance protection |
| Approval by | VDE, CSA, UL, CE |
| Option | Variants with reinforced mounting flanges and freely designed individual strands available. |
