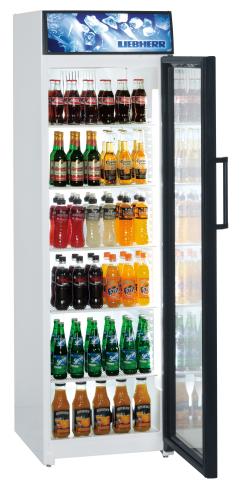

External dimensions in mm (W/D/H) . . . . . . . . . . . . . . 600/644/1990 Internal dimensions in mm (W/D/H) . . . . . . . . . . . . . . . 500/507/1622 Energy consumption 24 h . . . . . . . . . . .. . . . . . 2.0 kWh General Cooling system . . . . . . . . . . . . . . . . dynamic Defrosting process . . . . . . . . . . . . . automatic Temperature range . . . . . . . . . . .+2° C to +12° C Housing material/colour . . . . . . steel/white Door/lid material . . . . . . . . .insulating glass door Material inner container . . . . . . . .plastic white Type of control . . . . . . . . . . . Meschan control Temperature display . . . . . . . . . .inside analogue LED interior lighting Longitudinal lighting, can be switched in parallel to the display adjustable shelves . . . .5 Material shelves . . . . . . .shelves plastic-coated Load capacity of shelves . . 45 kg Handle . . . . . . . . .. . . . . . . . . .. . Ergonomic bar handle Lock . . . . . . . . . . . . . . . . . . available Self-closing door . . . . . Yes Door hinge . . . . . . . . . . . . . . .right, interchangeable Gross/net weight . . . . . . . .103.5 / 94.1 kg Climate class . . . . . . . . . . . . . . . SN Refrigerant . . . . . . . . . . . . . . . . R 600a Connected load . . . . . . . . . . . . .3.0 A/290 W Frequency/voltage . . . . . .. . . 50 Hz/220-240 V

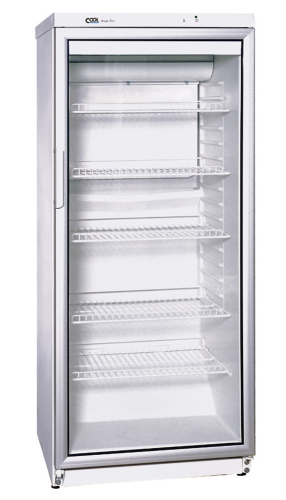

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 290/275 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . 600/600/1450 packed in mm (W/D/H) . . . . . . . . . . . . . . . . . . 650/640/1500 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . 2.05 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 160 W German safety regulations . . . . . . . . . . . . . . . . . . . CE Glass door / Adjustable front feet / Interchangeable door hinges Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

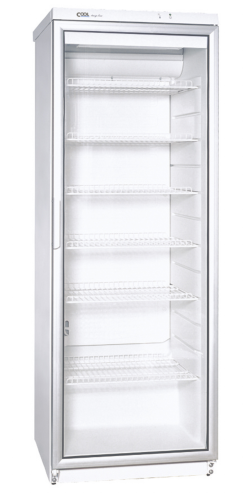

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 350/320 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . . 600/600/1730 packed in mm (W/D/H/) . . . . . . . . . . . . . . . . . 650/640/1790 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . . 2.14 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 230 W German safety regulations . . . . . . . . . . . . . . TÜV / CE Glass door / Adjustable front feet / Door hinges can be changed Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

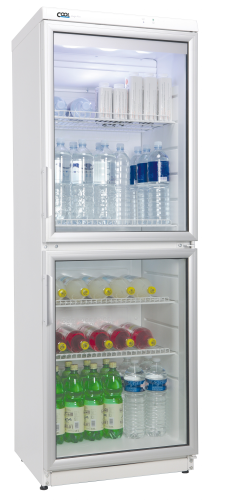

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 350/320 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . . 600/600/1730 packed in mm (W/D/H) . . . . . . . . . . . . . . . . . . 650/640/1790 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . . 2.14 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 230 W German safety regulations . . . . . . . . . . . . . . . . . . . CE Double glass door / Adjustable front feet / Door hinges can be changed Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

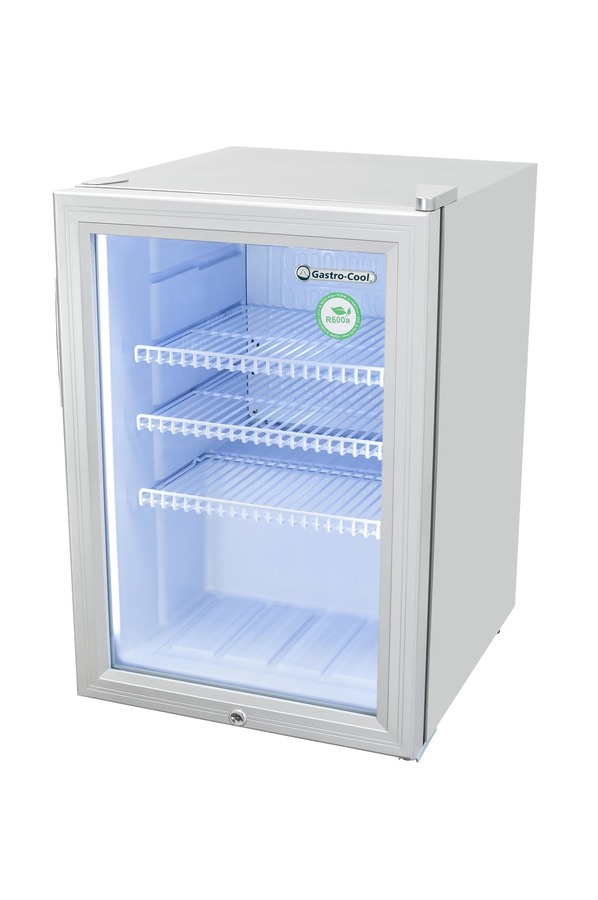

Glass door refrigerator GCKW65 LED Compact little cooling cube: Even when space is at a premium, Gastro-Cool offers you plenty of room for chilled beverage replenishment with this space miracle. The cooling cube L has a volume of 62 litres. It is the perfect solution when you need to keep enough chilled drinks ready for sale in the smallest of spaces. The cooling unit also scores with its stylish exterior. The integrated LED interior lighting puts the contents in the right light to promote sales. Please note that this appliance is only suitable for built-in installation to a limited extent. To ensure the appliance functions properly, at least 5 cm of space must be left at the sides and top. Features Available in silver, other colours on request Glass hinged door Interchangeable door hinges LED interior lighting Manual temperature control 3 height-adjustable storage shelves Lock Optional equipment Branding LED logo in door Lock Stainless steel version Special colours (from 200 pieces) Technical specifications Volume (net): 62 l Volume (gross): 68 l Bottle capacity: 30 bottles 0.33 l / 24 bottles 0.5 l / 16 bottles 0.7 l Can capacity: 86 cans 0.25 l / 65 cans 0.33 l / 60 cans 0.5 l External dimensions HxWxD: 61.5 x 43 x 48 cm Internal dimensions HxWxD: 54 x 36 x 39 cm Weight (gross): 24 kg Weight (net): 22 kg Climate class: N Energy consumption: 0.9 kWh / 24h Electrical connection: 220-240V / 50Hz / 85W Certificates: CE, RoHS Coolant: CFC- & HFC-free Temperature range: from 2°C to 10°C

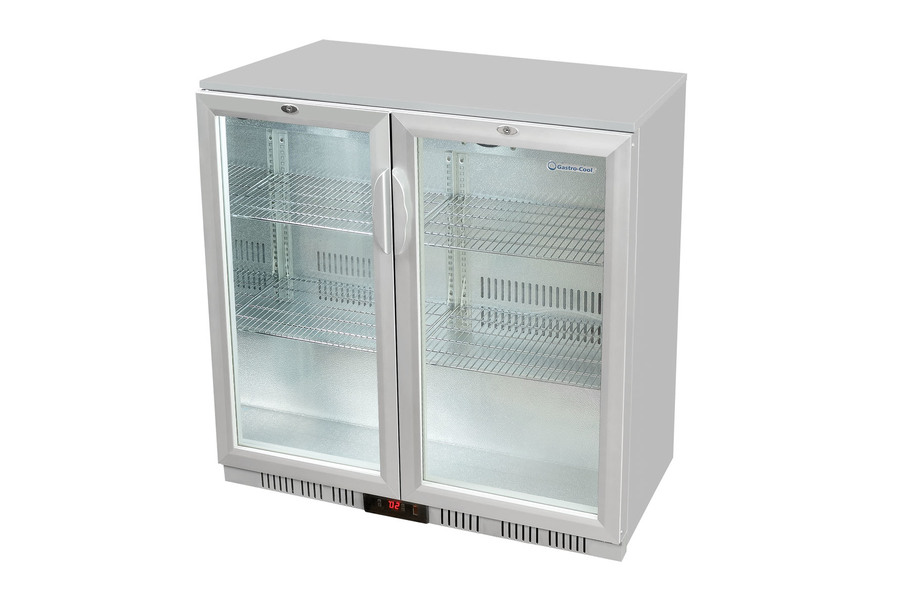

Under counter fridge GCUC200 With external dimensions of 90 x 90 x 52 cm, the under-counter refrigerator requires little floor space, fits under almost any counter with its low height of just 90 cm - and still holds over 200 litres. Drinks are at drinking temperatures of between 2 and 10 degrees within a very short time. As the heat is dissipated to the front, there is no heat build-up. Even in darkened rooms, working with the appliances is very easy thanks to the integrated interior lighting. Thanks to the safety glass, the drinks are clearly visible and quickly to hand when ordering. Technical data Volume (net): 202 l Volume (gross): 208 l Bottle capacity: 172 bottles 0.33 l / 80 bottles 0.5 l / 60 bottles 0.7 l Can capacity: 294 cans 0.25 l / 180 cans 0.33 l / 254 cans 0.33 l slim / 150 cans 0.5 l External dimensions HxWxD: 90 x 90 x 52 cm Internal dimensions HxWxD: 75 x 82 x 38 cm Weight (gross): 66 kg Weight (net): 62 kg Climate class: N-ST Energy consumption: 2.2 kWh/24h Electrical connection: 220-240V / 50 Hz / 230W Certificates: CE, RoHS Coolant: CFC- & HFC-free Temperature range: from 0°C to 10°C Features Self-closing glass hinged doors Interior lighting Digital temperature display/control 4 height-adjustable mesh shelves

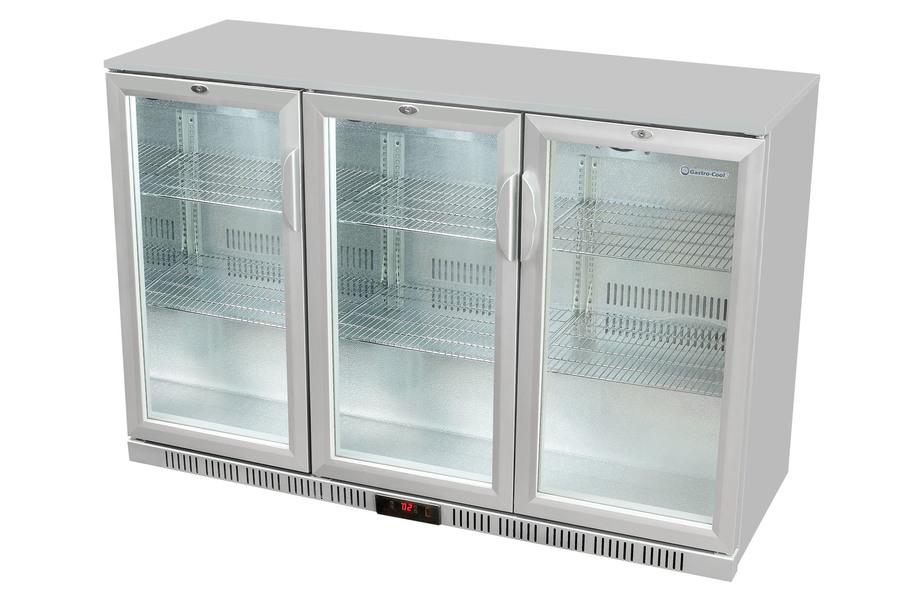

Under counter fridge GCUC300 During busy periods in the catering trade, you need to have plenty of well-chilled drinks to hand. With the 330 litre under-counter refrigerator, you have cold drinks quickly to hand and there are no waiting times. There is no need for time-consuming trips to the storage room. Three hinged doors made of double safety glass are self-closing, so that several service staff can work behind the counter at the same time without any problems. The temperature range is between 2 and 10 degrees. Equipment Self-closing glass hinged doors Interior lighting Digital temperature display/control 6 height-adjustable mesh shelves Lock Technical specifications Volume (net): 313l Volume (gross): 330l Bottle capacity: 256 bottles 0.33 l / 120 bottles 0.5 l / 90 bottles 0.7 l Can capacity: 441 cans 0.25 l / 270 cans 0.33 l / 380 cans 0.33 l slim / 225 cans 0.5 l HxWxD (outside): 90 x 135 x 52 cm HxWxD (inside): 75 x 127 x 42 cm Weight (gross): 80 kg Climate class: N-ST Energy consumption: 2.5 kWh/24h Electrical connection: 220-240V / 50 Hz / 350W Certificates: CE, RoHS Coolant: CFC-free Temperature range: from 0°C to 10°C The appliance is supplied without contents, the picture with the drinks is only a preview.
