External dimensions in mm (W/D/H) . . . . . . . . . . . . . . 600/644/1990 Internal dimensions in mm (W/D/H) . . . . . . . . . . . . . . . 500/507/1622 Energy consumption 24 h . . . . . . . . . . .. . . . . . 2.0 kWh General Cooling system . . . . . . . . . . . . . . . . dynamic Defrosting process . . . . . . . . . . . . . automatic Temperature range . . . . . . . . . . .+2° C to +12° C Housing material/colour . . . . . . steel/white Door/lid material . . . . . . . . .insulating glass door Material inner container . . . . . . . .plastic white Type of control . . . . . . . . . . . Meschan control Temperature display . . . . . . . . . .inside analogue LED interior lighting Longitudinal lighting, can be switched in parallel to the display adjustable shelves . . . .5 Material shelves . . . . . . .shelves plastic-coated Load capacity of shelves . . 45 kg Handle . . . . . . . . .. . . . . . . . . .. . Ergonomic bar handle Lock . . . . . . . . . . . . . . . . . . available Self-closing door . . . . . Yes Door hinge . . . . . . . . . . . . . . .right, interchangeable Gross/net weight . . . . . . . .103.5 / 94.1 kg Climate class . . . . . . . . . . . . . . . SN Refrigerant . . . . . . . . . . . . . . . . R 600a Connected load . . . . . . . . . . . . .3.0 A/290 W Frequency/voltage . . . . . .. . . 50 Hz/220-240 V

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 290/275 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . 600/600/1450 packed in mm (W/D/H) . . . . . . . . . . . . . . . . . . 650/640/1500 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . 2.05 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 160 W German safety regulations . . . . . . . . . . . . . . . . . . . CE Glass door / Adjustable front feet / Interchangeable door hinges Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 litres Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 kg External dimensions in mm (W/D/H) . . . . . . . . . . . . . . . 420/460/790 Internal dimensions in mm (W/D/H) . . . . . . . . . . . . . . . . 335/305/505 Energy consumption 24 hours . . . . . . . . . . . . . . . . . . . . . . 0.8 kWh Connected load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 W Frequency / voltage . . . . . . . . . . . . . . . . . . . . 50 Hz / 230 V General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Climate class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N Safety regulations, certificates . . . . . . . . . . . .CE, RoHS CFC/PFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . free Equipment Interior lighting, double glass door made of safety glass, illuminated display, 3 adjustable wire shelves, temperature control, plastic frame, adjustable feet. chrome,

Draft beer fridge BK160, beer keg fridge, beer fridge Draft beer fridge for 50 litre beer kegs, always serve your guests a cool, freshly tapped beer. The beer keg refrigerator cools beer kegs up to a size of 50 litres KEG and has a cooling range of 2 to 8 degrees. The door is made of high-quality stainless steel and a sturdy steel plate is incorporated into the base. The beer refrigerator has a Co2 bottle holder, the Co2 line can be fed through a hole to the outside of the Co2 bottle bottle through a hole. Please note that this item is only the beer keg refrigerator. The complete Beer bar with fridge is also available as a complete beer dispenser set.This beer dispenser is ideal for private use, small catering establishments and trade fairs. Technical data Volume (net): 163 l Volume (gross): 172 l HxWxD (outside): 89.5 x 62 x 61 cm HxWxD (inside): 72 x 53.5 x 48 cm Weight (gross): 47 kg Weight (net): 43 kg Climate class: N Energy consumption: 0.5 kWh/24h Electrical connection: 220-240V / 50Hz / 85W Certificates: CE, RoHS Coolant: CFC- & HFC-free Temperature range: from 2°C to 8°C Automatic defrosting For beer KEGs from 10 to 50 litres Total height with railing and wheels=97 cm Height of railing=6 cm Height of castors=2.5 cm Hole for tapping system=4 cm Plinth height=18 cm Adjustable front feet Interchangeable door hinges Equipment Temperature control, digital temperature display, chrome-plated railing, incl. drip tray Drum size: 10, 20, 30, 50 litres Storage shelves / adjustable 2 / castors front and rear included, can be used optionally Cannot be placed underneath! Please ensure sufficient ventilation. NOT included in the scope of delivery: Beer keg, dispensing column, pressure reducer, Co2 bottle, bottle holder, tap

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 350/320 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . . 600/600/1730 packed in mm (W/D/H/) . . . . . . . . . . . . . . . . . 650/640/1790 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . . 2.14 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 230 W German safety regulations . . . . . . . . . . . . . . TÜV / CE Glass door / Adjustable front feet / Door hinges can be changed Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 350/320 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . . 600/600/1730 packed in mm (W/D/H) . . . . . . . . . . . . . . . . . . 650/640/1790 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . . 2.14 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . . 0° C to +10° C Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 kg Electrical connection . . . . . . . . 220-240 V / 50 Hz / 230 W German safety regulations . . . . . . . . . . . . . . . . . . . CE Double glass door / Adjustable front feet / Door hinges can be changed Equipment Interior lighting, recirculation fan, Adjustable grids, automatic defrosting

Gross / net content . . . . . . . . . . . . . . . . . . . . . . 350/330 litres unpacked in mm (W/D/H) . . . . . . . . . . . . . . . . 600/600/1730 packed in mm (W/D/H) . . . . . . . . . . . . . . . . . .650/640/1780 Energy consumption 24 h . . . . . . . . . . . . . . . . . . . . . . . . 1.5 kWh General Temperature range . . . . . . . . . . . . . . . . . . . . +5° C to +12° C Climate class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N FCKW-/FKW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . free Depth with door open . . . . . . . . . . . . . . . . . . . . . . .110.0 cm Weight unpacked . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 kg Packed weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 kg Electrical connection . . . . . . . 220 - 240 V / 50 Hz / 210 W Safety regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . CE Insulating glass door / Adjustable front feet / Door hinges can be changed Equipment Interior lighting, adjustable wooden shelves 5/5, Automatic defrost Capacity 105 DIN 0.75 litre bottles

Glass door refrigerator GCKW65 LED Compact little cooling cube: Even when space is at a premium, Gastro-Cool offers you plenty of room for chilled beverage replenishment with this space miracle. The cooling cube L has a volume of 62 litres. It is the perfect solution when you need to keep enough chilled drinks ready for sale in the smallest of spaces. The cooling unit also scores with its stylish exterior. The integrated LED interior lighting puts the contents in the right light to promote sales. Please note that this appliance is only suitable for built-in installation to a limited extent. To ensure the appliance functions properly, at least 5 cm of space must be left at the sides and top. Features Available in silver, other colours on request Glass hinged door Interchangeable door hinges LED interior lighting Manual temperature control 3 height-adjustable storage shelves Lock Optional equipment Branding LED logo in door Lock Stainless steel version Special colours (from 200 pieces) Technical specifications Volume (net): 62 l Volume (gross): 68 l Bottle capacity: 30 bottles 0.33 l / 24 bottles 0.5 l / 16 bottles 0.7 l Can capacity: 86 cans 0.25 l / 65 cans 0.33 l / 60 cans 0.5 l External dimensions HxWxD: 61.5 x 43 x 48 cm Internal dimensions HxWxD: 54 x 36 x 39 cm Weight (gross): 24 kg Weight (net): 22 kg Climate class: N Energy consumption: 0.9 kWh / 24h Electrical connection: 220-240V / 50Hz / 85W Certificates: CE, RoHS Coolant: CFC- & HFC-free Temperature range: from 2°C to 10°C

Drum refrigerator for 50 litre standard or KEG drums, 3 height-adjustable shelves and 1 base shelf. Mechanical thermostat, with digital temperature display on the outside of the appliance. Gross / usable capacity . . . . . . . . . . . . . . . . . . . . . . . 180/160 litres External dimensions in mm (W/D/H) 602/600/850 (820 without worktop) Internal dimensions in mm (W/D/H) . . . . . . . . . . . . . . . . . 513/433/702 Energy consumption 24 hours . . . . . . . . . . . . . . . . . . . . . . 0.9 kWh General Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . static Defrosting process . . . . . . . . . . . . . . . . . . . . . . . . . automatically Temperature range . . . . . . . . . . . . . . . . . . . . . +2° C to +10° C Door/lid material . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Type of control . . . . . . . . . . . . . . . mechanical control Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . Light bulb Lock . . . . . . . . . . . . . . . . . . . . . . . . . available Door stop . . . . . . . . . . . . . . . . . . . . right changeable Gross weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 kg Climate class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SN Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R600a Connected load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 W Frequency / voltage . . . . . . . . . . . . . . . . 50 Hz / 220-240 V

- Minibar with absorber technology - lockable full-door version - door hinge right, interchangeable - standard colour black - standard equipment with adjustable shelf - energy-saving, bright LED interior lighting - noiseless operation - thermostat with 6 cooling levels - maintenance-friendly operation with .automatic switch-off Weight gross / net . . . . . . . . . . . . . . . . . 15 kg / 13.5 kg External dimensions in mm (W/D/H) . . . . . . . . . . . . . . . 400/420/500 Internal dimensions in mm (W/D/H) . . . . . . . . . . . . . . . . . 331/215/405 Gross content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 l Net content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 l Display area . . . . . . . . . . . . . 1 Support grid, grey rilsanised Energy consumption 24 hours . . . . . . . . . . . . . . . . . . . . . 0.75 kWh Connected load . . . . . . . . . . . . . . . . . . . . . . . 60 W / 230 V General: Temperature range . . . . . . . . . . . +2 to +12 °C to 25 °C UT . . . . . . . . . . . . . . . . . . . . . . . . and 60 % RF Climate class . . . . . . . . . . . . . . . . . . . N (+16 to +32 °C) Refrigerant/volume . . . . . . . . . . . . . . . . . . . . . . . . NH3 / 70 g Panelling: outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . black inside . . . . . . . . . . . . . . . . . . . . . Plastic, grey Equipment: With 1 full door, 1 support grid and LED lighting

Decorative frame white

Stainless steel base with CO2 holder

Decorative frame Aluminium

Spare parts & accessories Helsinki bottle insert

Spare parts & accessories Glass insert

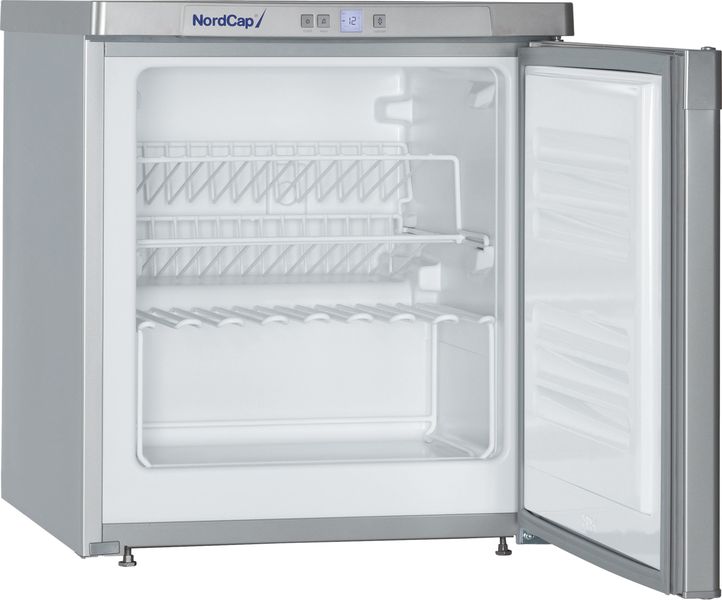

Spirits freezer box HELSINKI - HELSINKI freezer box with silent cooling - Exterior colour silver, impact and shock resistant, powder-coated. - deep-drawn inner container without dirt gaps - door with robust recessed handle, magnetic seal and door hinge on the right, reversible - electronic control with digital display on the outside of the front panel - on/off switch, operating light and separately switchable temperature alarm - manual defrost - 2 adjustable feet (+25 mm) at the front HELSINKI - S=exterior colour silver Gross capacity . . . . . . . . . . . . . . . . . . . . . . . 70 litres Net capacity . . . . . . . . . . . .. . . . . . . . . . . . 69 litres External dimensions in mm (W/D/H) . . . . . . . . . . . 553/611-624/631 Energy consumption 24 h . . . . . . . . . . . . . 0.35 kWh General Temperature range . . . . . .. . . . . . . . . . . +10° C to +32° C Outer panelling . . . . . . . . . . . . . . . . . silver Interior panelling . . . . ABS plastic in white (RAL 9003) Gross weight . . . . . . . . . . . . . . . . . . . . 32.5 kg Refrigerant . . . . . . . . . . . . . . . . . . . . .. . R 600 a Connected load . . . . . . . . . . . . . . . . . . . 90 W / 230 V Volume content Max. Storage temperature 15% . . . . . . . . . . . . . . . . . . . . . . . . . . . -5.0oC 20% . . . . . . . . . . . . . . . . . . . . . . . . . . . -7.5oC 25% . . . . . . . . . . . . . . . . . . . . . . . . . . . -11.0oC 30% . . . . . . . . . . . . . . . . . . . . . . . . . . . -15.0oC 32% . . . . . . . . . . . . . . . . . . . . . . . . . . . -16.0oC 38% . . . . . . . . . . . . . . . . . . . . . . . . . . . -21.0oC 40% . . . . . . . . . . . . . . . . . . . . . . . . . . . -22.0oC 50% . . . . . . . . . . . . . . . . . . . . . . . . . . . -30.0oC

Under counter fridge GCUC200 With external dimensions of 90 x 90 x 52 cm, the under-counter refrigerator requires little floor space, fits under almost any counter with its low height of just 90 cm - and still holds over 200 litres. Drinks are at drinking temperatures of between 2 and 10 degrees within a very short time. As the heat is dissipated to the front, there is no heat build-up. Even in darkened rooms, working with the appliances is very easy thanks to the integrated interior lighting. Thanks to the safety glass, the drinks are clearly visible and quickly to hand when ordering. Technical data Volume (net): 202 l Volume (gross): 208 l Bottle capacity: 172 bottles 0.33 l / 80 bottles 0.5 l / 60 bottles 0.7 l Can capacity: 294 cans 0.25 l / 180 cans 0.33 l / 254 cans 0.33 l slim / 150 cans 0.5 l External dimensions HxWxD: 90 x 90 x 52 cm Internal dimensions HxWxD: 75 x 82 x 38 cm Weight (gross): 66 kg Weight (net): 62 kg Climate class: N-ST Energy consumption: 2.2 kWh/24h Electrical connection: 220-240V / 50 Hz / 230W Certificates: CE, RoHS Coolant: CFC- & HFC-free Temperature range: from 0°C to 10°C Features Self-closing glass hinged doors Interior lighting Digital temperature display/control 4 height-adjustable mesh shelves

Under counter fridge GCUC300 During busy periods in the catering trade, you need to have plenty of well-chilled drinks to hand. With the 330 litre under-counter refrigerator, you have cold drinks quickly to hand and there are no waiting times. There is no need for time-consuming trips to the storage room. Three hinged doors made of double safety glass are self-closing, so that several service staff can work behind the counter at the same time without any problems. The temperature range is between 2 and 10 degrees. Equipment Self-closing glass hinged doors Interior lighting Digital temperature display/control 6 height-adjustable mesh shelves Lock Technical specifications Volume (net): 313l Volume (gross): 330l Bottle capacity: 256 bottles 0.33 l / 120 bottles 0.5 l / 90 bottles 0.7 l Can capacity: 441 cans 0.25 l / 270 cans 0.33 l / 380 cans 0.33 l slim / 225 cans 0.5 l HxWxD (outside): 90 x 135 x 52 cm HxWxD (inside): 75 x 127 x 42 cm Weight (gross): 80 kg Climate class: N-ST Energy consumption: 2.5 kWh/24h Electrical connection: 220-240V / 50 Hz / 350W Certificates: CE, RoHS Coolant: CFC-free Temperature range: from 0°C to 10°C The appliance is supplied without contents, the picture with the drinks is only a preview.

Wine refrigerator GCWK115 With the visually appealing GCWK115 wine refrigerator, wines are stored appropriately and brought to the optimum drinking temperature. Wine connoisseurs and amateur sommeliers can recognise whether a wine is served at the right drinking temperature as soon as they take their first sip. Accordingly, a wine refrigerator or wine temperature control cabinet is a must in every catering establishment. This is the only place where wines are stored ready to drink for several months. To ensure that the red or white wine is not only stored correctly but also attractively, the 115-litre wine refrigerator has an insulated glass door and interior lighting. This allows the wine selection to be viewed at all times. Other convenient features of the temperature control cabinet are the digital temperature control and the 3 adjustable chrome-plated shelves. This means that the interior can be customised to suit individual wine storage requirements. The door hinges on the GCWK115 wine refrigerator can also be easily changed. In future, you too can serve your wine at the perfect drinking temperature! Features Insulated glass door Interior lighting Digital temperature control 4 chrome-plated shelves / 3 adjustable Housing : black Door frame : silver Automatic defrosting process Door hinge changeable Bar handle Technical data Volume (net): 115 l Bottle capacity: 59 bottles 0.7 l HxWxD (outside): 84 x 50 x 59 cm Weight (gross): 27 kg Weight (net): 25 kg Climate class: N Energy consumption: 0.7 kWh/24h Electrical connection: 220-240V / 50Hz / 110W Certificates: CE Coolant: R600a, CFC- & HFC-free Temperature range: from 7°C to 15°C
